The design of the UCPA series ball Bearing unit also has a certain degree of self-aligning, easy to install, with double structure sealing device, which can work in harsh environment. UCPA bearing block is generally cast. Other common types of bearing housing are UCP, UCF, UCFS, UCFC, UCFL, UCT etc.

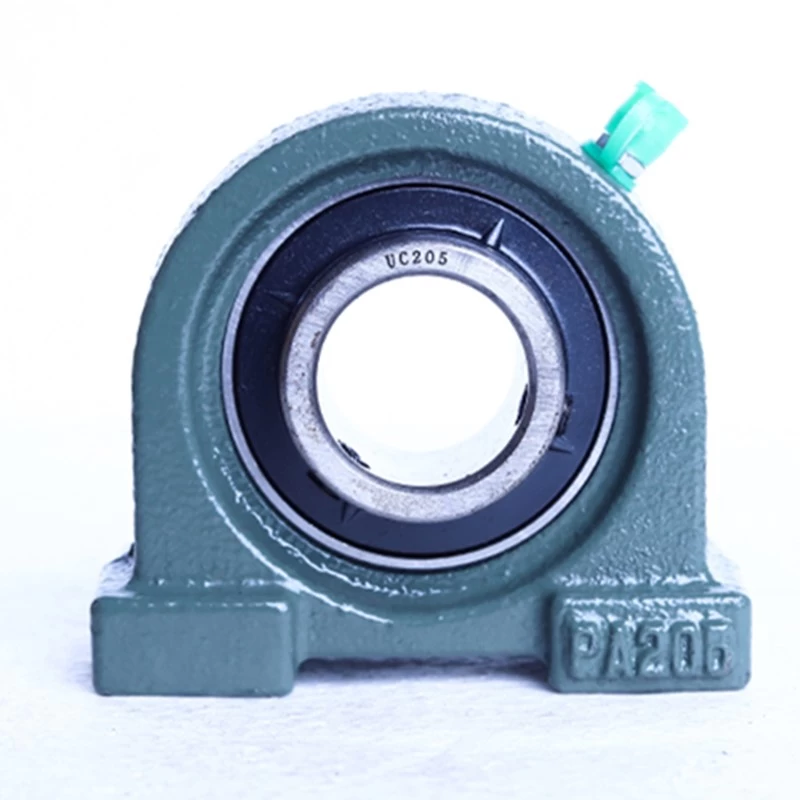

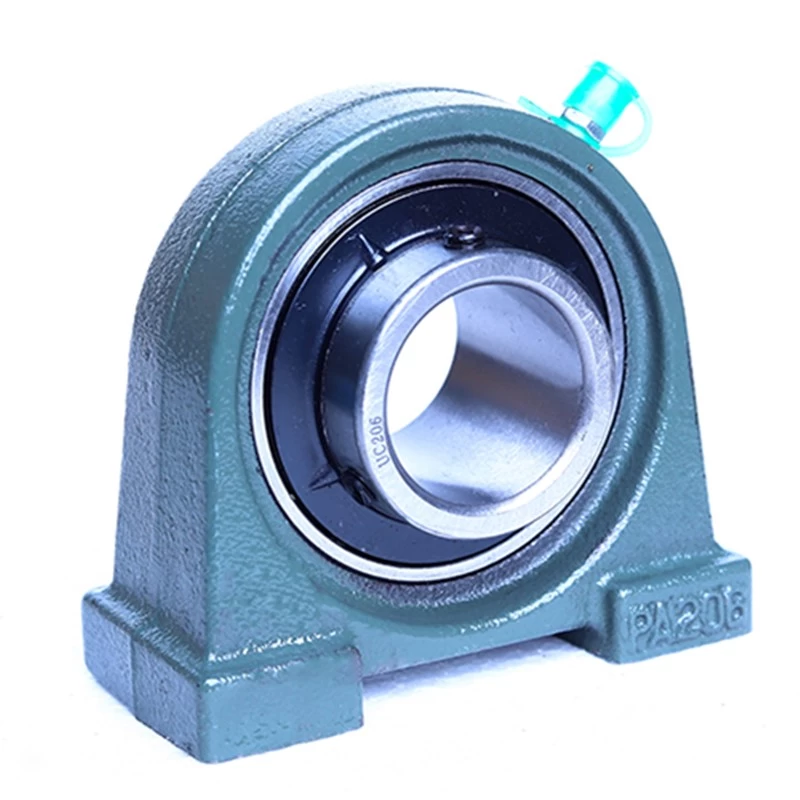

The shape of UCPA pillow block is close to that of UCP bearing with housing. The two bearing units are installed with the same pillow block bearing. The block of UCPA is shorter than that of UCP, which is mainly used in places with limited installation space.
UCPA bearing pillow block we can provide cast iron material, with bearing steel material pillow block bearing, mainly used for general mechanical equipment, agricultural machinery, etc
It can also produce stainless steel pillow block and plastic bearing block, which are mainly matched with stainless steel outer spherical bearing, with the characteristics of waterproof, antirust and corrosion resistance, mainly used in food processing and chemical equipment, etc.
|
Unit NO.
|

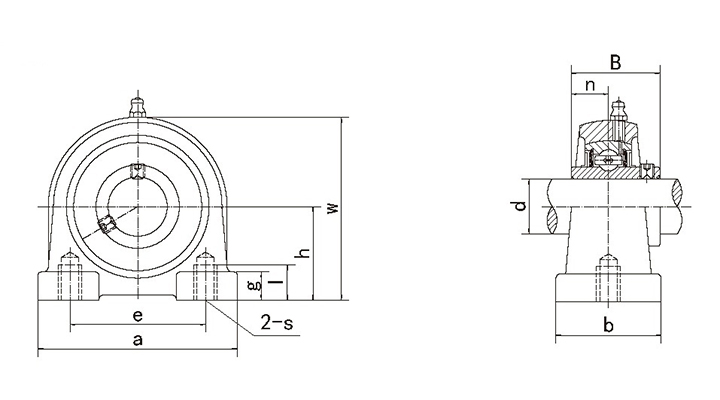

Dimensions(mm/in.)
|
Bolt Size mm/in.
|
Bearing NO.
|
Housing NO.
|
Weight
(kg)
|
|
d
|
h
|
a
|
e
|
b
|
s
|
g
|
l
|
w
|
B
|
n
|
|
UCPA201
|
12
|
30.2
|
76
|
52
|
40
|
M10
|
11
|
15
|
62
|
31
|
12.7
|
M10
|
UC201
|
PA201
|
0.63
|
|
UCPA 201-8
|
1/2
|
1-3/16
|
3
|
2-3/64
|
1-9/16
|
M10
|
7/16
|
19/32
|
2-7/16
|
1.2205
|
0.5
|
M10
|
UC201-8
|
PA201
|
0.62
|
|
UCPA202
|
15
|
1-3/16
|
3
|
2-3/64
|
1-9/16
|
M10
|
7/16
|
19/32
|
2-7/16
|
1.2205
|
0.5
|
M10
|
UC202
|
PA202
|
0.62
|
|
UCPA 202-9
|
9/16
|
1-3/16
|
3
|
2-3/64
|
1-9/16
|
M10
|
7/16
|
19/32
|
2-7/16
|
1.2205
|
0.5
|
M10
|
UC202-9
|
PA202
|
0.62
|
|
UCPA 202-10
|
5/8
|
1-3/16
|
3
|
2-3/64
|
1-9/16
|
M10
|
7/16
|
19/32
|
2-7/16
|
1.2205
|
0.5
|
M10
|
UC202-10
|
PA202
|
0.62
|
|
UCPA203
|
17
|
1-3/16
|
3
|
2-3/64
|
1-9/16
|
M10
|
7/16
|
19/32
|
2-7/16
|
1.2205
|
0.5
|
M10
|
UC203
|
PA203
|
0.61
|
|
UCPA 203-11
|
11/16
|
1-3/16
|
3
|
2-3/64
|
1-9/16
|
M10
|
7/16
|
19/32
|
2-7/16
|
1.2205
|
0.5
|
M10
|
UC203-11
|
PA203
|
0.6
|
|
UCPA204
|
20
|
1-3/16
|
3
|
2-3/64
|
1-9/16
|
M10
|
7/16
|
19/32
|
2-7/16
|
1.2205
|
0.5
|
M10
|
UC204
|
PA204
|
0.589
|
|
UCPA 204-12
|
3/4
|
1-3/16
|
3
|
2-3/64
|
1-9/16
|
M10
|
7/16
|
19/32
|
2-7/16
|
1.2205
|
0.5
|
M10
|
UC204-12
|
PA204
|
0.589
|
|
UCPA205
|
25
|
36.5
|
84
|
56
|
38
|
M10
|
12
|
15
|
72
|
34.1
|
14.3
|
M10
|
UC205
|
PA205
|
0.756
|
|
UCPA 205-13
|
13/16
|
1-7/16
|
3-5/16
|
2-13/64
|
1-1/2
|
M10
|
15/32
|
19/32
|
2-53/64
|
1.3425
|
0.563
|
M10
|
UC205-13
|
PA205
|
0.793
|
|
UCPA 205-14
|
7/8
|
1-7/16
|
3-5/16
|
2-13/64
|
1-1/2
|
M10
|
15/32
|
19/32
|
2-53/64
|
1.3425
|
0.563
|
M10
|
UC205-14
|
PA205
|
0.783
|
|
UCPA 205-15
|
15/16
|
1-7/16
|
3-5/16
|
2-13/64
|
1-1/2
|
M10
|
15/32
|
19/32
|
2-53/64
|
1.3425
|
0.563
|
M10
|
UC205-15
|
PA205
|
0.763
|
|
UCPA 205-16
|
1
|
1-7/16
|
3-5/16
|
2-13/64
|
1-1/2
|
M10
|
15/32
|
19/32
|
2-53/64
|
1.3425
|
0.563
|
M10
|
UC205-16
|
PA205
|
0.753
|
|
UCPA206
|
30
|
42.9
|
94
|
66
|
50
|
M14
|
12
|
18
|
84
|
38.1
|
15.9
|
M14
|
UC206
|
PA206
|
1.116
|
|
UCPA 206-17
|
1-1/16
|
1-11/16
|
3-45/64
|
2-19/32
|
1-31/32
|
M14
|
15/32
|
45/64
|
3-5/16
|
1.5
|
0.626
|
M14
|
UC206-17
|
PA206
|
1.126
|
|
UCPA 206-18
|
1-1/8
|
1-11/16
|
3-45/64
|
2-19/32
|
1-31/32
|
M14
|
15/32
|
45/64
|
3-5/16
|
1.5
|
0.626
|
M14
|
UC206-18
|
PA206
|
1.136
|
|
UCPA 206-19
|
1-3/16
|
1-11/16
|
3-45/64
|
2-19/32
|
1-31/32
|
M14
|
15/32
|
45/64
|
3-5/16
|
1.5
|
0.626
|
M14
|
UC206-19
|
PA206
|
1.116
|
|
UCPA 206-20
|
1-1/4
|
1-11/16
|
3-45/64
|
2-19/32
|
1-31/32
|
M14
|
15/32
|
45/64
|
3-5/16
|
1.5
|
0.626
|
M14
|
UC206-20
|
PA206
|
1.106
|
|
UCPA207
|
35
|
47.6
|
110
|
80
|
55
|
M14
|
13
|
20
|
95
|
42.9
|
17.5
|
M14
|
UC207
|
PA207
|
1.546
|
|
Unit NO.
|
Dimensions(mm/in.)
|
Bolt Size mm/in.
|
Bearing NO.
|
Housing NO.
|
Weight
(kg)
|
|
d
|
h
|
a
|
e
|
b
|
s
|
g
|
l
|
w
|
B
|
n
|
|
|
|
|
|
UCPA 207-20
|
1-1/4
|
1-7/8
|
4-21/64
|
3-5/32
|
2-11/64
|
M14
|
33/64
|
25/32
|
3-47/64
|
1.689
|
0.689
|
M14
|
UC207-20
|
PA207
|
1.611
|
|
UCPA 207-21
|
1-5/16
|
1-7/8
|
4-21/64
|
3-5/32
|
2-11/64
|
M14
|
33/64
|
25/32
|
3-47/64
|
1.689
|
0.689
|
M14
|
UC207-21
|
PA207
|
1.581
|
|
UCPA 207-22
|
1-3/8
|
1-7/8
|
4-21/64
|
3-5/32
|
2-11/64
|
M14
|
33/64
|
25/32
|
3-47/64
|
1.689
|
0.689
|
M14
|
UC207-22
|
PA207
|
1.551
|
|
UCPA 207-23
|
1-7/16
|
1-7/8
|
4-21/64
|
3-5/32
|
2-11/64
|
M14
|
33/64
|
25/32
|
3-47/64
|
1.689
|
0.689
|
M14
|
UC207-23
|
PA207
|
1.521
|
|
UCPA208
|
40
|
49.2
|
116
|
84
|
58
|
M14
|
13
|
20
|
100
|
49.2
|
19
|
M14
|
UC208
|
PA208
|
1.798
|
|
UCPA 208-24
|
1-1/2
|
1-15/16
|
4-9/16
|
3-5/16
|
2-9/32
|
M14
|
33/64
|
25/32
|
3-15/16
|
1.937
|
0.748
|
M14
|
UC208-24
|
PA208
|
1.838
|
|
UCPA 208-25
|
1-9/16
|
1-15/16
|
4-9/16
|
3-5/16
|
2-9/32
|
M14
|
33/64
|
25/32
|
3-15/16
|
1.937
|
0.748
|
M14
|
UC208-25
|
PA208
|
1.808
|
|
UCPA209
|
45
|
54.2
|
120
|
90
|
60
|
M14
|
13
|
25
|
108
|
49.2
|
19
|
M14
|
UC209
|
PA209
|
2.053
|
|
UCPA 209-26
|
1-5/8
|
2-9/64
|
4-23/32
|
3-35/64
|
2-23/64
|
M14
|
33/64
|
63/64
|
4-1/4
|
1.937
|
0.748
|
M14
|
UC209-26
|
PA209
|
2.153
|
|
UCPA 209-27
|
1-11/16
|
2-9/64
|
4-23/32
|
3-35/64
|
2-23/64
|
M14
|
33/64
|
63/64
|
4-1/4
|
1.937
|
0.748
|
M14
|
UC209-27
|
PA209
|
2.113
|
|
UCPA 209-28
|
1-3/4
|
2-9/64
|
4-23/32
|
3-35/64
|
2-23/64
|
M14
|
33/64
|
63/64
|
4-1/4
|
1.937
|
0.748
|
M14
|
UC209-28
|
PA209
|
2.073
|
|
UCPA210
|
50
|
57.2
|
130
|
94
|
64
|
M16
|
14
|
25
|
116
|
51.6
|
19
|
M16
|
UC210
|
PA210
|
2.556
|
|
UCPA 210-29
|
1-13/16
|
2-1/4
|
5-1/8
|
3-45/64
|
2-33/64
|
M16
|
35/64
|
63/64
|
4-9/16
|
2.0315
|
0.748
|
M16
|
UC210-29
|
PA210
|
2.676
|
|
UCPA 210-30
|
1-7/8
|
2-1/4
|
5-1/8
|
3-45/64
|
2-33/64
|
M16
|
35/64
|
63/64
|
4-9/16
|
2.0315
|
0.748
|
M16
|
UC210-30
|
PA210
|
2.626
|
|
UCPA 210-31
|
1-15/16
|
2-1/4
|
5-1/8
|
3-45/64
|
2-33/64
|
M16
|
35/64
|
63/64
|
4-9/16
|
2.0315
|
0.748
|
M16
|
UC210-31
|
PA210
|
2.576
|
|
UCPA 210-32
|
2
|
2-1/4
|
5-1/8
|
3-45/64
|
2-33/64
|
M16
|
35/64
|
63/64
|
4-9/16
|
2.0315
|
0.748
|
M16
|
UC210-32
|
PA210
|
2.536
|
|
UCPA211
|
55
|
63.5
|
140
|
104
|
66
|
M16
|
14
|
25
|
125
|
55.6
|
22.2
|
M16
|
UC211
|
PA211
|
3.138
|
|
UCPA 211-32
|
2
|
2-1/2
|
5-33/64
|
4-3/32
|
2-19/32
|
M16
|
35/64
|
63/64
|
4-59/64
|
2.189
|
0.874
|
M16
|
UC211-32
|
PA211
|
3.288
|
|
UCPA 211-33
|
2-1/16
|
2-1/2
|
5-33/64
|
4-3/32
|
2-19/32
|
M16
|
35/64
|
63/64
|
4-59/64
|
2.189
|
0.874
|
M16
|
UC211-33
|
PA211
|
3.228
|
|
UCPA 211-34
|
2-1/8
|
2-1/2
|
5-33/64
|
4-3/32
|
2-19/32
|
M16
|
35/64
|
63/64
|
4-59/64
|
2.189
|
0.874
|
M16
|
UC211-34
|
PA211
|
3.188
|
|
Unit NO.
|
Dimensions(mm/in.)
|
Bolt Size mm/in.
|
Bearing NO.
|
Housing NO.
|
Weight(kg)
|
|
d
|
h
|
a
|
e
|
b
|
s
|
g
|
l
|
w
|
B
|
n
|
|
|
|
|
|
UCPA 211-35
|
2-3/16
|
2-1/2
|
5-33/64
|
4-3/32
|
2-19/32
|
M16
|
35/64
|
63/64
|
4-59/64
|
2.189
|
0.874
|
M16
|
UC211-35
|
PA211
|
3.118
|
|
UCPA212
|
60
|
69.9
|
150
|
114
|
68
|
M16
|
15
|
25
|
138
|
65.1
|
25.4
|
M16
|
UC212
|
PA212
|
4.12
|
|
UCPA 212-36
|
2-1/4
|
2-3/4
|
5-29/32
|
4-31/64
|
2-43/64
|
M16
|
19/32
|
63/64
|
5-7/16
|
2.563
|
1
|
M16
|
UC212-36
|
PA212
|
4.25
|
|
UCPA 212-37
|
2-5/16
|
2-3/4
|
5-29/32
|
4-31/64
|
2-43/64
|
M16
|
19/32
|
63/64
|
5-7/16
|
2.563
|
1
|
M16
|
UC212-37
|
PA212
|
4.17
|
|
UCPA 212-38
|
2-3/8
|
2-3/4
|
5-29/32
|
4-31/64
|
2-43/64
|
M16
|
19/32
|
63/64
|
5-7/16
|
2.563
|
1
|
M16
|
UC212-38
|
PA212
|
4.1
|
|
UCPA 212-39
|
2-7/16
|
2-3/4
|
5-29/32
|
4-31/64
|
2-43/64
|
M16
|
19/32
|
63/64
|
5-7/16
|
2.563
|
1
|
M16
|
UC212-39
|
PA212
|
4.03
|
|
UCPA213
|
65
|
76.2
|
160
|
124
|
70
|
M16
|
15
|
25
|
150
|
65.1
|
25.4
|
M16
|
UC213
|
PA213
|
4.915
|
|
UCPA 213-40
|
2-1/2
|
3
|
6-19/64
|
4-7/8
|
2-3/4
|
M16
|
19/32
|
63/64
|
5-29/32
|
2.563
|
1
|
M16
|
UC213-40
|
PA213
|
5.005
|
|
UCPA 213-41
|
2-9/16
|
3
|
6-19/64
|
4-7/8
|
2-3/4
|
M16
|
19/32
|
63/64
|
5-29/32
|
2.563
|
1
|
M16
|
UC213-41
|
PA213
|
4.915
|
