UF 2300 Fixed Integrated Ultrasonic Flow Meter

The fixed host is divided into two types: fixed one type ultrasonic flowmeter host and fixed split type ultrasonic flowmeter host.

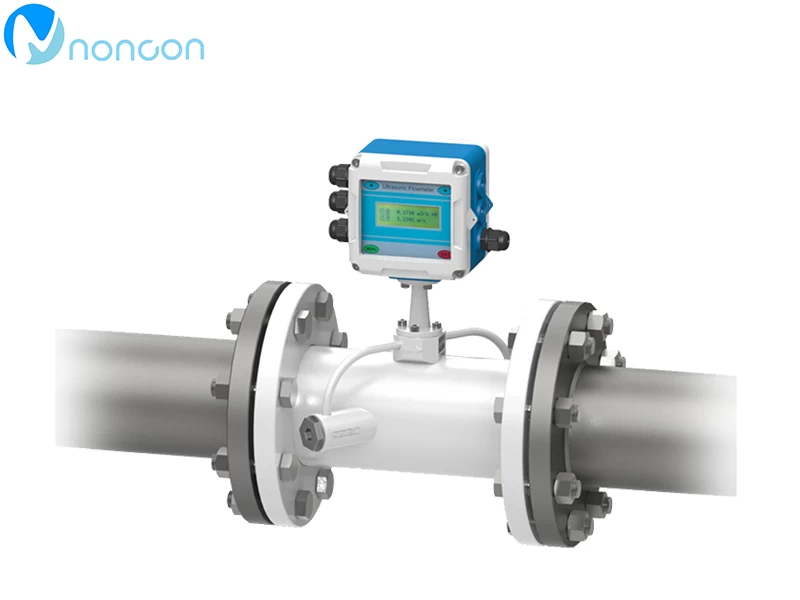

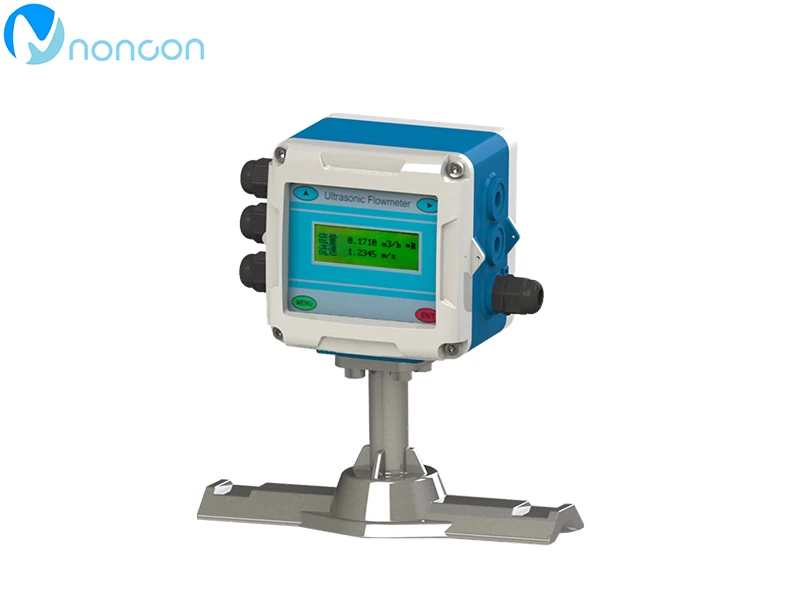

UF 2300G fixed integrated ultrasonic flowmeter

Fixed integrated ultrasonic flowmeter

Fixed all-in-one functional ultrasonic flowmeter is widely used in the online flow measurement of various liquids in the industrial field. The main machine and sensors are installed in the measurement pipeline, with high protection level up to IP68.Simple operation, can be used in the host bar to complete the menu operation.

Project

Performance parameter

Precision

±1%;

Optional sensor

External clamp type, bracket type, temperature sensor (heat measurement);

Signal input

3 channels 4~20mA input;

Signal output

1-channel 4-20ma (non-standard), 1-channel OCT, 1-channel relay output;

Data interface

RS485 serial interface isolation, support MODBUS(ASCII/RTU) manufacturers own protocol;

Power supply

DC24V;

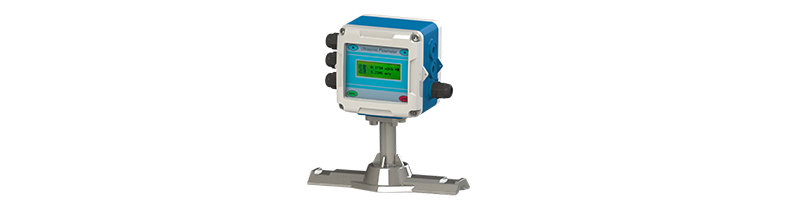

Fixed integrated ultrasonic flowmeter 2

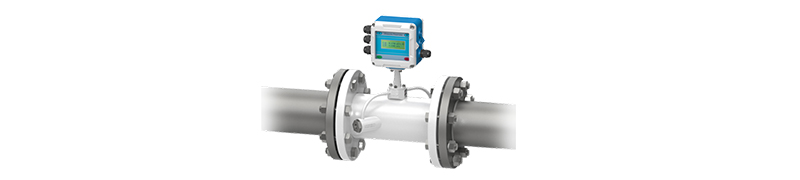

                                                                        Fixed integrated ultrasonic flowmeter

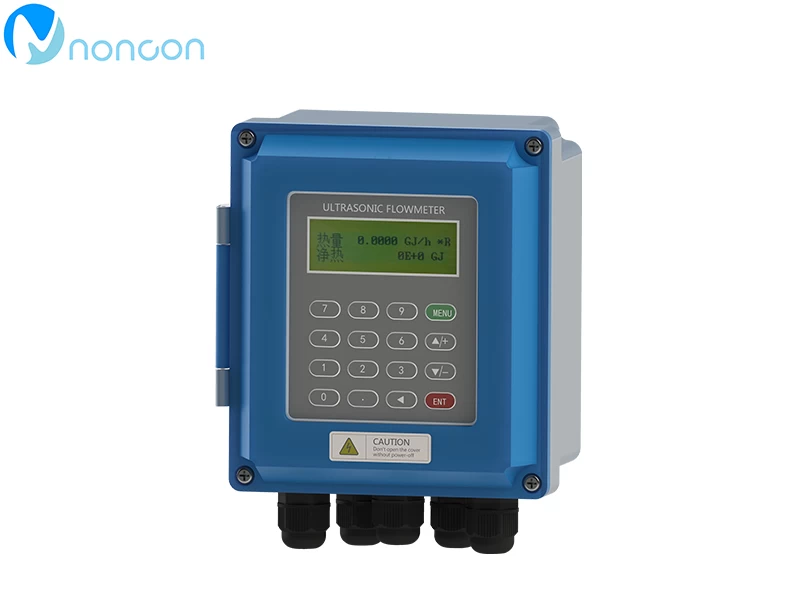

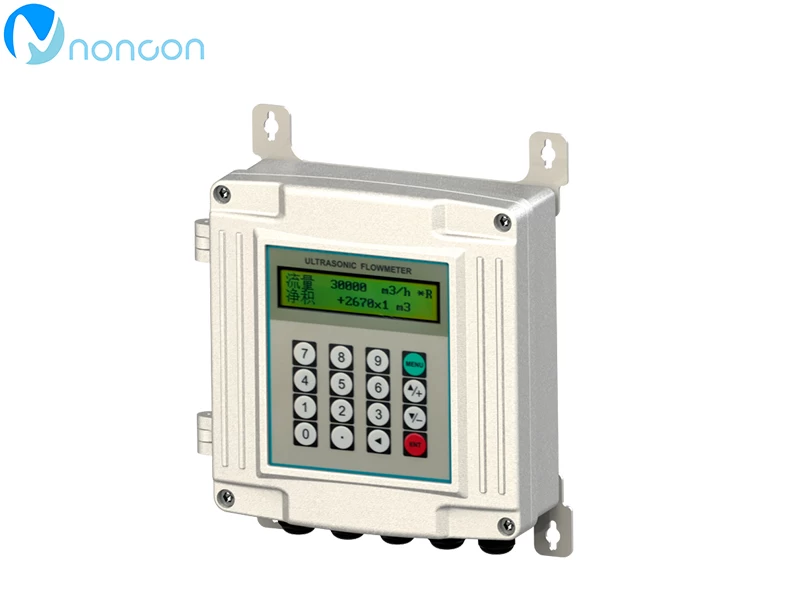

UF 2300F fixed split-type ultrasonic flowmeter

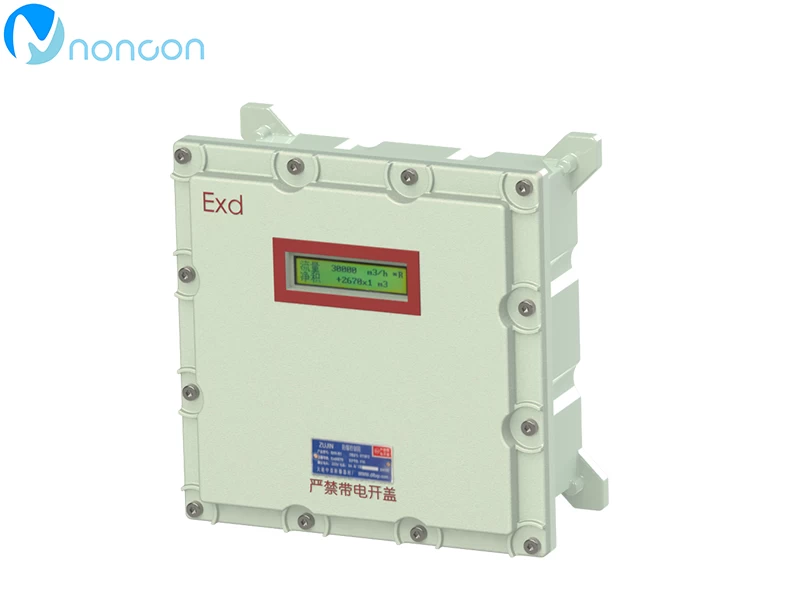

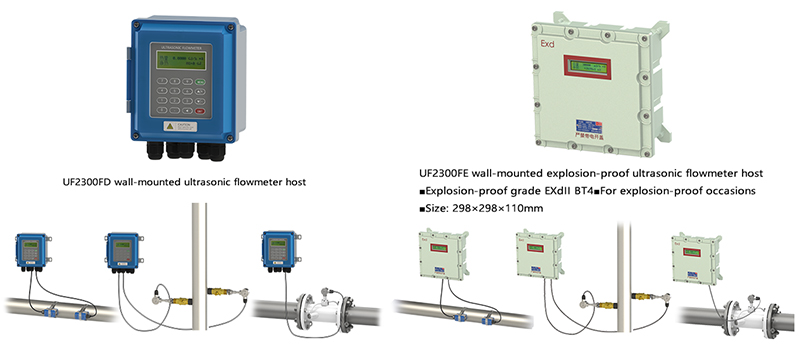

The fixed split-type ultrasonic flowmeter is widely used in the online flow measurement of various liquids in the industrial field. The main machine is divided into wall-mounted type, disk-mounted type and explosion-proof type. The main machine is installed indoors and the sensor is installed at the measuring point.

Project

Performance parameter

Precision

±1%;

Optional sensor

External clamp type, bracket type, temperature sensor (heat measurement);

Signal input

3 channels 4~20mA input;

Signal output

1-channel 4-20ma (non-standard), 1-channel OCT, 1-channel relay output;

Data interface

RS485 serial interface isolation, support MODBUS(ASCII/RTU) manufacturers own protocol;

Power supply

AC85~264 or DC24V

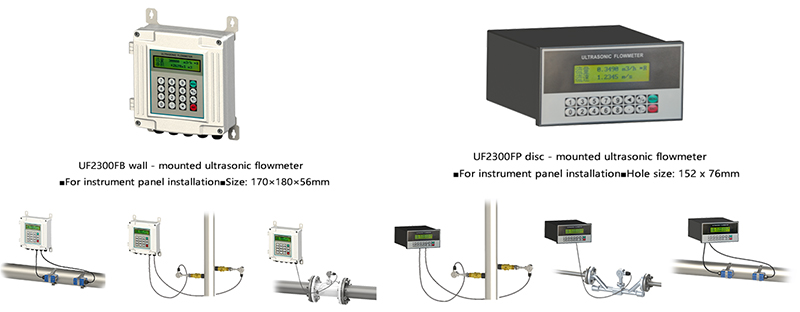

Fixed split-type ultrasonic flowmeter

Fixed split-type ultrasonic flowmeter 2
