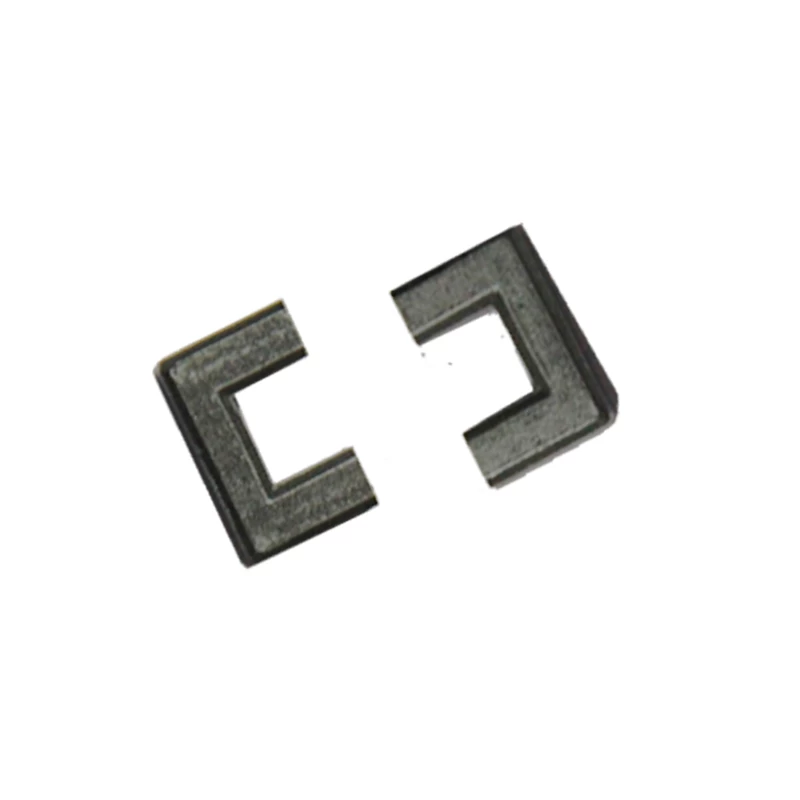

UF Electronic Transformer Ferrite Core, M10P/M7P/M5P/MP4 Material Core
UF cores and UI cores are similar to that of the "C" core, can take full advantage of grain orientation, UF ferrite cores has excellent heat dissipation, and enough space are available for lead wires.
Quick Details
|
Part Number: UF Series Ferrite Core |
Brand Name: MCT |
|
Material: Mn-Zn/Ni-Zn ferrite core |
Logo: Can be customized |
|
Type: Power core/High permeability core |
OEM: Available |
|
Applications: Split core current transformers,output transformers,choke coils |
MOQ: Any quantity |
|
Packing: Carton,can be customized |
Custom Made: Available |
|
Lead Time: 25 days after payment |
Certification: ISO9001,ROHS,CE |
Part Information
Product Name: UF Electronic Transformer Ferrite Core, M10P/M7P/M5P/MP4 Material Core
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Filter common mode transformers. Line transformers, liner filters. Color TV sets. Inverter welding machine. Plating Power Supply. Computers, monitors and other electronic equipment.
Advantages: Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Product Details
|
TYPE |
Dimension:mm |
Weight:g |
|||||
|
A |
B |
C |
D |
E |
F |
||
|
UF9.8 |
9.8±0.2 |
14.2±0.2 |
2.7±0.2 |
4.2±0.2 |
2.8±0.1 |
8.4±0.3 |
1.3 |
|
UF10.3 |
10.35max |
15.0±0.3 |
2.93±0.12 |
4.05min |
2.95±0.1 |
8.6+0.7 |
1.5 |
|
UF10.5 |
10.5±0.3 |
15.6±0.4 |
5.3±0.15 |
5.5±0.3 |
2.5±0.1 |
10.6±0.3 |
2.5 |
|
UF15 |
15.2±0.7 |
23.4-0.2 |
6.7-0.5 |
5.2±0.35 |
5.2±0.2 |
11.4+1.4 |
8.0 |
|
UF15.7 |
15.7±0.2 |
19.6±0.3 |
5.9±0.15 |
6.7±0.2 |
4.5±0.2 |
12.0±0.2 |
6.7 |
|
UF16 |
16.0±0.2 |
20.0±0.4 |
6.0±0.15 |
7.0-0.3 |
4.5±0.2 |
12.0±0.2 |
6.9 |
|
UF18 |
18.4+0.5 |
26.1±0.4 |
6.2±0.15 |
6.0+0.4 |
6.2+0.4 |
13.5+0.6 |
11.8 |
|
UF19 |
19.0±0.7 |
26.0±1.0 |
6.0±0.15 |
8.5±0.5 |
4.5±0.2 |
19.4±0.7 |
8.5 |
|
UF21 |
20.7±0.8 |
31.2±0.6 |
7.45±0.2 |
6.3±0.3 |
7.25±0.2 |
16.6±0.4 |
18.0 |
|
TYPE |
Effective parameter |
AL（nH/N2）（AL±25%） |
||||||
|
C1 (mm-1) |
Ae (mm2) |
Le (mm) |
Ve (mm3) |
MP4 |
M5P |
M7P |
M10P |
|
|
UF9.8 |
4.46 |
7.66 |
34.2 |
261.5 |
450 |
980 |
1200 |
2500 |
|
UF10.3 |
4.13 |
8.63 |
35.7 |
308 |
|
|
920 |
|
|
UF10.5 |
3.02 |
13.3 |
40.0 |
530.7 |
640 |
1400 |
1700 |
2500 |
|
UF15 |
1.55 |
32.6 |
50.5 |
1647 |
|
|
3000 |
|
|
UF15.7 |
2.05 |
24.5 |
50.3 |
1232 |
|
2000 |
3000 |
3300 |
|
UF16 |
1.97 |
25.9 |
51.0 |
1321 |
|
|
3300 |
|
|
UF18 |
1.55 |
38.4 |
59.4 |
2284 |
|
|
4400 |
|
|
UF19 |
2.64 |
25.0 |
66.0 |
1652 |
|
|
1870 |
|
|
UF21 |
1.27 |
54.0 |
68.6 |
3700 |
|
4380 |
|
|
