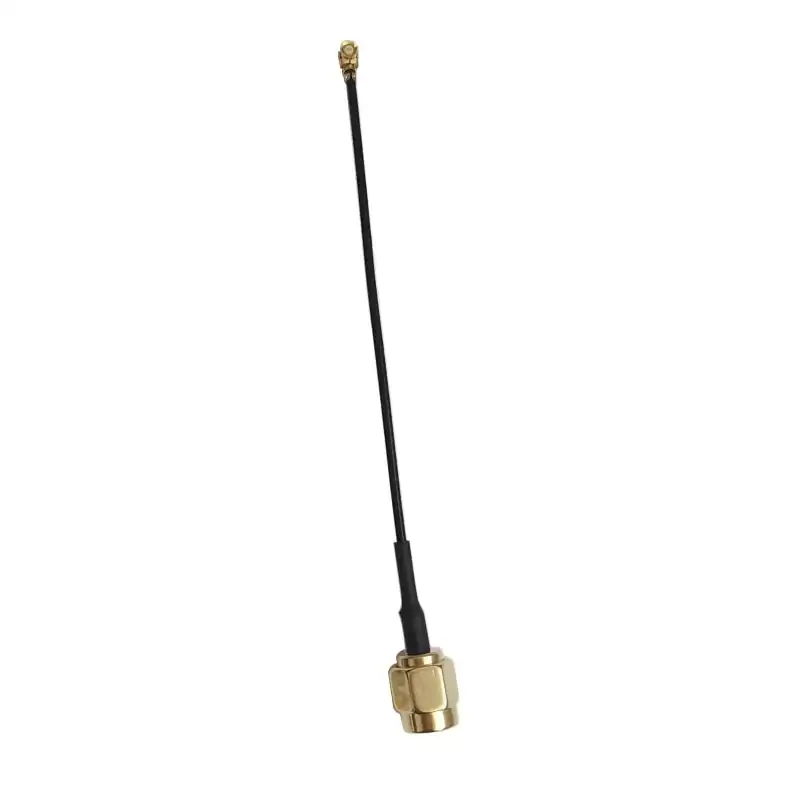

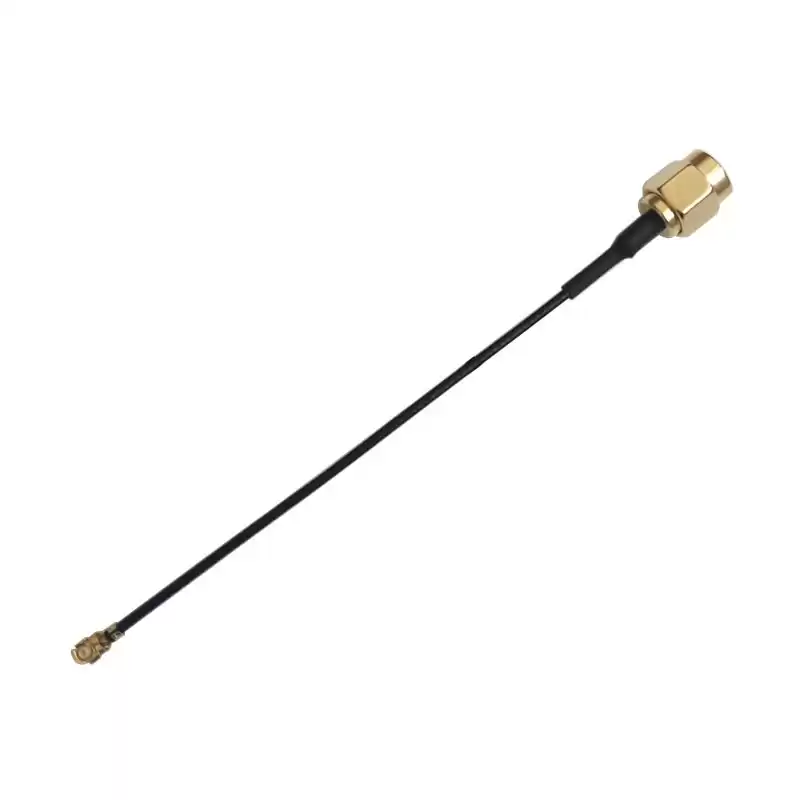

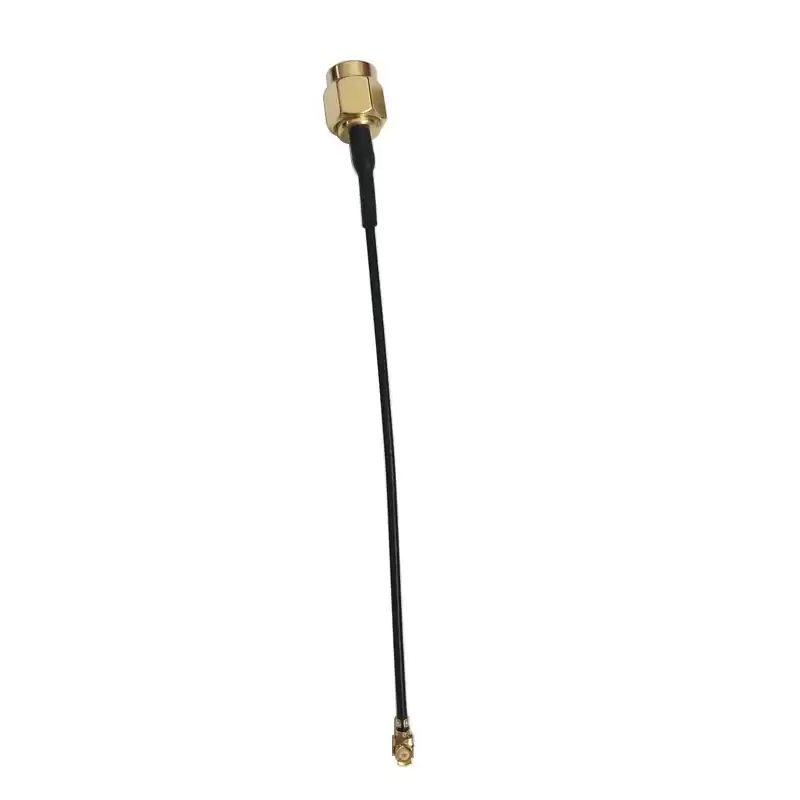

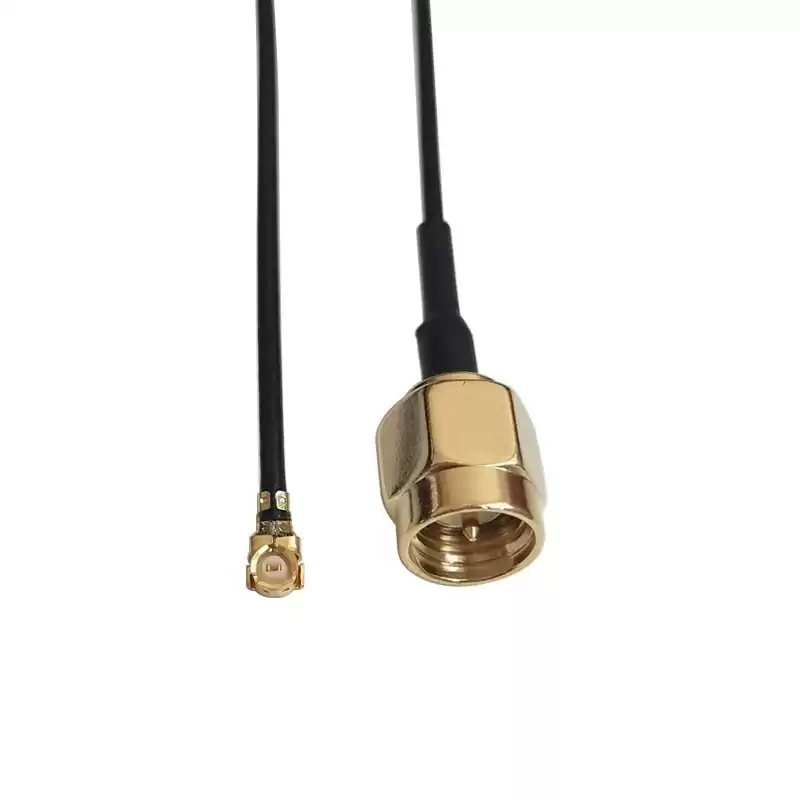

UFL IPEX Plug to SMA Male RF Coaxial Connector with 1.37mm Pigtail Cable Assembly
The UFL cable assembly can use ultra-fine coaxial cable such as 0.81mm, 1.13mm, 1.37mm, RG178; the body of UFL to SMA cable assembly is straight connectors which is plug to female or plug to male gender. This UFL plug to SMA male cable assembly uses a 50ohm straight UFL for connector 1 and a 50ohm straight SMA for connector 2, Cable is a 50ohm Type 1.37mm.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
UFL/IPEX/MHF |
| Connector 1 Style |
Plug |
| Cable Type |
1.37mm |
| Connector 2 Series |
SMA |
| Connector 2 Style |
Str Male |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Max Frequency |
6GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Wireless LAN Devices (Wi-Fi 6)
- Bluetooth devices
- Car navigation
- drone,PDA,GPS
- wireless transmission devices
- electronic measuring devices
