UFO high bay with motion sensor

This kind of high heat dissipation high bay light is a high-efficiency product up to 145LM/W. The product includes 4 installation options, surge protection: 4KV, sturdy housing, good heat dissipation, low UGR (<28) and plug-in microwave motion sensor. In addition, UFO high bay lights provide 100-277VAC / 120-347VAC available.

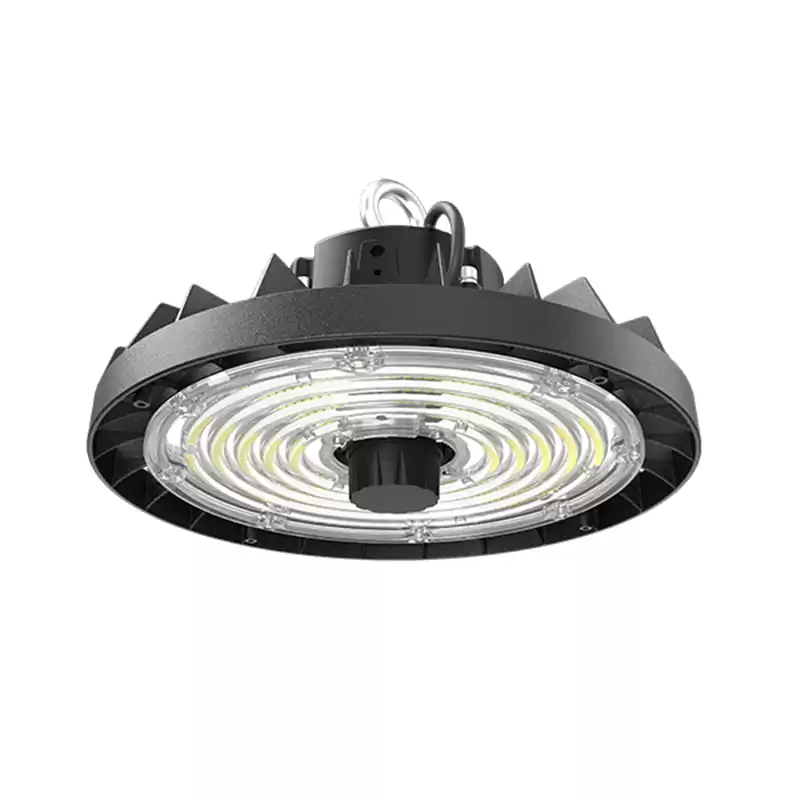

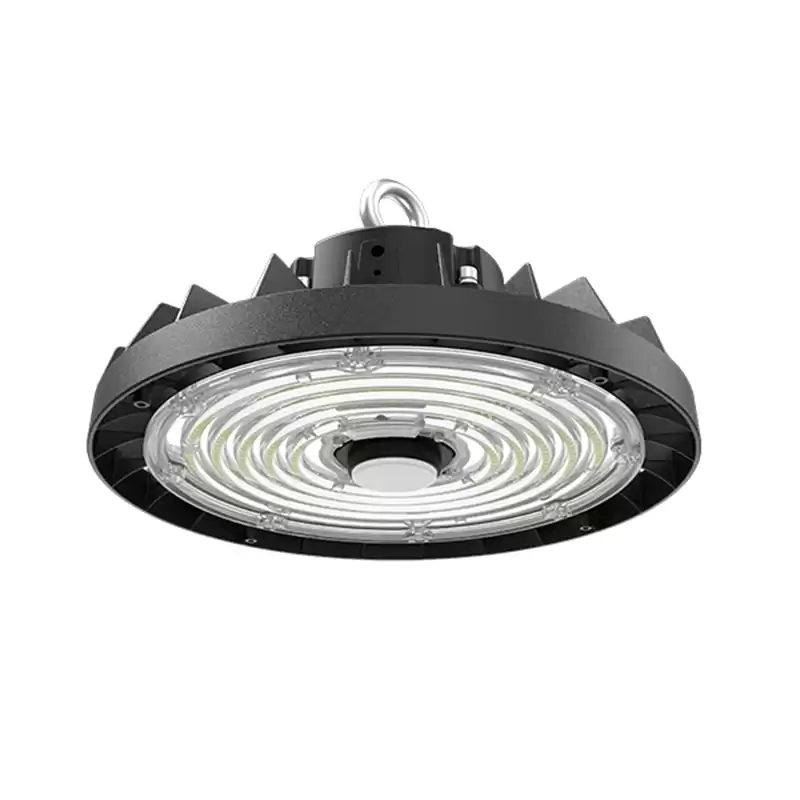

UFO High Bay  with Motion Sensor


This Motion sensor indoor UFO high bay luminaire, 03 series (MA-HHB901A-100W), features lot of humanized designs. It engineered with Haisen & Shardward brand plug-in sensor, lower your inventory investment, just screw out the cap of base we installed on fixture, then plug in the sensor, no need to drill hole, no need wiring, super easy! Stronger housing with good heat dissipation, it damp rated for outstanding reliability in warehouses, storage facilities, retail and light industrial locations with 4 kinds of optional mountings


Besides, 100-240W indoor industrial high bay light offers outstanding values in high lumen and high heat dissipation for 150LM/W with multiple accessories to meet the customers' preference optional reflector to lower glare, and the PC lens' light transmittance is over 92%.


Morstar is a trusted,global company with a keen insight into the market. We konw lighting and provide products with excellent quality, reliability and functionality.


PRODUCT APPEARANCE

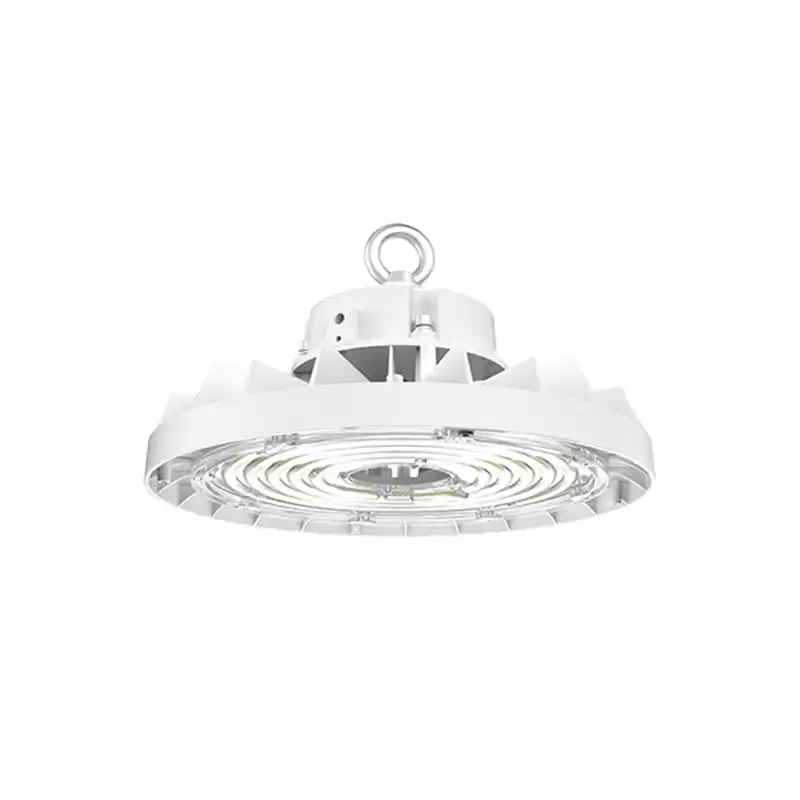

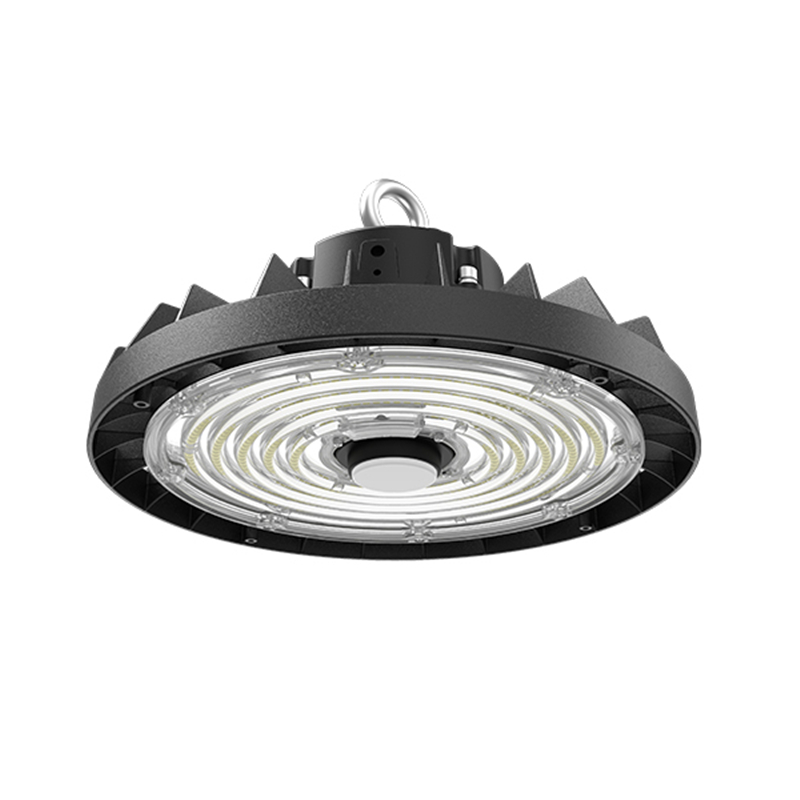

the appearance of UFO high bay
  • Lower UGR(<28),  85°beam angle


  • 4 kinds of mounting


  • Plug-in microwave motion sensor


  • Stronger housing with good heat dissipation


  • The PC lens' light transmittance is over 92%


PRODUCT SPECIFICATION






Efficacy: 145LM/W (±10%)

Power Factor: ≥0.95

Input voltage: 100-277VAC/120-347VAC

IK Degree: IK08

CCT: 2700-6500K

Certificates: UL/cUL DLC 5.1 premium


LED Type: 2835

CRI: >70

Beam Angle:85°

Life Time: >50,000Hrs (Ta=30°C@L80)

IP Rating: IP65

Warranty:5 Years

MA-HHB901A-100W: 100W/ 14500lm/ 320PCS/ 250W(Replaces PSMH)

MA-HHB902A-150W: 150W/ 21750lm/ 456PCS/ 320W(Replaces PSMH)

MA-HHB903A-200W: 200W/ 29000lm/ 624PCS/ 420W(Replaces PSMH)

MA-HHB903A-240W: 200W/ 34800lm/ 780PCS/ 500W(Replaces PSMH)

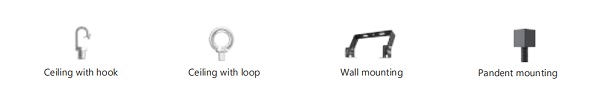

MOUNTING OPTION

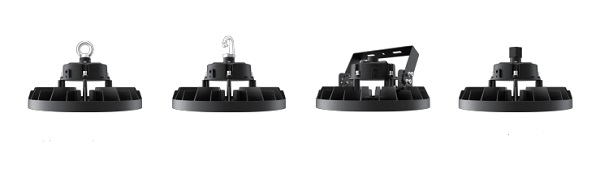

multiple mounting of high bay lights


multiple mounting of high bay lights

DIMENSION

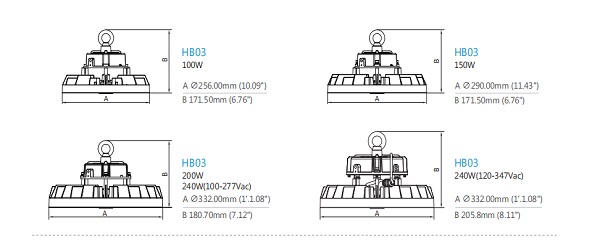

the dimension of ufo high bay light


APPLICATION

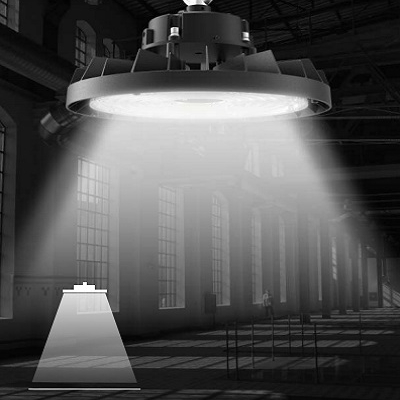

the application of ufo high bay lightthe application of ufo high bay light



FAQ



1. What`s the warranty of the lamp?

 - For UL/DLC items we provide 5 years warrantly.

2. What about the lead time?

 -Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.

3. how can we guarantee quality?

 -Select high quality materials.

 -48 hours aging test to end defective products.

 -Quality control testing before shipping.

 -Good package to insure safety.

 Always a pre-production sample before mass production;

 Always final Inspection before shipment;

4. Can you design new model?

 - Yes, we can open new mould according to your drawings and produce.

5.How to proceed an order for led light?

 -let us know your requirements or application;

 -We quote to you and confirm specification with you;

 -Customer confirm sample and place payment for formal order;

 -We arrange to produce goods and shipment.

6.Do you have any MOQ  limit for the led light order?

 -Low MOQ, 1 pc for sample checking is available.
