UHF 4 Ports Channel Reader

R2000 channel readerJT-928 is a four port EPC Class 1 Gen2 UHF RFID fixed reader. With cutting edge technology from the US, 928 has great inventory rate and tag reading rate. It can handle tags in motion, meanwhile successfully achieved massive tags and intense reading.



Description:

◆Built in Impinj INDY R2000 chip

◆High speed reading and high sensitivity;

◆Low power, 30dBm output power, peak current 1A.

◆Support multi work modes (auto, command, triggering);

◆Could connect 4 external antenna

◆Multiple tags reading ability

◆Support DEMO and SDK; support secondary development

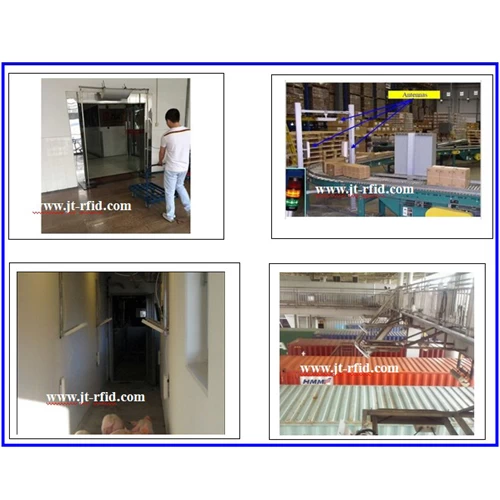

Application:

◆Intelligent transportation;

◆Books management;

◆Logistics management;

◆Asset management;

◆Supply chain management; etc.,


Specification:

Performance parameters

Working Frequency

902~928 MHz or 865~868MHz

Protocol

ISO18000-6C(EPC C1 GEN2)

Chip

Impinj R2000

RF power

0~30dBm(Adjustable)

Software & SDK

DEMO and C#, VC, Java

Communication port

Wiegand26\32\34,RS232,RS485,TCP/IP,WIFI

Industrial lightning protection

6000V

Reading range

With 12dBi antenna, stable reading range 30M(Depends on tag & environment)

Tag handling volume

0-200 tags

Storage space

1M or 8M Flash save without power supply(customized)

Real-time clock

without power supply, real-time clock save and working(customized)

Frequency modulation way

Broad spectrum frequency hopping or fixed frequency

Input/output port

Two-way relay output, two-way I/O input

RSSI

RSSI numerical test

Working way

Buzzer

Physical parameters:

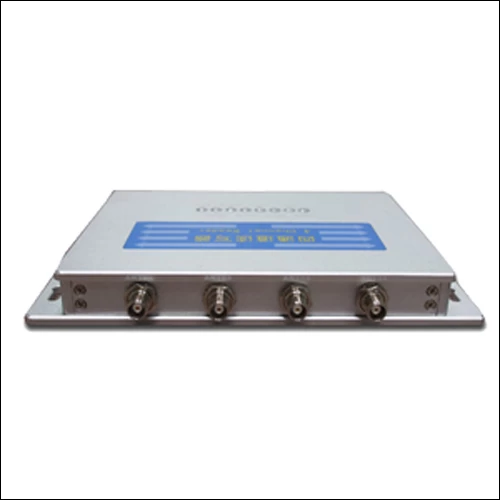

RF connector

4 TNC outer female connector

Power

12V/3A Adaptor

Ethernet power supply

POE(customized)

Working temperature

-20℃~+65℃

Storage temperature

-45℃~+95℃

Item size

246x160x30mm

Package size

350x220x100mm

Net weight

2KG

Shell material

Aluminum Alloy
