RFID UHF tire labels Character
1.UHF
Card Standard:ISO 18000-6C, EPC Class 1 Gen2.
2.Frequency:860
to 960MHz.
3.Flexible
construction to withstand tire deformation for the lifetime of the tire
4.Possibility
to read and write user data into tag's EPC or USER memory
5.Factory
programmed tag identification number to prevent cloning
RFID
UHF tire labels Application
Vehicle
management , tire management

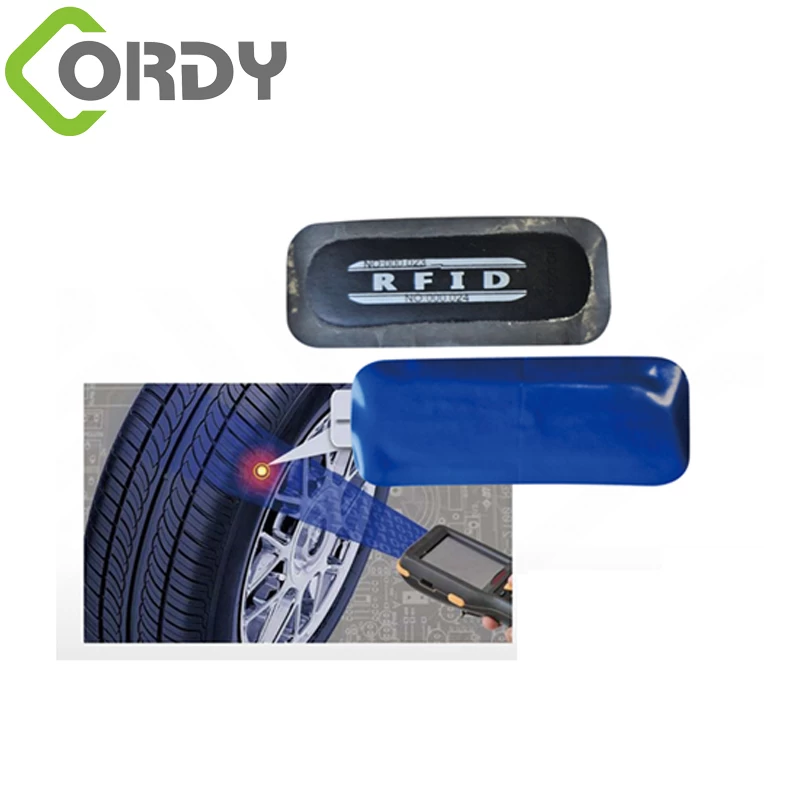

This
UHF Gen 2 RFID tire tag is designed for embedding in the tire mould prior
to
the manufacture and curing of the tire. It survives the high temperatures
encountered
in the tire curing process and is robust enough to remain
operational
throughout the operating life of the tire. The EPC Class 1 Gen 2
RFID
tag is attached by a permanent adhesive to the inside tire wall with a
special
formulated dual cure chemical or heat process. It can be built into truck
tires
that can be recapped several times. It can cool down quickly.
RFID
UHF tire labels Specification
1.Chip
Type Alien H3
2.Protocol
EPC Class1 Gen2/ISO 18000-6C
3.Memory
AlienH3:EPC-96bit,User
Memory-512bit,TID-64bit,
4.Environmental
Specification
Shelf
life:10 years
Recommended:
-25c to +230c
Storage
Condition: 20% to 90% RH
Operating
Temp: -40c to +230c
5.Read/Write
Times 100000 times
6.Reading
Range 0-5M(according to the design of the
antenna
or reader)
7.Working
mode Passive
8.size
95*35*2.5mm
9.wight
10g
