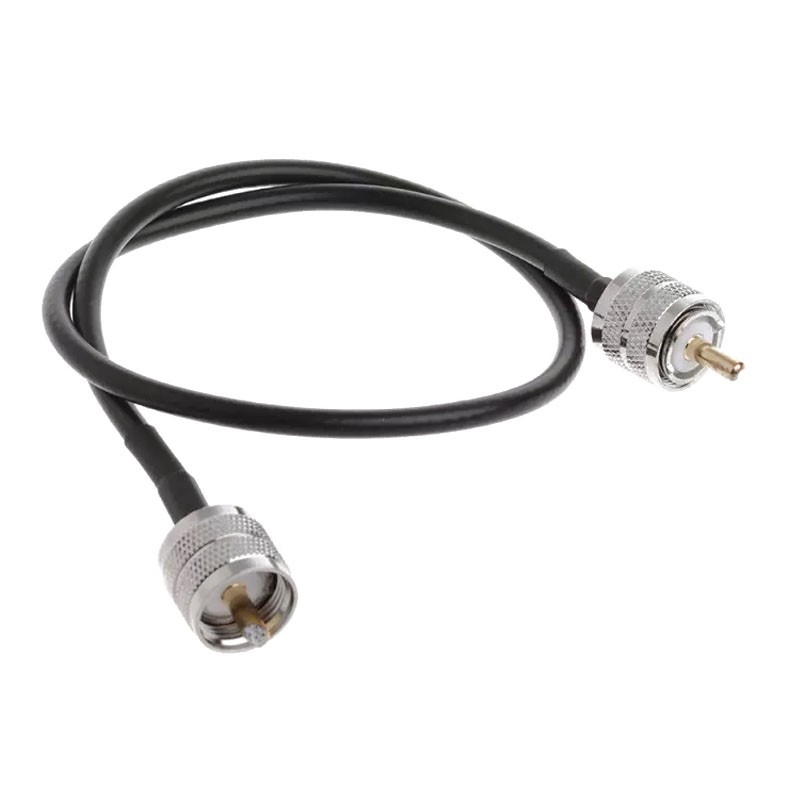

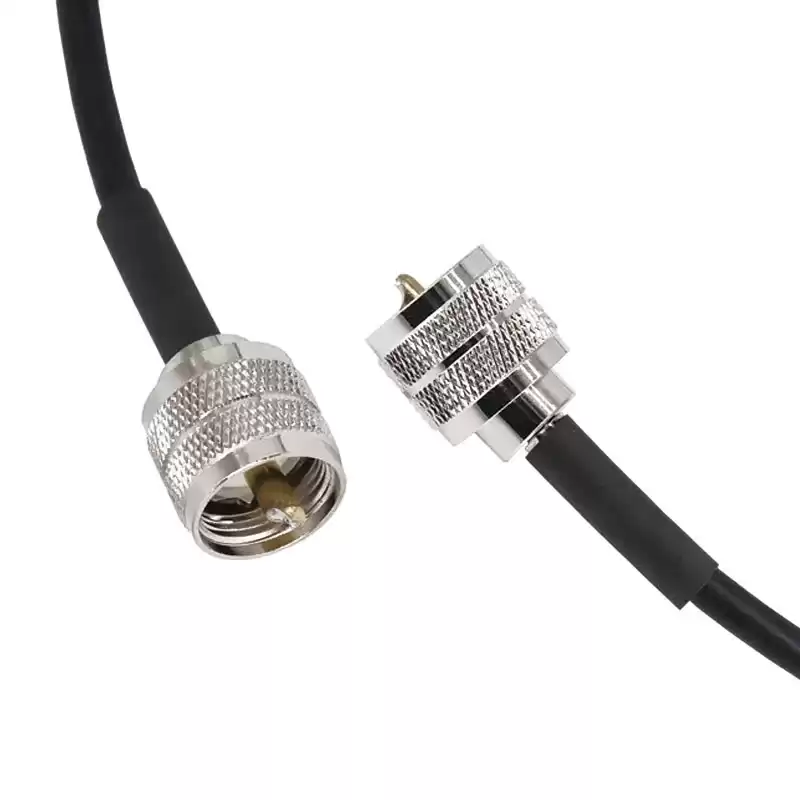

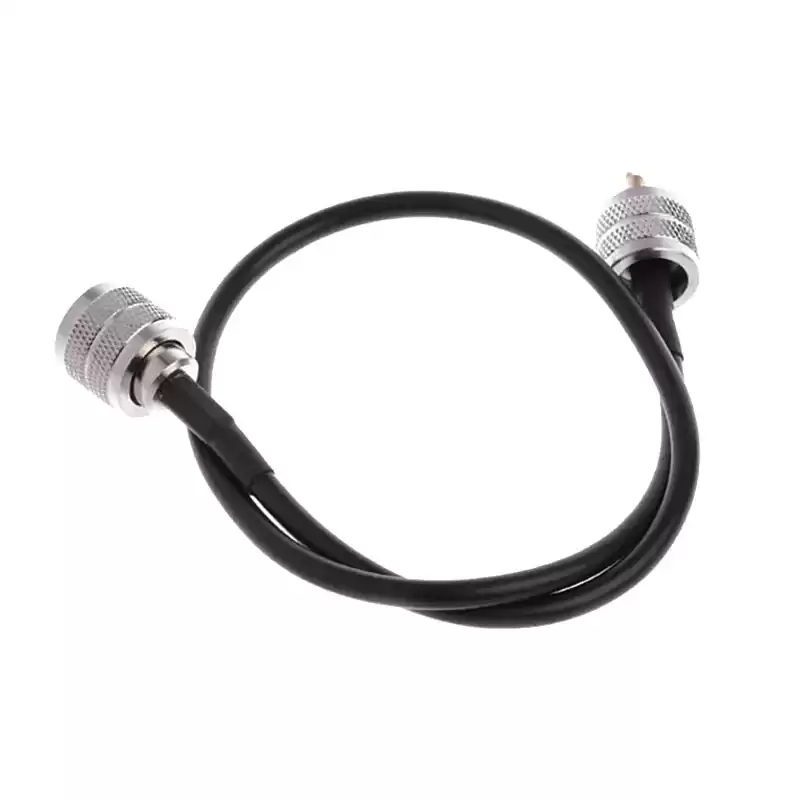

UHF PL259 Male to UHF Male RF Coaxial Cable Assembly with RG58 Coaxial Cable
The UHF cable assembly can use flexible, formable or semirigid coaxial cable such as RG142, RG213, RG214, RG223, RG393, RG400, RG58, RG59, RG8; the body of UHF to UHF cable assembly is straight connectors which is female to female, female to male, male to female or male to male gender. This UHF male to UHF male cable assembly uses a 50ohm Straight UHF for connector 1 and a 50ohm Straight UHF for connector 2, Cable is a 50ohm RG58.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
UHF |
| Connector 1 Style |
Str Male |
| Cable Type |
RG58 |
| Connector 2 Series |
UHF |
| Connector 2 Style |
Str Male |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
Yes |
| Max Frequency |
300 MHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Antenna analyzer
- Radio scanner
- Ham radio transceiver
- SWR meter
- CB radio handheld
- Antenna tuner
