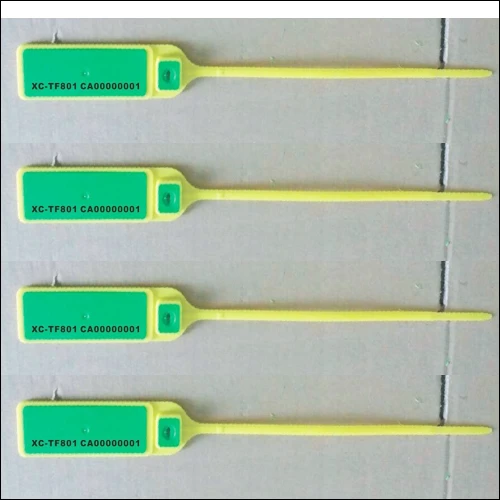

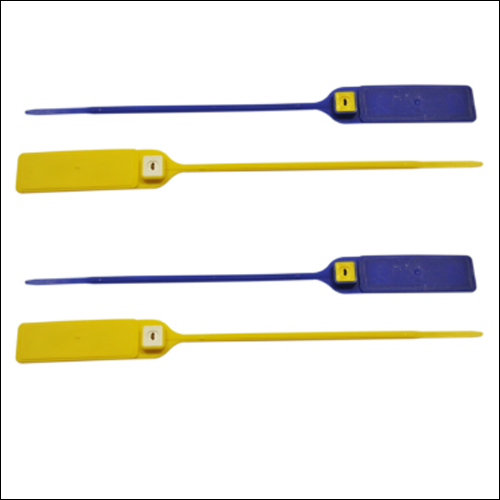

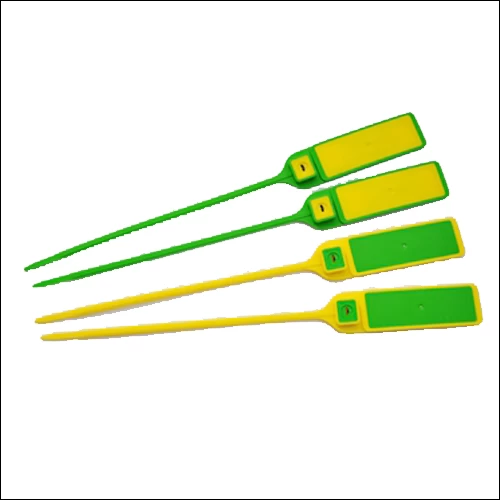

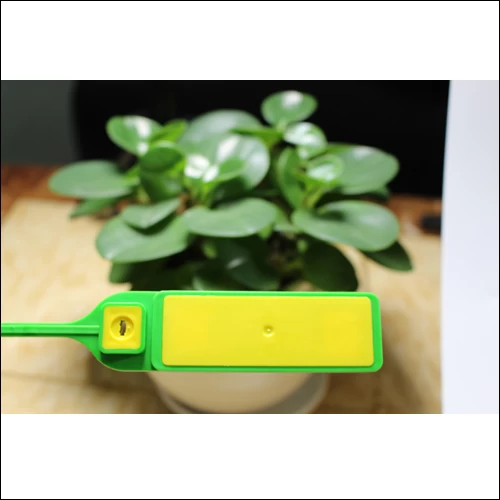

JT13-03 UHF RFID Seal Tag
UHF RFID seal tag is specially designed for the tracking of fowl, food, container seals and express parcels, the classification of electricity power lines, the management of telecommunication line, guardianship and so on. It would not be affected by the strapping material and could be used under severe environments.
|
· Basic parameters
|
|
Model
|
JT13-03
|
|
Type
|
UHF Passive RFID Tag
|
|
Frequency
|
860~960MHZ
|
|
Standards/Protocols
|
EPC CLASS1 GEN2, ISO 18000-6C
|
|
· Physical parameters
|
|
Size
|

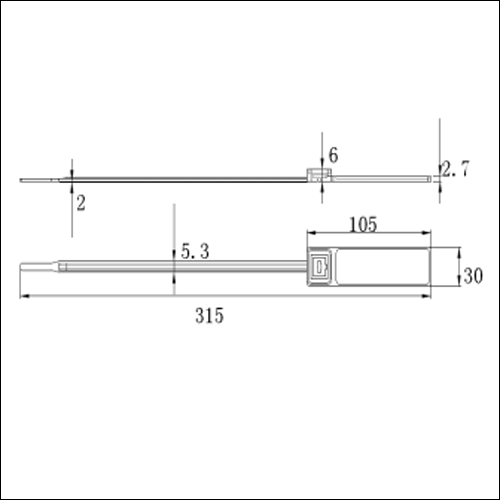

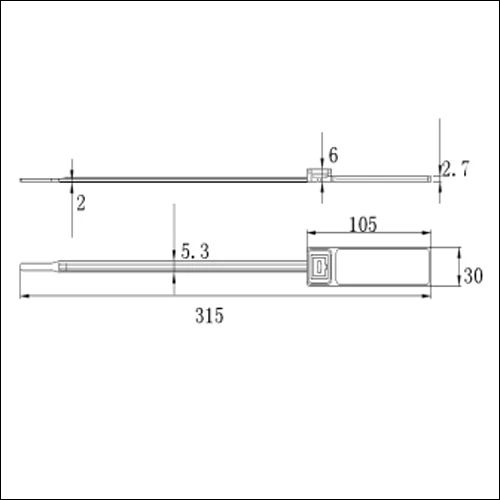

305*30*7mm=12*1.18*0.28inch (Customized design)
|
|
Inlay Material
|
PET+AL
|
|
Outer Material
|
Plastic
|
|
· Performance Parameters
|
|
Memory Size
|
Up to 512bit
|
|
Chip
|
ALIEN /IMPINJ
|
|
Operating Mode
|
R/W
|
|
Reading Distance
|
8m (Related to reader performance and working environment)
|
|
· Environmental parameters
|
|
Operating Temp
|
-20℃~+50℃
|
|
Storage Temp
|
-40℃~+100℃
|
|
· Specific applications
|
|
Application
|
Fowl, food, crabs, container seals, express parcels, asset management, prisoner management, logistics management, classification management, etc.
|
|
· Packaging and delivery
|
|
Package
|
100pcs/pack
|
Characteristics:
1. Widely used for the tracking of fowl, food, container seals and express parcels, the classification of electricity power lines, the management of telecommunication line, guardianship, etc.
2. The RFID seal tag would not be affected by the strapping material objects, and it is not only heat resistant, but also moisture- proof.
3. The data could be read stably and it is convenience to use.
