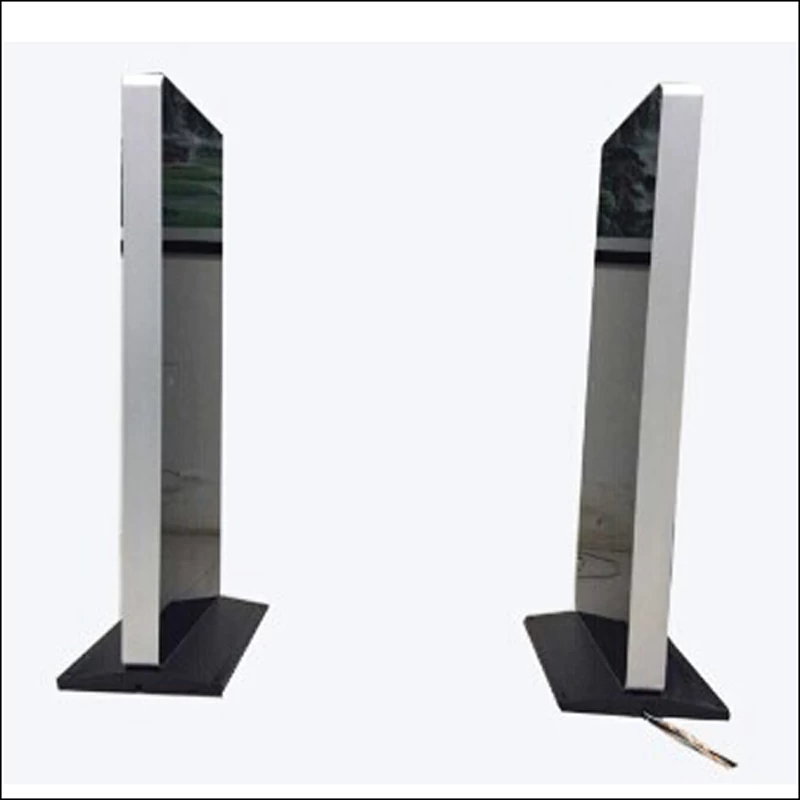

UHF RFID Gate Device

RFID Gate reader JT-922 is high performance UHF gate device, support EPC Gen2 ISO18000-6C protocol, has RS232,  RJ45 communication interface. It is widely used in access control, attendance environment.



UHF RFID Gate Device

Feature:

◆Built in RFID module of INDY R2000

◆Multiple tags reading ability

High sensitivity to tag

◆Support 2 road infrared traps

◆Provide whistle and flashing light

◆Support SDK dynamic link libraries and secondary development


Specification:

Item No.

JT-922

Performance parameters

Working Frequency

902~928 MHz or 865~868MHz

Protocol

ISO18000-6C(EPC C1 GEN2)

Chip

Impinj  R2000

RF

0~30dBm(Adjustable)

Software & SDK

DEMO and C#, VC, Java

Communication port

RS232,TCP/IP  OR  RS232,WIFI

Reading range

3M(Depends on antenna gain, tag & environment)

Storage space

1M or 8M Flash save without power supply(Customized)

Real-time clock

without power supply, real-time clock save and working(customized)

Frequency modulation

hopping or fixed frequency

RSSI

RSSI numerical test

Antenna gain

12dBi circular polarization

Working way

Buzzer & Red flashing

Power

12V/3A Adaptor

Physical parameters:


Item size

Height:1500mm,Screen:1450x600x90mm,Base:600x400x50mm

Net weight

38KG(Single gate)

Shell material

Aluminum Alloy

Working temperature

-20℃~+65℃

Storage temperature

-45℃~+95℃
