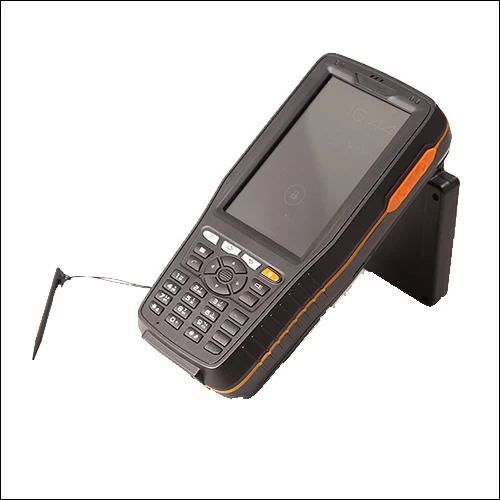

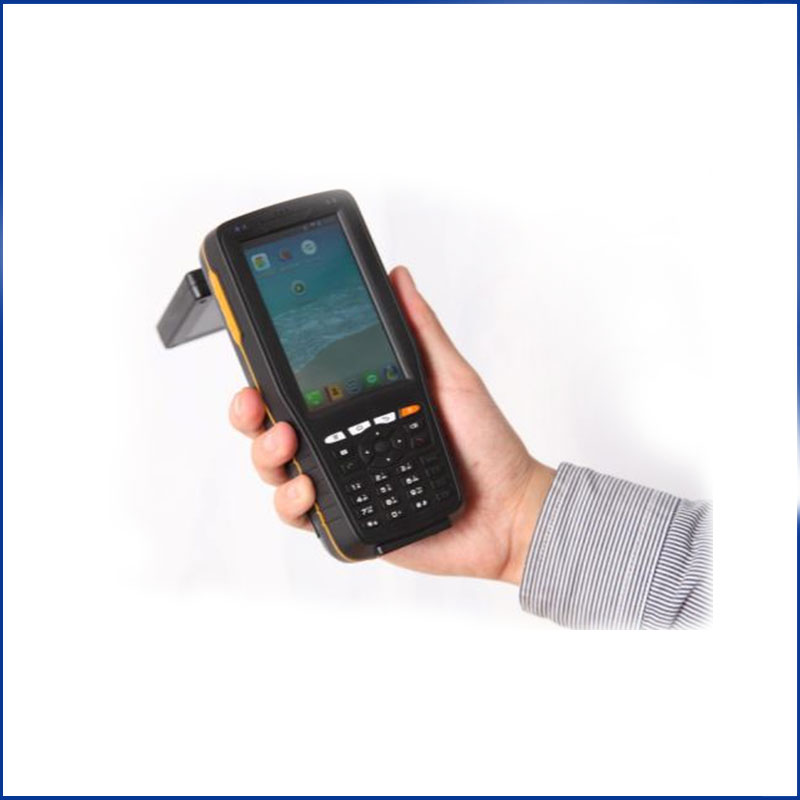

UHF RFID Handheld Reader 3M

General parameters

Model:

JT-900

Appearance:

Tablet

Size:

172(L) * 81(W) * 37(H)mm

Hardware parameters

CPU:

1.2Ghz@4 core

Frequency:

800MHz/1900MHz

Slot(optional):

WCDMA/CDMA

RAM:

8GB

ROM:

1GB

Scale Storage:

Micro SD, support 32G max

U Disk:

Support（Micro SD）

Home Screen:

Motherboard supports 4.0MM WVGA IPS TFT

Resolution:

800 * 480

Touch Screen:

Support Touch panel

Resistive Screen(support Screen Calibration)

Keypad:

Standard digital keyboard; Home, Back, Menu, Dial, pick & hang up button; switch machine, 4 function keys(Backspace key+2 function keys: F1, F2),Reset button

Side Key:

RFID, Side scan shortcut keys, up/down the volume button, camera button, and flashlight use the form of light touch buttons

Key Backlight:

Support

Speaker Quantity

Single

Camera (rear)

5 million pixels（AF，LED flash lamp, can be used to flashlight）

Bluetooth

Support，2.1+EDR+A2DP

GPS

Support

UHF(ultrahigh frequency) RFID

Support 860 MHz—960 MHz;

Include the outer folding antenna, a full 180°rotation；

Support Protocol :ISO 18000 6c/EPC Class1 Gen2；

4DBI antenna;

Read Distance: 0-3m(0-9feet)

Support Tags: Impinj—Monza 3/4/5、Alien Tech—Higgs-3/4、Philips—UCODE EPC G2/UCODEG2XM/XL

Serial port

RS232、RS485

PSAM

2pcs

Access condition

Software and hardware testing index reach the access level

Charging Time

9hours(maximum)

Battery

6000mAh Polymer/lithium ion battery;

Standby current is less than 10mA（According to the actual light driver IC power consumption to decide whether to increase) battery holder adopt lateral way to contact, Battery capacity is about 6000mAh.

Software parameters:

Operating system:

Android 4.1

Supporting Language:

English and Chinese

Input

Supporting English and Chinese, with writing

GPSone

Supporting CDMA(indoor positioning)

AGPS

Supporting WCDMA(indoor positioning)

Technical Parameters:

Standby currents:

≤10mA(except the current of indicator light driver IC)

Communication current:

≤600mA

Camera and Video:

Could reach 720P

Charging Voltage:

5.0V

Charging Current:

800mAh
