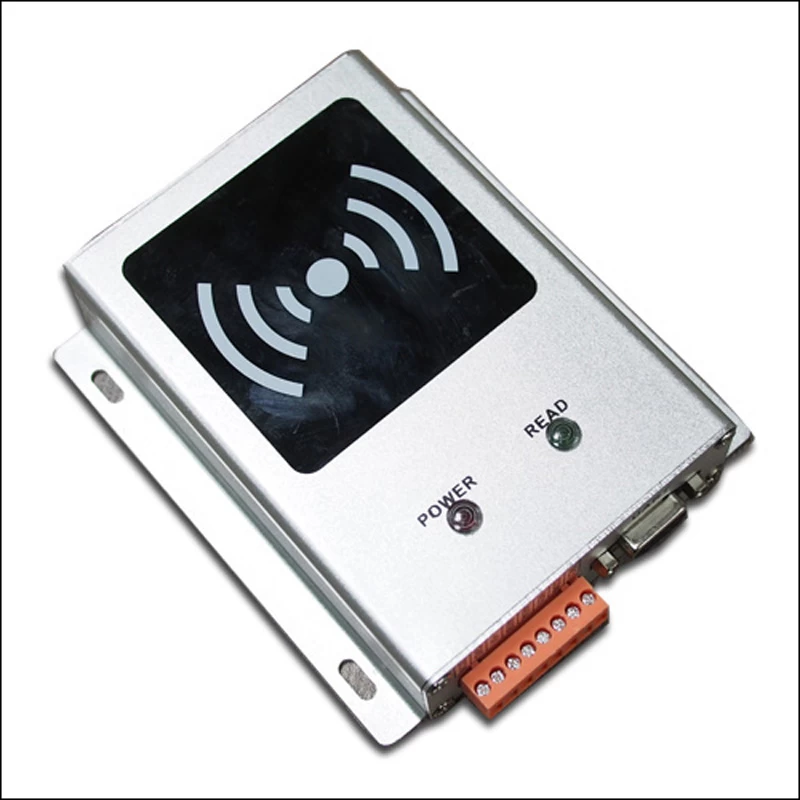

Description
◆ It is convenient for RS485 to build the network and
support RS485 and RS232 communication interface.
◆ Industrial design and industrial terminal interface
◆Reading card on the upper and don’t misread the card
◆ Application: assembly line, production line and
storehouse
Feature
◆The metal design of enclosed
◆It is suitable for complex environment and resist to
collision and corrosion
◆It is convenient for RS485 to build the network and
support the RS485
Specification
|
Item No.
|
JT-6230
|
|
Performance
parameters
|
|
|
Working
Frequency
|
902~928 MHz or
865~868MHz
|
|
Antenna gain
|
3dBi circular
polarization
|
|
Protocol
|
ISO18000-6C(EPC
C1 GEN2)
|
|
Software &
SDK
|
DEMO and C#, VC,
VB, Java, DELPH, etc.,
|
|
Communication
port
|
RS232,RS485
|
|
Reading range
|
stable reading
range 20cm
|
|
Output port
|
One-way relay
output
|
|
Output power
|
0~18±1dBm
|
|
Physical
parameters
|
|
|
Power
|
DC12~24V
|
|
Working
temperature
|
-20℃~+75℃
|
|
Storage
temperature
|
-40℃~+85℃
|
|

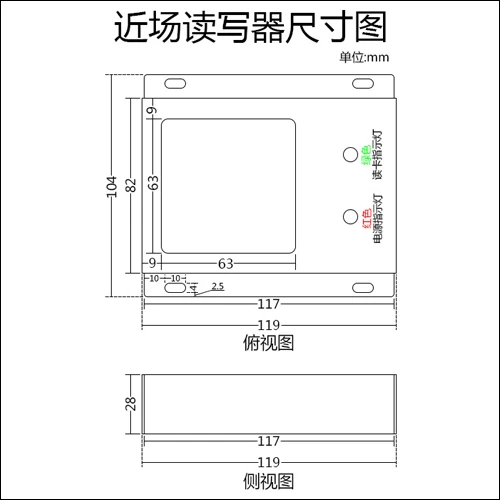

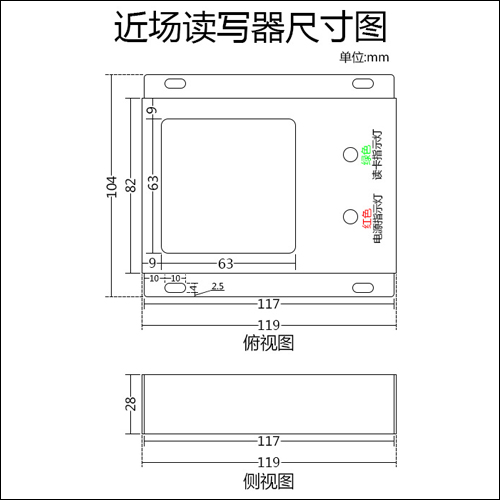

Item size
|
119x104x28mm
|
|
Package size
|
180x120x50mm
|
|
Net weight
|
300g
|
|
Shell material
|
Aluminum Alloy
|
|
Tooling hole
|
10x4mm
|
