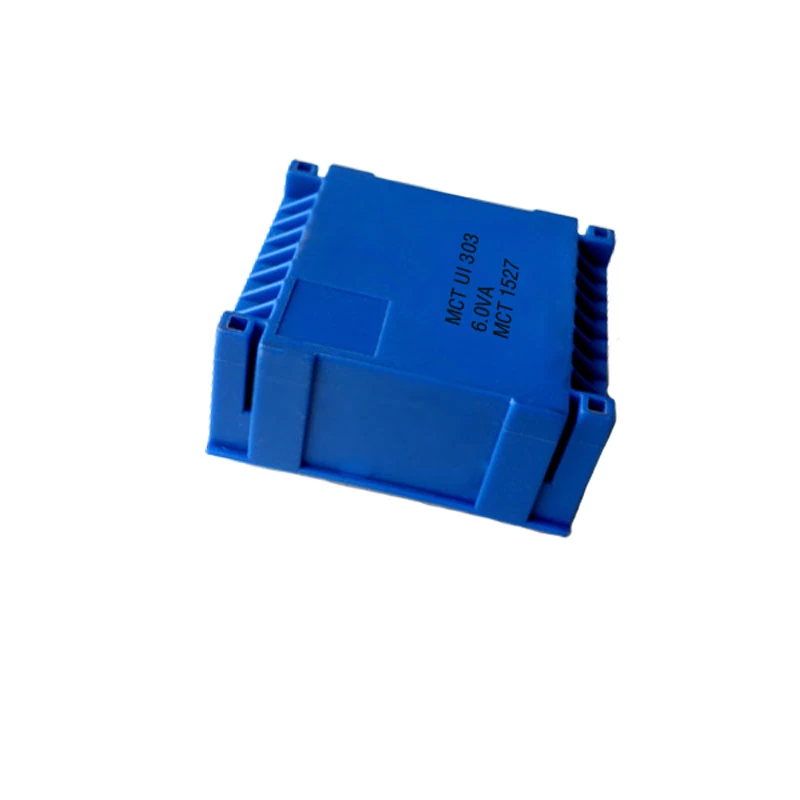

UI30 Vacuum Electronic Encapsulated Transformer Output Power Up To 16.0 VA

UI type power transformer for PCB mount with output Power:3.0 VA – 16.0 VA. Vacuum-encapsulated, bobbin type with dual chamber Windings. Excellent temperature fluctuation resistance properties. High electrical safety and long service-life features. Self-extinguishing cast housing and sealing material. RoHS Directive-compliant.



ISO9001 Factory, produce various electronic encapsulated transformers, accept OEM service and custom made. If you are looking competitive price UI/EI type power encapsulated transformer products, you can contact us. Our engineers can design to meet your requirements and quickly make encapsulated transformer samples for your testing.


Quick Details

Part No: UI30 3.0 VA – 16.0 VA

Brand name: MCT

Output Power up to 16.0 VA

Custom made: Available

Temperature class ta 70 °C/B

Logo: Can be customized

High voltage resistance

Packing: Carton, can custom

Bobbin: Dual chamber windings

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc



Part Information

Product Name: UI30 Vacuum Electronic Encapsulated Transformer Output Power Up To 16.0 VA

Product Range: Transformers, Inductors, Choke coils, Transformer bobbins, Magnetic cores.

Applications: Household appliances, printed circuit boards, low power industrial control products, meters and other industries.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.



Product Part Number

Frame size/Core height

Output Power

ta 70°C/B

Size(h)

Weight

Packaging unit

MCT UI 3015.5mm

3.0V/A

17.8mm

0.130kg

18/24 pieces*

MCT UI 302/ 7.5mm

4.0V/A

19.8mm

0.150kg

18/24 pieces*

MCT UI 303/10.5mm

6.0V/A

22.8mm

0.180kg

18/24 pieces*

MCT UI 304/16.5mm

10.0V/A

28.8mm

0.260kg

15/18pieces*

MCT UI 305/26.0mm

16.0V/A

37.6mm

0.370kg

15/18pieces*


3.0 VA ta 70 °C. Frame size/Core height: MCT UI 301./5.5mm. No short-circuit proof.

Order No.

Primary

Voltage V

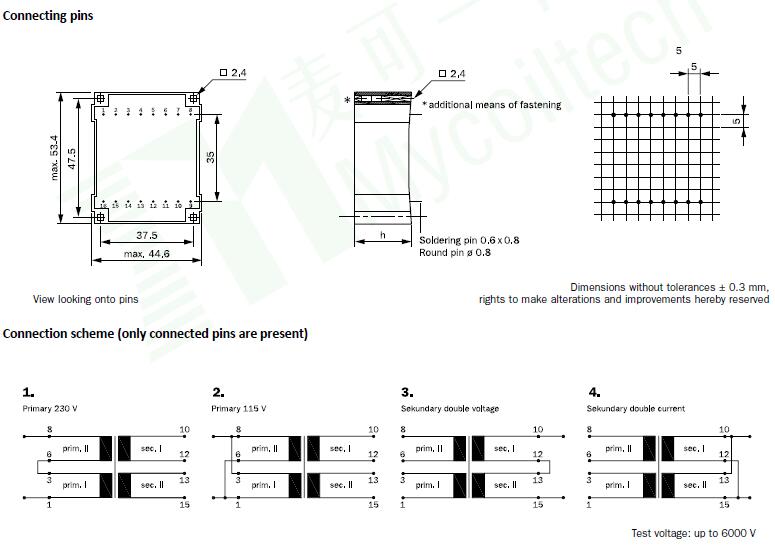

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT UI 301 0167

2×115

1-3/6-8

2×6

250

10-12/13-15

2×7.9

1-4

MCT UI 301 0168

2×115

1-3/6-8

2×9

167

10-12/13-15

2×14.0

1-4

MCT UI 301 0133

2×115

1-3/6-8

2×12

126

10-12/13-15

2×18.4

1-4

MCT UI 301 0166

2×115

1-3/6-8

2×15

100

10-12/13-15

2×22.8

1-4


4.0 VA ta 70 °C. Frame size/Core height: MCT UI 302./7.5mm. No short-circuit proof.

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT UI 302 0164

2×115

1-3/6-8

2×6

333

10-12/13-15

2×10.1

1-4

MCT UI 302 0161

2×115

1-3/6-8

2×9

222

10-12/13-15

2×13.5

1-4

MCT UI 302 0144

2×115

1-3/6-8

2×12

166

10-12/13-15

2×20.2

1-4

MCT UI 302 0165

2×115

1-3/6-8

2×15

133

10-12/13-15

2×24.9

1-4


6.0 VA ta 70 °C. Frame size/Core height: MCT UI 303./10.5mm. No short-circuit proof.

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT UI 303 0162

2×115

1-3/6-8

2×6

500

10-12/13-15

2×9.0

1-4

MCT UI 303 0179

2×115

1-3/6-8

2×7.5

400

10-12/13-15

2×11.4

1-4

MCT UI 303 0158

2×115

1-3/6-8

2×9

334

10-12/13-15

2×12.8

1-4

MCT UI 303 0145

2×115

1-3/6-8

2×12

250

10-12/13-15

2×17.2

1-4

MCT UI 303 0163

2×115

1-3/6-8

2×15

200

10-12/13-15

2×21.8

1-4


10.0 VA ta 70 °C. Frame size/Core height: MCT UI 304./16.5mm. No short-circuit proof.

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT UI 304 0155

2×115

1-3/6-8

2×6

833

10-12/13-15

2×8.7

1-4

MCT UI 304 0129

2×115

1-3/6-8

2×7.5

667

10-12/13-15

2×10.0

1-4

MCT UI 304 0153

2×115

1-3/6-8

2×9

555

10-12/13-15

2×12.4

1-4

MCT UI 304 0154

2×115

1-3/6-8

2×12

416

10-12/13-15

2×16.0

1-4

MCT UI 304 0136

2×115

1-3/6-8

2×15

333

10-12/13-15

2×19.7

1-4

MCT UI 304 0159

2×115

1-3/6-8

2×18

277

10-12/13-15

2×23.4

1-4


16.0 VA ta 70 °C. Frame size/Core height: MCT UI 305./26.0mm. No short-circuit proof.

Order No.

Primary

Voltage V

Connecting pins prim.

Secondary voltage V

Current sec.mA

Connecting pins sec.

No-load

Voltage V

Connection

scheme

MCT UI 305 0147

2×115

1-3/6-8

2×6

1330

10-12/13-15

2×7.5

1-4

MCT UI 305 0148

2×115

1-3/6-8

2×9

888

10-12/13-15

2×10.9

1-4

MCT UI 305 0149

2×115

1-3/6-8

2×12

666

10-12/13-15

2×14.6

1-4

MCT UI 305 0150

2×115

1-3/6-8

2×15

533

10-12/13-15

2×18.0

1-4

MCT UI 305 0151

2×115

1-3/6-8

2×18

444

10-12/13-15

2×21.5

1-4

MCT UI 305 0152

2×115

1-3/6-8

2×21

380

10-12/13-15

2×25.0

1-4


Product Specification

High quality UI30 electronic encapsulated transformer factory MCT
