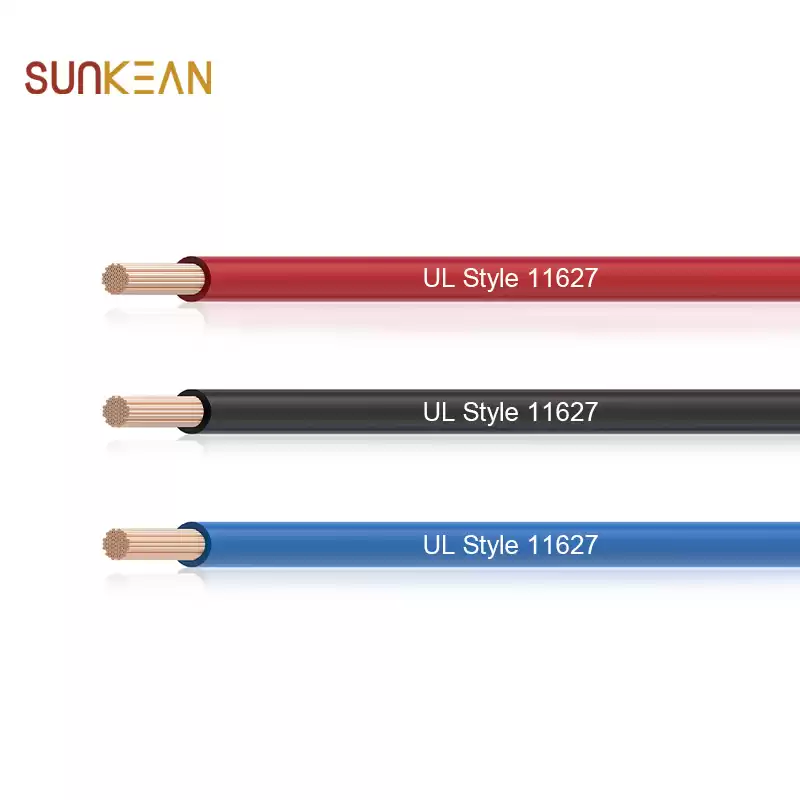

UL 11627 tinned copper stranded PVC insulated energy storage cable
▲Easy stripping and cutting
▲Good flexibility
▲High flamen retardant
Product Information:
Name
|
UL 11627 energy storage cable
|

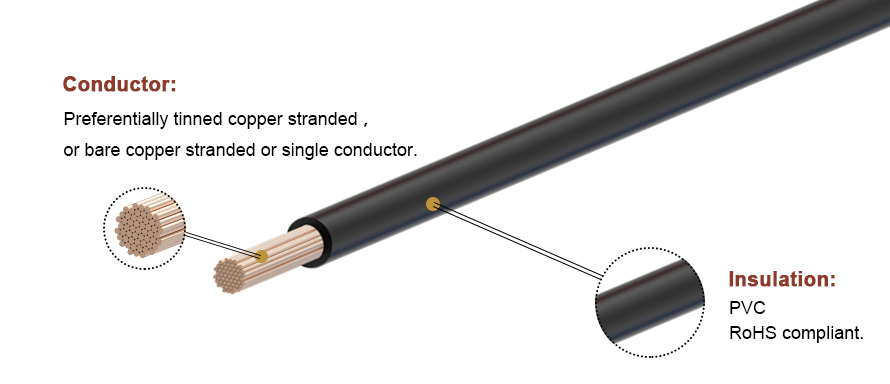

Conductor
|
Preferentially tinned copper stranded ，or bare copper stranded or solid conductor
|
Insulation
|
PVC, passed RoHS
|
|
Rated voltage
|
2000V
|
Rated temperature
|
105°C
|
Reference Standard
|
UL758，UL1581
|
|
Flame Test
|
UL VW-1 & CSA FT 1
|
|
Cable Name
|
Cross Section
(mm²)
|
Construction
(No./mm)
|
Conductor O.D.
(mm)
|
Insulation O.D.
(mm)
|
Conductor Resistance Max
(Ώ/km)
|
|
UL style 11627
|
18
|
41/0.16
|
1.18
|
3.78
|
21.80
|
|
16
|
26/0.254
|
1.49
|
3.10
|
14.64
|
|
14
|
41/0.254
|
1.88
|
3.50
|
9.25
|
|
12
|
65/0.254
|
2.36
|
4.00
|
5.82
|
|
10
|
105/0.254
|
3.00
|
4.60
|
3.66
|
|
9
|
131/0.254
|
3.70
|
5.30
|
2.96
|
|
8
|
168/0.254
|
4.20
|
6.50
|
2.35
|
|
7
|
210/0.254
|
4.70
|
7.00
|
1.87
|
|
6
|
266/0.254
|
5.30
|
8.40
|
1.48
|
|
5
|
329/0.254
|
5.80
|
9.00
|
1.17
|
|
4
|
420/0.254
|
6.60
|
9.70
|
0.928
|
|
3
|
532/0.254
|
7.50
|
10.50
|
0.744
|
|
2
|
665/0.254
|
8.40
|
11.50
|
0.590
|
|
1
|
836/0.254
|
9.40
|
13.50
|
0.467
|
1/0
|
1045/0.254
|
10.50
|
14.60
|
0.370
|
2/0
|
1330/0.254
|
11.90
|
16.00
|
0.297
|
|
3/0
|
1672/0.254
|
13.00
|
17.50
|
0.236
|
|
4/0
|
2109/0.254
|
14.70
|
19.10
|
0.187
|
