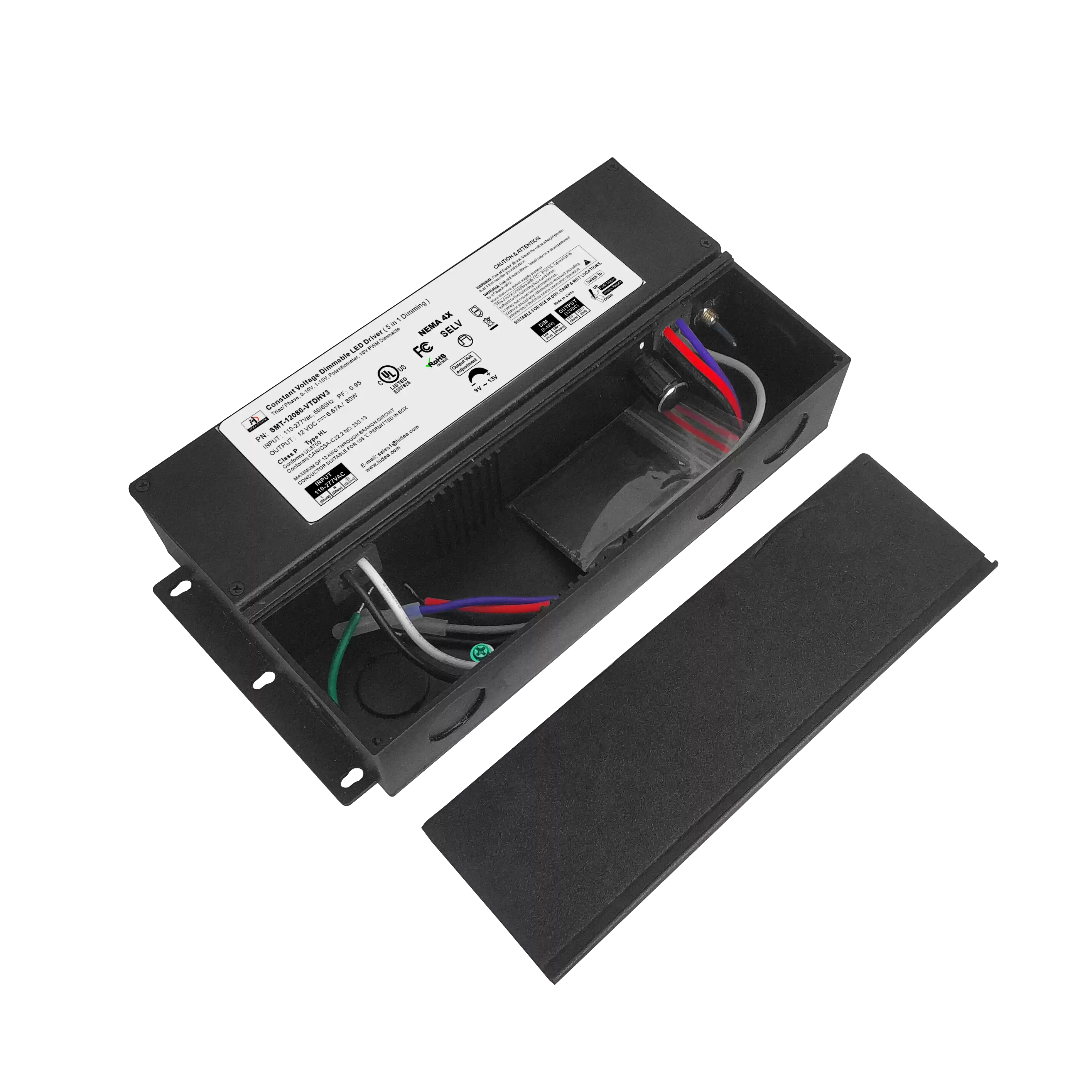

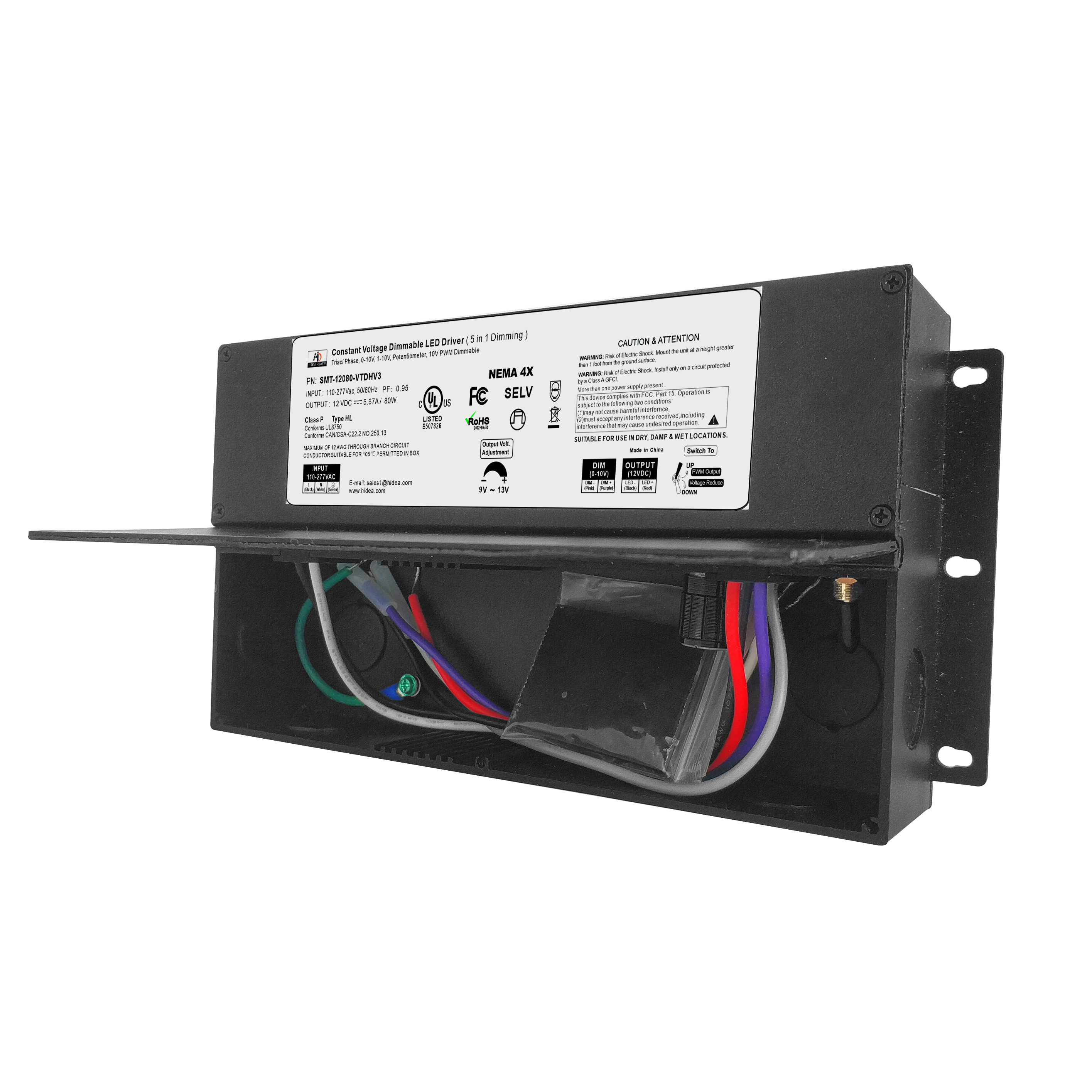

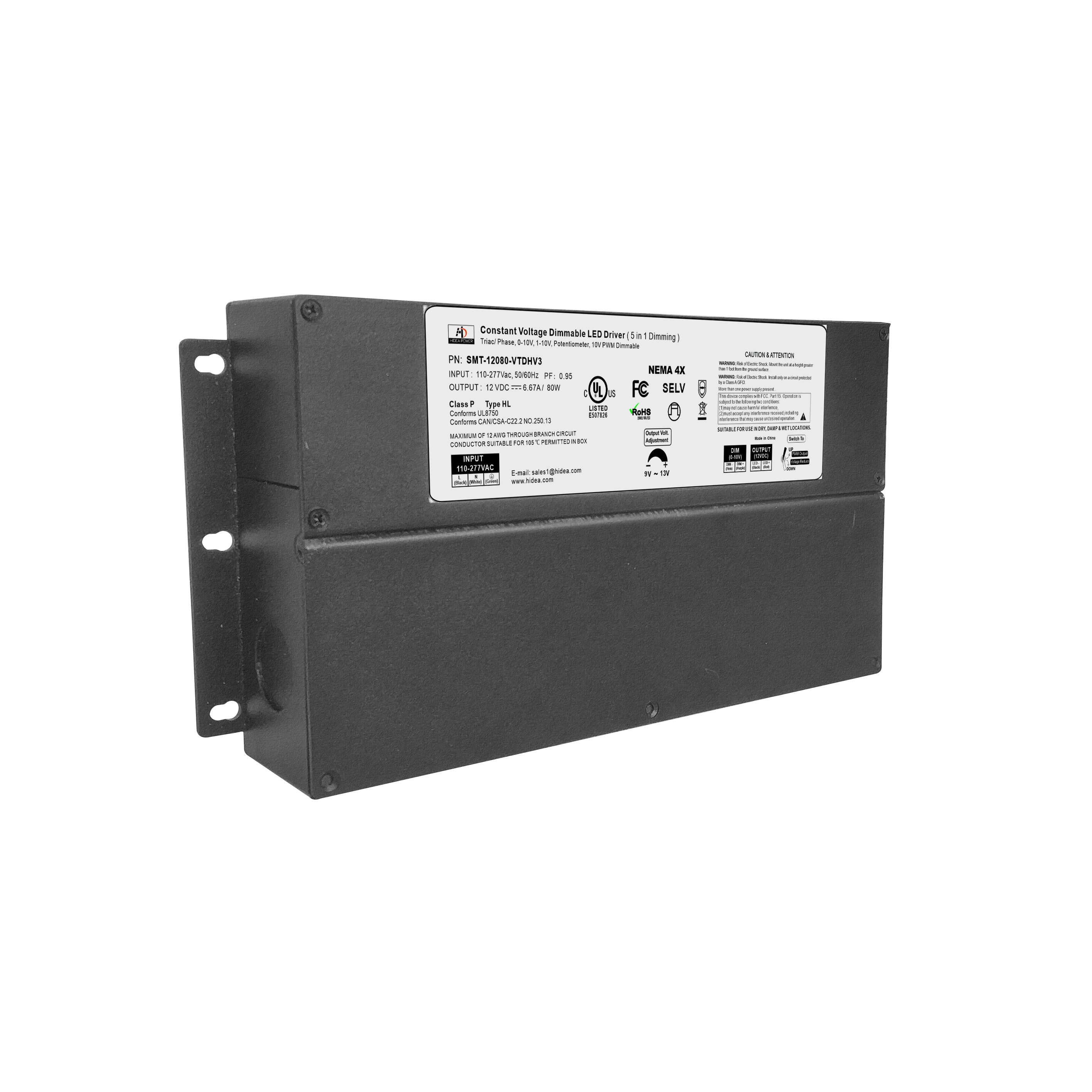

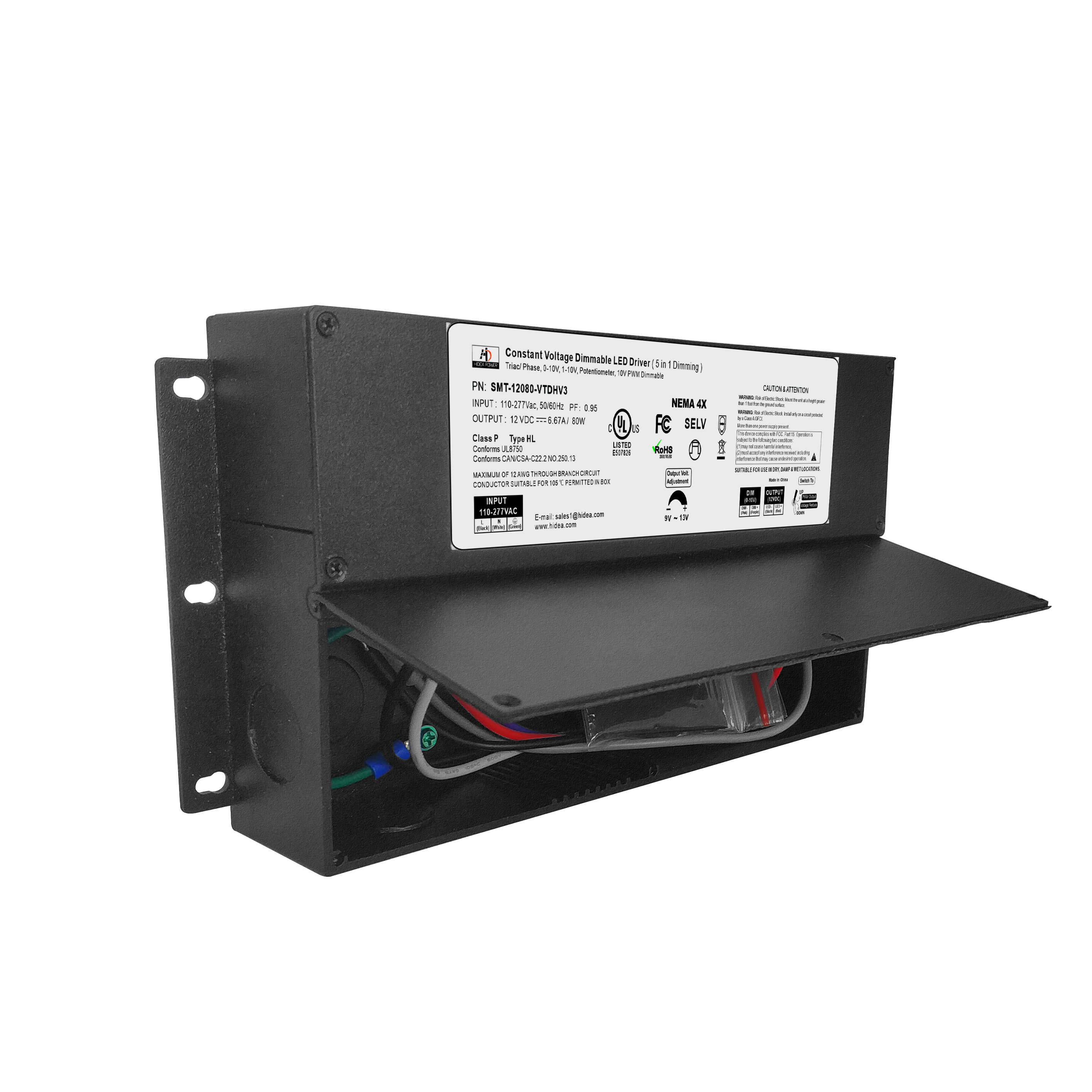

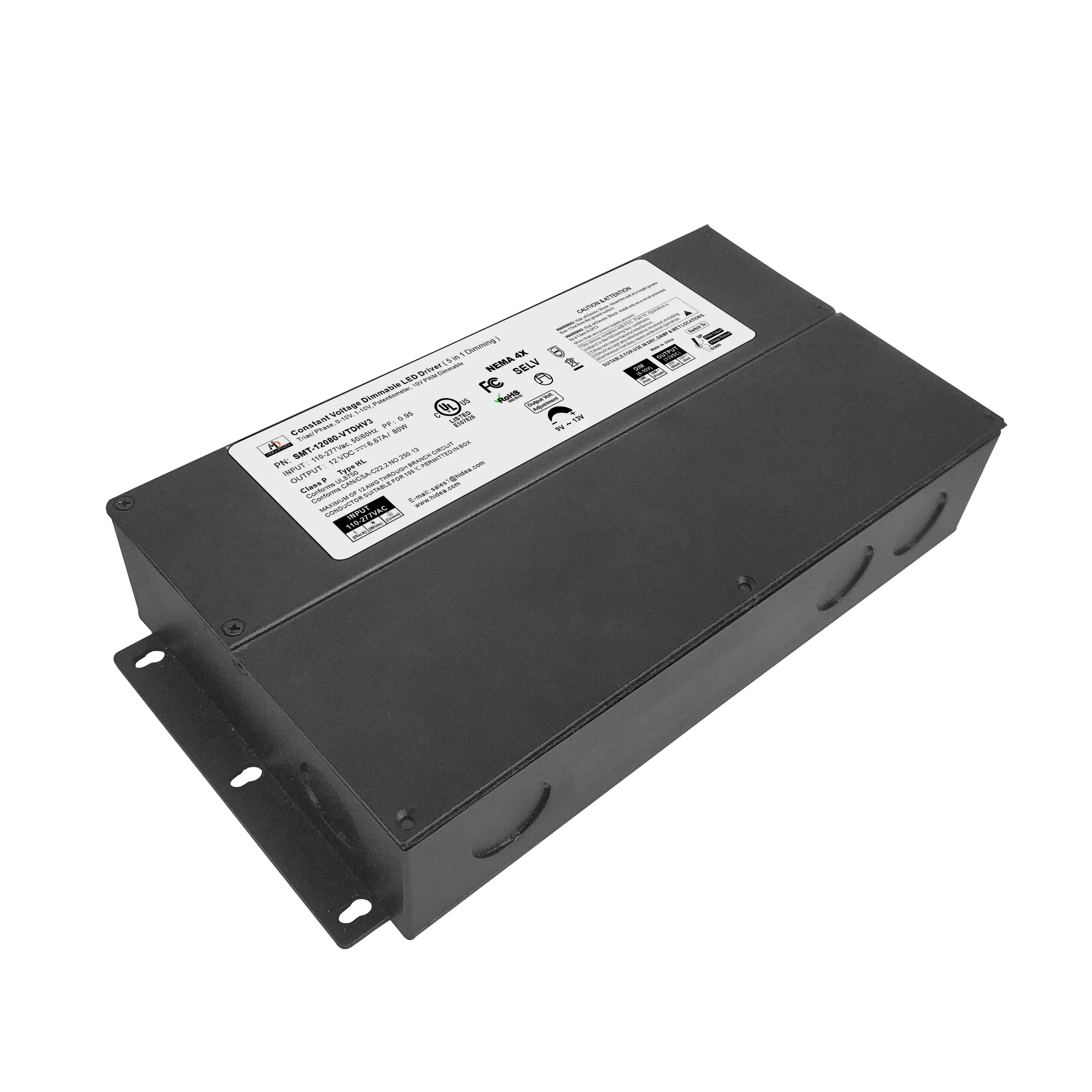

UL 12v/24v triac & 0 10v dimmable constant voltage led driver 80W
80W constant voltage LED driver NEMA 4X is suitable for indoor and outdoor use; wet, humid and dry locations, can be applied to lighting projects in North American shopping malls, with 10-100% ultra-low load requirements
Specification
|
Model Number
|
SMT-12080-VTDHV3
|
SMT-24080-VTDHV3
|
SMT-24080-VTDHV3
|
SMT-24080-VTDHV3
|
|
OUTPUT
|
|
Rated Power
|
80W
|
|
Rated Voltage
|
12V
|
24V
|
36V
|
48V
|
|
Rated Current
|
6.6A
|
3.3A
|
2.22A
|
1.66A
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
INPUT
|
|
Voltage Range
|
100-277V
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(typ.)
|
0.98@120VAC 0.95@277VAC Full load
|
|
Total Harmonic Distortion
|
THD< 20%@120VC/277VAC;
|
|
Efficiency(Typ.)
|
83%@120VAC 84%@277VAC
|
84% @ 120VAC 85% @277VAC
|
85% @ 120VAC 86% @277VAC
|
86% @ 120VAC 87% @277VAC
|
|
AC Current(Typ.)
|
1.1A
|
|
Inrush Current(Typ.)
|
27A, 50%, 700us @120VAC; 15A, 50% , 550us @277VAC
|
|
Leakage Current
|
<0.5mA/ 120VAC
|
|
PROTECTION
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Load
|
≤120% shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Temperate
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
ENVIRONMENT
|
|
Working Temp.
|
Tcase=-40 ~ +60 ℃
|
|
Max. Case Temp.
|
Tcase=+90℃
|
|
Working humidity
|
20 ~ 95% RH non-condensing
|
|
Storage temp., Humidity
|
-40 ~ +90, 10 ~ 95% RH
|
|
Temp .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
SAFETY & EMC
|
|
Safety standards
|
UL8750, CSAC22.2 No. 250.0-08
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
|
|
EMC Emission
|
Compliance to FCC part 15 Subpart B
|
|
OTHERS
|
|
Dimension
|
226.5x117.5x42.5mm (L*W*H) N.W: 1kg
|
|
Packing
|
10pcs/CTN G.W:11.2KG SIZE:275*255*250mm
|
Compatible Light Type
The new 5 in 1 led power supply 80W that is uniquely compatible with pwm and step-down output has a built-in fine-tuning voltage knob, and the new function of paddle control output mode,
Related Products
|

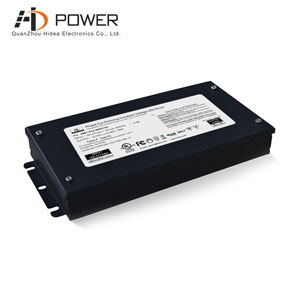

triac dimmable junction box and power integrated led driver 80W 12V/24V UL certification, mainly sold to North America
