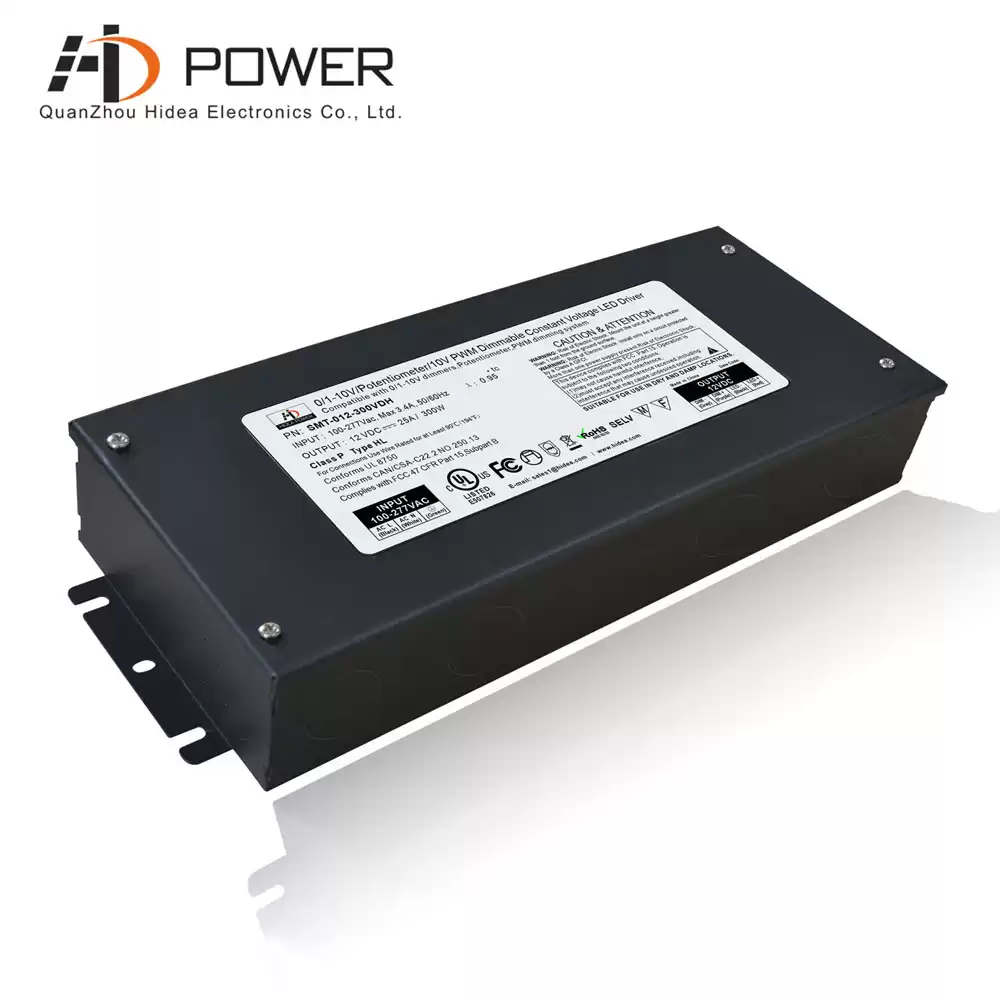

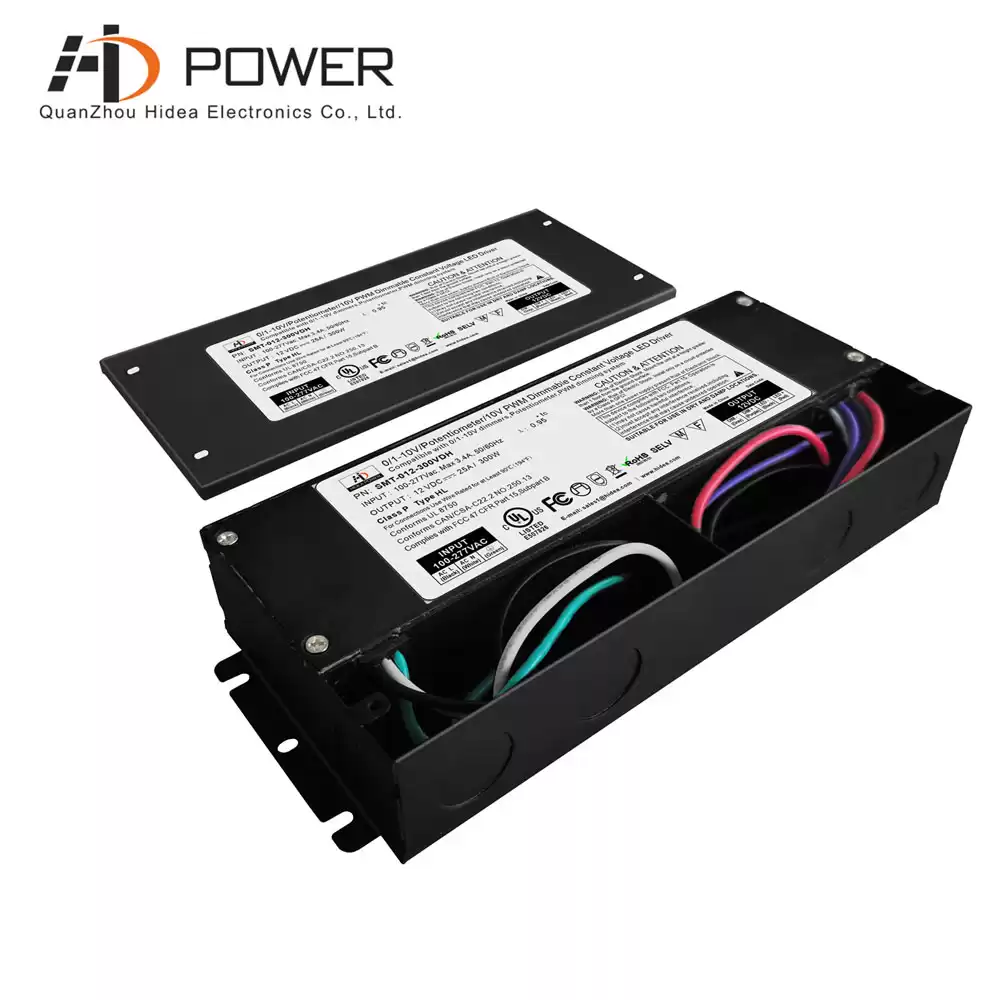

UL 12v power supply 300w 0-10v dimmable led driver
The 0 10vdc power supply State-of-the-art, Exclusive bulbless design. The built-in long-lasting energy-efficient Daylight LED Modules.
Specification
|
Model
|
SMT-012-300VDH (1.0 version)
SMT-012-300VDHV2 (2.0 version)
SMT-012-300VDHWV2 (3.0 version)
|
SMT-024-300VDH (1.0 version)
SMT-024-300VDHV2 (2.0 version)
SMT-024-300VDHWV2 (3.0 version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
±0.5V
|
|
Rated Power
|
±0.5%
|
|
Voltage Tolerance
|
25A
|
12.5A
|
|
Voltage Regulation
|
300W
|
|
Load Regulation
|
±2 %
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@full load
|
0.98@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ)@ full load
|
83% @120Vac 86%@277Vac
|
|
AC Current(Max.)
|
1.3A@100VAC
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.6ms
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.9Kg
|
|
Size
|
1.0 version: 278*108*46mm (L*W*H) / 2.0 version: 278*110*45mm 3.0 version: 278*130*45mm
|
|
packaging
|
10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type
The 12VDC 300w led driver are high efficient LED parking garage lights for all indoor or outdoor ceiling mount applications.
Related Products
|
 The waterproof led power supply 12v 300w is 7 years warranty for your project. And it takes about 7 days for the sample production.
Mode：SMT-012-300VDHW
Dimming Mode : 0-10V Dimming
Output Power : 300W
intput voltage：100~277V AC
Size：276*78*47MM （L*W*H）
|
