UL certification 96W 24v triac dimmerble led driver electrical transformers for lights

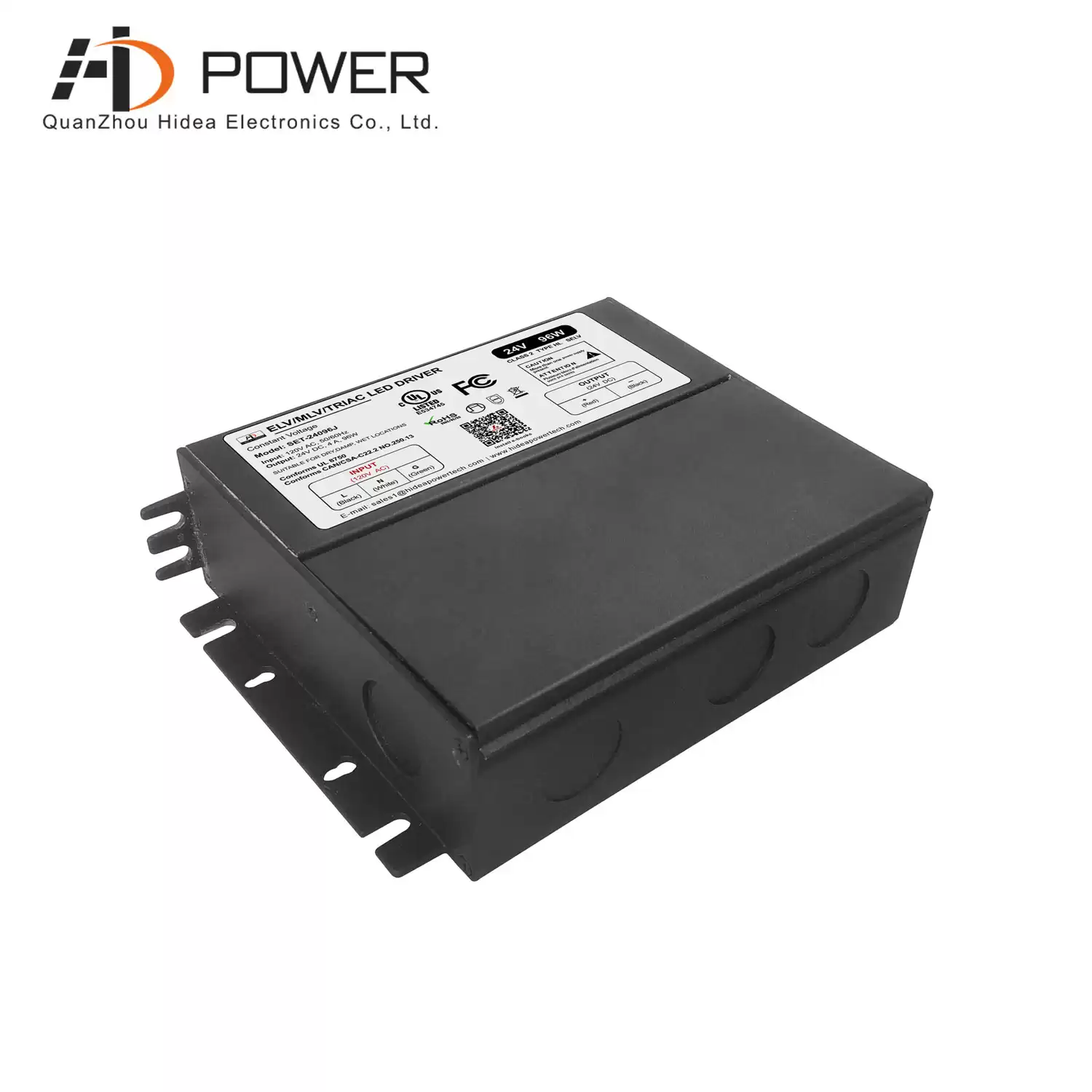

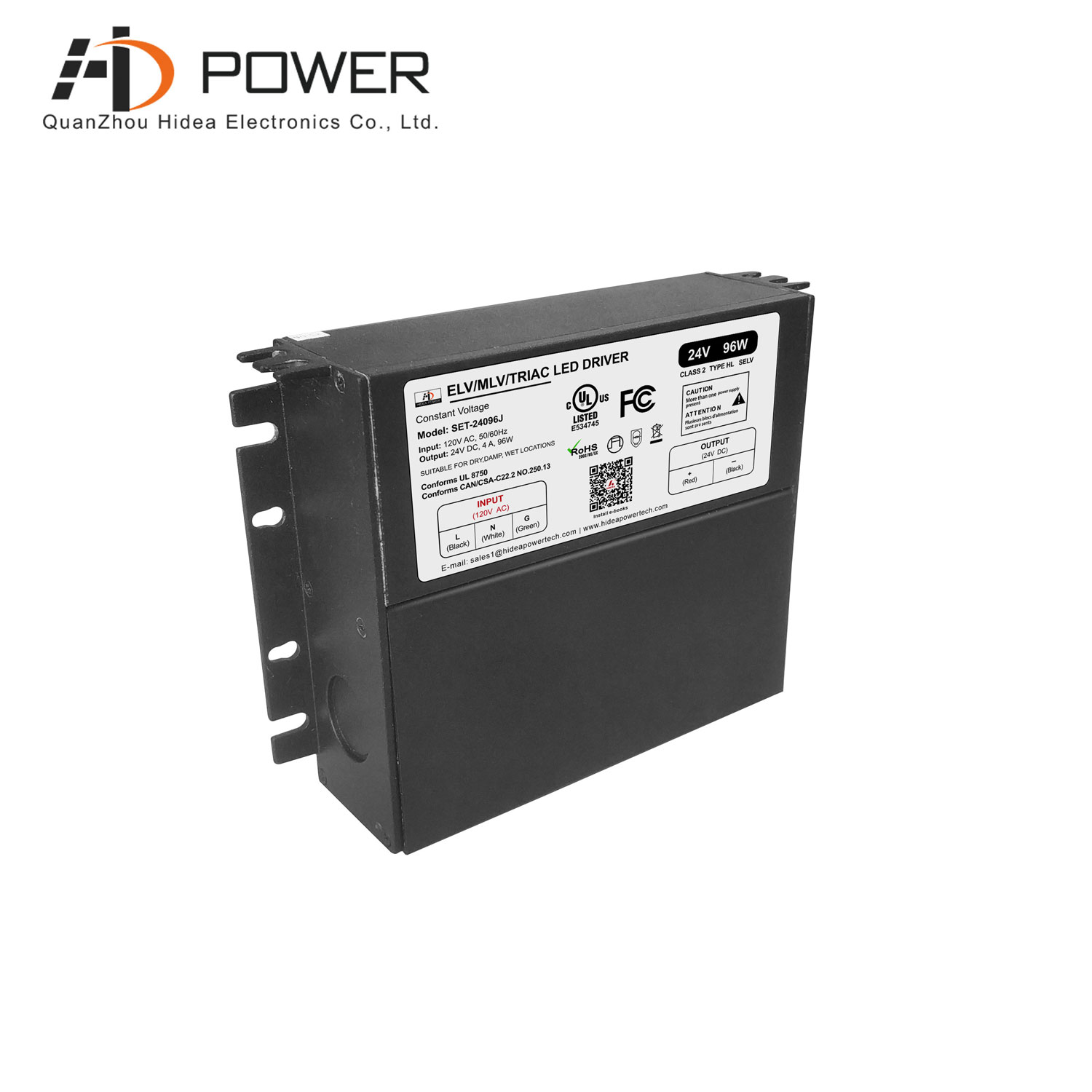

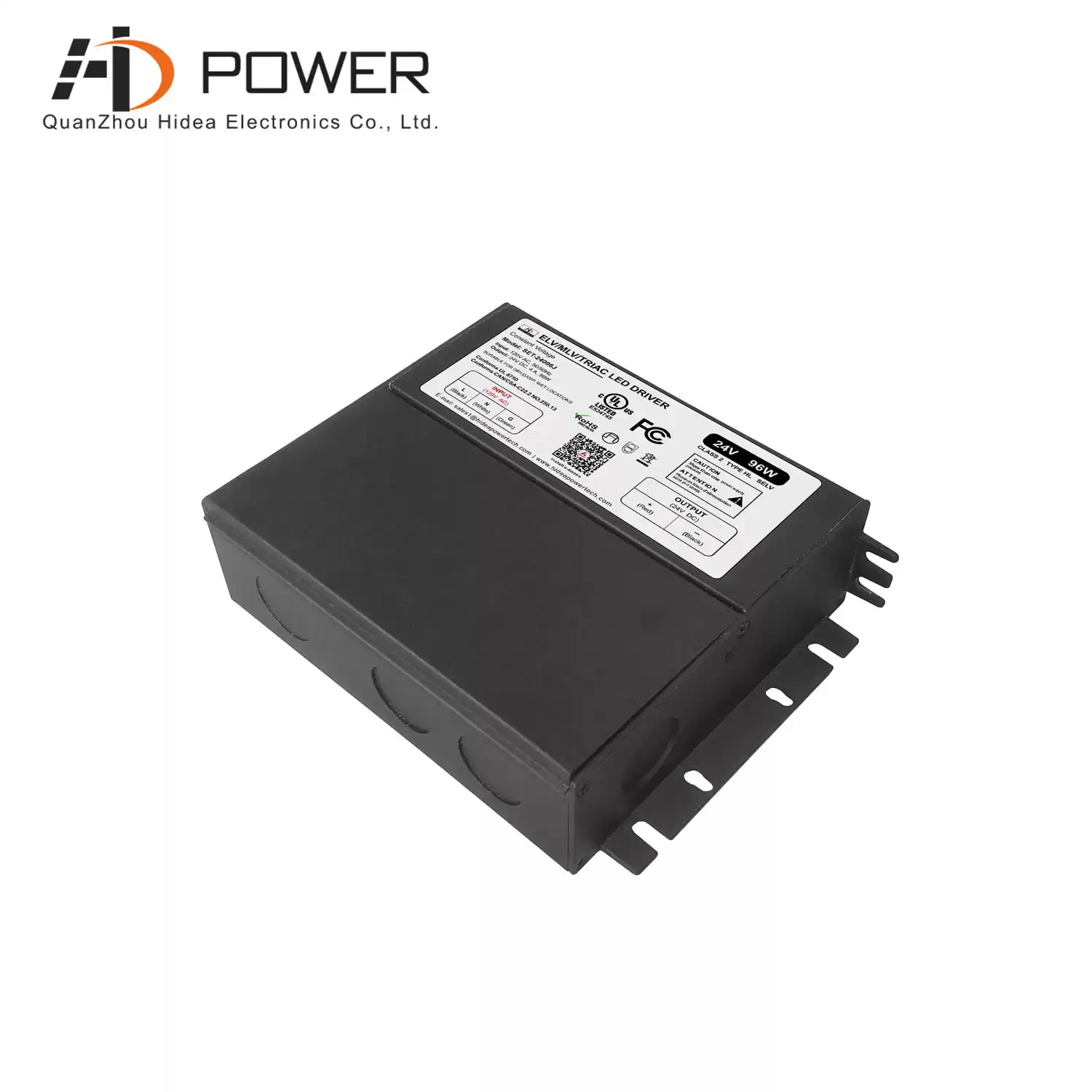

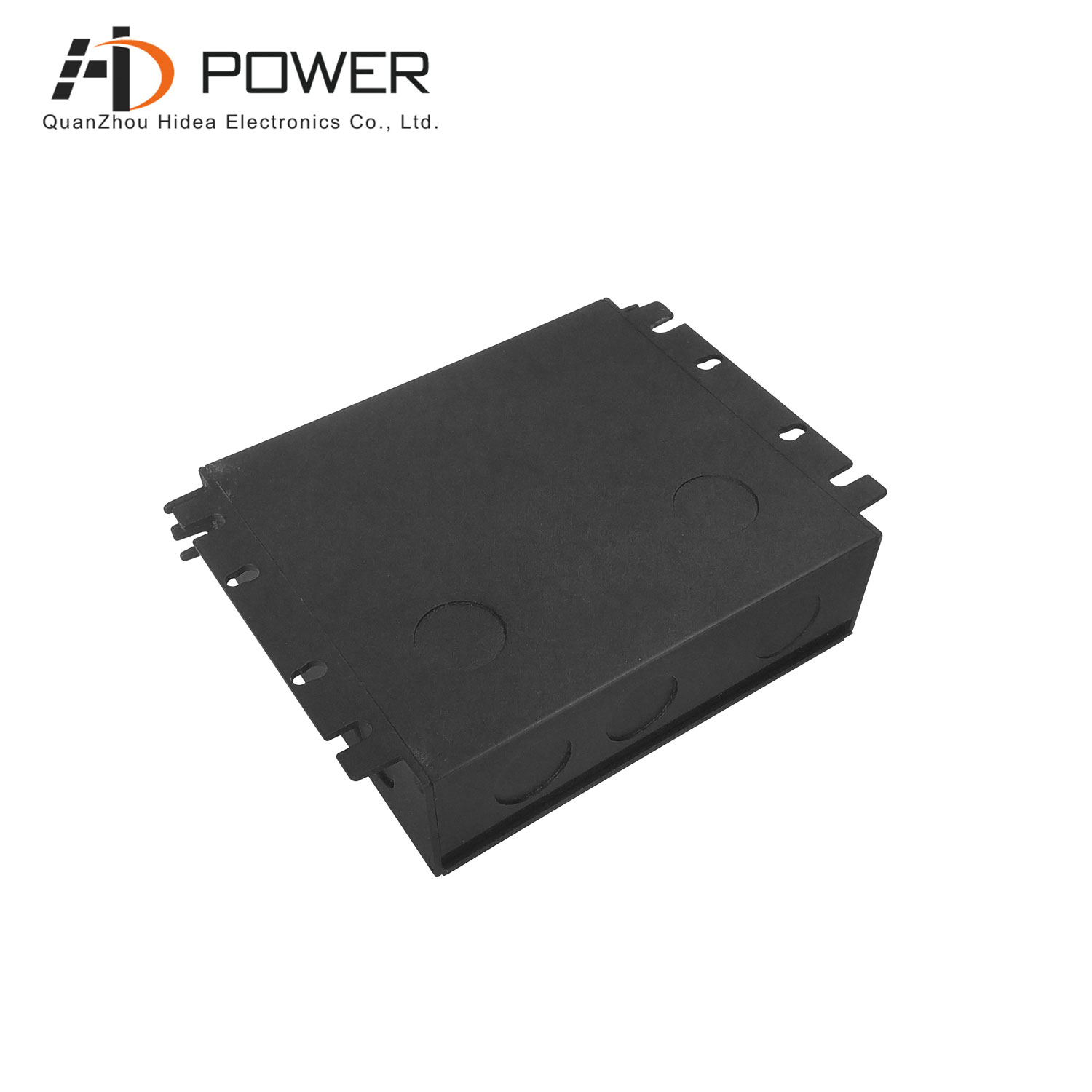

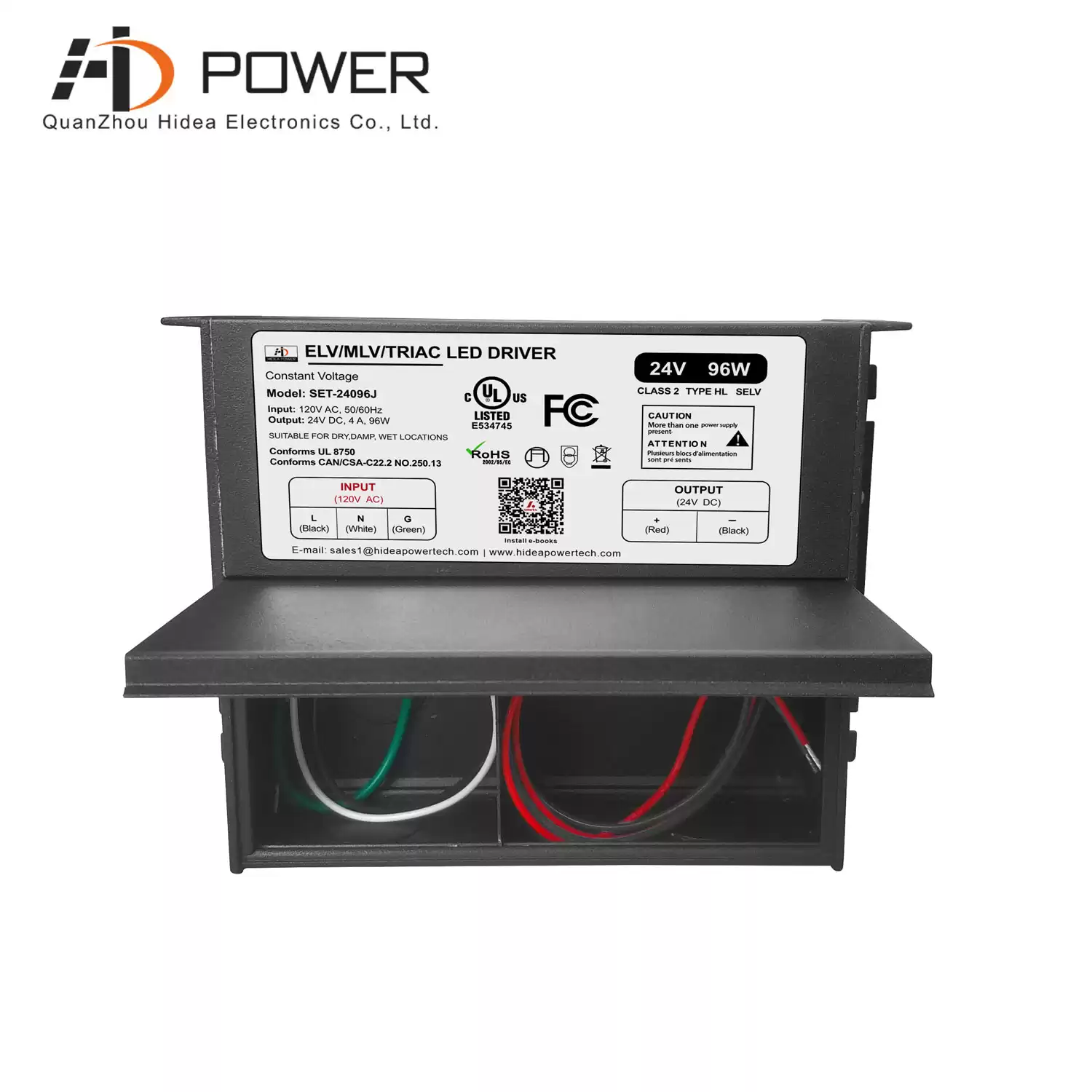

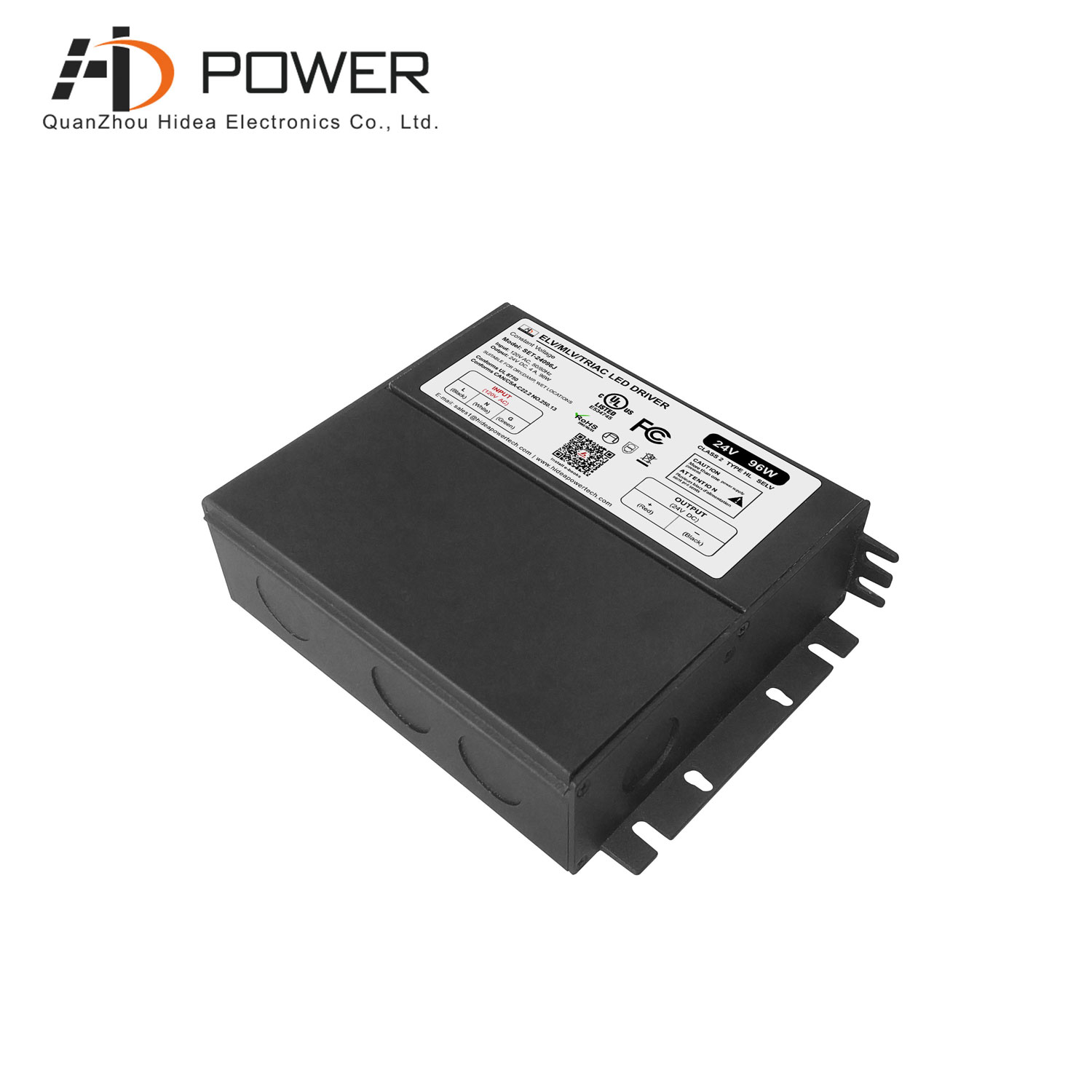

This 96W 24V triac/ELV/MLV dimmable led electronic transformer, iron box design, transformer and junction box integrated, can prevent the power from being damaged by external forces, good compatibility, can be very compatible with the market popular dimmer
Specification
|
Model Number
|
SET-24096J
|
|
Output Type
|
|
Reted Power
|
96W
|
|
Reted Voltage
|
24V
|
|
Reted Current
|
4A
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input Type
|
|
Voltage Range
|
120V
|
|
Frequency Range
|
47-63HZ
|
|
Efficiency(Typ.)
|
87%@120VAC
|
|
Total Harmonic Distortion
|
THD< 20%(@100% load)
|
|
Power Factor(typ.)
|
0.98@120VAC
|
|
AC Current(Typ.)
|
0.93A
|
|
Inrush Current(Typ.)
|
-
|
|
Leakage Current
|
<0.5mA/ 120VAC
|
|
PROTECTION
|
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Load
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
ENVIRONMENT
|
|
Working Temp.
|
Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)
|
|
Working humidity
|
20 ~ 95% RH non-condensing
|
|
Storage temp., Humidity
|
-40 ~ +90, 10 ~ 95% RH
|
|
Temp .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
SAFETY & EMC
|
|
Safety standards
|
UL8750, Class 2
|
|
Safety standards
|
I/P-O/P:1.88KVAC
|
|
OTHERS
|
|
Dimension
|
5.03x4.74x1.65 inch (L*W*H)
|
|
Packing
|
-
|
Related Products
|

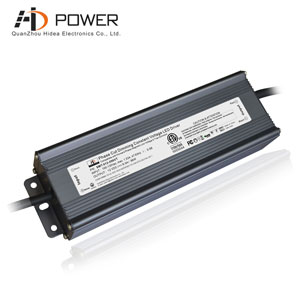

triac dimmable led driver Input voltage 170-265vac ETL certified, aluminum case design, waterproof rating ip67, for outdoor lighting projects in North America, with a 5-year warranty
