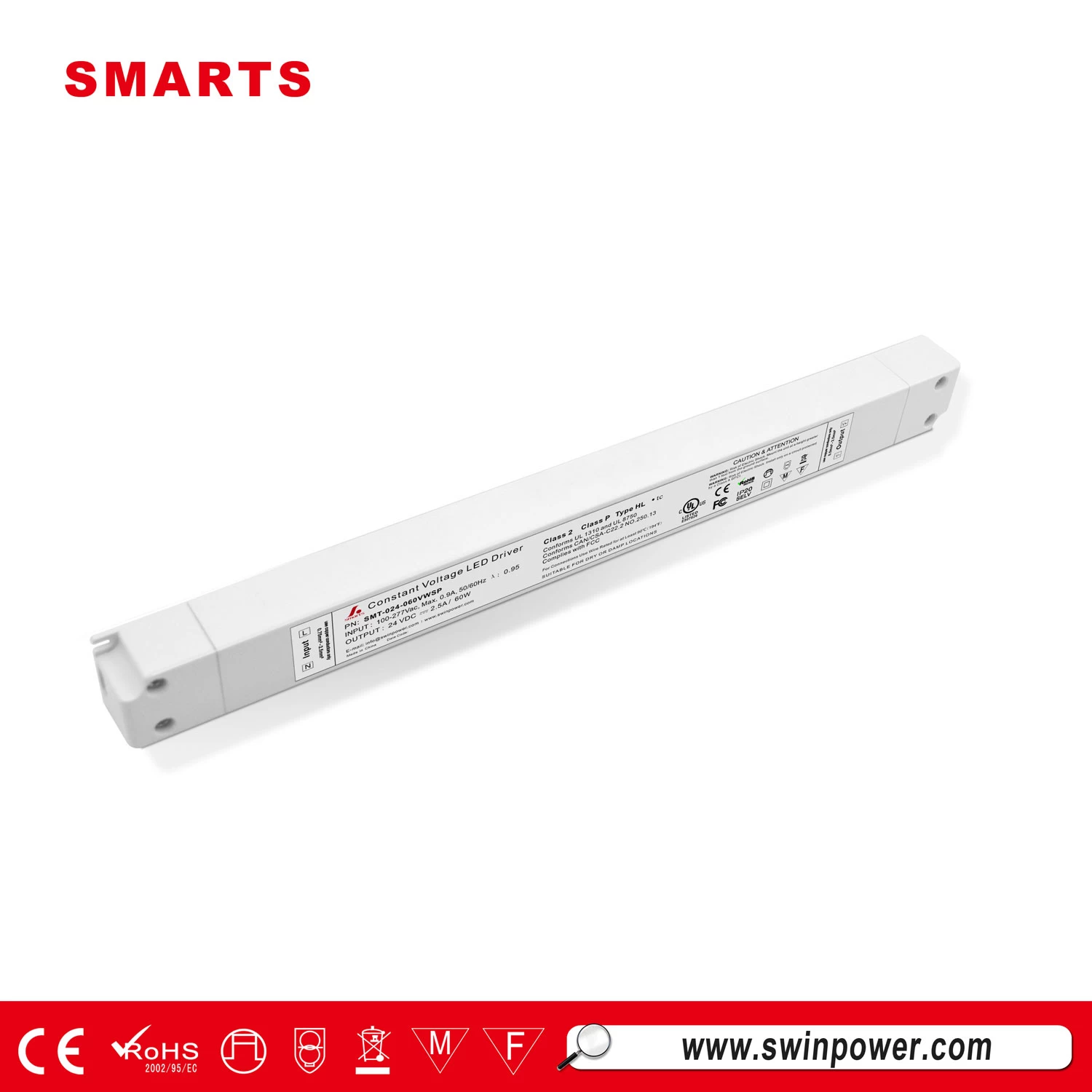

UL approved slim led driver 12v 24vdc 60w constant voltage power supply
Part number SMT-024-060VTSP 24v 60w power supply, 100 to 277V input voltage, 7 years warranty, strong compatibility with worldwide safety regulations for lighting .
Mechanical Specification
|
model
|
SMT-012-060VWSP
|
SMT-024-060VWSP
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
|
Rated current
|
5.0Amp
|
2.5Amp
|
|
|
Rated power
|
60W
|
60W
|
|
|
Voltage Regulation
|
±0.5%
|
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
PF≧0.99/110V ; PF≧0.98/230V ; PF≧0.97/277V
|
|
|
Full Load Efficiency（Typ.）
|
82%@120VAC ;84%@230VA ; 84%@ 277VAC
|
84%@120VAC;86%@230VAC; 86%@ 277VAC
|
|
|
AC Current（Typ.）
|
0.75A/100VAC / 0.2A/277VAC
|
|
|
Inrush Current（Typ.）
|
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC; 12A,50%480us@277VAC
|
|
|
Leakage current
|
<0.5mA/110VAC; ﹤0.2mA/277VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
|
Withstand voltage
|
I/P-O/P: 3.75KVAC
|
|
|
Isolation resistance
|
I/P-O/P：100M Ohms/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≥60%load)
|
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
|
|
Others
|
Weight
|
0.45Kg
|
|
|
Size
|
300*32*18.5mm (L*W*H)
|
|
|
packing
|
50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufacturesmust be-qualify EMC Directive on the complete installation again.
|
