We are offering our client an excellent quality range of UL Approved Solid Conductor thhn/thwn Nylon Cable Wiring. These are made from qualitative range of raw materials. These are offered in variety of sizes and colors. Our assortment of wires are available at most competitive prices.
UL Approved Solid Conductor thhn/thwn Nylon Cable Wiring
Standard:
1.Rated temperature:90°C
2.Rated voltage: 600V
3.Conductor: annealed copper or AA 8000 series alloy
4.Insulation: PVC. Thickness: per UL83
5.Jacket: Nylon. (Clear or colored) Thickness: per UL83
6.Passes VW-1 and CT flame test, gasoline and oil resistant, sunlight resistant.
7.UL file No. E210924
8.Used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code.

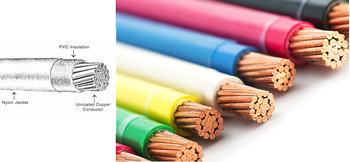

THHN Wire Description:
· THHN Wire has a conductor of soft drawn bare copper.
· THHN Wire has primary insulation of PVC with NYLON jacket.
· UL listed Stds. 83 & 1063 as: Type THHN Wire 90°C in dry locations, Type THWN Wire 75°C in wet locations.
· Gasoline and oil resistant II. Type MTW 90°C Machine Tool Wire (stranded only) 105°C AWM, 80°C where exposed to oil.
· CSA approval available upon request for the building wire.
