UL certificate 277v 12 volt 5A 100W 0-10V dimmable power supply led driver

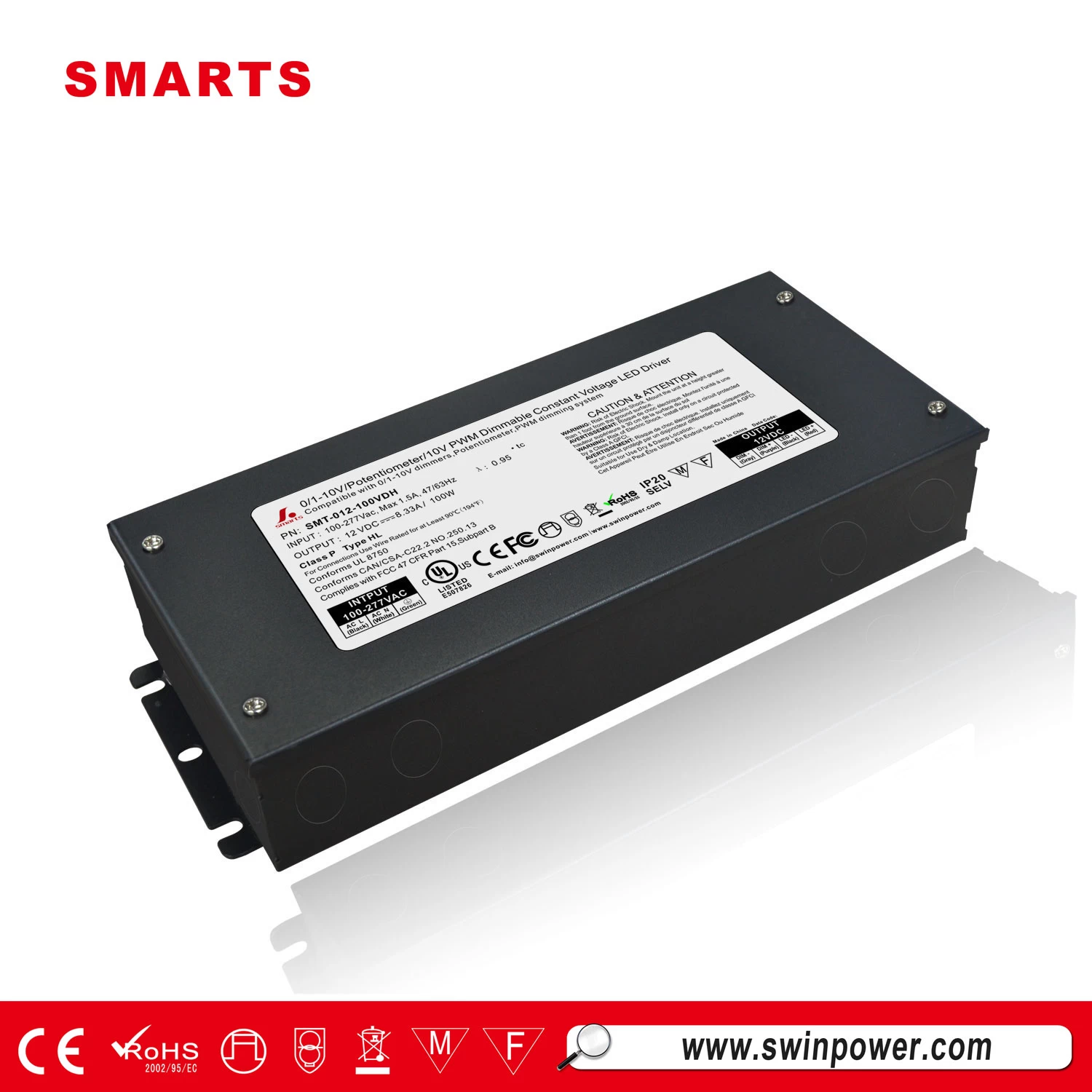

This SMT-012-100VDH is UL approved 12Vdc 100W 0-10V ac 277v power supply led driver. Which are CE,UL, RoHS,FC C,Class p, type HL aluminum IP20 non-waterproof version suitable for indoor use.
Features of 277v power supply led driver：
Output constant voltage type
·Range 100-305VAC , Typical: 100-277VAC
·Built-in PFC function PF>0.90
·Efficiency > 88%
·Protections:short circuit/over current/over voltage/over temperature
·Cooling by free air convection
·IP20 design for indoor or outdoor installations .
·Dimming function:0-10V/ 1-10V/ 10VPWM signal or resistance .
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·Suitable for dry/damp locations
·7 years warranty
Specification of 277v power supply led driver:
|
model
|
SMT-012-100VDH
|
SMT-024-096VDH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
|
Rated current
|
8.3A
|
4.0A (class 2 type)
|
|
|
Rated power
|
100W
|
96W
|
|
Input
|
Voltage Range
|
100~277V AC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
PF≧0.98/110V , PF≧0.95/277V
|
|
|
Full Load Efficiency(Typ.)
|
>88%
|
>88%
>85%
>85%
|
|
|
AC Current（Typ.）
|
1.3A @110VAC
|
|
|
Leakage current
|
﹤0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
|
Over voltage
|
≦140VAC(90~135V) , ≦270VAC(170~265V)
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.3Kg
|
|
|
Size
|
220*93*41mm (L*W*H)
|
|
|
packing
|
10PCS/CTN
385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|

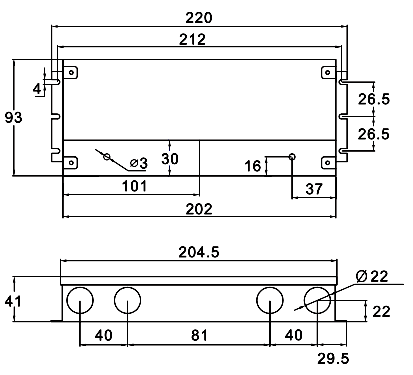

Mechanical Specification
FAQ:Do all of these units have protection from thermal overload (excessive heat), voltage overload, short circuit, and power surge?
Answers: Yes, all of those units have the protection from thermal overload (excessive heat), voltage overload, short circuit, and power surge.
