UL certification 24v triac & 0 10v dimmable constant voltage 80W led driver power supply replacement

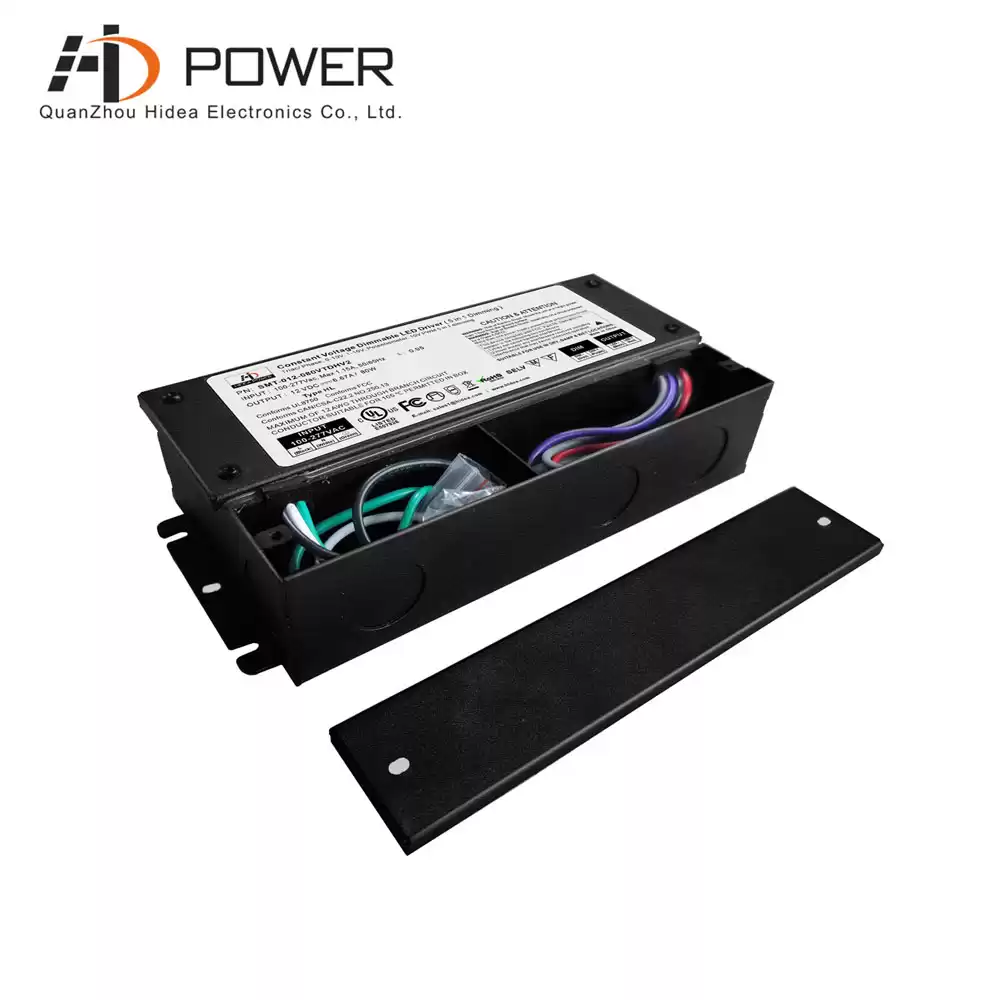

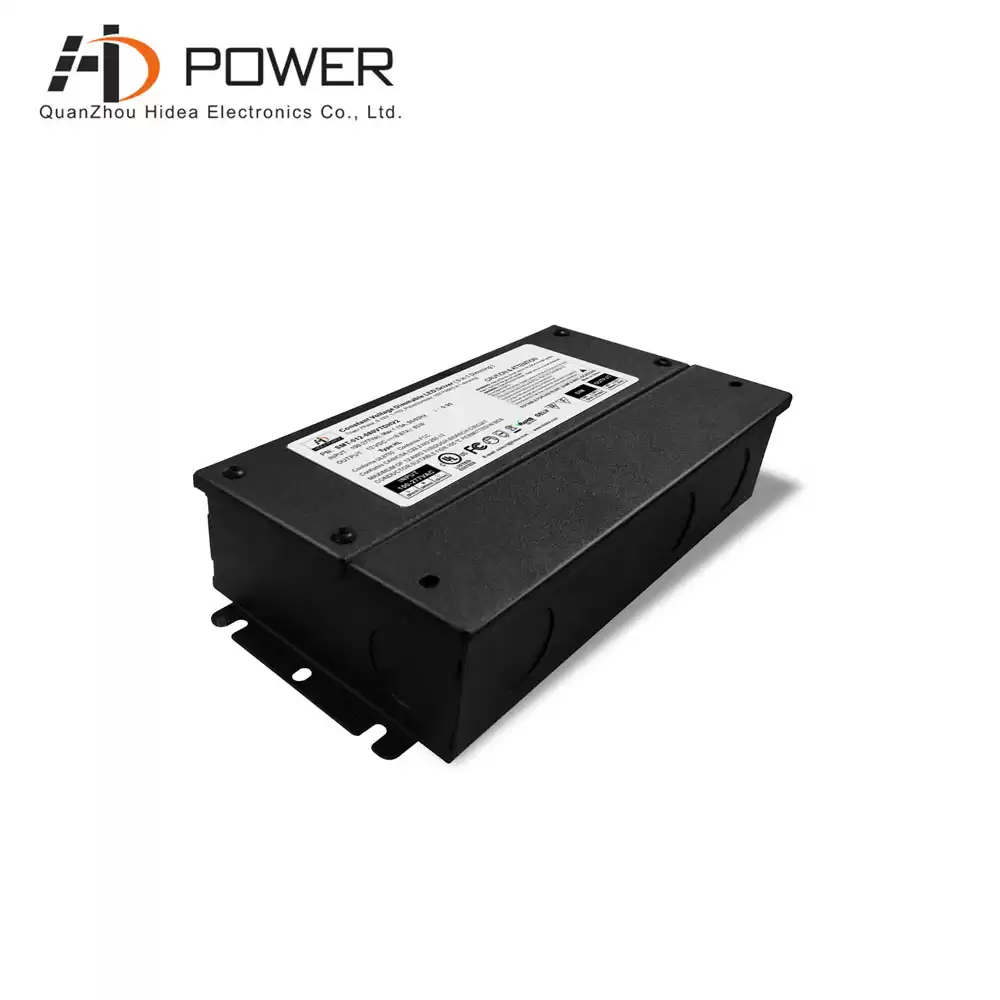

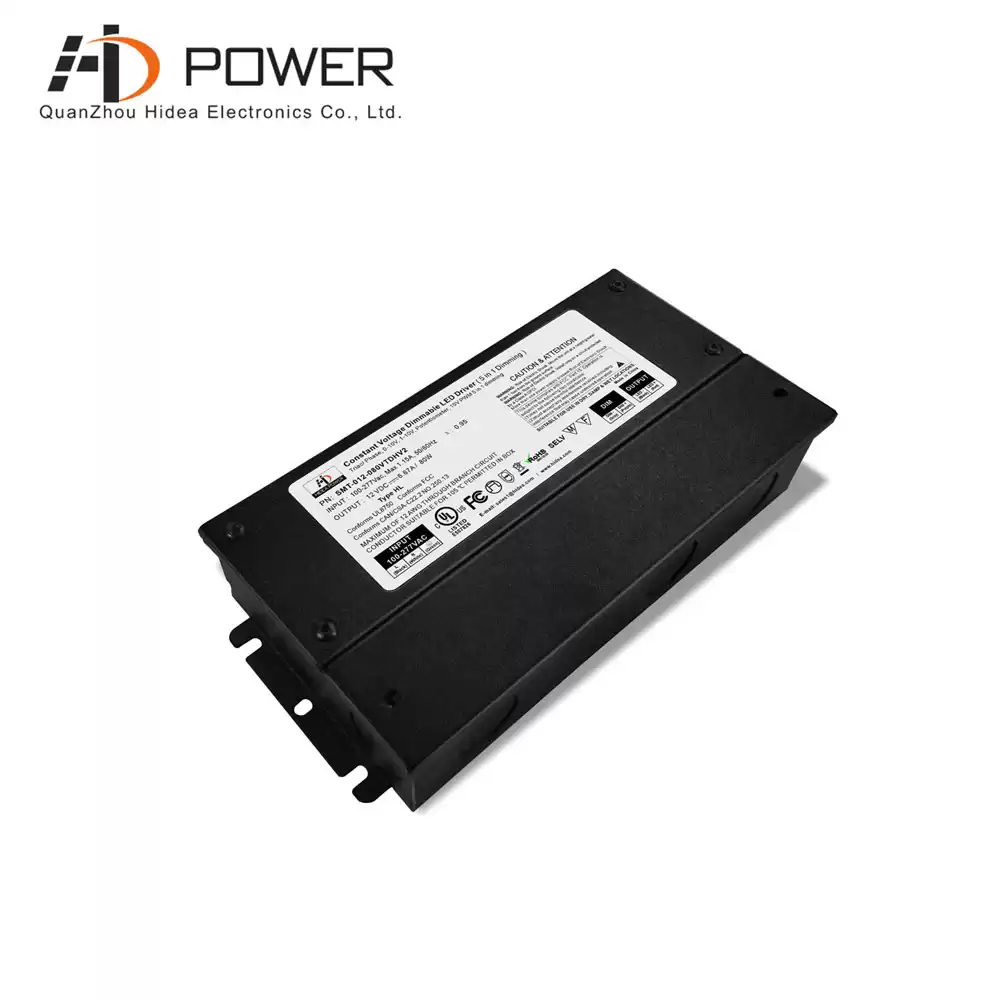

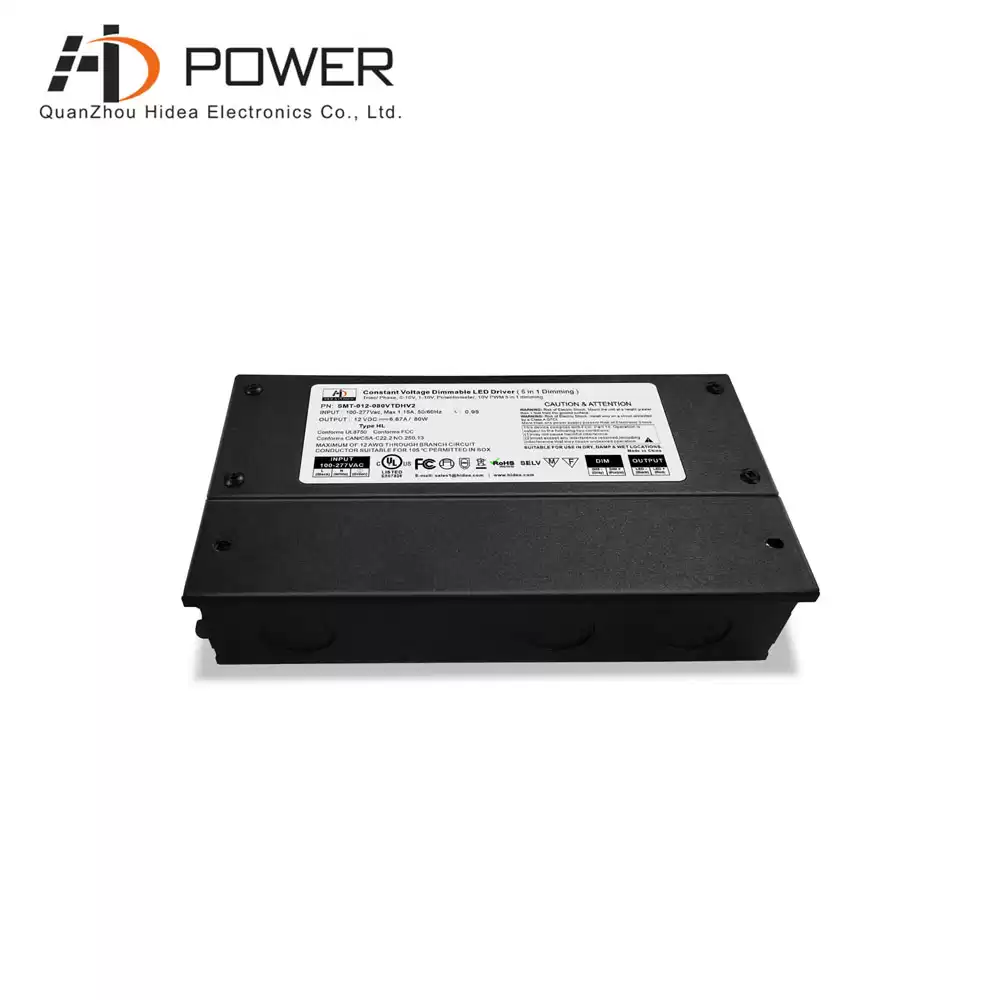

triac & 0 10v dimmable 80W led driver integrated with junction box design with built-in PFC function, PF>0.98, constant voltage working mode with short circuit/overload/overtemperature protection function, dimming range between 0 -100%, 7 years Warranty
Specification
|
model
|
SMT-012-080VTDHV2
|
SMT-024-080VTDHV2
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
6.67A
|
3.33A
|
|
Rated Power
|
80W
|
80W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC 0.95@277VAC
|
0.98@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
80% @120Vac 82%@277Vac
|
82% @120Vac 85%@277Vac
|
|
AC Current(Max.)
|
1.15A@100Vac
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.6ms @120Vac 25A, 50%, 1.2m,s @277Vac
|
|
Leakage current
|
<0.50mA
|
|
protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is
removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
About 1.3Kg
|
|
Size
|
220*94.5*40mm (L*W*H)
|
|
packing
|
10PCS/CTN (L*W*H)
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type
12 volt dc led power supply 80w, triac+0-10v 5 in 1 dimming, this series can do 12v/24v 30w-384w available, it can work well with Brilliance Led Lighting strip lighting recreational area by triac/0-10v dimmers.
Related Products
|

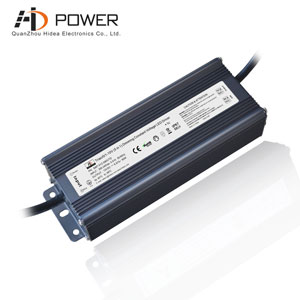

 80W triac & 0 10v dimmable led driver aluminum shell design, waterproof grade ip67, can effectively prevent water and dust, protect the life of the power supply and lamps
Mode：SMT-012-080VTD
Dimming Mode : Triac Dimming
Output Power : 80W
intput voltage：100-277V AC
Size：220*92.5*43MM （L*W*H）
|
