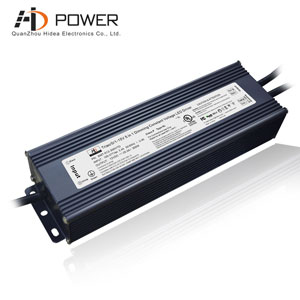

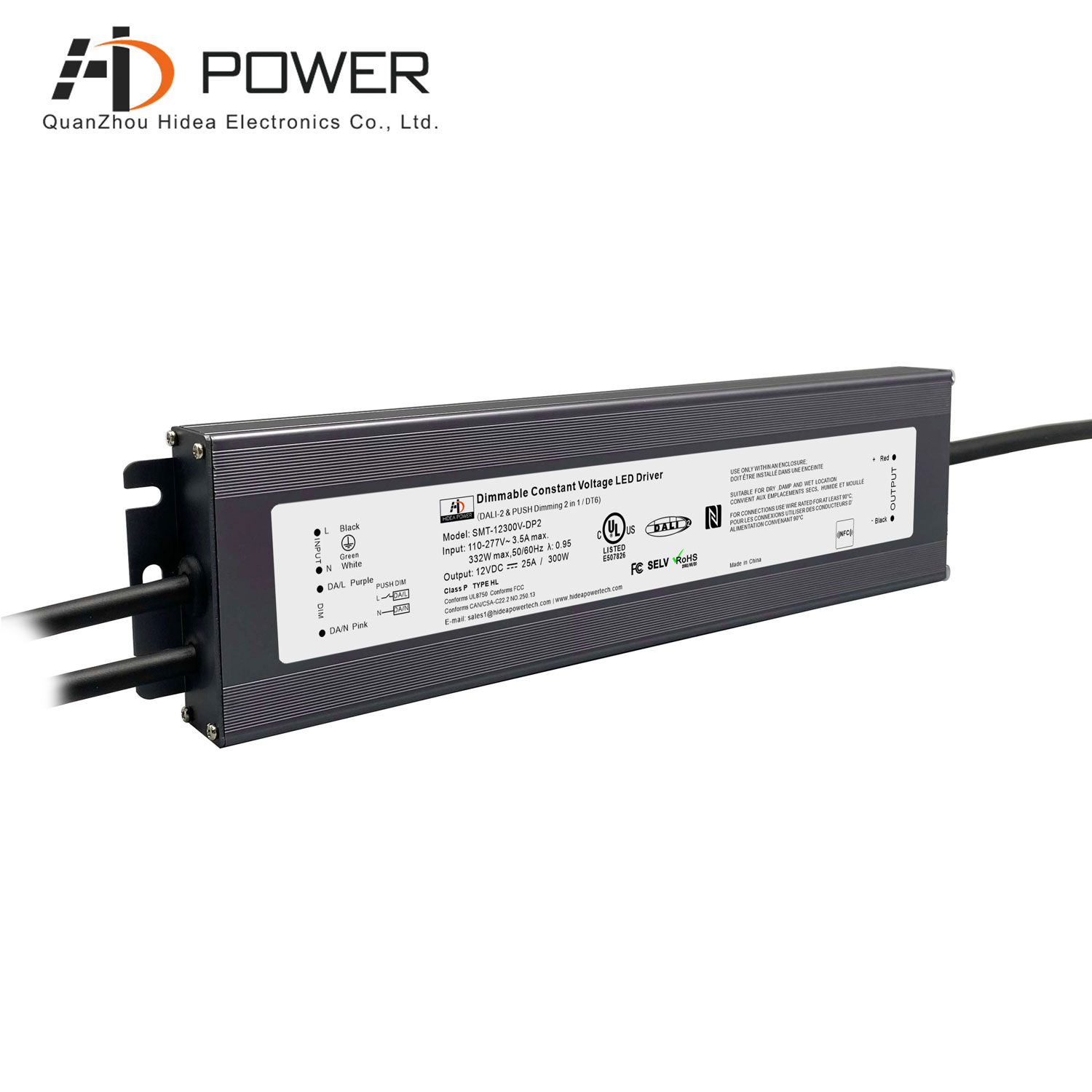

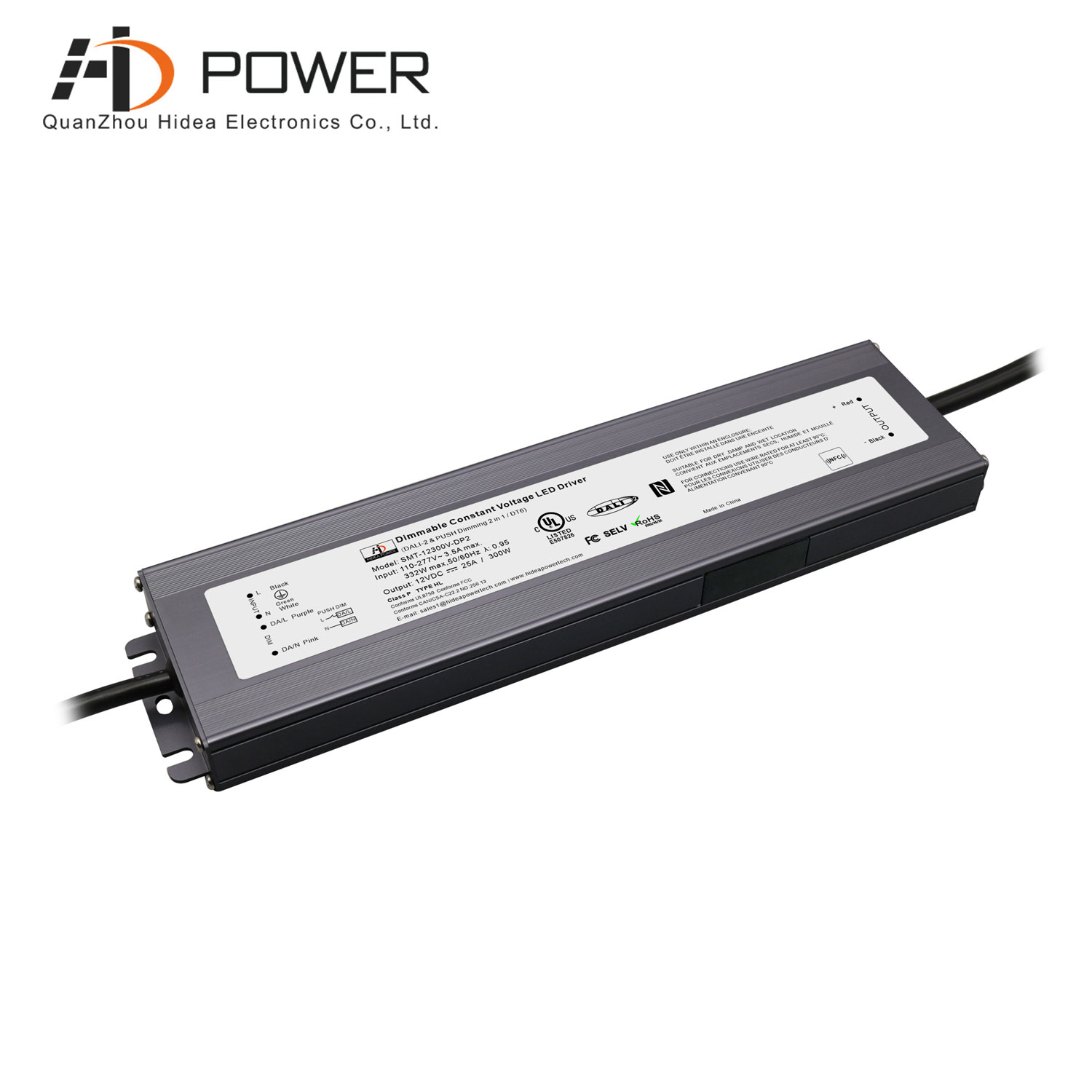

Model
|
SMT-12300V-DP2
|
SMT-24300V-DP2
|
SMT-36300V-DP2
|
SMT-48300V-DP2
|
|
Output
|
DC Voltage
|
12V (12-13V adjust by NFC)
|
24V (24-25.5V adjust by NFC)
|
36V (36-38V adjust by NFC)
|
48V (48-50V adjust by NFC)
|
|
Voltage Tolerance
|
±0.2V
|
|
Rated current
|
25A
|
12.5A
|
8.34A
|
6.25A
|
|
Rated power
|
300W
|
|
Load Regulation
|
±2%
|
|
Input
|
Standby power consumption
|
≤0.5W
|
≤0.5W
|
≤0.6W
|
≤0.6W
|
|
Voltage Range
|
110-277VAC
|
|
Frequency Range
|
47 - 63Hz
|
|
Power Factor(Typ.)@ full load
|
PF≥0.98@120VAC PF≥0.95@230VAC PF≥0.90@277VAC (Full loading)
|
|
THD(Typ.)@ full load
|
≤10%@120VAC ; ≤10%@230VAC; ≤15%@277VAC
|
|
Efficiency(Typ.)@ full load
|
88%@120VAC;
|
89%@120VAC; 91%@230VAC; 91%@277VAC
|
|
AC Current(Max.)
|
3.5A
|
3.5A
|
3.5A
|
3.5A
|
|
Inrush Current (Typ.)
|
60A,9us@50%Ipeak(120VAC);70A,188us@50%Ipeak(230VAC) 180A,4.4us@50%Ipeak (277VAC)
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Load
|
≤120% ,hiccup mode, recover automatically after fault condition is removed
|
|
Over temperature
|
Ambient temp. over 55℃±10℃, output will be off; recovers automatically after temp. drops.
|
|
Environment
|
Working TEMP.
|
-40~+70℃ (see below derating curve)
|
|
Working Humidity
|
20 - 95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40 - +80℃,10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 - 50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 (EU) & UL8750 (US)
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU); I/P-O/P:1.88KVAC (US)
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC Emission
|
EN55015 EN61000-3-2 EN61000-3-3 (EU)≥50% Load & FCC Part 15 B (US)
|
|
EMC Immunity
|
EN61000-4-2,3,4,5,6 ,11, EN61547
|
|
Others
|
Weight
|
1.15KG
|
|
Dimension
|
301*78*25.1mm (L*W*H)
|
|
packing
|
390*325*185mm/20PCS/CTN G.W.:24KG/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 120VAC/230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
