UL certification Slim type phase cut/triac dimmable constant voltage led driver 24v 36W
The led driver 24v 36w triac dimmable is used to adjust the C.V. lights' intensity, and Its slim size (only 260*30*18.5mm) makes it very practical for connection and placement. We would like to reommend 120VAC lutron dimmers for better dimming effect.
- Size260*30*18.5MM
- Shape & SizeSlim Size
- Input Voltage100-277Vac
- Output Power(Watt)36W
- Output Voltage12/24Vdc
- Working ModeConstnat Voltage LED Driver
- Dimming ModeTriac Dimming
- Weight200g
- CertificationUL/CUL
- Warranty7 Years
UL certification Slim type phase cut/triac dimmable constant voltage led driver 24v 36W
The UL led drivers 12V 36W is Class 2 , Class P standard. PWM output, with single color light. The maximum loads of the driver shouldn't exceed for their rated power, usually the best load is 80-90% of our dimmable drivers.
Label
Specification
| model | SMT-012-036VTSP | SMT-024-036VTSP | |
| Output | DC Voltage | 12VDC | 24VDC |
| Voltage Accuracy | ±5% | ±5% | |
| Rated current | 3.0Amp | 1.5Amp | |
| Rated power | 36W | 36W | |
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input | Voltage Range | 100-277 VAC | |
| Frequency Range | 47~63HZ | ||
| Power Factor ( Typ.) | PF≧0.99/110V ; PF≧0.98/277V | ||
| Full Load Efficiency(Typ.) | >83% | >84% | |
| AC Current(Typ.) | 0.5A/100VAC / 0.23A/277VAC | ||
| Inrush Current(Typ.) | 7A, 50%, 420us | ||
| Leakage current | <0.27mA/110VAC; ﹤0.25mA/277VAC | ||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Loading | ≤120% shut down o/p voltage, re-power on to recover | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Environment | Working TEMP. | -40~+60℃ | |
| Working Humidity | 20~90%RH,non-condensing | ||
| Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | UL8750+UL1310 | |
| Withstand voltage | I/P-O/P:2KVAC | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | FCC Part 15 B | ||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,,11, Alight industry level | ||
| Others | Weight | 0.35Kg | |
| Size | 260*30*18.5mm (L*W*H) | ||
| packing | 50PCS/CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,Rated load and 25℃of ambient temperature. | ||
| 2. Tolerance:includes set us tolerance,line regulation and load regulation . | |||
 |
 |
 |
 |
||
Compatible Light Type

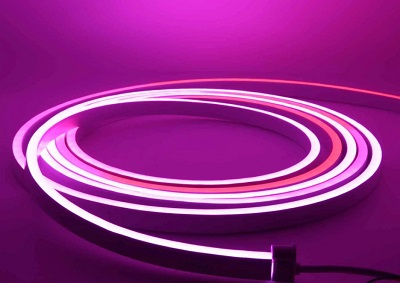

The driver is easy terminal access, available from 30w 36w 60w 100w 150w. With an input voltage of 100-277vac, this led driver 24v dimmable can be used with both LED strips or LED mirrors for bathroon lighting. In addition, GLLS LED neon is also an options for you.
