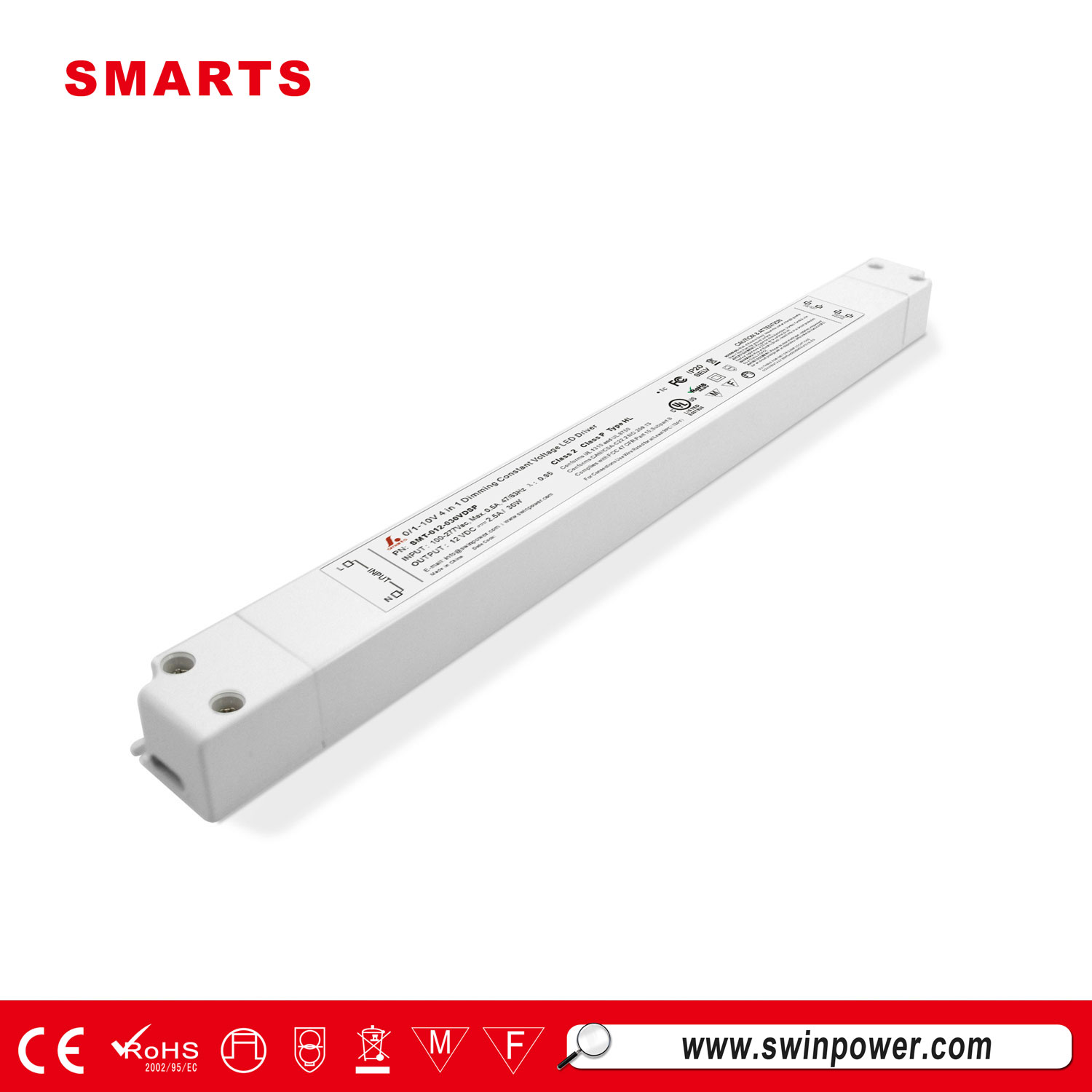

UL certified slim size 12v 24v power supply 30w 36w dimmable led driver transformer for lighting
Our dimmable led power supply series are commonly used in many LED indoor and outdoor lighting applications such as, LED horticultural lighting, LED residential lighting, LED street lamps, LED signage, LED decorative and architectural lighting, LED theatre/stage lighting, LED embedded lighting and LED large screen displays.
Features
·Output constant voltage
·Input voltage range 100-277VAC
·UL, cUL listed, Class 2, Class P standard approval
·Built-in PFC function / Efficiency > 80% / PF> 0.99
·Dimming range: 0~100%
·Protections:short circuit/over voltage/over heat
·IP20 plastic case design for indoor dry, damp environment installations
·Cooling by free air convection
·0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty
Specification
|
model
|
SMT-012-030VDSP
|
SMT-024-030VDSP
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
2.5Amp
|
1.25Amp
|
|
Rated power
|
30W
|
30W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
PF≧0.99/110V ; PF≧0.98/277V
|
|
Full Load Efficiency（Typ.）
|
>79%
|
>81%
|
|
THD(Typ. ) @ full load
|
<10%@120VAC <15%@277VAC
|
|
AC Current（Typ.）
|
0.5A
|
|
Inrush Current（Typ.）
|
5A, 50%, 960us @120VAC; 13A, 50% , 1ms @277VAC
|
|
Leakage current
|
﹤0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750 +UL 1310, CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, ,
Alight industry level
|
|
Others
|
Weight
|
0.20Kg
|
|
Size
|
260*32*20mm (L*W*H)
|
|
packing
|
290*270*160mm , 50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|

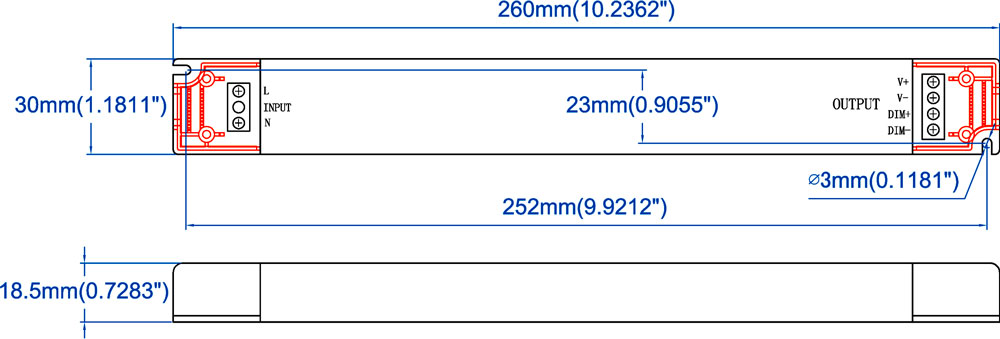

Mechanical Specification
Ø Input terminals "Black" and "White" to connect to AC L and N.
Ø Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.
Ø Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)
Ø Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Ø Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Derating Curve

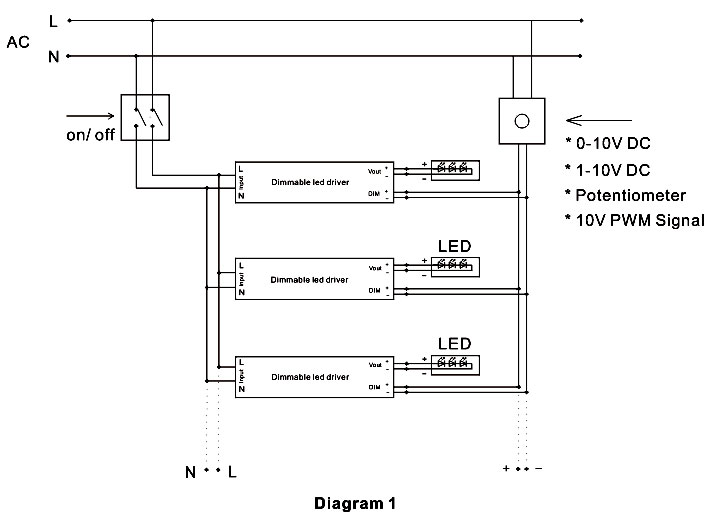

Connecting Diagram
