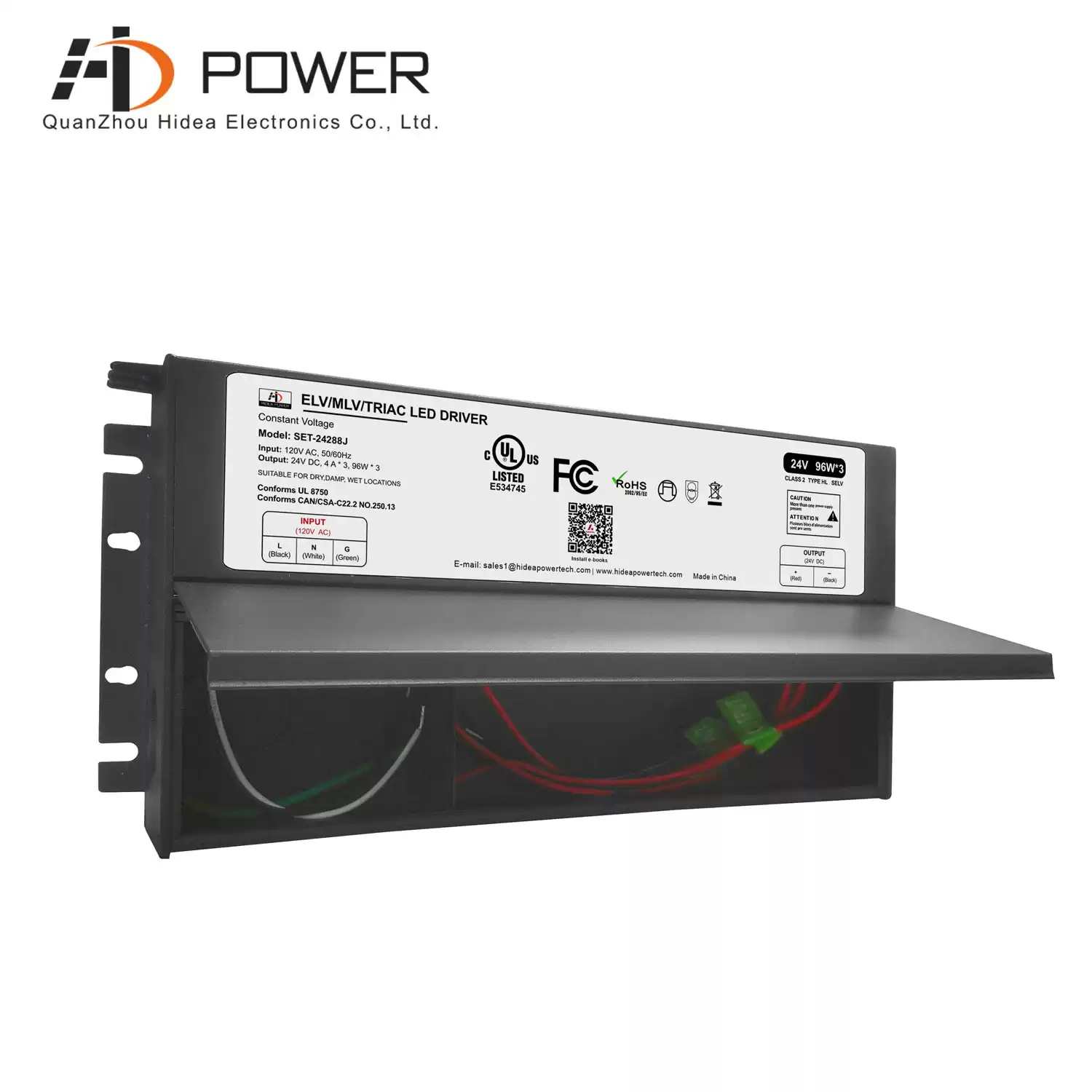

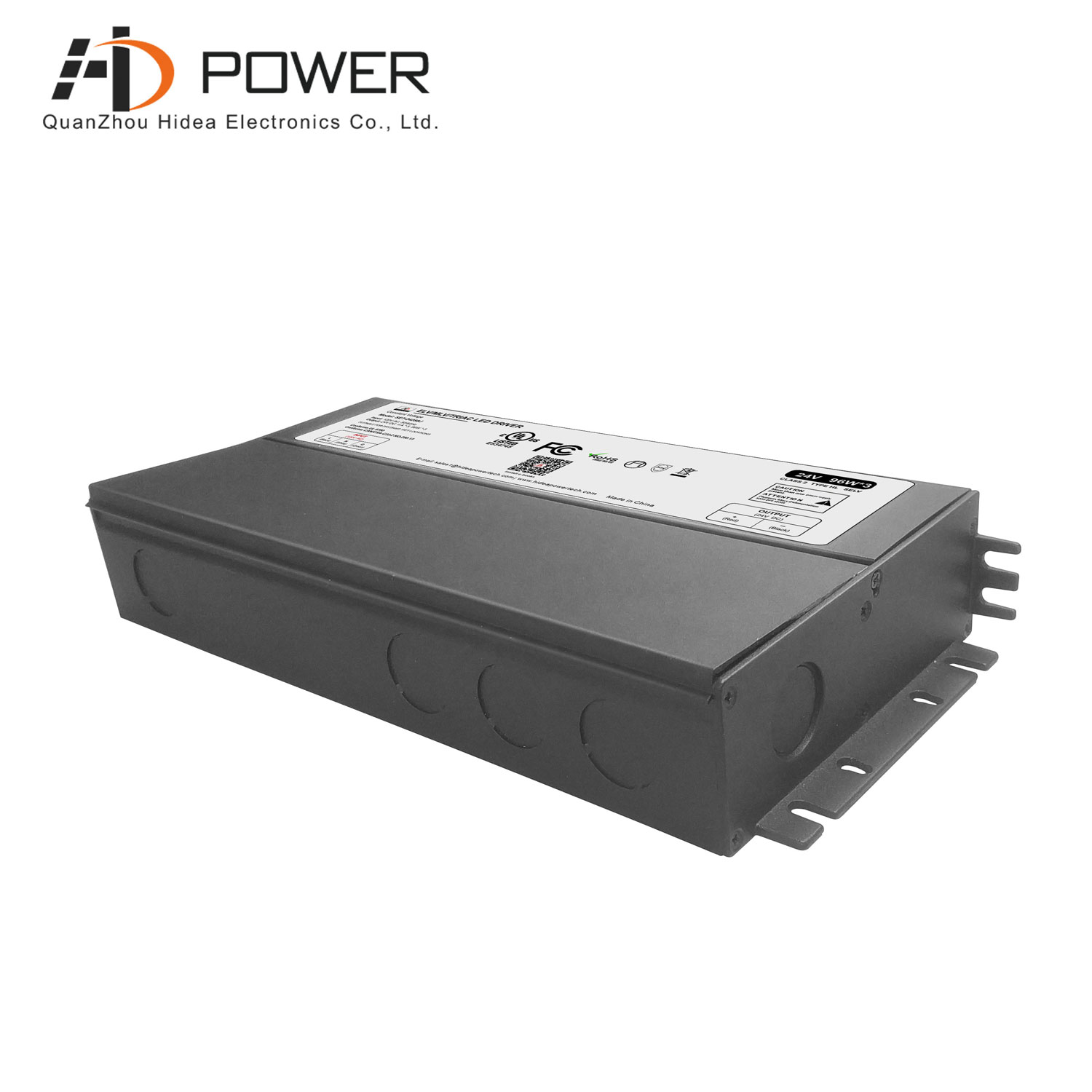

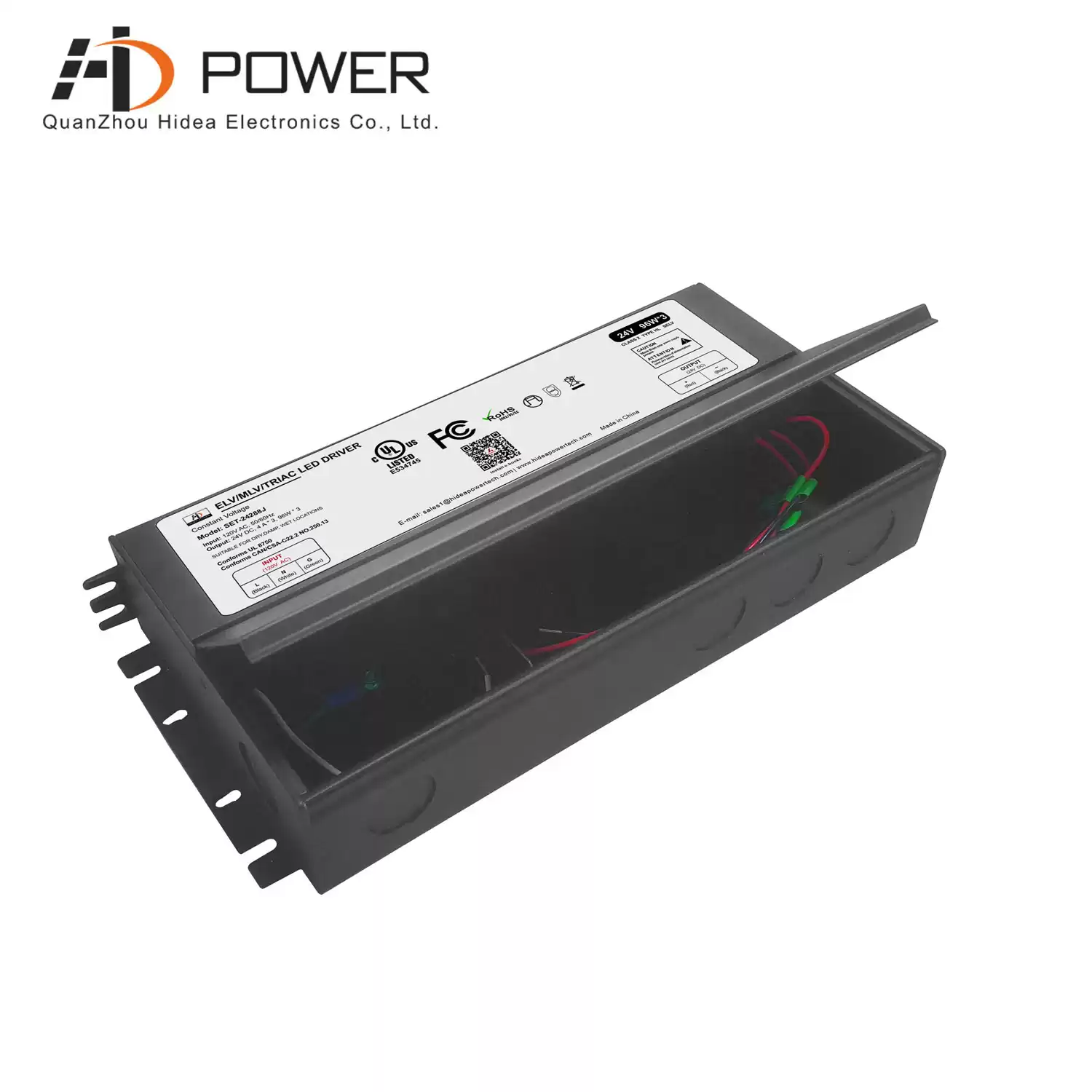

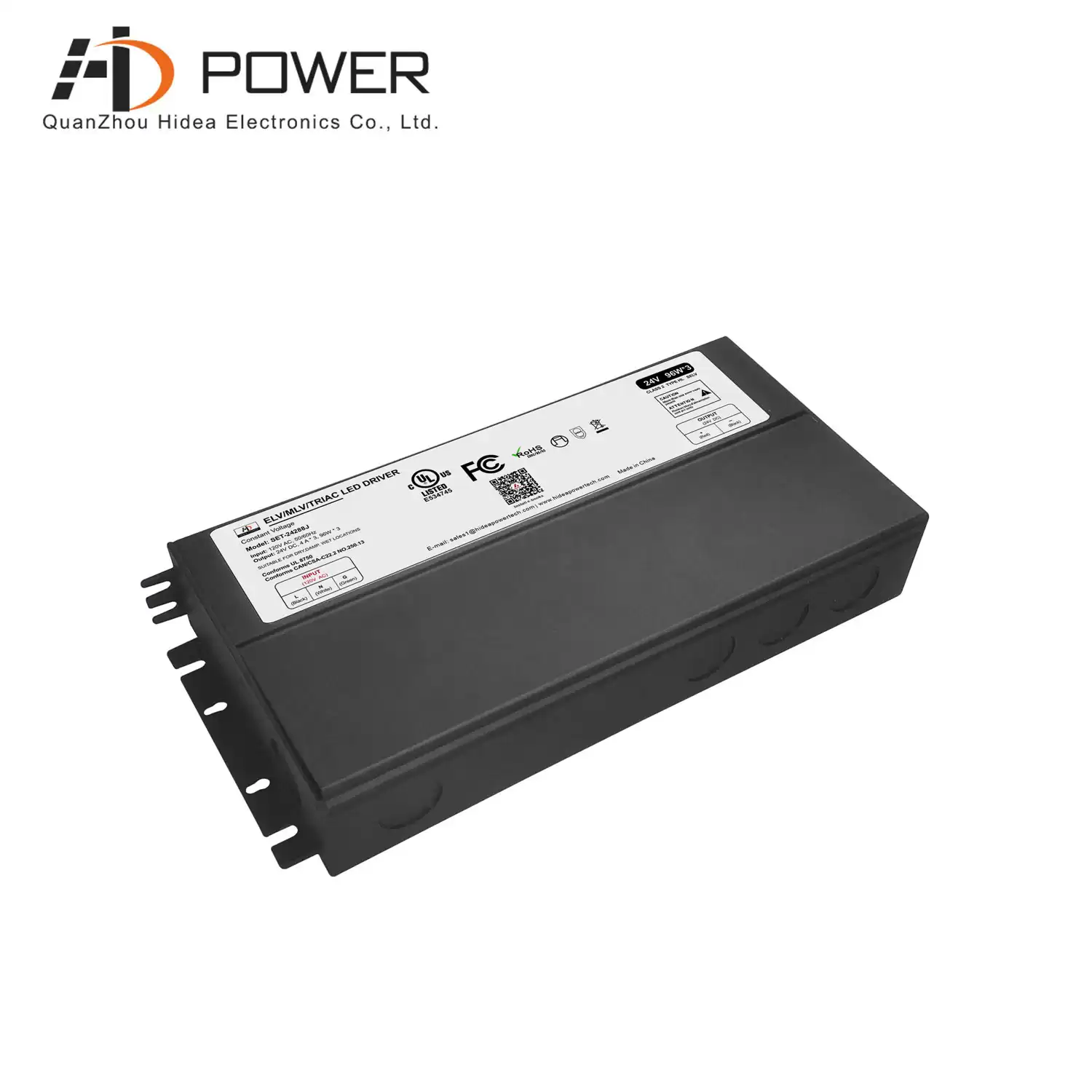

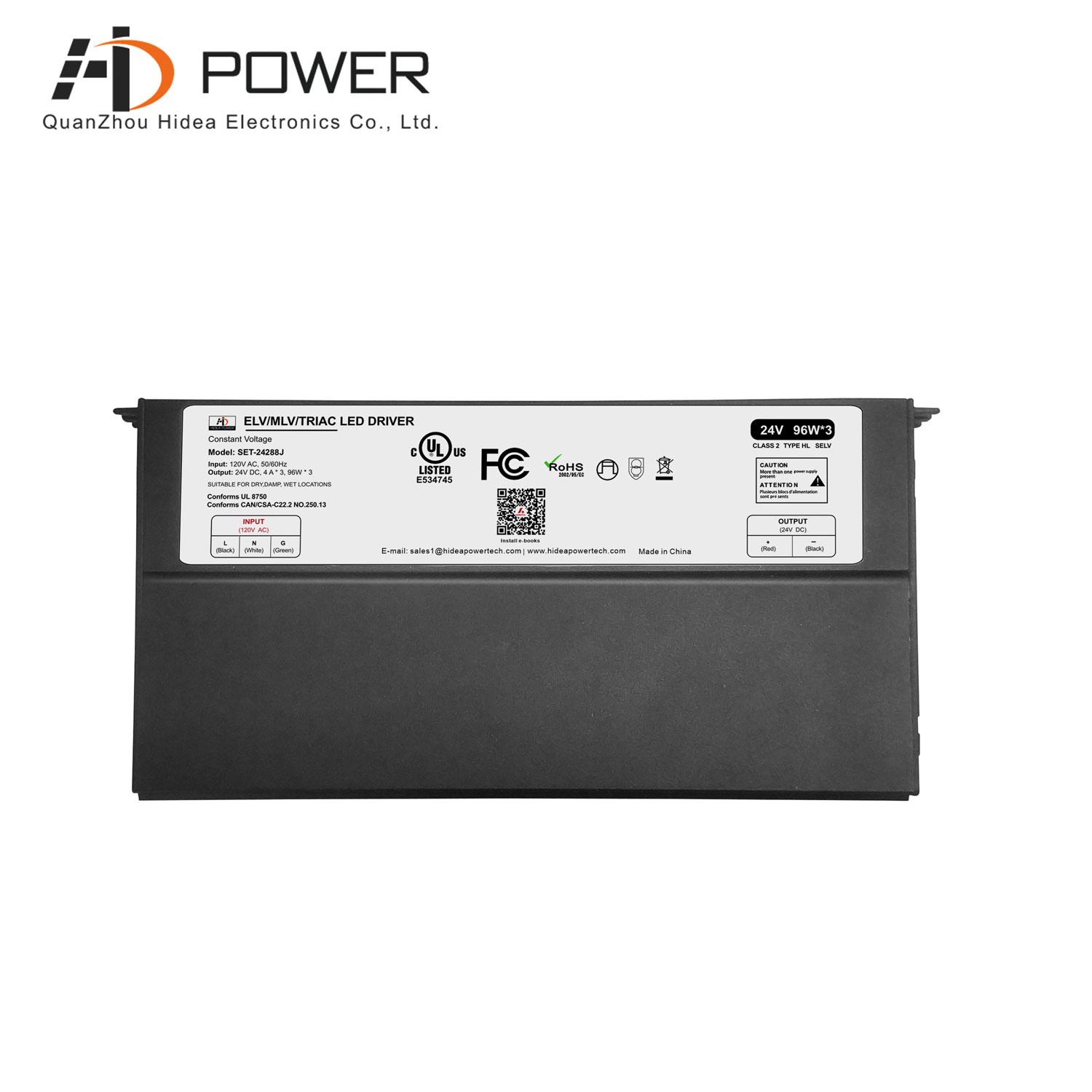

UL class 2 24V 288W triac dimmable led electronic transformer suppliers for lights
288W 24V LED electronic transformer, dimming mode triac/ELV/MLV dimmable, dimming range from 0 to 100%, UL certified, mainly sold in North America, compatible with popular dimmers in the market
- Warranty5 years warranty
- CertificationUL/cUL
- Weight0.4KG
- Size258*120.5*42mm
- Shape & SizeJ-BOX Driver
- Output Voltage12/24Vdc
- Input Voltage120Vac
- Output Power(Watt)288W
- Working ModeConstnat Voltage LED Driver
- Dimming ModeTriac Dimming
UL class 2 24V 288W triac dimmable led electronic transformer suppliers for lights
hideapowertech 288W TRIAC dimmable led electronic transformer, working mode is constant voltage, working efficiency up to 87%, with short circuit, overload protection design, can well protect the life of the lamp, we also provide a 5 year warranty for this electronic transformer
Specification
| Model Number | SET-24288J |
| Output Type | |
| Reted Power | 96W * 3 |
| Reted Voltage | 24V |
| Reted Current | 4A * 3 |
| Voltage Tolerance | ±0.5V |
| Voltage Regulation | ±0.5% |
| Load Regulation | ±1% |
| Input Type | |
| Voltage Range | 120V |
| Frequency Range | 47-63HZ |
| Efficiency(Typ.) | 87%@120VAC |
| Total Harmonic Distortion | THD< 20%(@100% load) |
| Power Factor(typ.) | 0.98@120VAC |
| AC Current(Typ.) | 2.79A |
| Inrush Current(Typ.) | - |
| Leakage Current | <0.5mA/ 120VAC |
| PROTECTION | |
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. |
| Over Load | Hiccup mode, recovers automatically after fault condition is removed. |
| ENVIRONMENT | |
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
| Working humidity | 20 ~ 95% RH non-condensing |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
| Temp .coefficient | ±0.03%/℃(0~50℃) |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
| SAFETY & EMC | |
| Safety standards | UL8750, Class 2 |
| Safety standards | I/P-O/P:1.88KVAC |
| OTHERS | |
| Dimension |
10.15 x 4.74 x 1.65 inch (L*W*H) |
| Packing | - |
 |
 |
 |
 |
||
