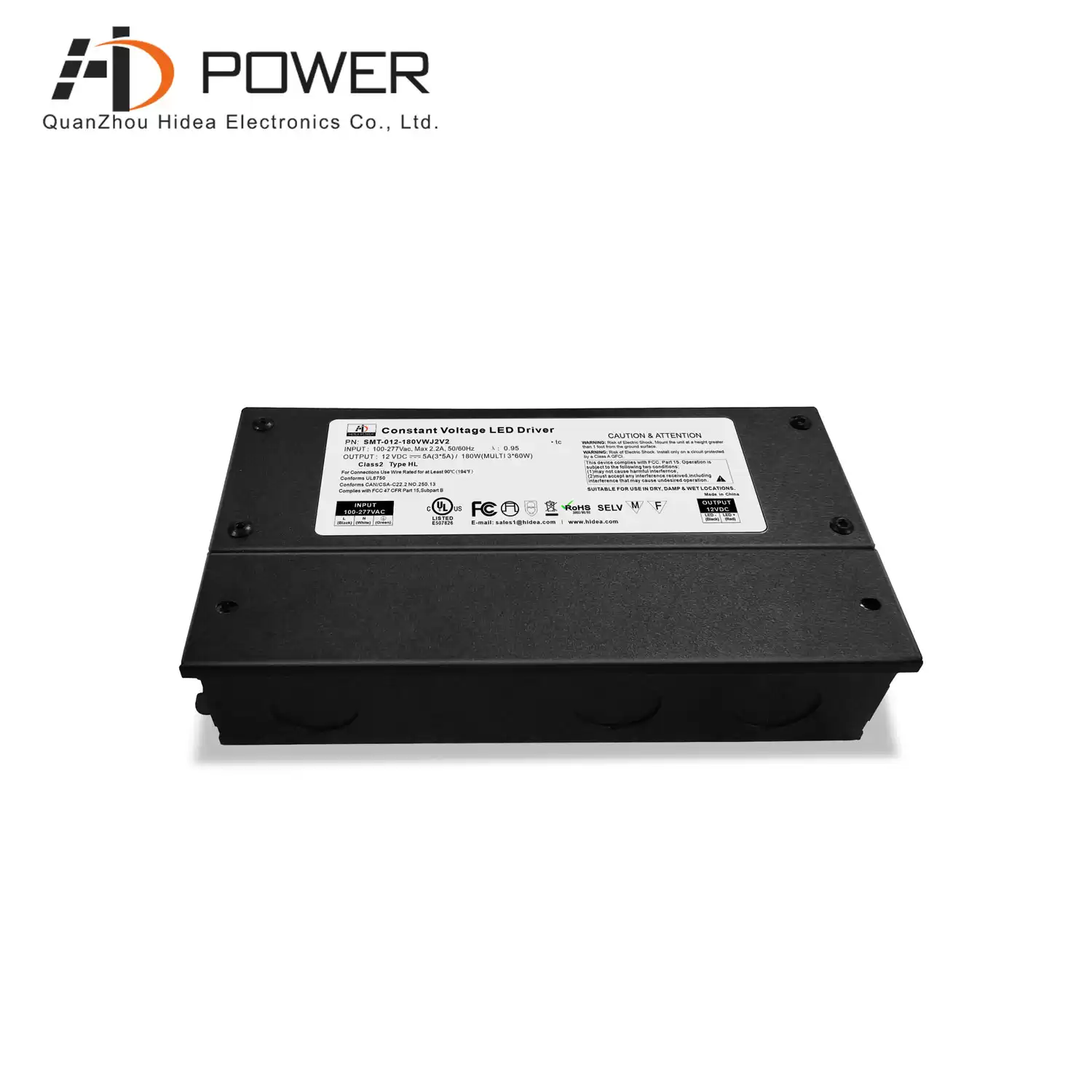

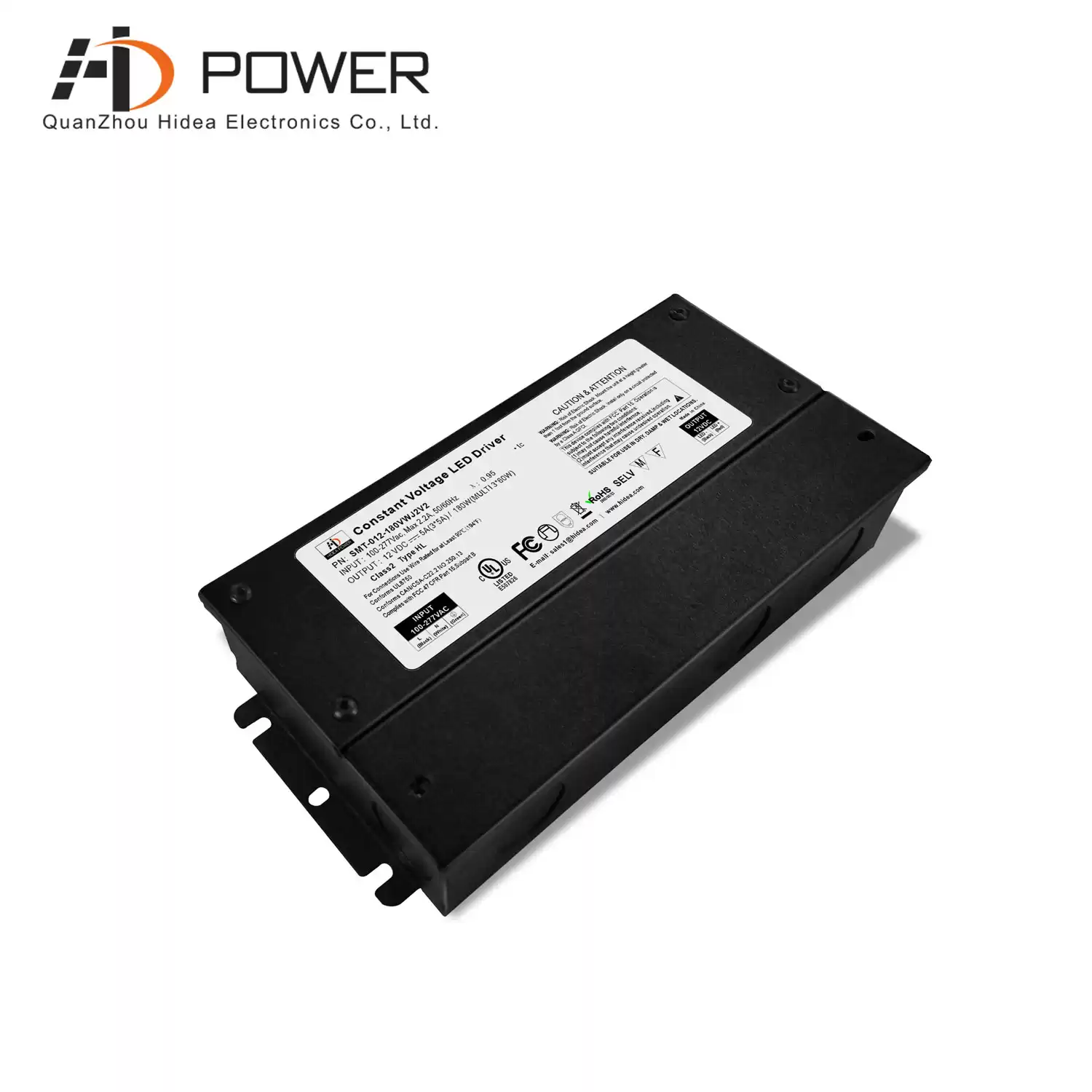

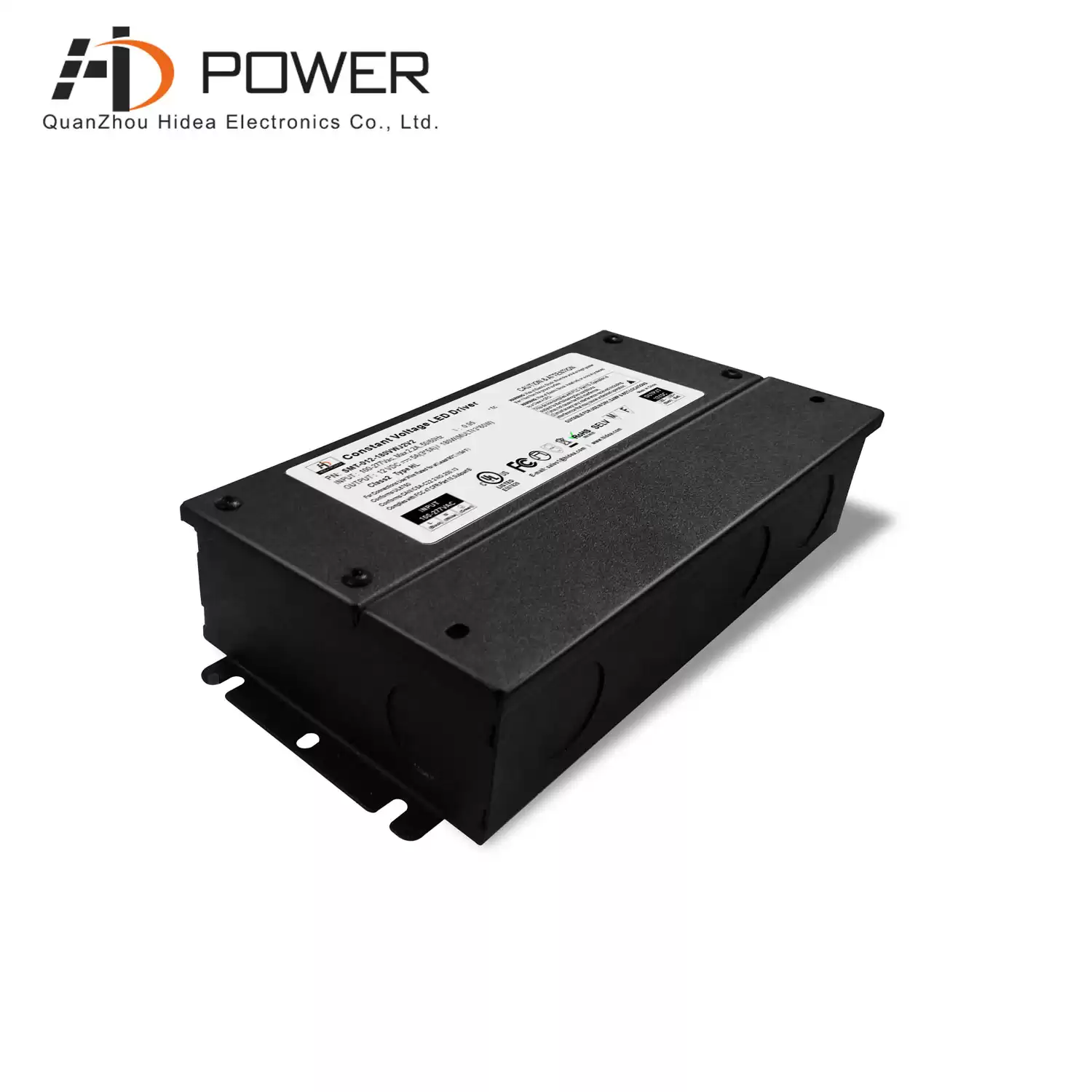

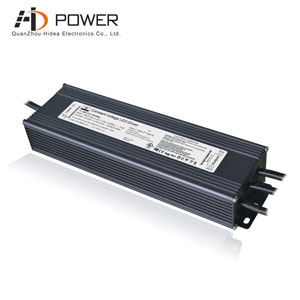

UL class 2 constant voltage led driver transformer junction box 12v 180w

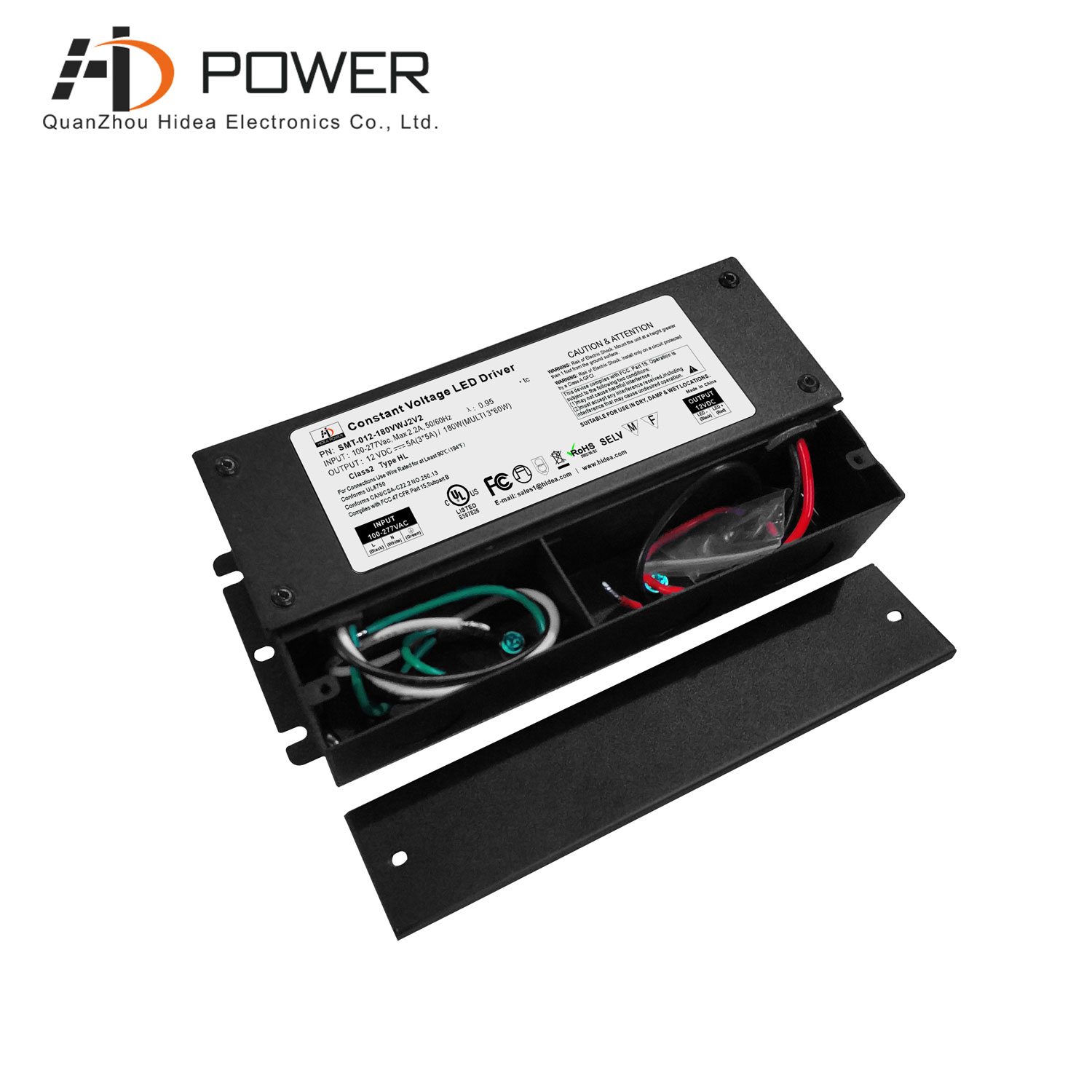

This 180w waterproof constant-voltage led driver has the design of integrating junction box and power supply, easy to install, good heat dissipation、overload、overtemperature, short circuit protection, 7-year warranty, safe and reliable
Specification
|
Model
|
SMT-012-180VWJ2 (1.0 version)
SMT-012-180VWJ2V2 (2.0 version)
SMT-012-180VWJ2WV2 (3.0 version)
|
SMT-024-192VWJ2 (1.0 version)
SMT-024-192VWJ2V2 (2.0 version)
SMT-024-192VWJ2WV2 (3.0 version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
±1%
|
|
±1%
|
|
Rated current
|
3*5A
|
2*4A
|
|
Rated power
|
180W(3*60W)
|
192W (2*96W)
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.99@120VAC 0.94@277VAC
|
0.99@120VAC 0.94@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
<20%
|
|
Efficiency(Typ.)@ full load
|
87%@120V 89%@277VAC
|
88%@120V 90%@277VAC
|
|
AC Current(Max.)
|
2.2A@100VAC
|
2.3A@100VAC
|
|
Inrush Current (Typ.)
|
19A ,50%,1.3ms @120VAC ; 38A,50%,960us @277VAC 12.4A (twidth=430us) @277VAC
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% Hiccup mode ,recovers automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety& EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
Others
|
Weight
|
2.0Kg (1.0 version)
|
|
Size
|
1.0 version:278*108*46mm / 2.0 version:278*110*45mm 3.0 version:278*130*45mm
|
|
packaging
|
285*275*245mm/10pcs /CTN / G.W.:22.10KG/CTN (1.0 version) 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
