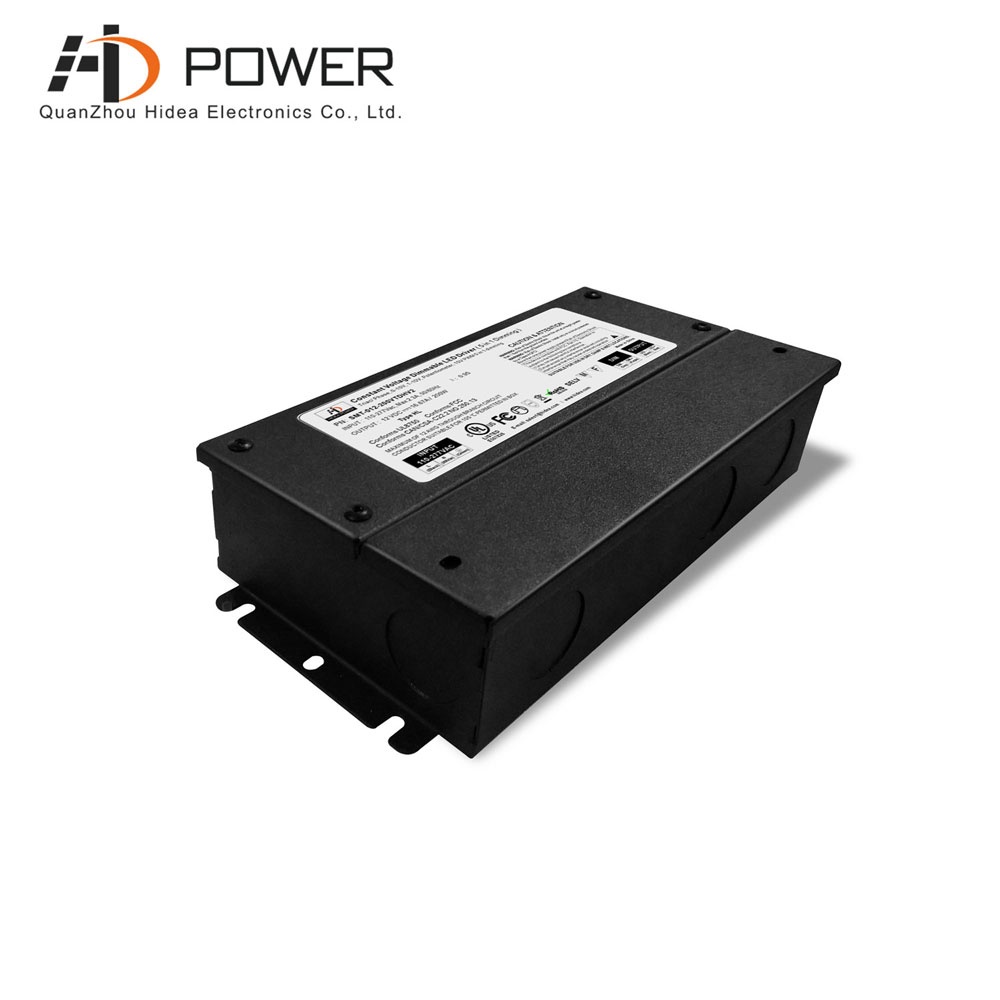

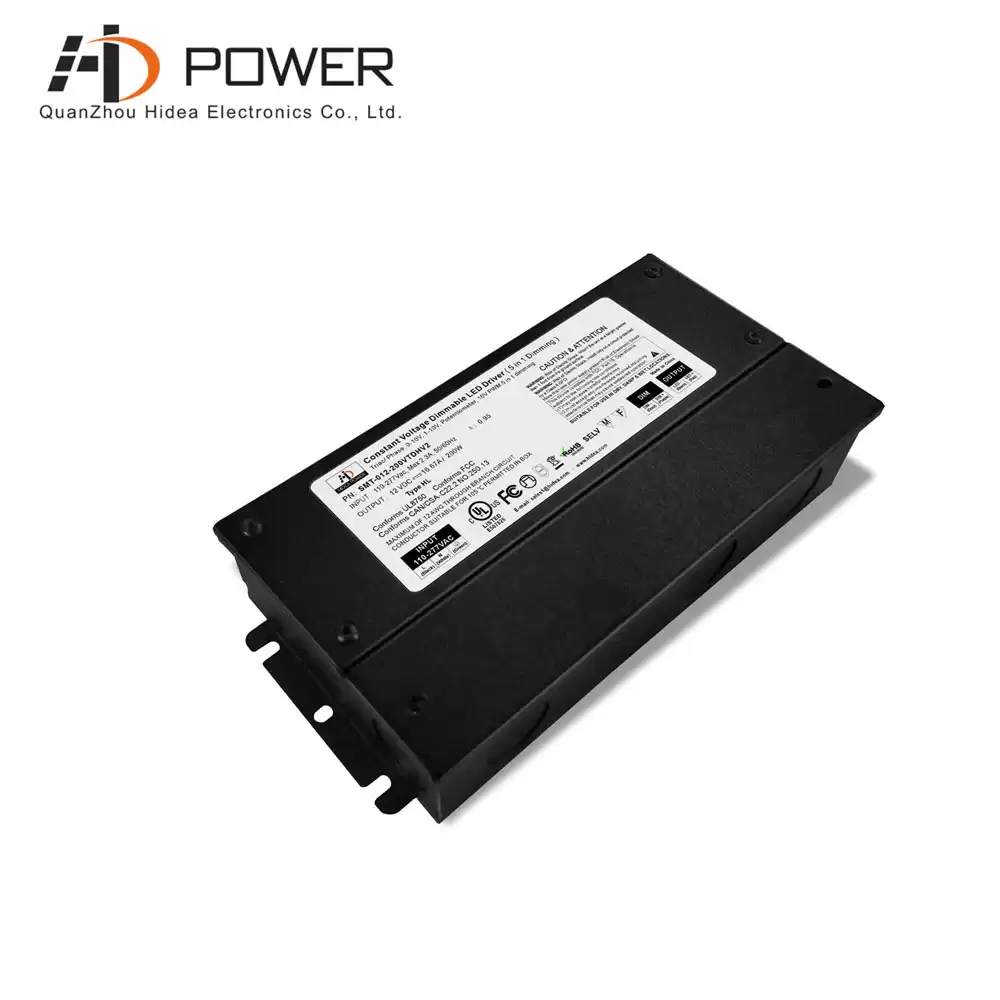

All the SMT-012-200VTDHV2 12v led power supply 200w this series are UL CE ROHS FCC approved, it can provide 7 years warranty by connect with WAC Lighting spotlights 3000k, if there is any defective happen(normal using) during the warranty period,we promise to give replacement(the same item).
Specification
|
model
|
SMT-012-200VTDHV2 (1.0 version)
SMT-012-200VTDHWV2(2.0version)
|
SMT-024-200VTDHV2 (1.0 version)
SMT-024-200VTDHWV2(2.0version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
16.67A
|
8.33A
|
|
Rated Power
|
200W
|
200W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
±1%
|
|
Input
|
Voltage Range
|
110-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor @ full load
|
0.98@120VAC 0.97@277VAC
|
0.98@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency @ full load
|
83% @120Vac 87%@277Vac
|
86% @120Vac 88%@277Vac
|
|
AC Current(Max.)
|
2.3A@100Vac
|
|
Inrush Current (Typ.)
|
15A, 50%, 1.4ms @120Vac 30A, 50%, 1.4m,s @277Vac
|
|
Leakage current
|
<0.50mA
|
|
protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
About 1.8Kg
|
|
Size
|
1.0 version: 260*105*45mm / 2.0 version: 260*125*45mm
|
|
packing
|
10PCS/CTN (L*W*H)
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type

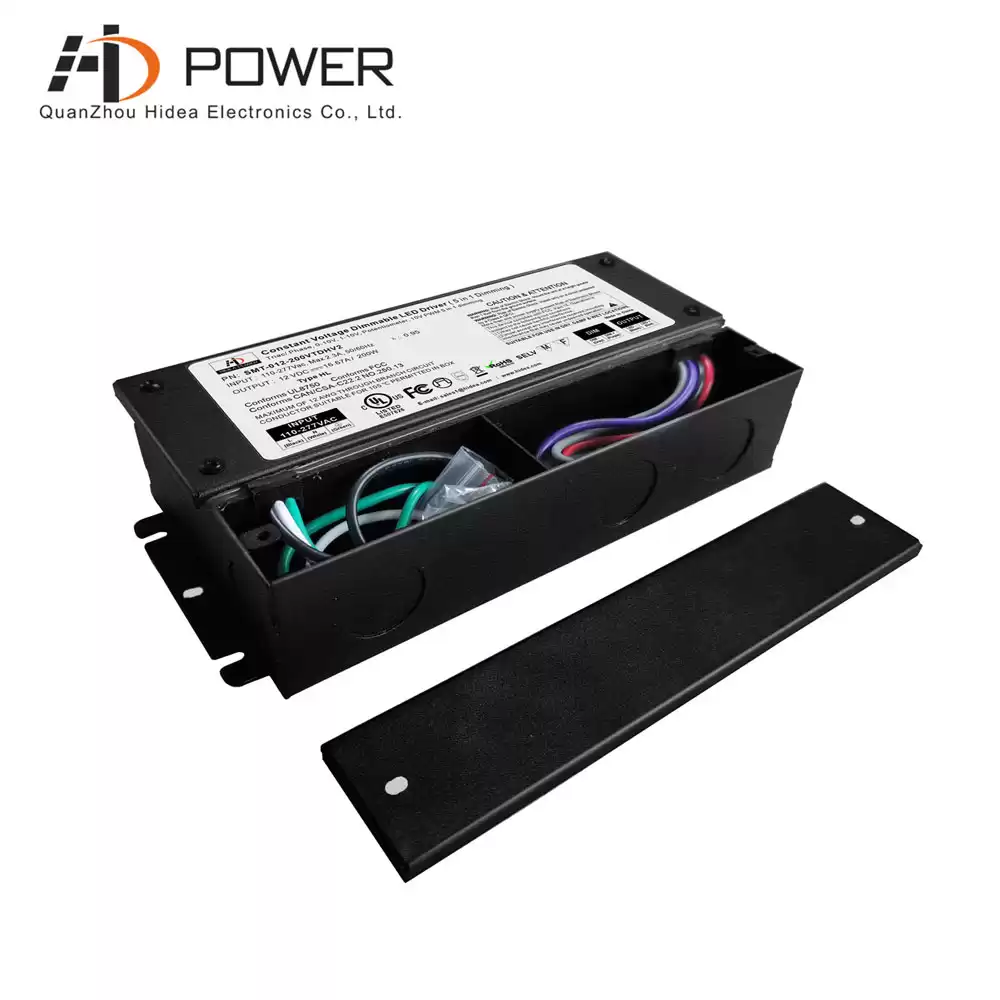

SMT-012-200VTDHV2 is triac+0-10v 5 in 1 dimmable waterproof led power supply 12v 200w, aluminum case with junction box, it's good to protect the wire very well if working with WAC Lighting spotlights 50/60Hz.
Related Products
|

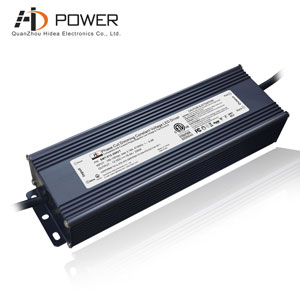

 ETL,FCC, ROHS, CE approval, 12v 200w triac dimmable led driver, 100-130vac/170-265vac input voltage for your choose...
