UL dimming triac ip67 constant voltage 12v 150w led driver power supply

Low voltage 12 volt, high wattage 150w, IP67 waterproof for outdoor use.



  • CertificationCE,UL, RoHS,FCC,Class p
  • Size256*78*47mm
  • Dimming modetriac dimming
  • Working Mode150W
  • Output Current12.5A
  • Output Voltage12Vdc
  • Input Voltage110-277Vac

UL dimming triac ip67 constant voltage 12v 150w led driver power supply


SMT-012-150VTHW is triac led driver. 12v 150w triac dimming led driver can be paired with metal box with CE UL FCC ROHS certificate. It is compatible with leading edge and trailing edge dimmers.


Features of triac led driver


·Output constant voltage
·Input voltage range 100-277VAC
·Built-in PFC function, PF> 0.98
·Efficiency > 83% / Dimming range: 0~100% / Loading range:8~100%
·Protections:short circuit/over voltage/over heat
·IP67 design for indoor or outdoor installations
·Cooling by free air convection / Flicker-free
·Work with leading edge and trailing edge TRIAC dimmers
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lightings.
·Compatible with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers
·7 years warranty
·UL/cUL listed, Class P, Type HL approval


Specification of triac led driver:


model

SMT-012-150VTHW

SMT-024-150VTHW

Output

DC Voltage

12V

24V



Voltage Accuracy

±0.5V

±0.5V



Rated current

12.5A

6.25A



Rated power

150W

150W

Input

Voltage Range

100~277V AC



Frequency Range

47~63HZ



THD(Typ.) @full load

<20%



Power Factor ( Typ.)

0.98@120VAC  0.95@277VAC

0.97@120VAC  0.94@277VAC



Full Load Efficiency(Typ.)

>84%

>84%



AC Current(Typ.)

1.8A/110VAC



Inrush Current (Typ.)

15A, 50%, 1.6ms



Leakage current

﹤0.5mA/110V

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.





Over Loading

≤120% constant current limiting, auto-recovery



Over voltage

≦140VAC(90~135V) , ≦270VAC(170~265V)

Environment

Working TEMP.

-40~+60℃



Working Humidity

20~90%RH,non-condensing



Storage TEM.,Humidity

-40~+80℃,10~95%RH



TEMP.coefficient

±0.03%/℃(0~50℃)



Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750



Withstand voltage

I/P-O/P: 1.90KVAC



Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH



EMC EMISSION

FCC Part 15 B



EMC IMMUNITY

Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547

Alight industry level (surge4KV)

Others

Net Weight

1.5Kg



Size

256*78*47mm (L*W*H)



packing

329*279*176mm , 10PCS/ctn

Notes

1.  All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and

25℃of ambient temperature.

2.  Tolerance:includes set us tolerance,line regulation and load regulation .

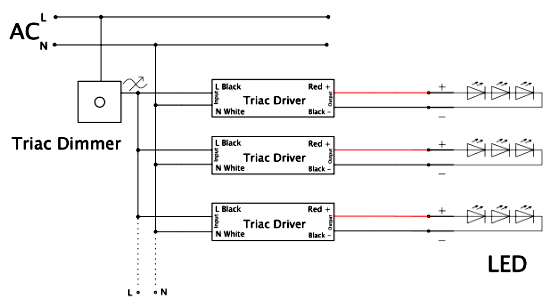

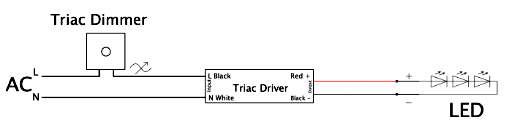

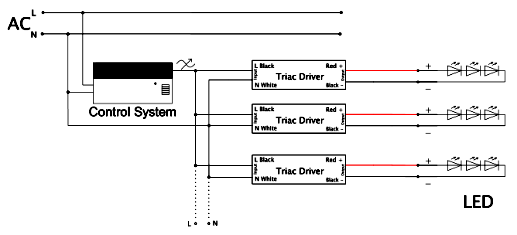

 Simple Connection Diagram


triac led driver

triac led driver

triac led driver


 Instruction:


※This driver should be installed by qualified and professional person;
※Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
※Ensure that wiring is correct before test in order to avoid light and power supply damage;
※If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales1@smartselectronics.com  Or take a phonecall: 0086-595-22863721 ext.808
