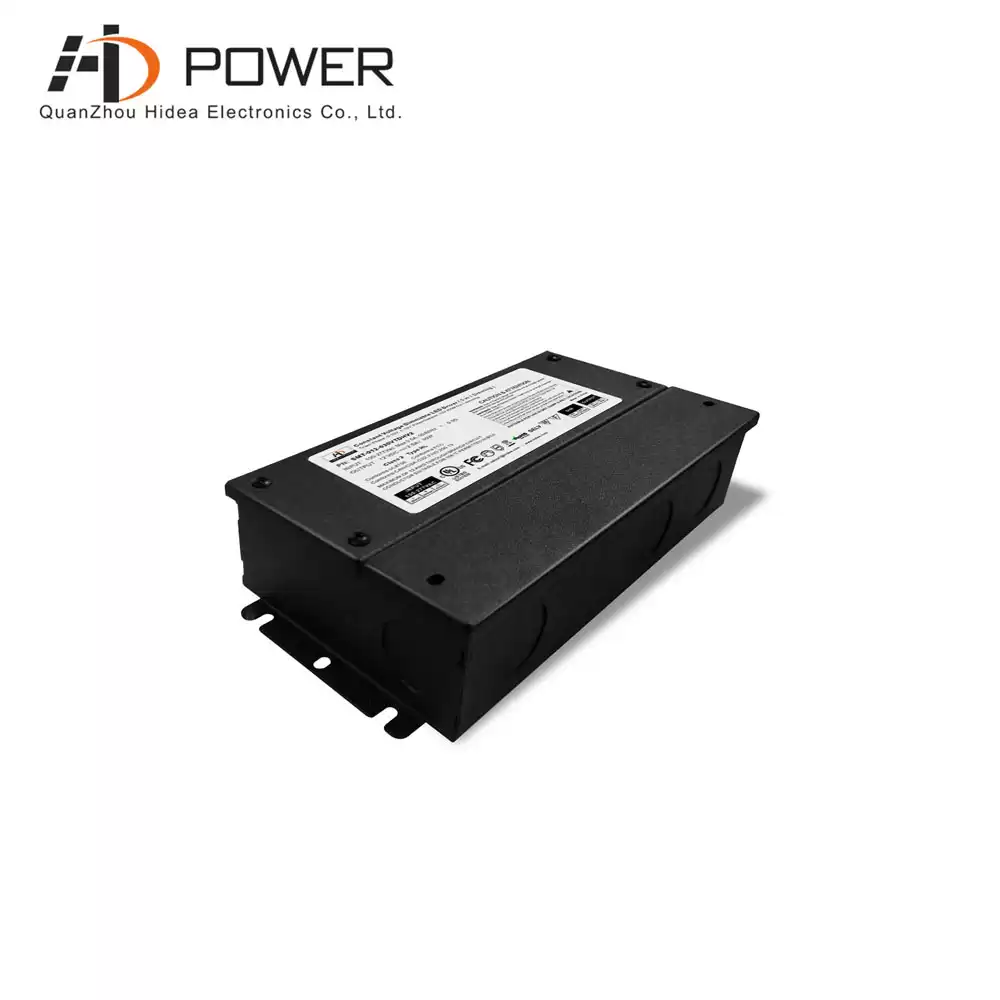

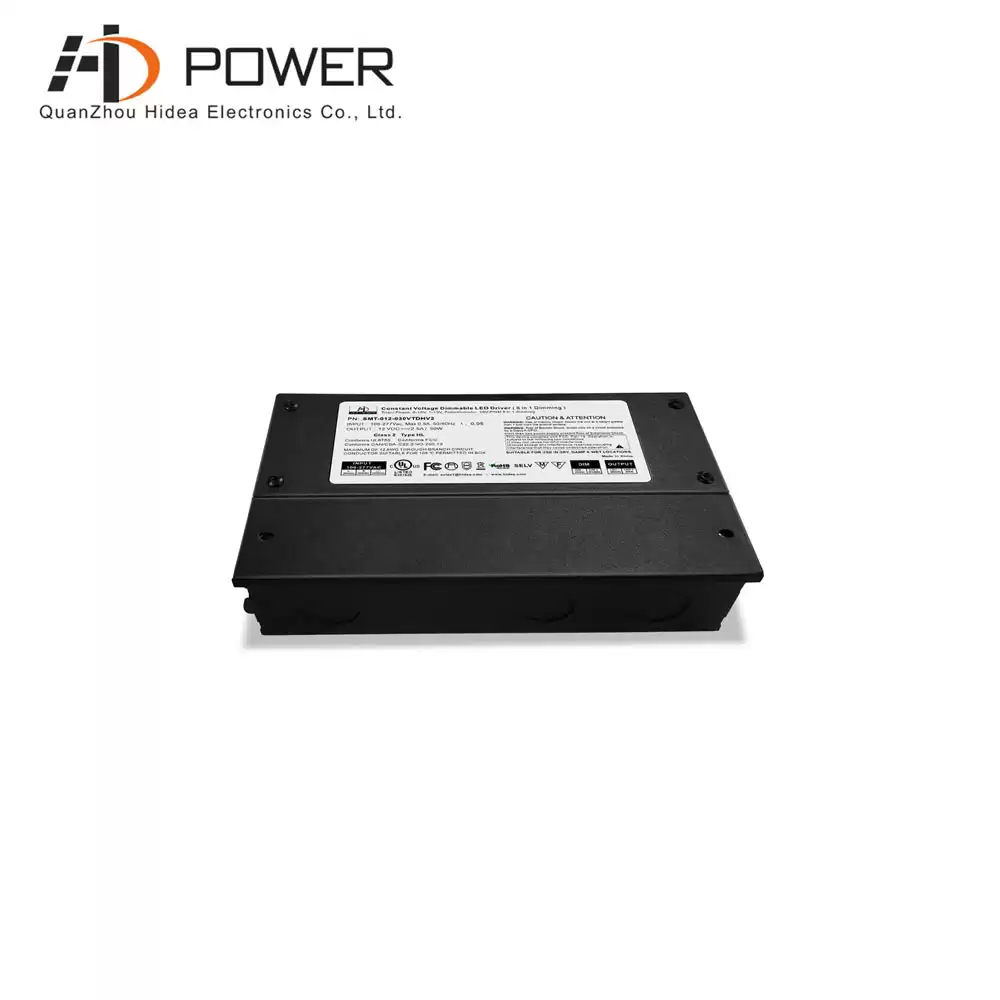

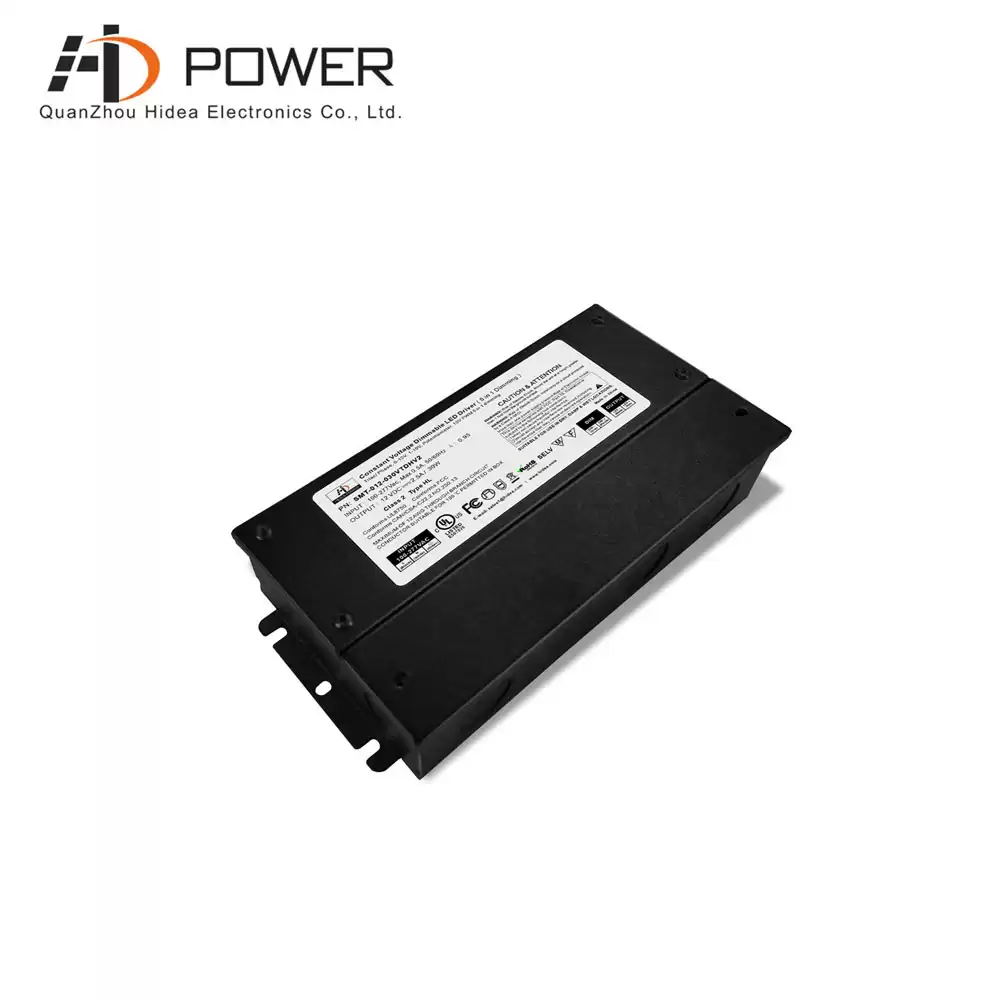

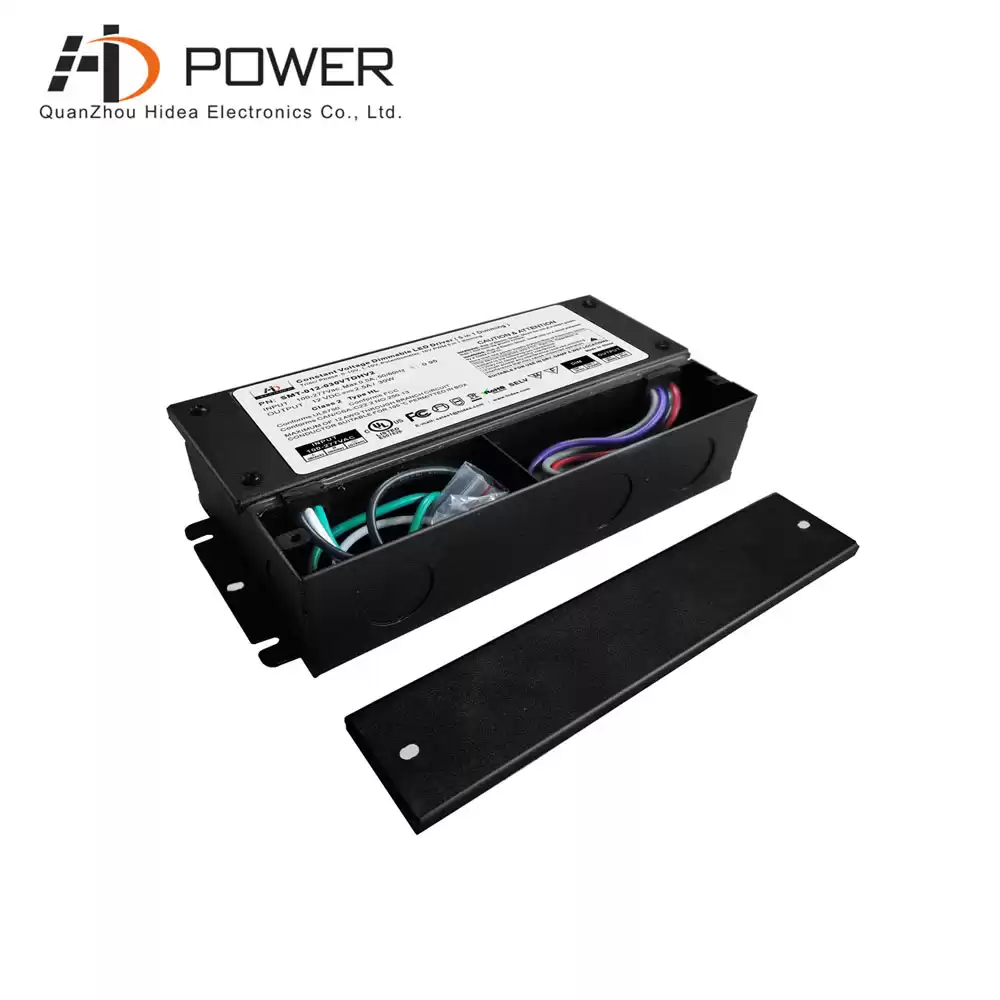

If you are looking for dimmable led power supply 30w with high quality, this driver is one of your top choice. It meets UL FCC ROHS safe standard, provides 7 years warranty. With mental junction box, higher security is guaranteed.
Specification
|
model
|
SMT-012-030VTDHV2
|
SMT-024-030VTDHV2
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
2.5A
|
1.25A
|
|
Rated Power
|
30W
|
30W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
PowerFactor(Typ.)@fullload
|
0.99@120VAC 0.98@277VAC
|
0.99@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
79% @120Vac 80%@277Vac
|
79% @120Vac 80%@277Vac
|
|
AC Current(Max.)
|
0.5A@100Vac
|
|
Inrush Current (Typ.)
|
7A, 50%, 420us @120Vac 12A, 50%, 480us @277Vac
|
|
Leakage current
|
<0.50mA
|
|
protection
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
Environment
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
Safety&EMC
|
EMC EMISSION
|
FCC Part 15 B
|
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
Others
|
Weight
|
About 0.95Kg
|
|
Size
|
165*94.5*40mm (L*W*H)
|
|
packing
|
10PCS/CTN (L*W*H)
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type

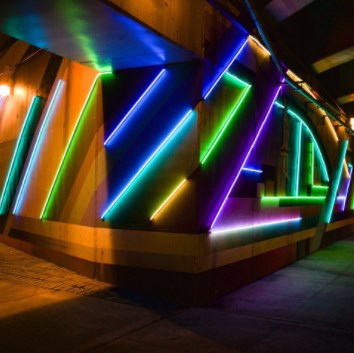

Smarts 12v 24v dimmable led power supply 30W meet Class 2, Class P, type HL. PWM output 20KHZ, no flicker, with short starting time less than 0.5s. Works well with GLLS LED neon.
Related Products
|

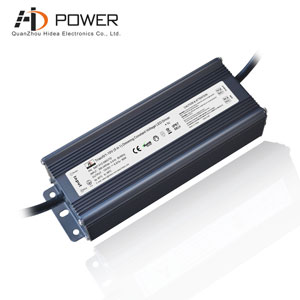

 The 5 in 1 dimmable driver 12V 80W matches well with most 12V constant voltage LEDs.Recommended for commercial and individual lighting.
