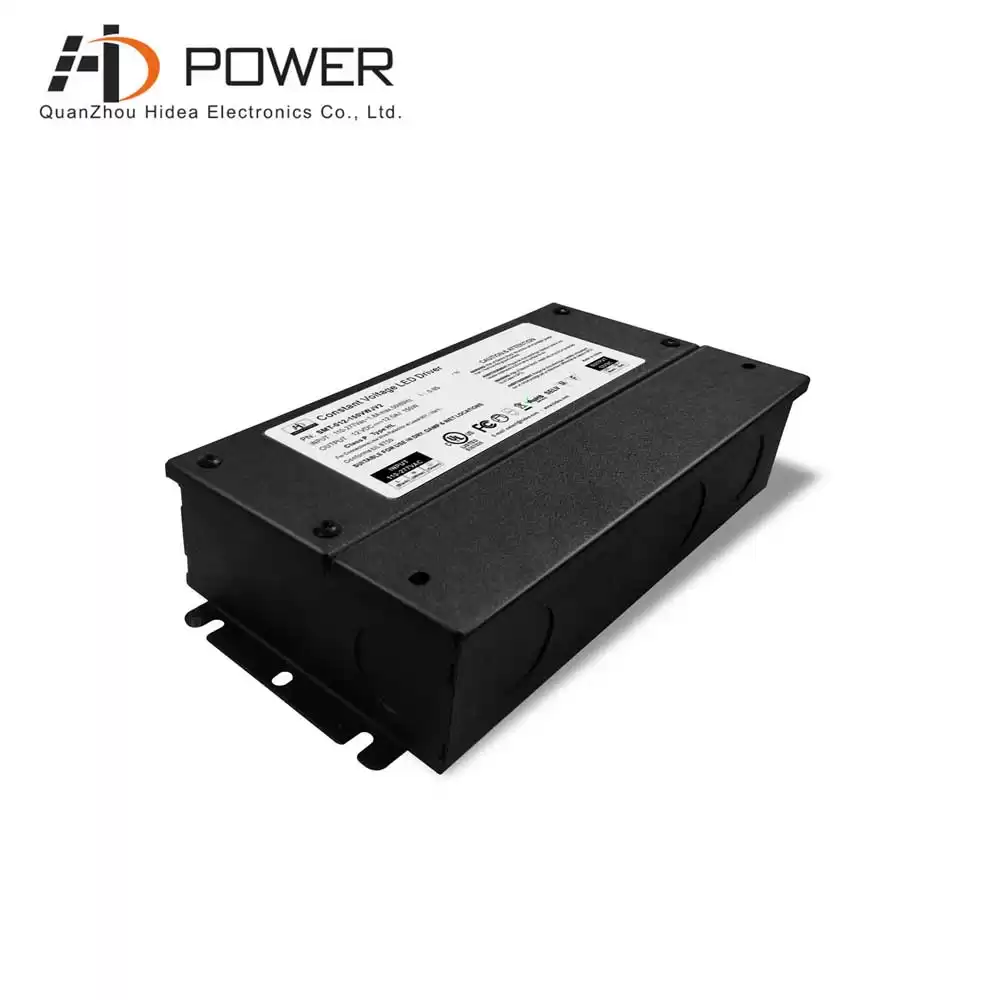

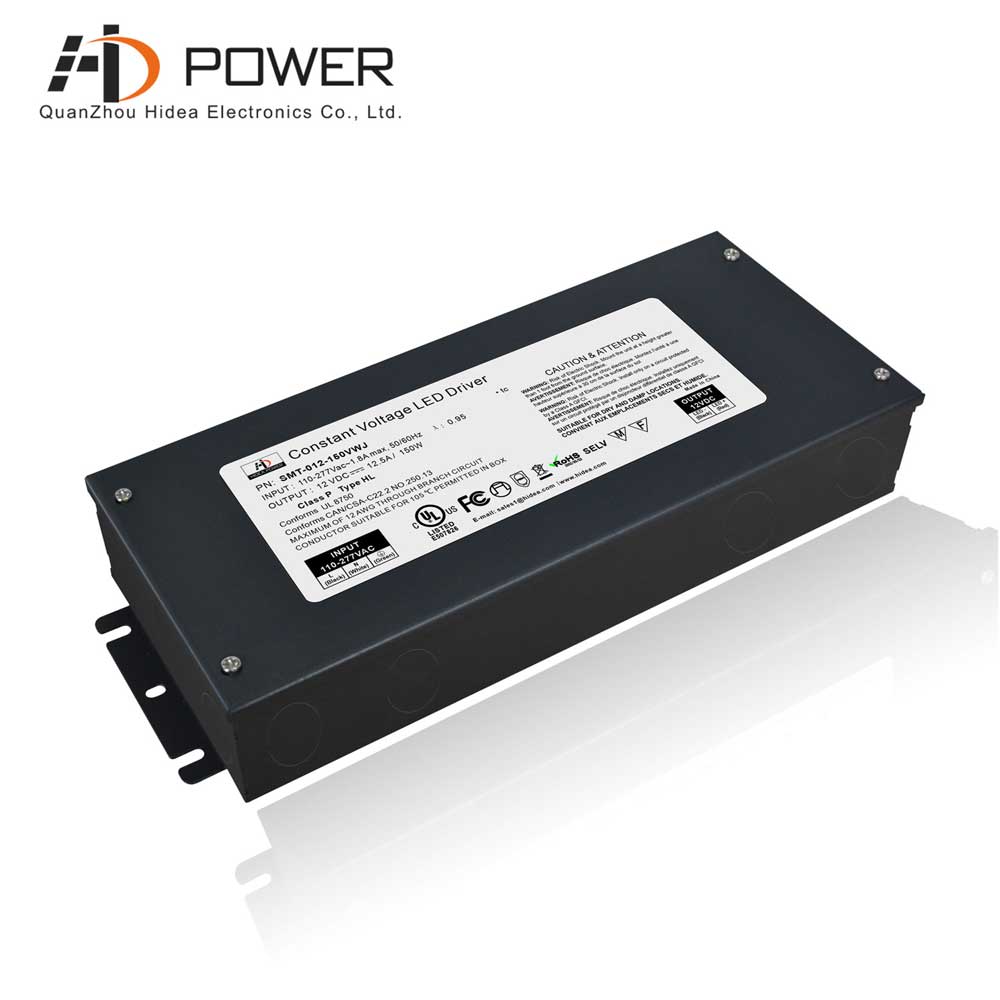

UL FCC safe standard 12V 150Watt led driver junction box for damp location

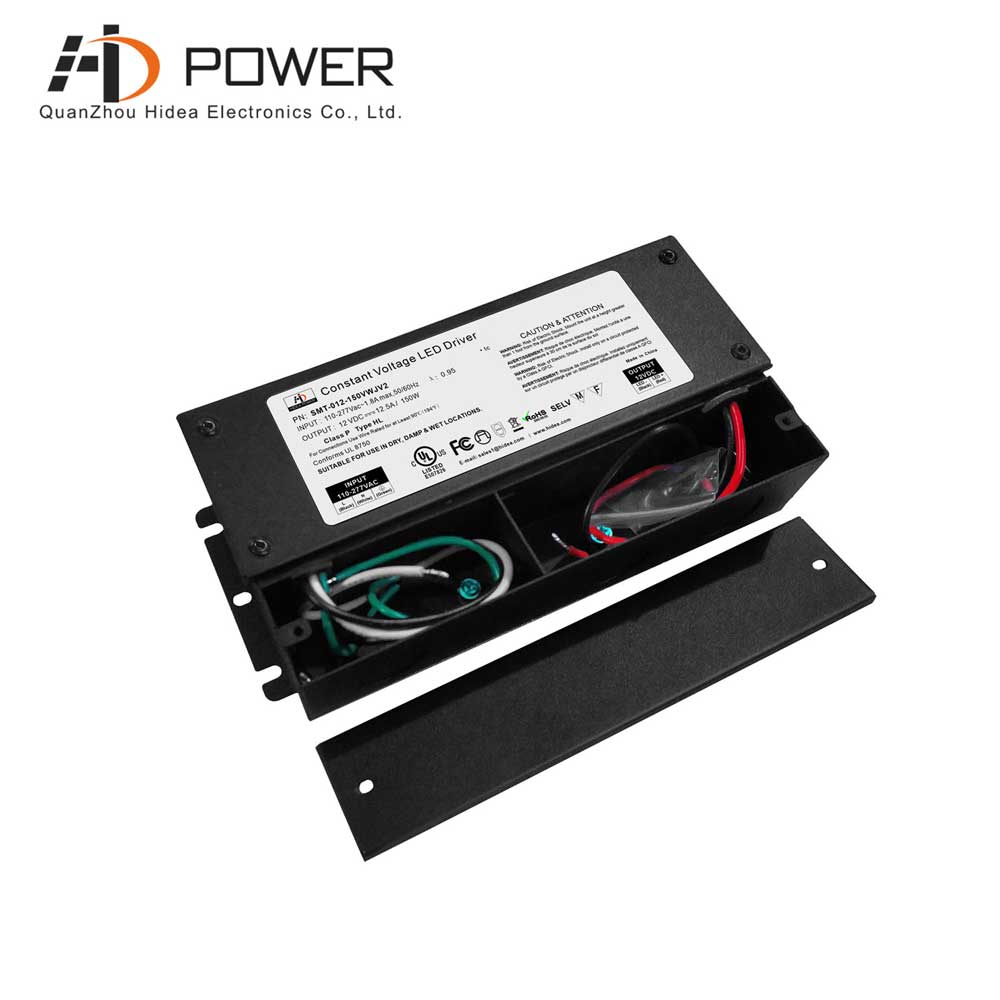

Smarts 150w led driver 12v accepts the full range input 100-277VAC. The junction box provide protection for the wiring from outside hazards when it is working. The AQ lighting led strips are one of the options for connection.


  • Size1.0 ver.: 260*103*46mm / 2.0 ver.:260*105*45mm /3.0 ver.:260*125*45mm
  • Output Voltage12/24/48Vdc
  • Shape & SizeJ-BOX Driver
  • Output Power(Watt)150W
  • Input Voltage100-277Vac
  • Working ModeConstnat Voltage LED Driver
  • Dimming ModeNon-dimming
  • Weight1.5Kg
  • CertificationUL/CUL
  • Warranty7 Years

The 12V 150W led driver junction box can work well with led lights max. 135watt. The best load for this driver is 80%-90%. It's compact  design makes it flawless for architectural, commercial,  and retail applications.

  Specification

Model

SMT-012-150VWJ

(1.0 ver.)
SMT-012-150VWJV2

(2.0 ver.)
SMT-012-150VWJWV2

(3.0 ver.)

SMT-024-150VWJ

(1.0 ver.)
SMT-024-150VWJV2

(2.0 ver.)
SMT-024-150VWJWV2

(3.0 ver.)

SMT-048-150VWJ

(1.0 ver.)
SMT-048-150VWJV2

(2.0 ver.)
SMT-048-150VWJWV2

(3.0ver.)

Output DC Voltage 12V 24V 48V
Voltage Tolerance ±0.5V
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Rated current 12.5A 6.25A 3.125A
Rated power 150W
Input Voltage Range 110-277VAC
Frequency Range 47-63Hz
Power Factor(Typ.)@ full load 0.99@120V ;0.97@230V ; 0.99@120V ; 0.96@230V ;0.94@277V 0.99@120V ; 0.97@230V ;0.95@277V
0.95@277V
THD(Typ.)@ full load <10% @120V    <20%@230V      <20% @277V
Efficiency (Typ.) @ full load 85%@120V  89%@230V  88%@277V 86%@120V  89%@230V 88%@277V 87%@120V  90%@230V
AC Current (Max.) 1.8A (100VAC)
Inrush Current (Typ.) 15A,50% ,1.4ms@120V ;55A,50% 220us@230V ; 30A,50% 1.4ms@277V
Leakage current <0.50mA
Protection Short Circuit shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading ≤120% constant current limiting, auto-recovery
Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment Working TEMP. -40~+60℃ (see below derating curve)
Working Humidity 20~90%RH, non-condensing
Storage TEMP. Humidity -40~+80℃,10~95%RH
TEMP .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle, period for  60min. each along X,Y,Z axes
  Safety standards UL8750
  Withstand voltage I/P-O/P:1.88KVAC
  Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
Safety&EMC EMC EMISSION FCC Part 15 B
Others N.W. 1.5Kg/pcs
Size 1.0 version: 260*103*46mm / 2.0 version:260*105*45mm /3.0 version:260*125*45mm
packaging 440*295*145mm ,10PCS/CTN
Notes 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.

  Compatible Light Type

The 12V 150W power supply led strip is designed designed for cost-sensitive applications. The high quality UL listed power supply enables your LEDs last longer and save more energy when working. LEPRO led strips shows good compatibility with that.




  Related Products

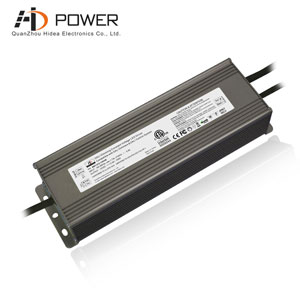

150w led driver 12vthe dali 12v led driver available at 30W-200W, comes to smooth dimming and can be dimmed 0-100%. Offer 5 years warranty and meet ETL/CE/ROHS safe standard.
