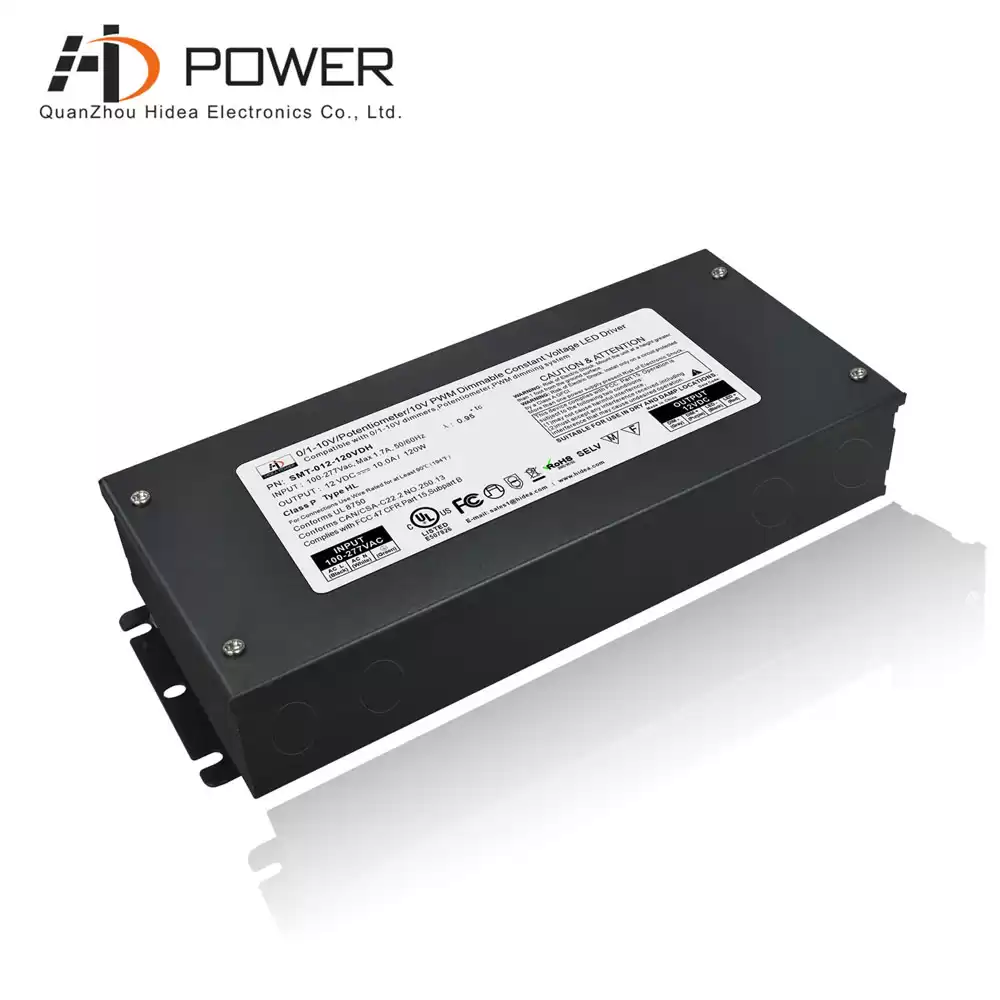

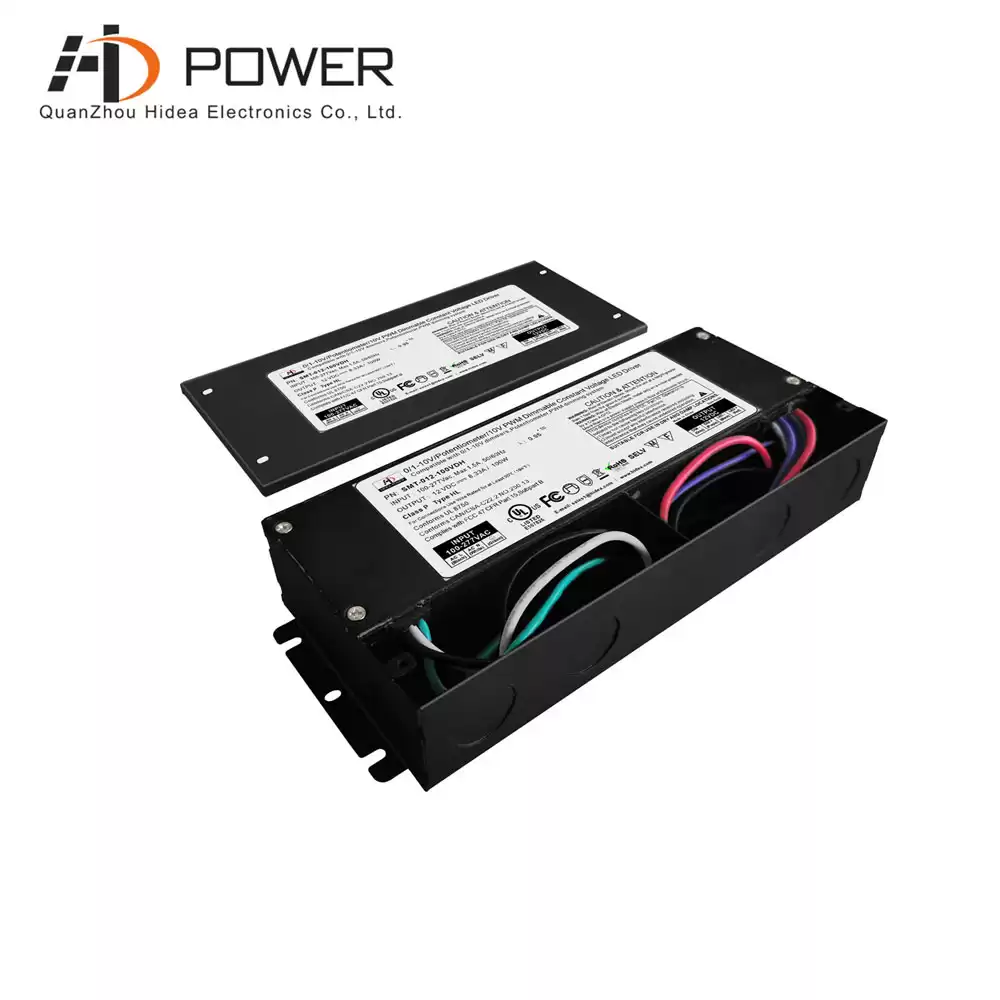

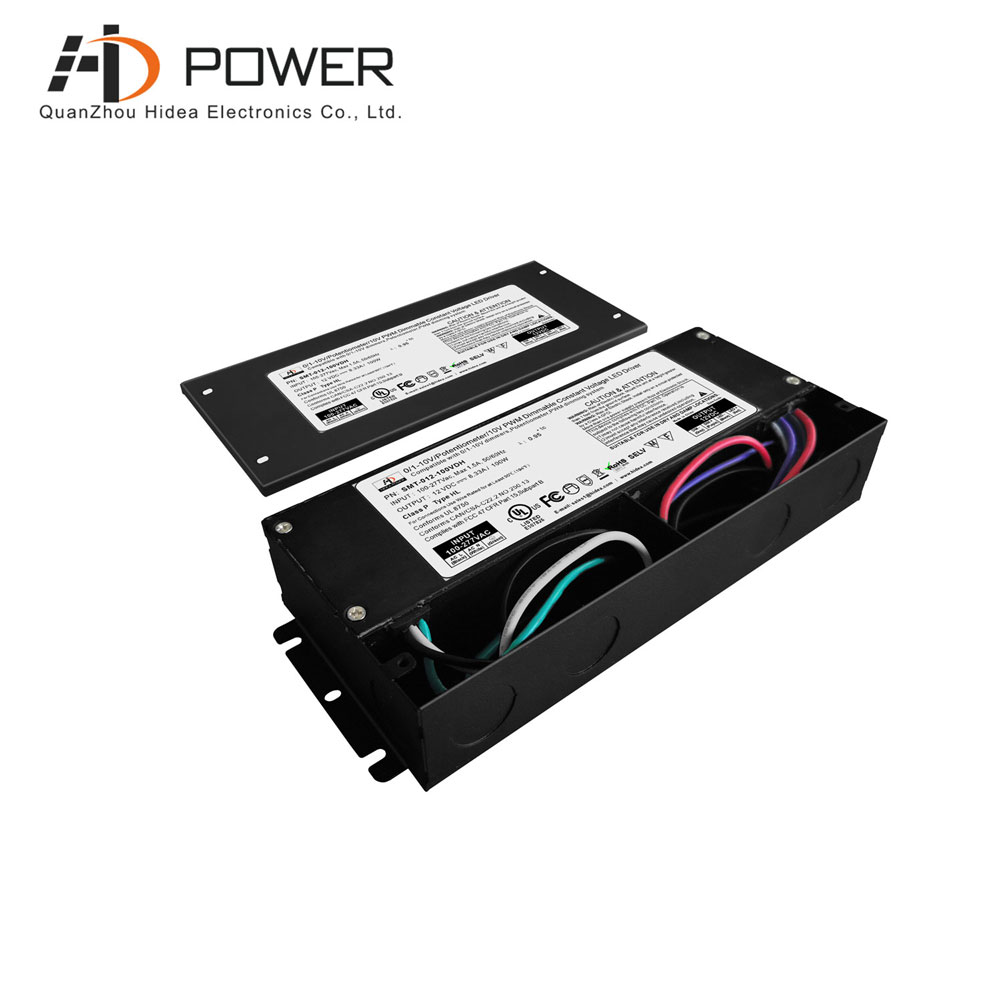

UL listed 120w 0-10v dimmable led driver with junction box
The 120w dimmable led driver is 0-10v dimmable type and they are sold well with the led sign lighting from led lighting inc.
Specification
|
model
|
SMT-012-120VDH (1.0 version)
SMT-012-120VDHV2 (2.0 version)
|
SMT-024-120VDH (1.0 version)
SMT-024-120VDHV2 (2.0 version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
|
Rated current
|
10.00A
|
5.00A
|
|
Rated power
|
120W
|
120W
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@full load
|
83% @120Vac 86%@277Vac
|
|
AC Current(Max.)
|
1.3A@100VAC
|
|
Inrush Current(Typ.)
|
20A, 50%, 1.6ms
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.37Kg (1.0 version)
|
|
Size
|
1.0 version: 220*93*41mm (L*W*H) / 2.0 version: 260*105*45mm
|
|
packing
|
10PCS/ctn
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type

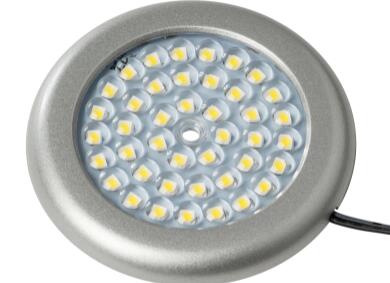

The Skinny Puck Downlight could be White, Black, Chrome, or Brushed Nickel and the Skinny Puck Downlight driver could be 12vdc and 24vdc for your project.
Related Products
|

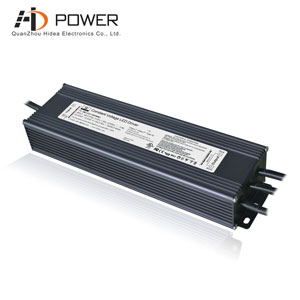

 When it comes to 180w class 2 led driver, we will sugguest our 12vdc 180w class 2 led driver, they are suitable for your class 2 project and 180~384w for your selection.
Mode：SMT-012-180VWN2
Dimming Mode : NoN-Dimming
Output Power : 180W
intput voltage：100~277V AC
class 2,class P, type HL
Size：276*78*47MM （L*W*H）
|
