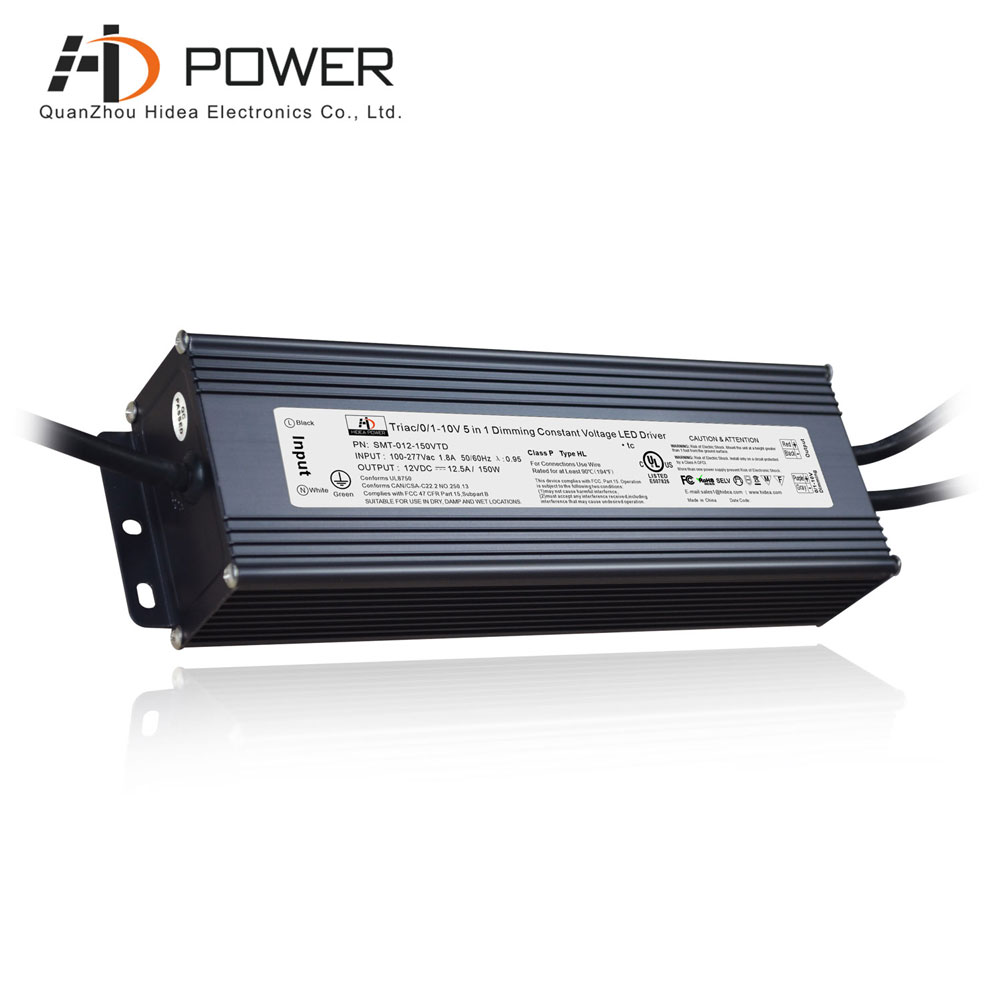

Smarts triac & 0-10v dimmable led driver 150w can be added with junction box for safer standard in North American. It is able to applicated for different 12V 24V LED lights. With high power factor and high efficiency up to 0.98.
Specification
|
model
|
SMT-012-150VTD
|
SMT-024-150VTD
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
12.5A
|
6.25A
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2 %
|
±1 %
|
|
Rated power
|
150W
|
150W
|
|
Input
|
Voltage Range
|
100~277V AC
|
|
Frequency Range
|
47~63HZ
|
|
THD(Typ.) @full load
|
<20%
|
|
Power Factor ( Typ.)
|
0.98@120VAC 0.95@277VAC
|
0.97@120VAC 0.94@277VAC
|
|
Full Load Efficiency(Typ.)
|
85%@120VAC 86%@277VAC
|
85%@120VAC 87%@277VAC
|
|
AC Current(Typ.)
|
1.8A/110VAC
|
|
Inrush Current (Typ.)
|
15A, 50%, 1.4ms @120VAC; 30A, 50% 1.4ms @277VAC
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750 , CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
Others
|
Net Weight
|
1.5Kg
|
|
Size
|
256*78*47mm(L*W*H)
|
|
packing
|
340*280*185mm 10pcs /CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type

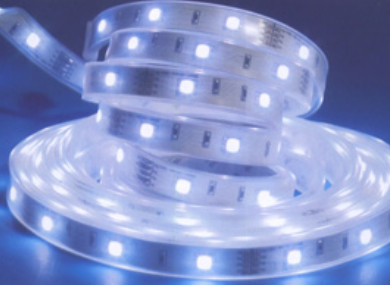

With high performance and excellent design solution, this 1 10v dimmable led driver operates 100-277VAC universal input range. Dueto the multi function, when selecting 0/1-10V dimming mode,the drivers are compatible with universal 0/1-10V dimmers. And we suggest that ledels led strip light is one of the option.
Related Products
|
 This 12v 120w dimmable led driver is in the same series as above . A good design for smooth dimming. Protection for over load/heat/ short circuit.
Mode：SMT-012-120VTD
Dimming Mode : 5 in 1 Dimming
Output Power : 120W
intput voltage：100-277VAC
Size：230*70*43MM （L*W*H）
|
