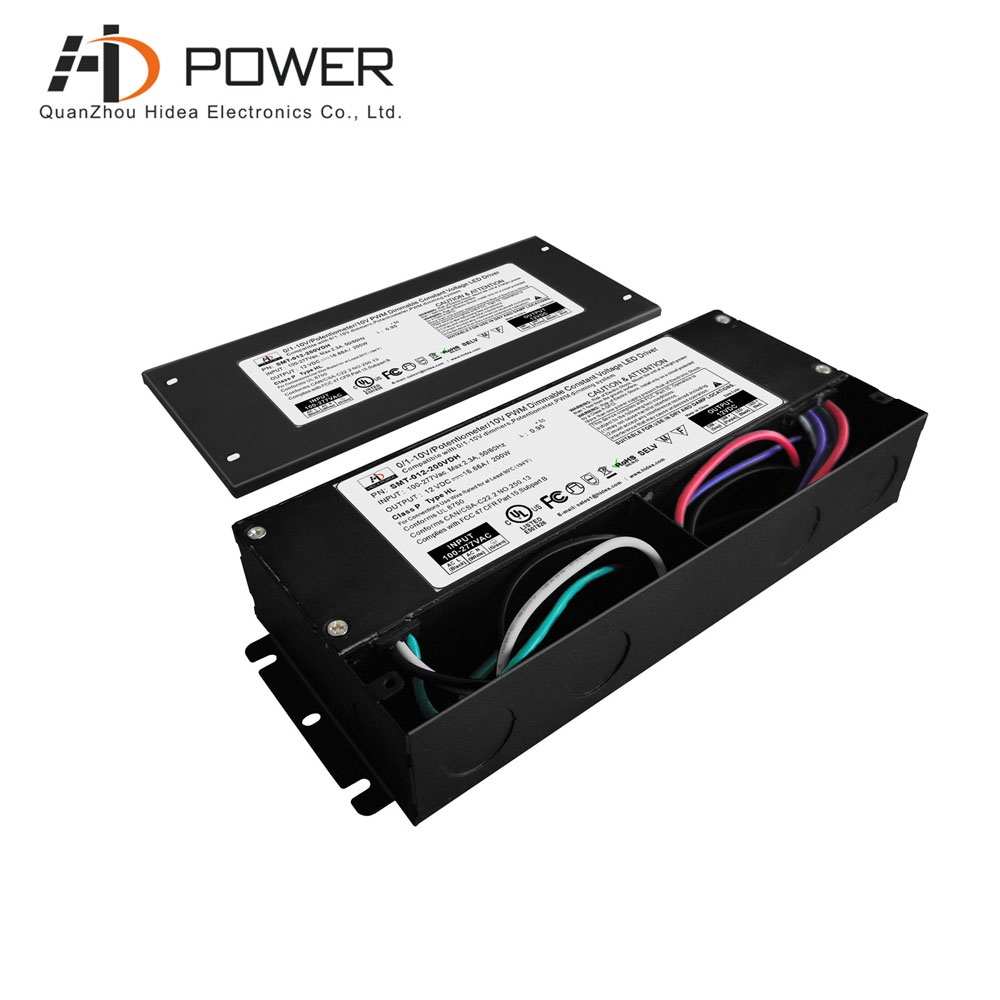

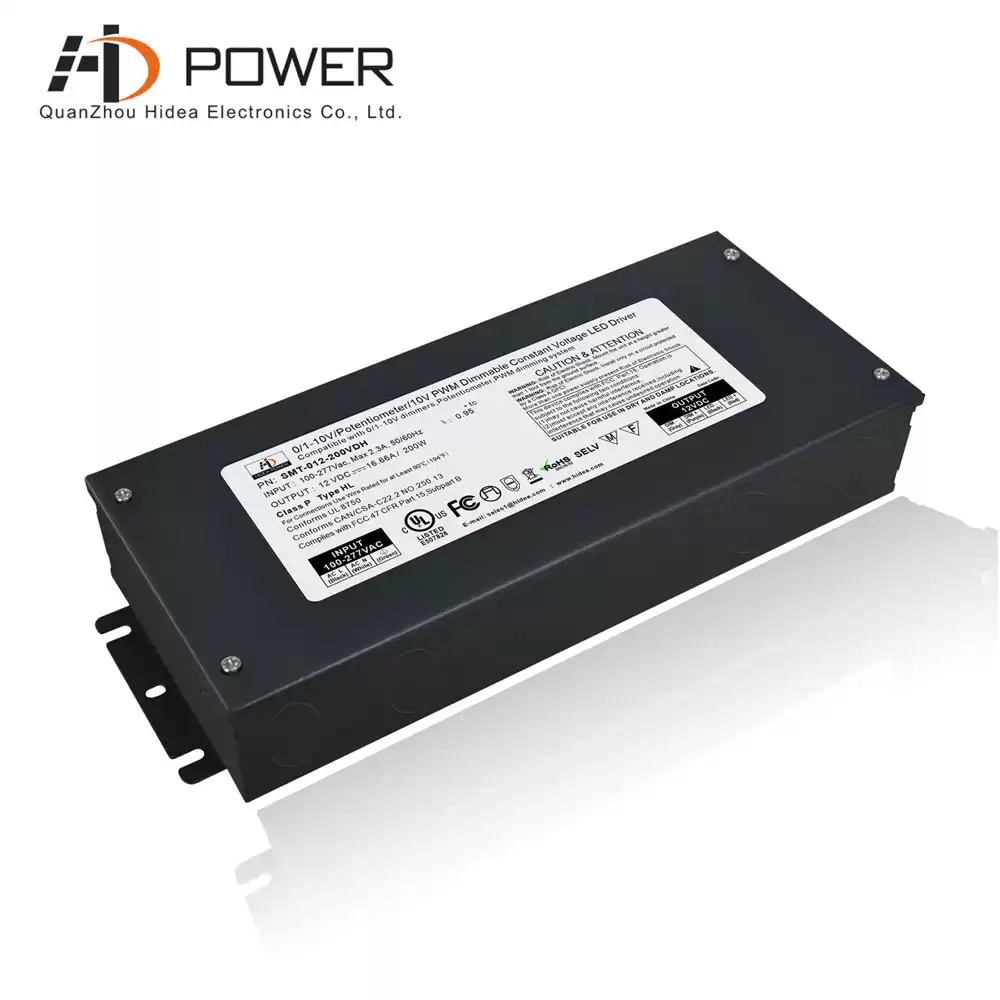

UL listed 12v 200w 0-10v PWM dimming led driver for LED lighting
Choose the 12v 200w led driver with enough power (watts) for your installation. For example, if powering an LED strip, look at the power requirements (watts/meter) and the length (meters) to know the maximum power requirements.
Specification
|
Model
|
SMT-012-200VDH (1.0 version)
SMT-012-200VDHV2 (2.0 version)
SMT-012-200VDHWV2 (3.0 version)
|
SMT-024-200VDH (1.0 version)
SMT-024-200VDHV2 (2.0 version)
SMT-024-200VDHWV2 (3.0 version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
16.67A
|
|
Rated Power
|
200W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
|
Input
|
Voltage Range
|
110-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC 0.97@277VAC
|
0.98@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ)@ full load
|
83% @120Vac / 87%@277Vac
|
86% @120Vac / 88%@277Vac
|
|
AC Current(Max.)
|
2.3A@100Vac
|
|
Inrush Current (Typ.)
|
15A, 50%, 1.4ms @120Vac 30A, 50%, 1.4m,s @277Vac
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.8Kg (1.0 version)
|
|
Size
|
1.0 version: 260*103*46mm /2.0 version: 260*105*45mm (L*W*H) 3.0 version: 260*125*45mm (L*W*H)
|
|
packaging
|
Packaging: 10PCS
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
|
|
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
|
|
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Compatible Light Type

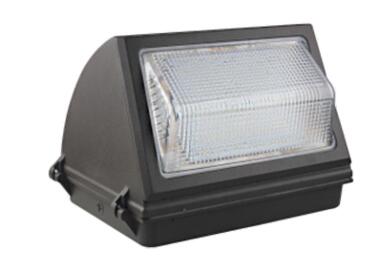

The 12600 Lumen 100 Watt Traditional Wall Pack Color Selectable could be used with our 12vdc 150w led driver, it takes about 66% load.
Related Products
|

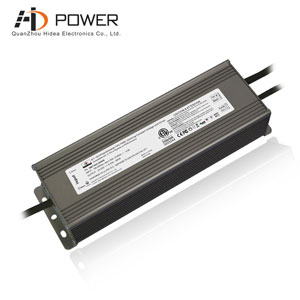

 The 12v 200w led driver is the IP67 rated for outdoor use for the outdoor lighting, 0-10v dimmable type and 5 years warranty with the wide input voltage.
Mode：SMT-012-200VD
Dimming Mode : 0-10V Dimming
Output Power : 200W
intput voltage：100~265V AC
Size：256*78*47MM （L*W*H）
|
