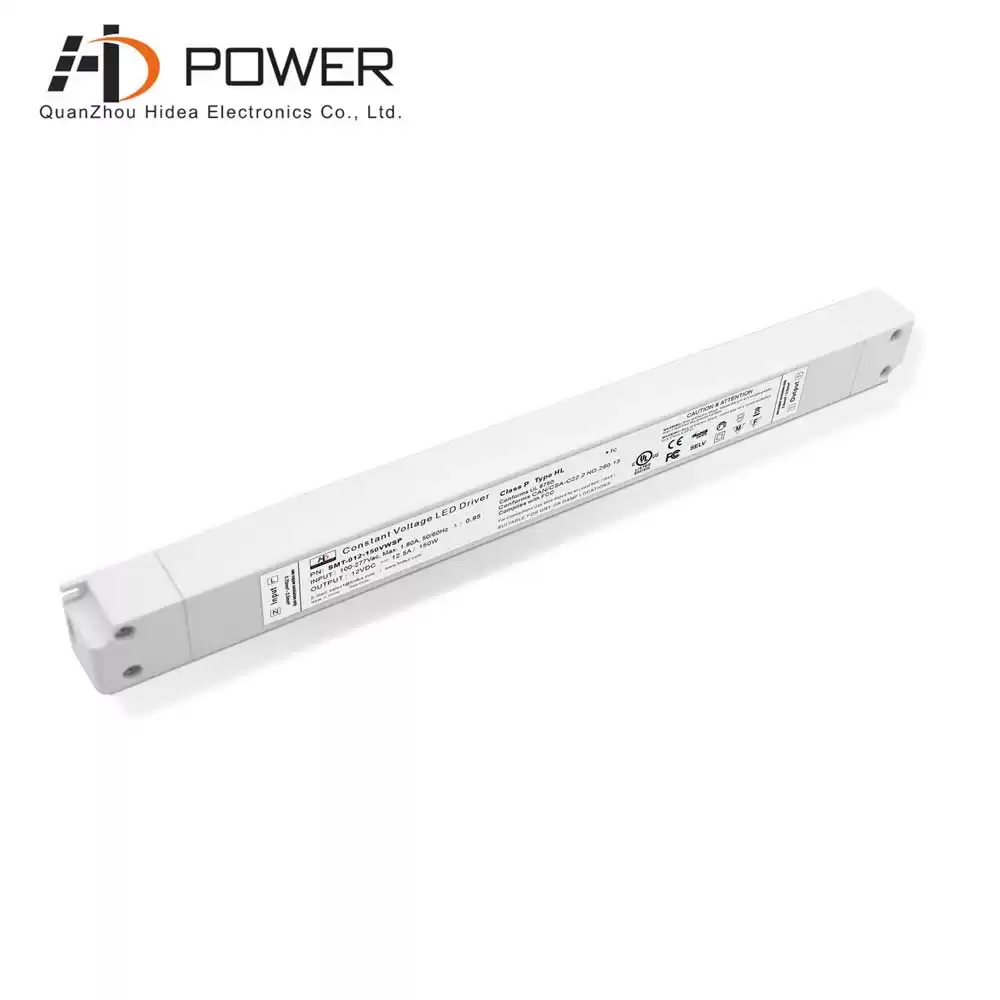

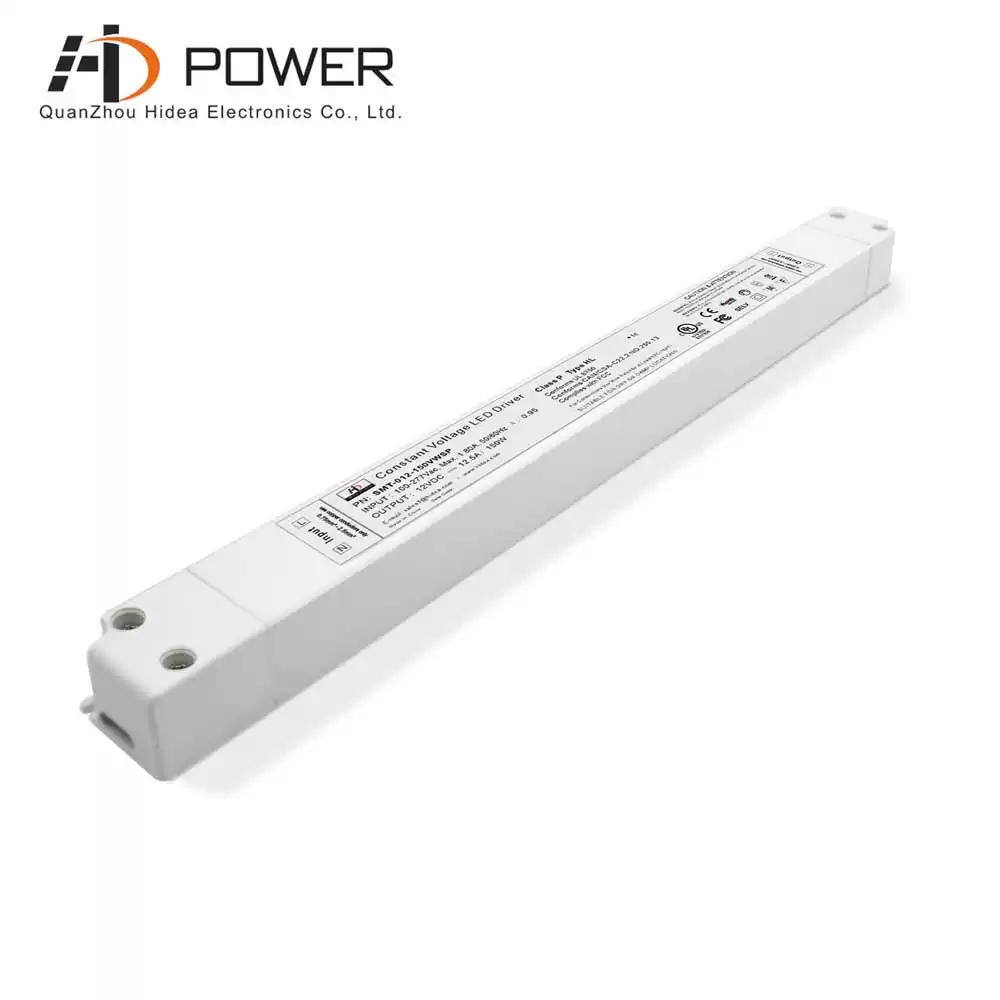

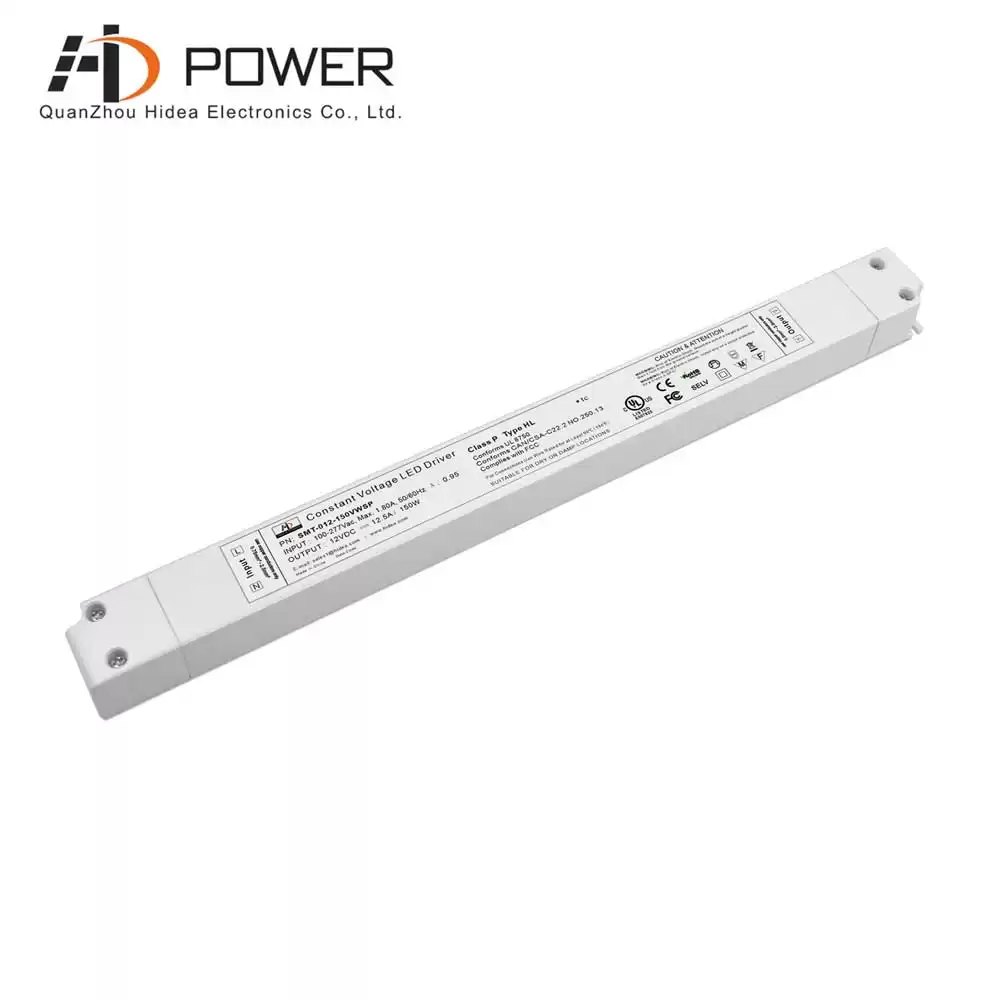

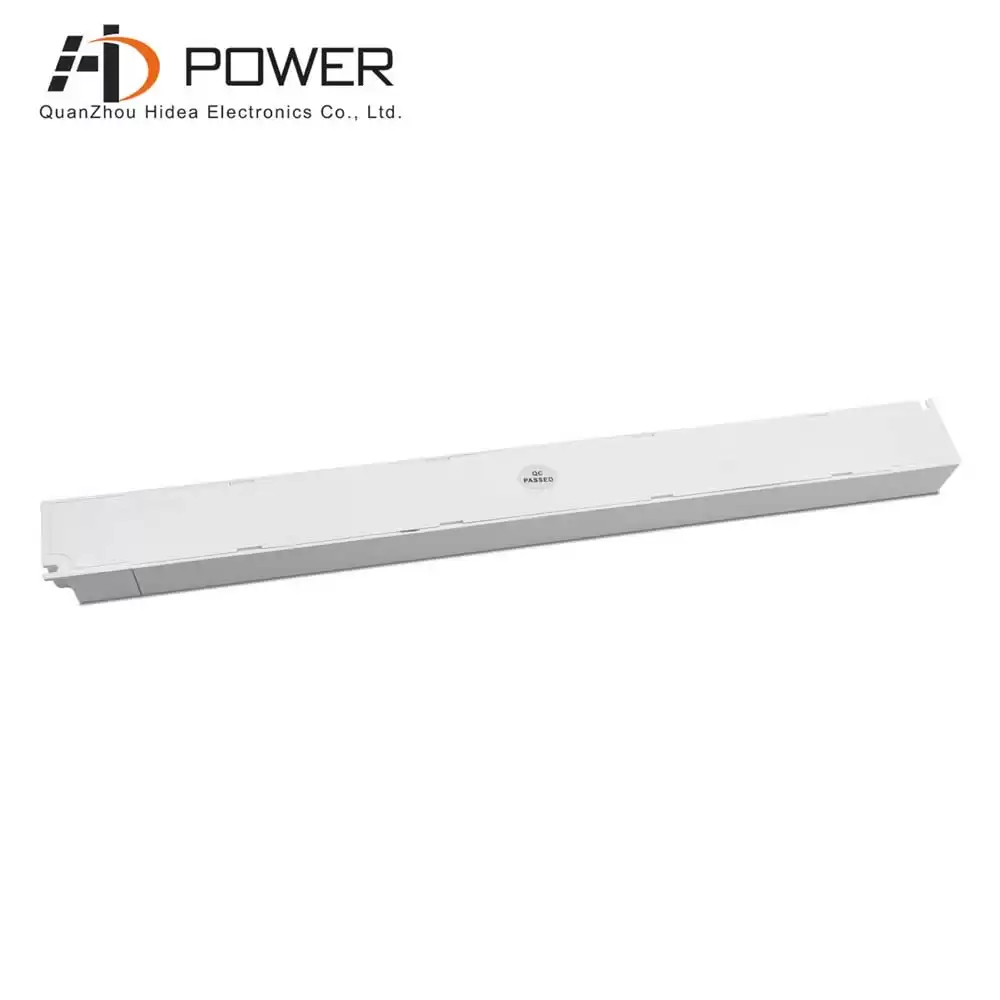

UL listed 12vdc 150w led street light driver manufacturers
There are various of 12vdc slim type ceiling light driver for lighting style LED, also for the led strips, which is generally sold in 5-meter rolls and can be cut at certain intervals or a longer LED strip can be created by adding.

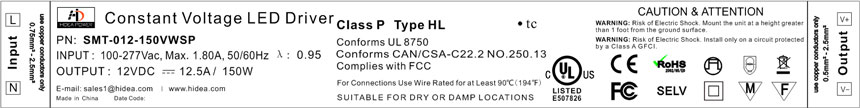

Label
Specification
|
model
|
SMT-012-150VWSP
|
SMT-024-150VWSP
|
SMT-036-150VWSP
|
SMT-048-150VWSP
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
36VDC
|
48VDC
|
|
Voltage Accuracy
|
±5%
|
|
Rated current
|
12.5Amp
|
6.25Amp
|
4.16A
|
3.125A
|
|
Rated power
|
150W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
0.99@120VAC; 0.98@230VAC; 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<15%@120VAC <20%@230VAC <20%@277VAC
|
|
Full Load Efficiency(Typ.)
|
83%@120VAC; 85%@230VAC; 85%@ 277VAC
|
|
AC Current(Typ.)
|
1.4A/100VAC / 0.82A/230VAC / 0.43A/277VAC
|
|
Inrush Current(Typ.)
|
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC; 12A,50%480us@277VAC
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P: 3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100M Ohms/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≥60%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
|
|
Others
|
Weight
|
0.40Kg
|
|
Size
|
330*30*22mm (L*W*H)
|
|
packing
|
50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 220VAC, 277VAC input ,Rated load and 25℃of ambient temperature.
|
|
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
The LED strip lights driver are available with interchangeable colour and brightness options, remote and app connectivity and even voice command control. If you’re looking to add a little extra ambience, style or flair to just about anywhere, then an LED strip light may be just the thing.
Related Products
|

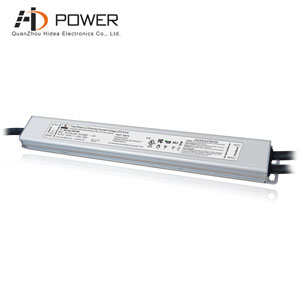

 It is quite slim type for our led driver 12vdc 150w, it can be both indoor and outdoor case for your choose for the project.
