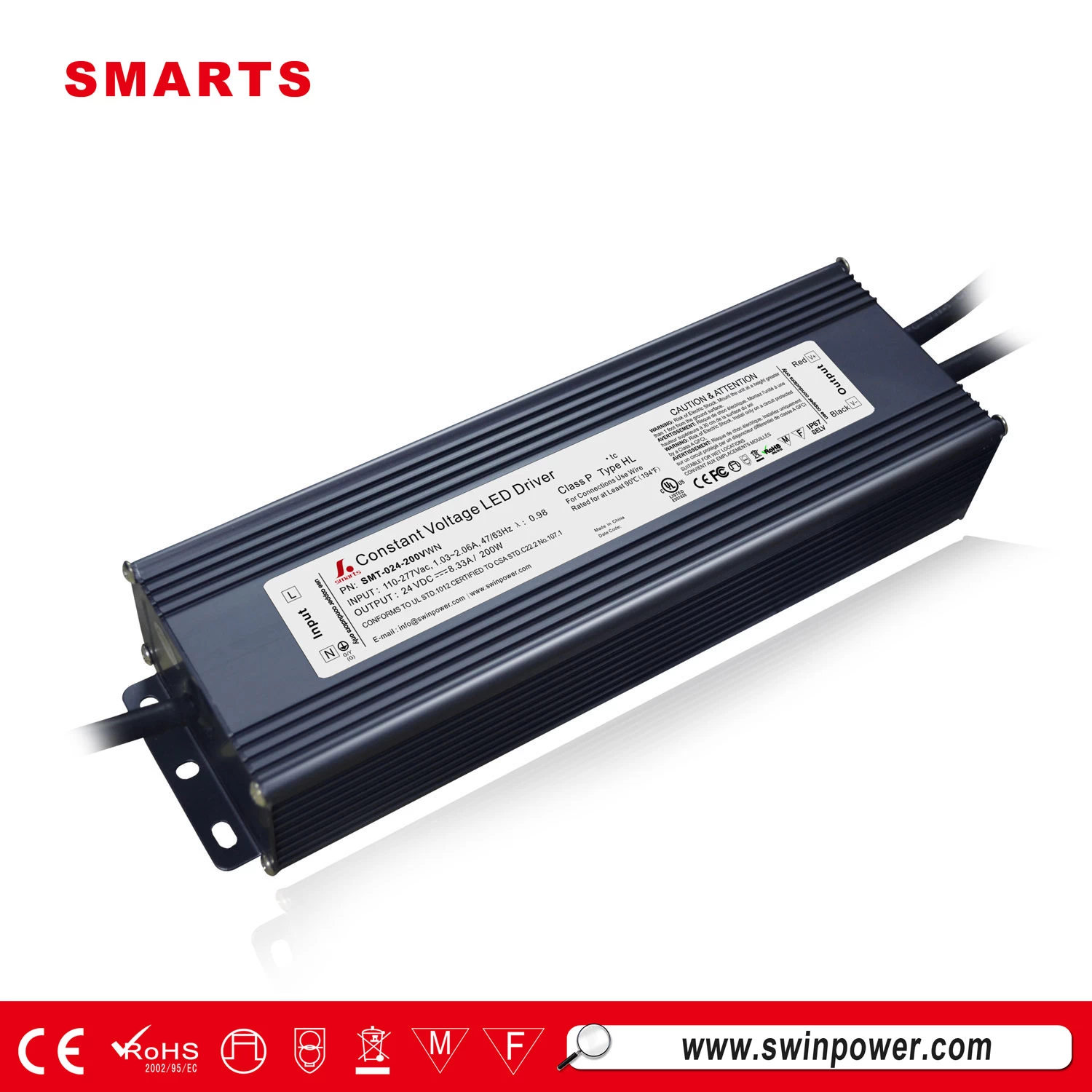

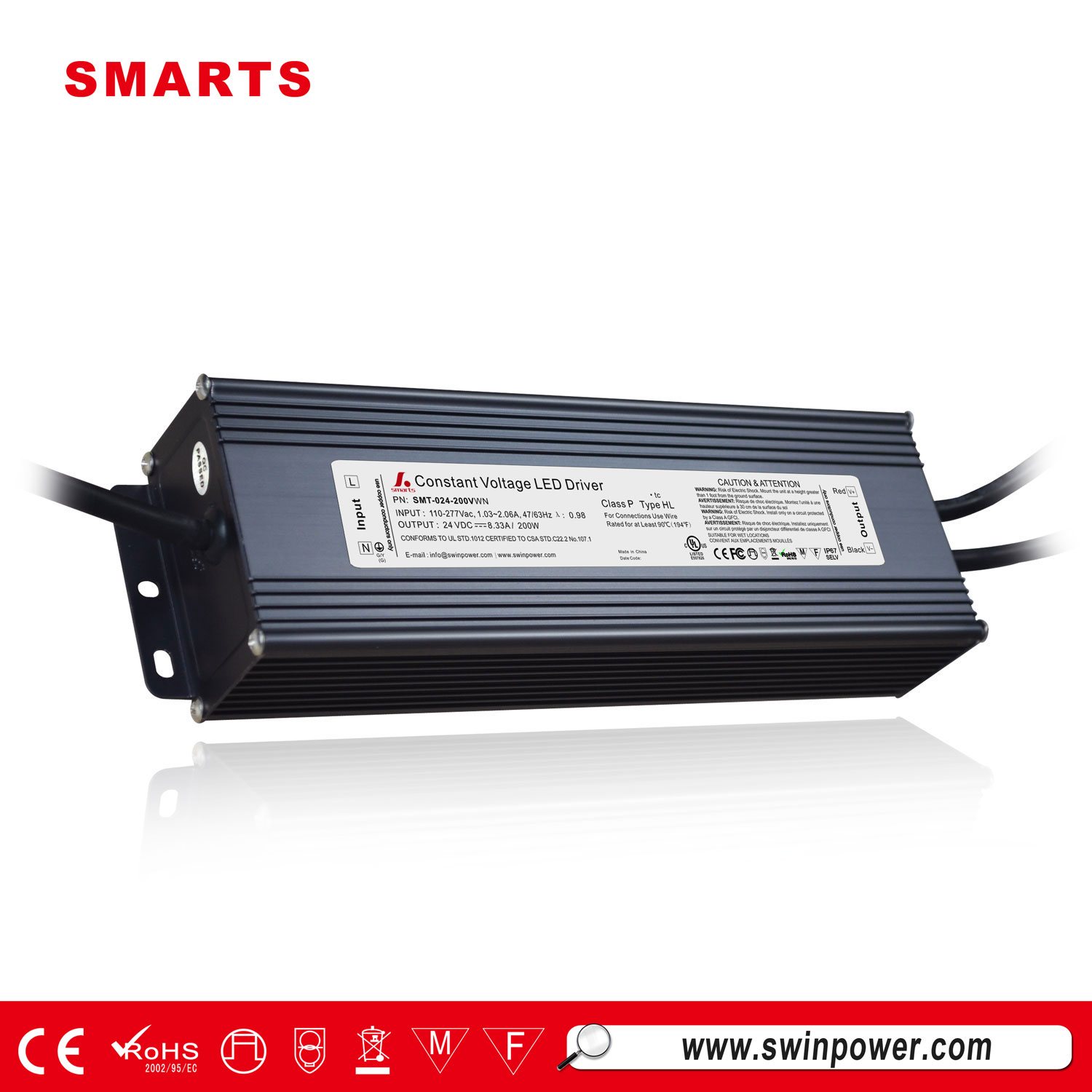

UL listed 200W 12V LED Power Supply Unit AC to DC
All the parameters for our UL listed 200w led power supply NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
Specification
|
model
|
SMT-012-200VWN
|
SMT-024-200VWN
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Rated current
|
16.66A
|
8.33A
|
|
Rated power
|
200W
|
200W
|
|
Input
|
Voltage Range
|
100~277V AC
|
|
Frequency Range
|
47～63HZ
|
|
THD(Typ.) @full load
|
<20%
|
|
Power Factor ( Typ.）
|
0.98@120VAC 0.98@277VAC
|
0.97@120VAC 0.97@277VAC
|
|
Full Load Efficiency(Typ.)
|
>86%
|
>86%
|
|
AC Current（Typ.）
|
2.3A/110VAC
|
|
Inrush Current （Typ.）
|
15A, 50%, 1.4ms@120VAC; 55A,50%220us@230VAC; 30A,50%1.4ms@277VAC
|
|
Leakage current
|
﹤0.5mA/110V
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over voltage
|
≦140VAC(90~135V) , ≦270VAC(170~265V)
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P: 1.90KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
EMC IMMUNITY
|
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547
Alight industry level （surge4KV）
|
|
Others
|
Net Weight
|
1.5Kg
|
|
Size
|
256*78*47mm (L*W*H)
|
|
packing
|
329*279*176mm , 10PCS/ctn
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and
25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Product size:
Instruction:
This driver should be installed by qualified and professional person;
※Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
※Ensure that wiring is correct before test in order to avoid light and power supply damage
FAQ:
1.Does the 12v 96 watt sample we received have a limited powersource(LPS) pass? If so can the LPS be printed on the power supplylabel?
Answer:
Really sorry that 12v 96w models you received do not have LPS.. But after viewing the rules of LPS test, I found that LPS test is mainly for communication product.. most of the material of communication product is plastic,
and the power supply we provide is Aluminum case, hence I think it is not so important to consider the led power supply has LPS or not..
2.Do you have mounting packs(screws/washers) for the junction boxes?
Answer: Each two sides of our junction box have mounting packs for the junction box.
Enclosed kindly please check the picture of the mounting packs for the junction box.
3.Could you extend the warrantee of the drivers for more than 3 years instead of only two years?
Answer: About the guarranty for our non-dimmable constant voltage LED drivers, yes, we give 2 years warranty for those solutions, and if you can control the load around 80% and have a good ventilation environment, most of our LED drivers will run more than 2.5year to 3 years , NO problem...
4.What is your MOQ?
Answer: Our MOQ is 200pcs for each. But we accept trial order or sample order.
