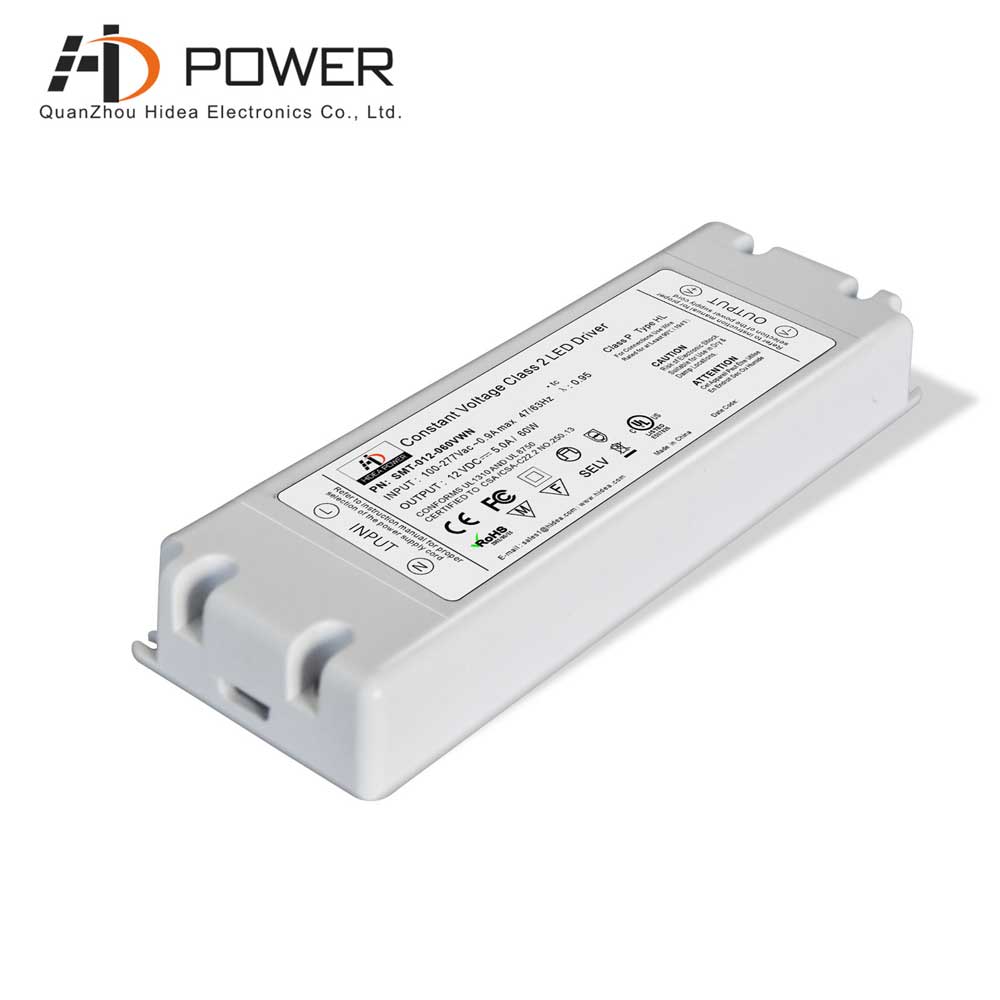

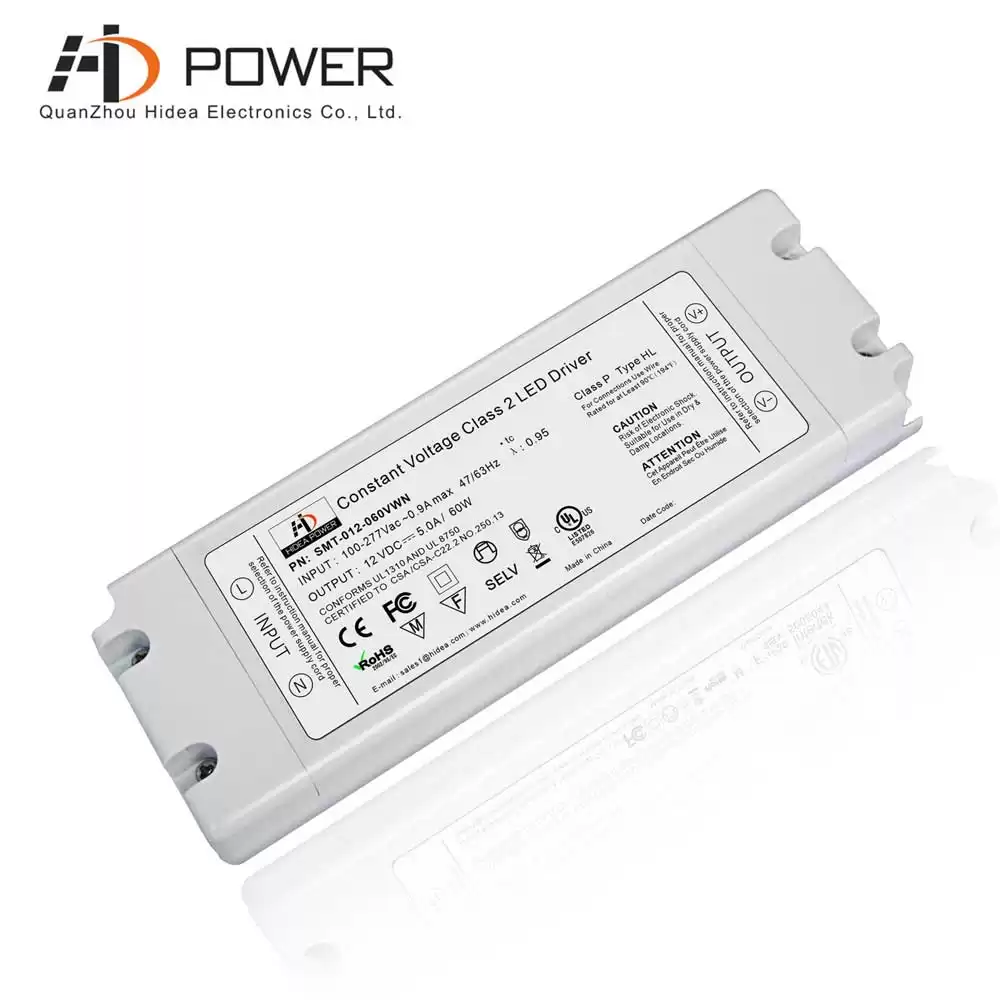

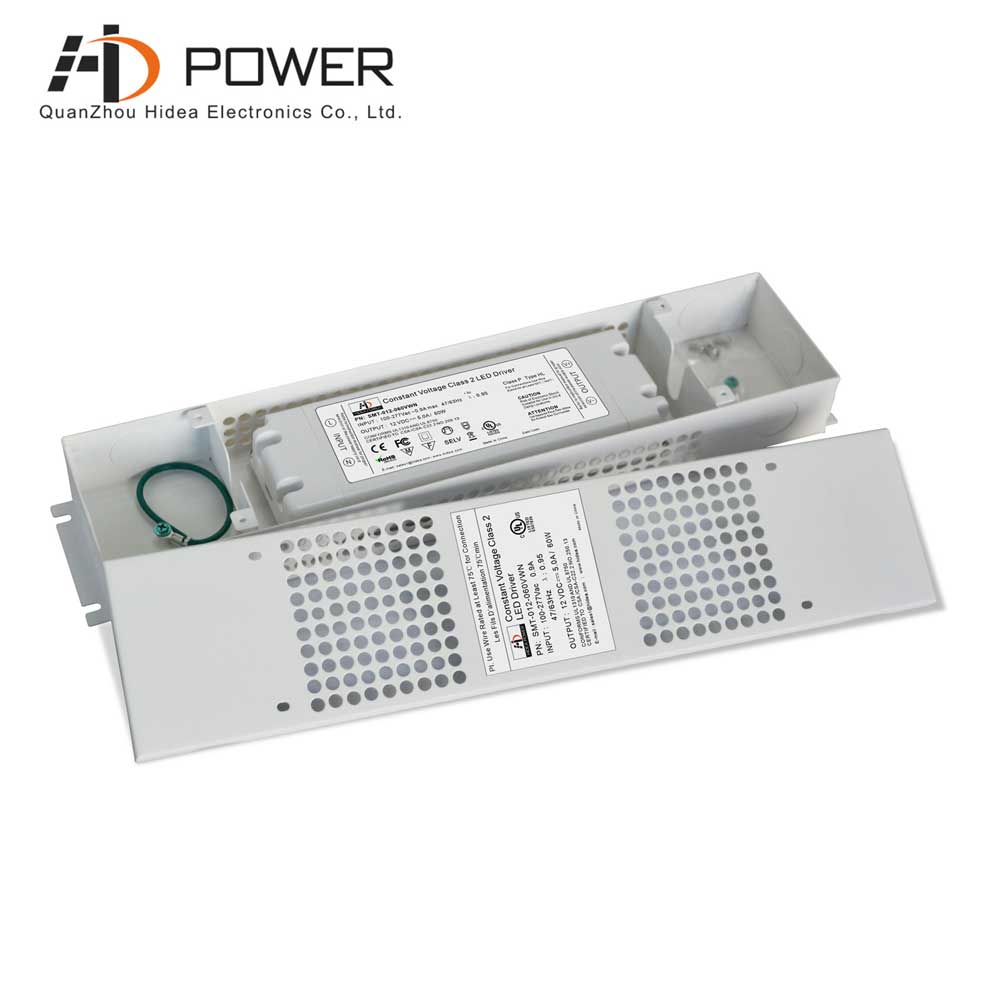

SMT-012-060VWN 60w led driver:Input: 110-277V AC 50/60HZ. Output: 12V DC 5A 60W, automatic protection for short circuit / overload / over voltage / over current / over temperature, suitable for CBC lighting LED strips.
Specification
|
Model
|
SMT-012-060VWN
|
SMT-024-060VWN
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Adj. Voltage Range
|
10-13V
|
21.5-25.5V
|
|
Voltage Tolerance
|
±0.5V
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
5.00A
|
2.50A
|
|
Load Regulation
|
±1%
|
|
Rated power
|
60W
|
60W
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.99@120VAC 0.94@230VAC 0.94@277VAC
|
0.99@120VAC 0.95@230VAC 0.94@277VAC
|
|
THD(Typ.)@ full load
|
<15%@120VAC <20%@230VAC < 20%@277VAC
|
|
Efficiency(Typ.)@ full load
|
83%@120VAC 87%@230VAC 85%@277VAC
|
85%@120VAC 88%@230VAC 86%@277VAC
|
|
AC Current(Max.)
|
0.9A@100VAC
|
|
Inrush Current (Typ.)
|
14A, 50%, 780us@120VAC; 50A,50%,176us@230VAC; 15A,50%,660us@277VAC
|
|
Leakage current
|
<0.50mA
|
|
protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
EMC IMMUNITY
|
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547 Alight industry level (surge4KV)
|
|
Others
|
Weight
|
About 0.35Kg
|
|
Size
|
178*61*24mm(L*W*H)
|
|
packing
|
20PCS/CTN (L*W*H)
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type
Aspect superior quality flexible PCBs and automated SMT equipment ensure a top notch product that runs cooler and lasts longer, and their LED chips that are sorted to ensure the highest level of consistency and luminous efficacy, led light transformer 12v dc could be installed with the led strips well.
Related Products
|

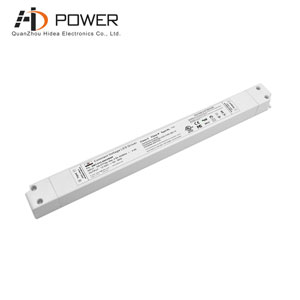

 UL listed 12vdc 60w led driver with super slim size, 7 years warranty, 20mm height works for mirror lights.
Mode：SMT-012-060VWSP
Dimming Mode : Non-Dimming
Output Power : 60W
intput voltage：100~277V AC
Size：300*30*19MM （L*W*H）
|
