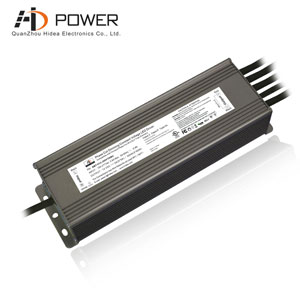

The is a UL listed 12v power supply 300w with high quality. It is ideal for LED-based lighting applications. The excellent performance and design makes it popular in American market.
Specification
|
Model
|

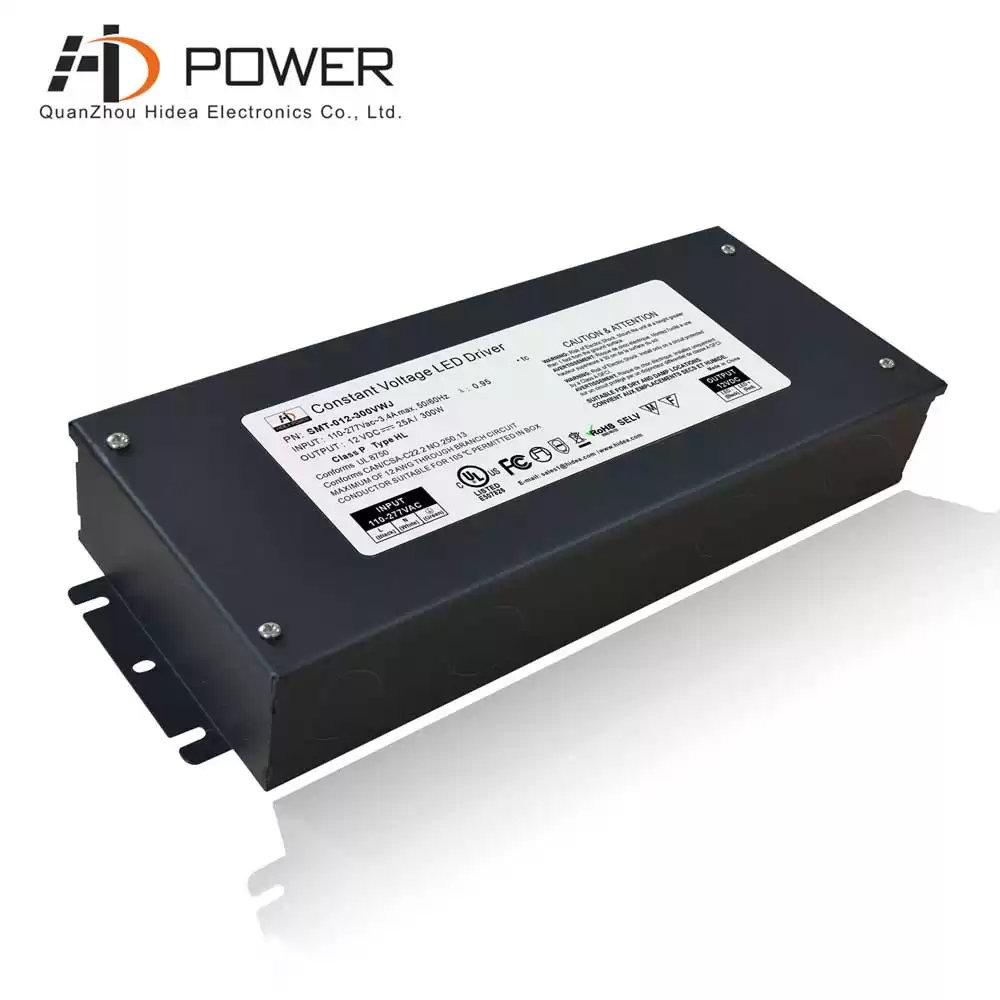

SMT-012-300VWJ
(1.0 ver.)

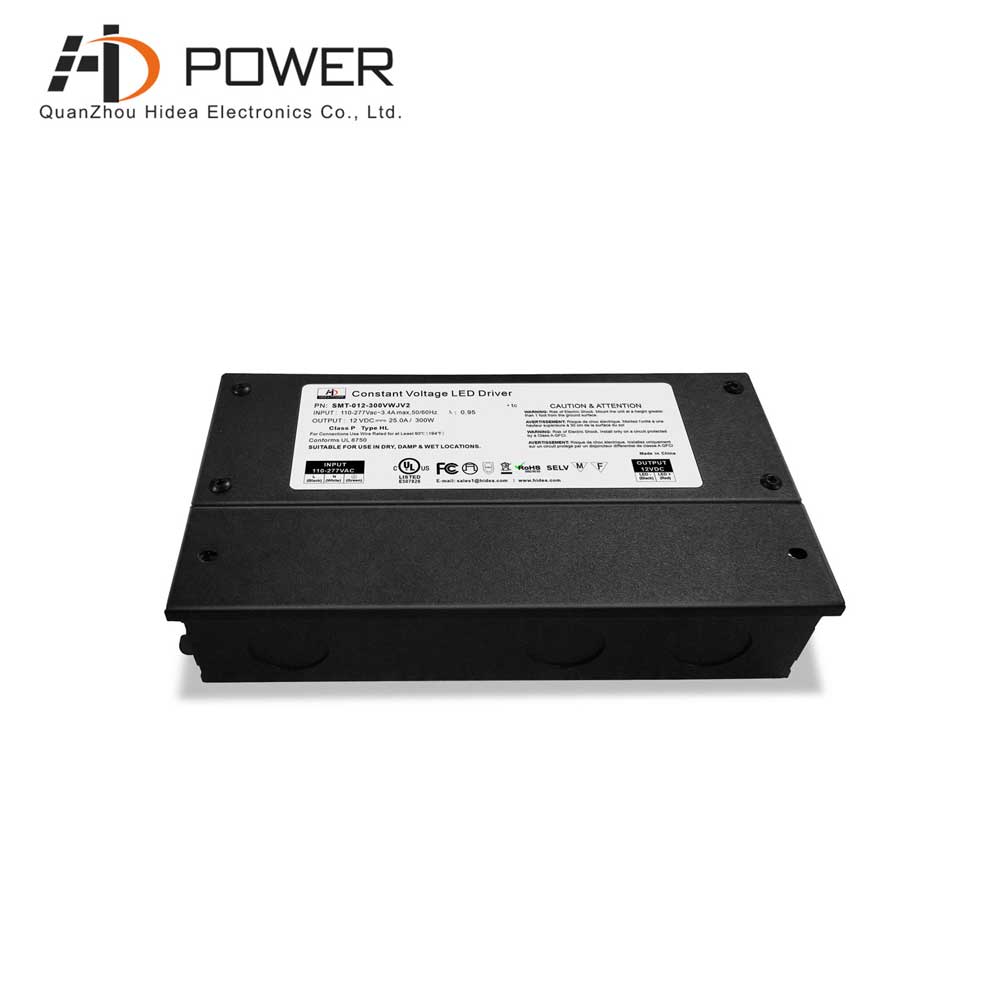

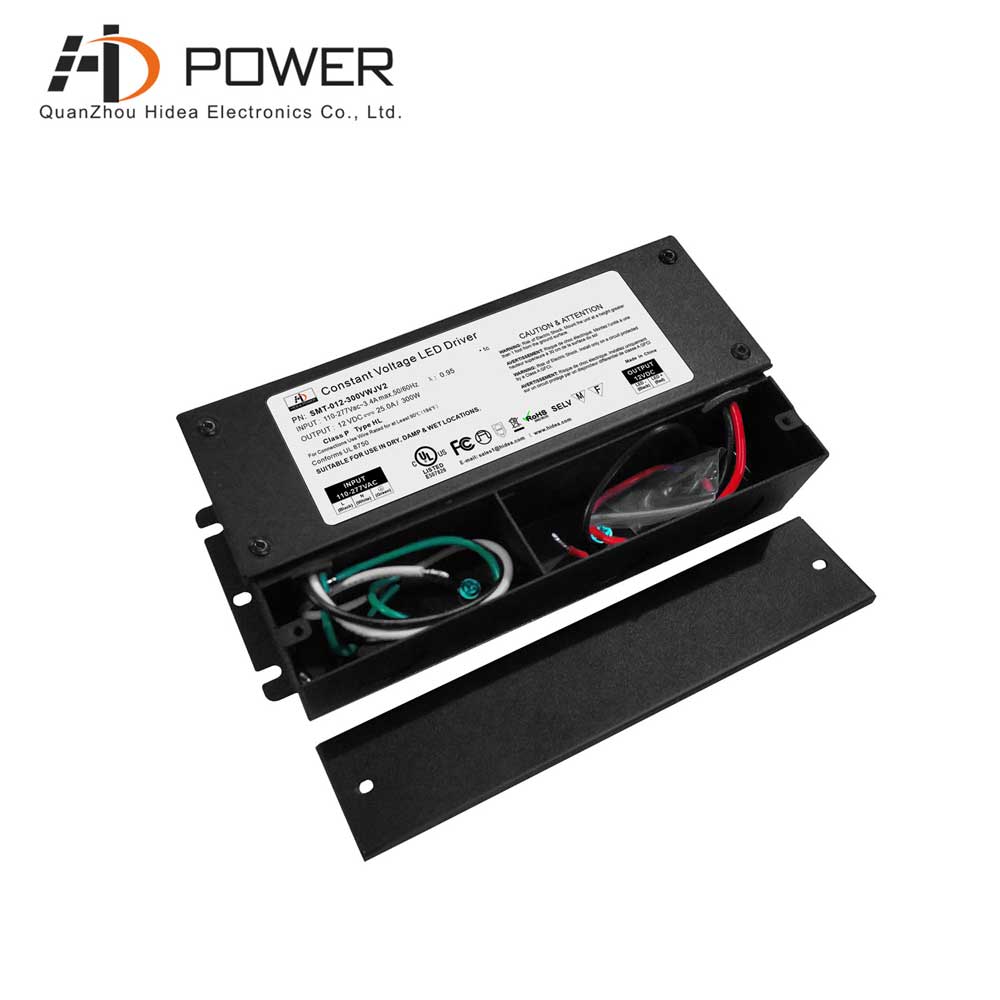

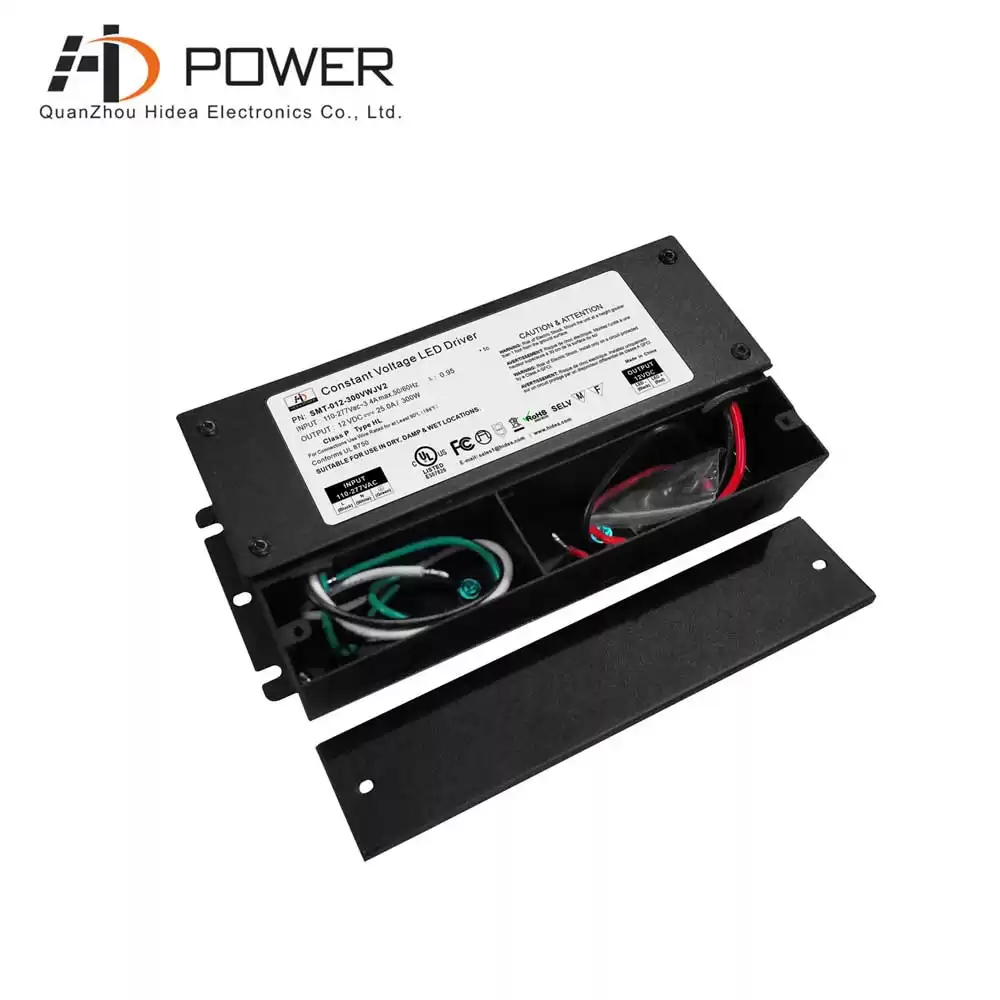

SMT-012-300VWJV2
(2.0 ver.)
SMT-012-300VWJWV2
(3.0 ver.)
|
SMT-024-300VWJ
(1.0 ver.)

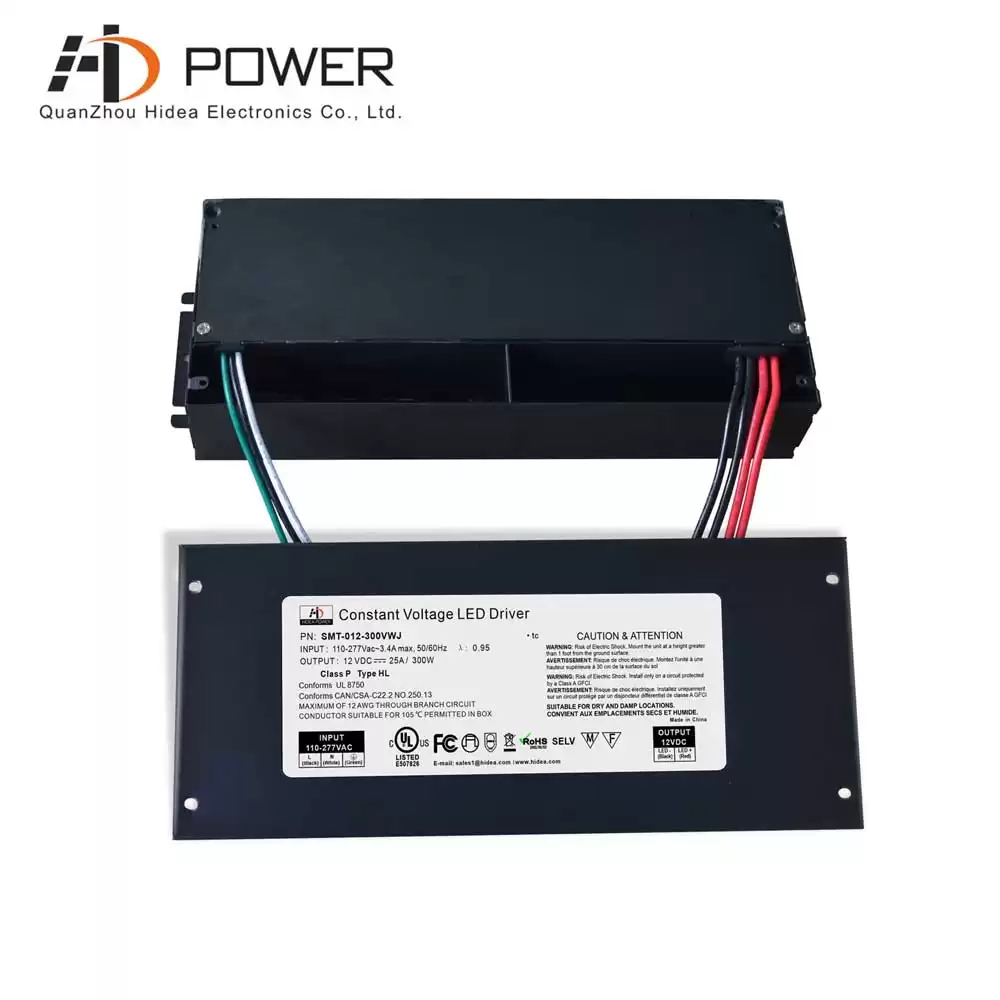

SMT-024-300VWJV2
(2.0 ver.)
SMT-024-300VWJWV2
(3.0 ver.)
|
SMT-048-300VWJ
(1.0 ver.)
SMT-048-300VWJV2
(2.0 ver.)
SMT-048-300VWJWV2
(3.0 ver.)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
48V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Voltage Tolerance
|
±0.5V
|
|
Load Regulation
|
±2%
|
±1%
|
±1%
|
|
Rated current
|
25.0A
|
12.5A
|
6.25A
|
|
Rated power
|
300W
|
|
Input
|
Voltage Range
|
110-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
PF (Typ.)@full load
|
0.99@120V ;0.98@230V ;0.98@277V
|
0.99@120V ; 0.98@230V ;0.98@277V
|
0.99@120V ; 0.98@230V ;
0.98@277V
|
|
THD(Typ.)@ full load
|
<10% @120V <20%@230V <20% @277V
|
|
Efficiency (Typ.)@ full load
|
85%@120V, 89%@230V ,89%@277V
|
88%@120V,92%@230V,92%@277V
|
89%@120V,93%@230V,93%@277V
|
|
AC Current (Max.)
|
3.4A (100VAC)
|
|
Inrush Current (Typ.)
|
20A,50% ,1.9ms@120V ;60A,50% 130us@230V ; 35A,50% 1.9ms@277V
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
|
Safety standards
|
UL8750
|
|
Safety&EMC
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.8Kg
|
|
Size
|
1.0 version:278*108*46mm / 2.0 version:278*110*44mm/3.0 version:278*130*44mm
|
|
packaging
|
10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type
Smarts strip light driver 12V 300W has a high quality that makes your LED lights using less energy but lasting longer.

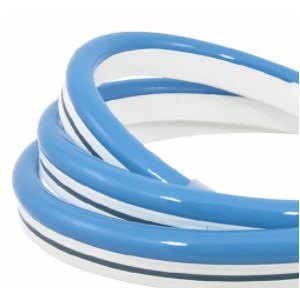

All this series drivers are operates in 12vdc and 24vdc,which is suitable for AQ lighting LED leon.
