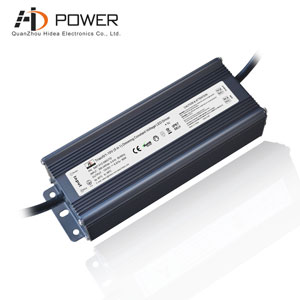

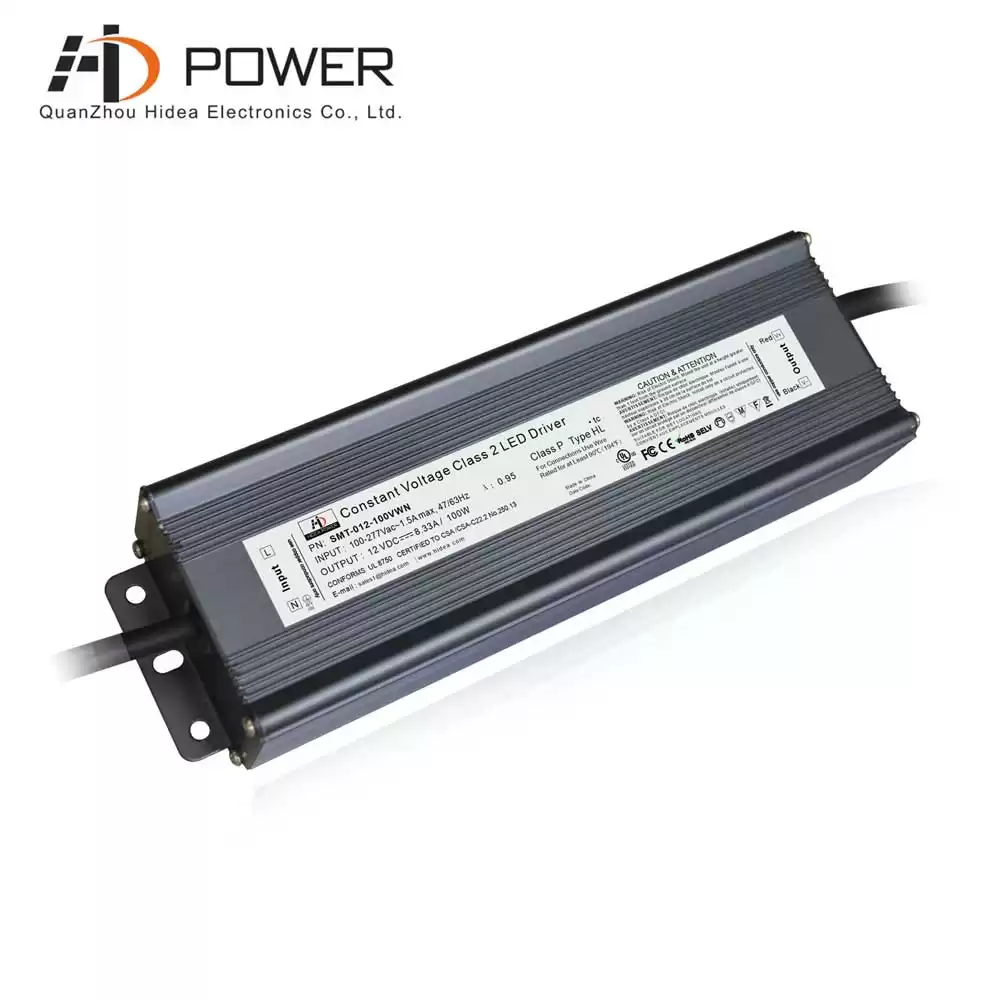

This led driver 80w has been designed for constant voltage operation. reliable and widely applicable, Fully enclosed in a waterproof aluminum metal housing, easy for heat dissipation and ensure stability, suitable for Hatchlighting led lights box..
Specification
|
Model
|
SMT-012-080VWN
|
SMT-024-080VWN
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
6.66A
|
3.33A
|
|
Rated Power
|
80W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.99@120VAC 0.97@230VAC 0.95@277VAC
|
0.99@120VAC 0.96@230VAC 0.97@277VAC
|
|
THD(Typ.)@ full load
|
<15%@120VAC, <20%@230VAC <20%@277VAC
|
<15%@120VAC <20%@230VAC <20%@277VAC
|
|
Efficiency(Typ.)@ full load
|
80% @120VAC 85%@230VAC 84%@277VAC
|
83% @120VAC 87%@230VAC 86%@277VAC
|
|
79%
|
79%
|
|
AC Current(Max.)
|
1.2A@100VAC
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.6ms@120VAC; 30A,50%,200us@230VAC; 25A,50%,1.2ms@277VAC
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Net Weight
|
1.05Kg
|
|
Size
|
230*70*46mm(L*W*H)
|
|
packing
|
329*279*176mm , 10PCS/ctn
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type

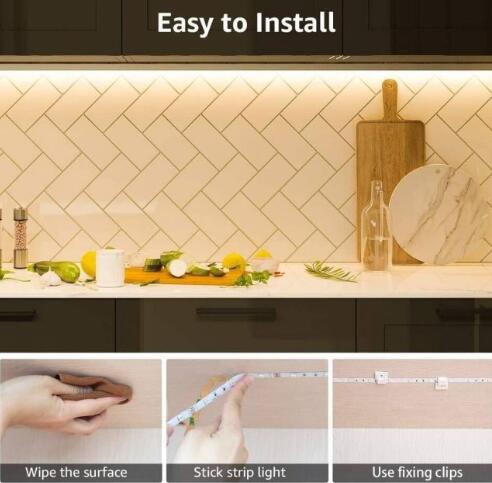

Ledco white LED strip lights have good flexibility and can be bent and folded at will. Meanwhile, LED tape lights can be cut between every 3 LEDs to adjust the strip to an exact length, perfect for room decor, christmas decorations and used for other festival events with Hidea led driver 80w.
Related Products
|
Triac, 0-10v 5 in 1 dimming 12v low voltage led driver 80w,comply with T24 (JA8) standands.
Mode：SMT-012-080VTD
Dimming Mode : 5 in 1 Dimming
Output Power : 80W
intput voltage：100~277V AC
Size：230*70*43MM （L*W*H）
|
