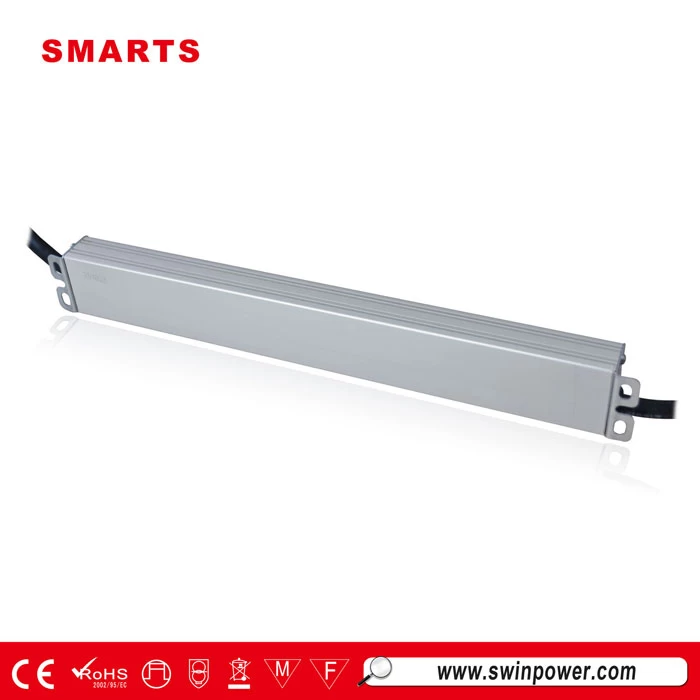

ul listed PWM 12v 5a 60w dimming constant voltage led driver power supply

Dimming range: 0~100% / load:10~100%,ul listed PWM 12v 5a 60w dimming constant voltage led driver power supply.Our Triac dimmable led drivers are compatible with Leading-edge/Trailing-edge Dimmer,no flicker,no min load.


  • CertificationUL/cUL,FCC,RoHS approval
  • Size300*32*20mm
  • Dimming modetriac dimmable
  • Working Modecv
  • Output Current5A
  • Output Voltage12V
  • Input Voltage100-277vac

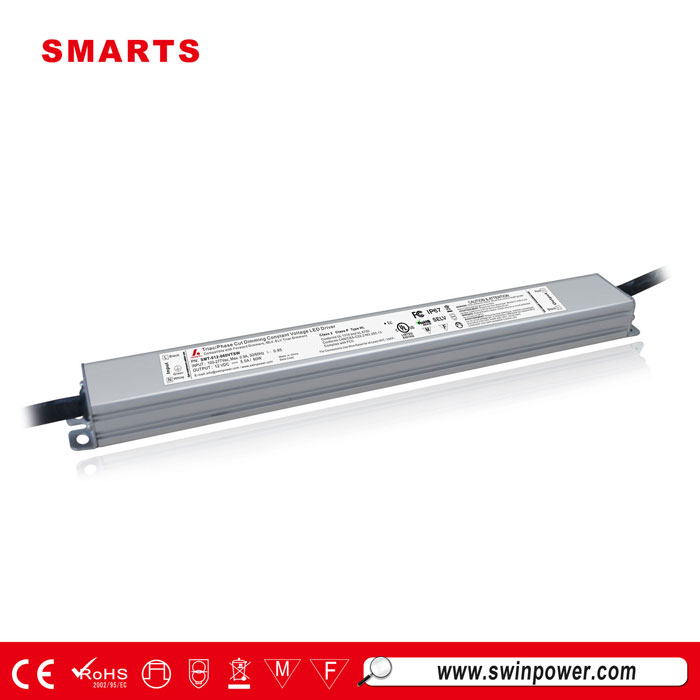

ul listed PWM 12v 5a 60w dimming constant voltage led driver power supply


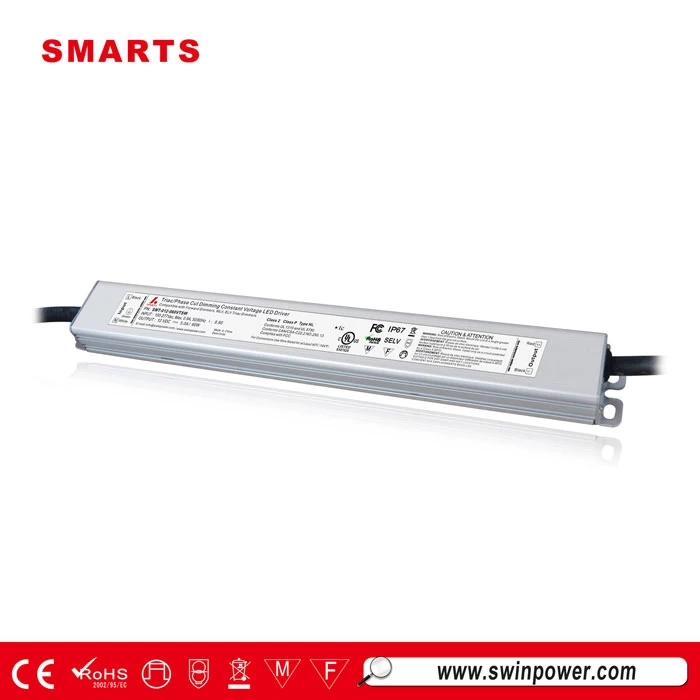

Smarts Electronics' SMT-024-060VTSW LED Driver is the perfect choice for use in Schools, Hospitals, and Shopping Malls or for any commercial application This unit can be operated with input current ranging from 100 to 277 VAC and will output 60 watt 12Volt DC current at 5 amp. This power supply features an IP67 rated design.


  Features


·Output constant voltage

·Input voltage range 100-277VAC

·Protections:short circuit/over voltage/over heat

·IP67 design for indoor dry or damp environment installations

·Cooling by free air convection

·Work with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers

·PWM output, does not change the color index

·Full protection aluminum housing, for dry, damp, wet location

·Strong compatibility, flicker-free dimming

·Suitable for LED lighting and moving sign applications

·7 years warranty


  Specification


  model

SMT-012-060VTSW

SMT-024-060VTSW

  Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

5.0Amp

2.5Amp

Rated power

60W

60W

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

  Input

Voltage Range

100-277 VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF≥0.99/110V ;  PF≥0.98/277V

Full Load Efficiency(Typ.)

>83%

>84%

AC Current(Typ.)

0.5A/100VAC  /  0.13A/277VAC

Inrush Current(Typ.)

6.85A, 50%, 640us & 16.8A, 50%, 640us@2770VAC

Leakage current

<0.74mA/110VAC; <0.25mA/277VAC

  Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



   Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

  Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P: 2KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

  Others

Weight

0.45Kg

Size

300*32*20mm (L*W*H)

packing

50PCS/CTN



               Notes

1.     All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2.  Tolerance:includes set us tolerance,line regulation and load regulation .



Triac dimmable led driver
dali led power supply
0-10v led driver
slim size led driver

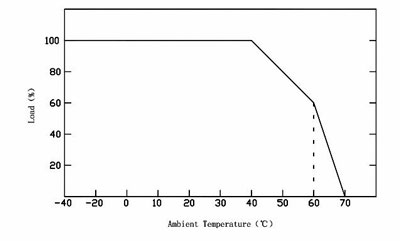

  Derating Curve

12v 5a power supply



  Connecting Diagram

12v 5a power supply



  Simple Connection Diagram

12v 5a power supply



  What is the dimming Operation for SMT-024-100VTSW?

Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.

Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..

Please try to use dimmers with power at least 1.5 times as the output power of the driver.

12v 5a power supply
