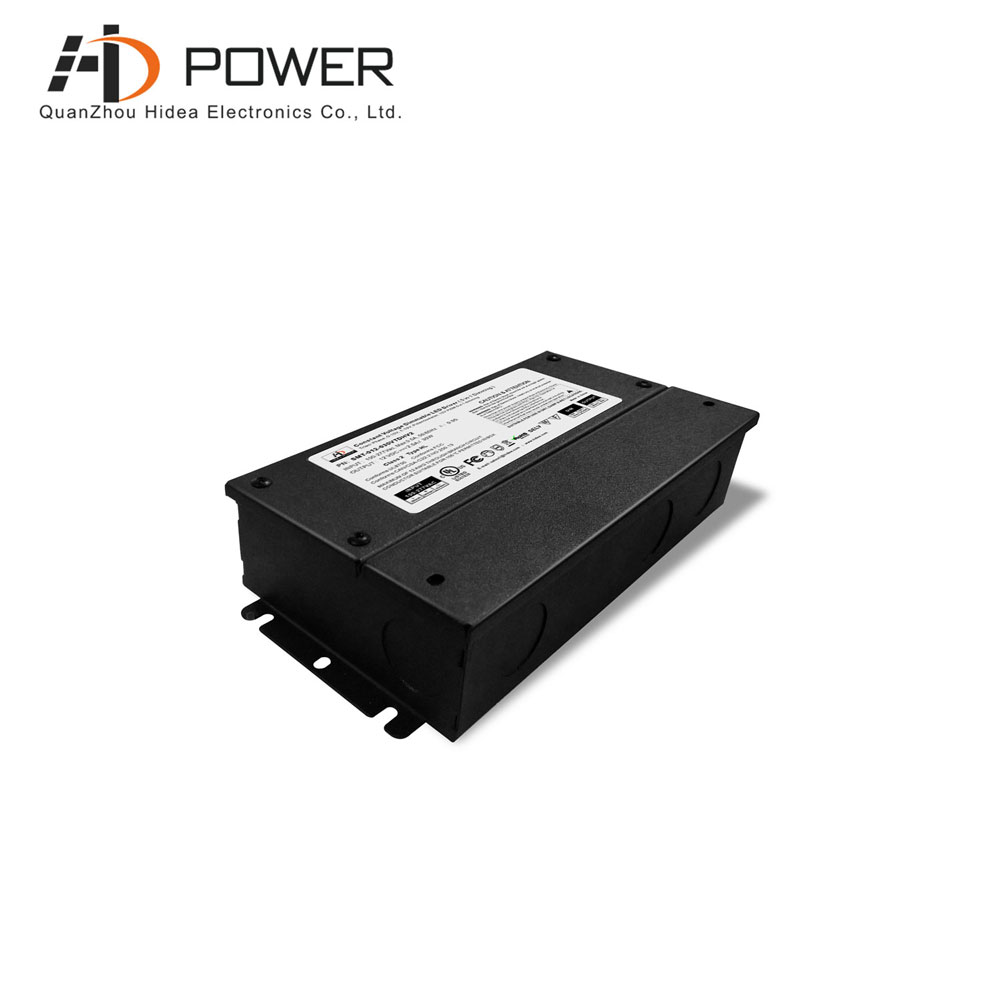

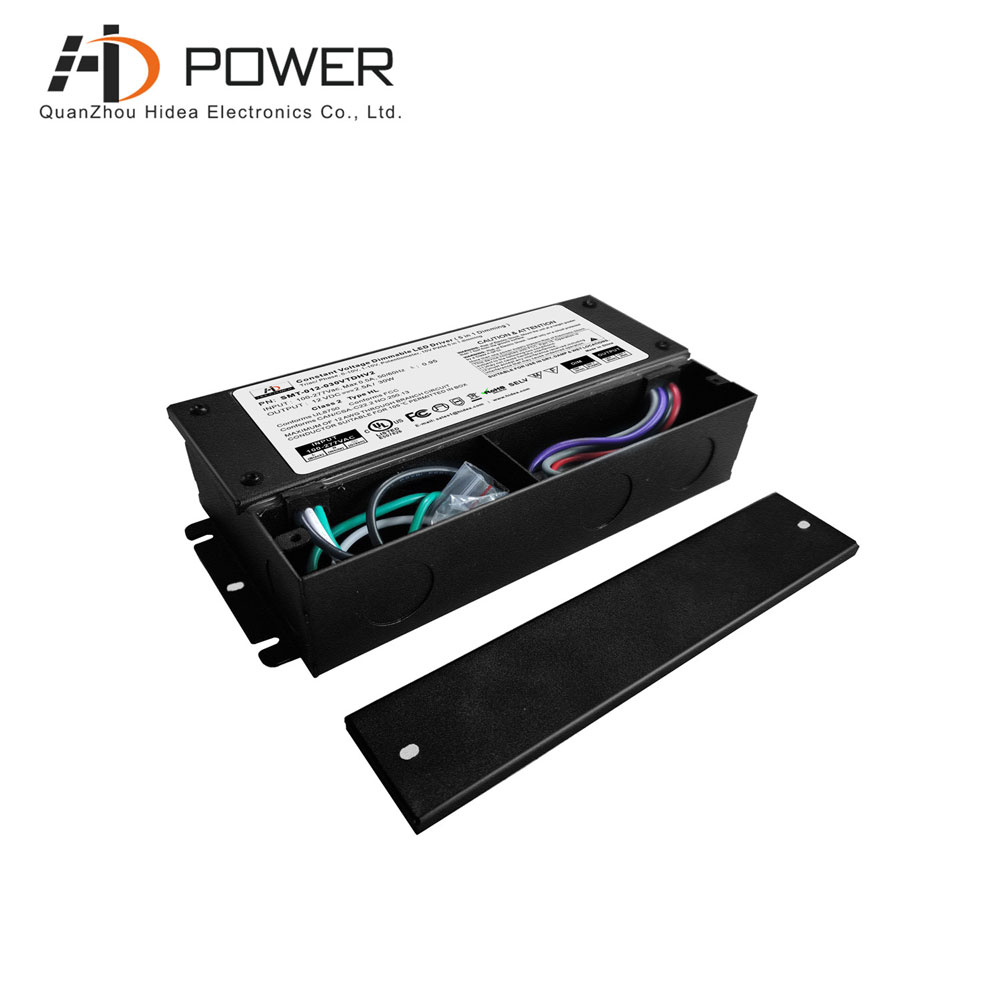

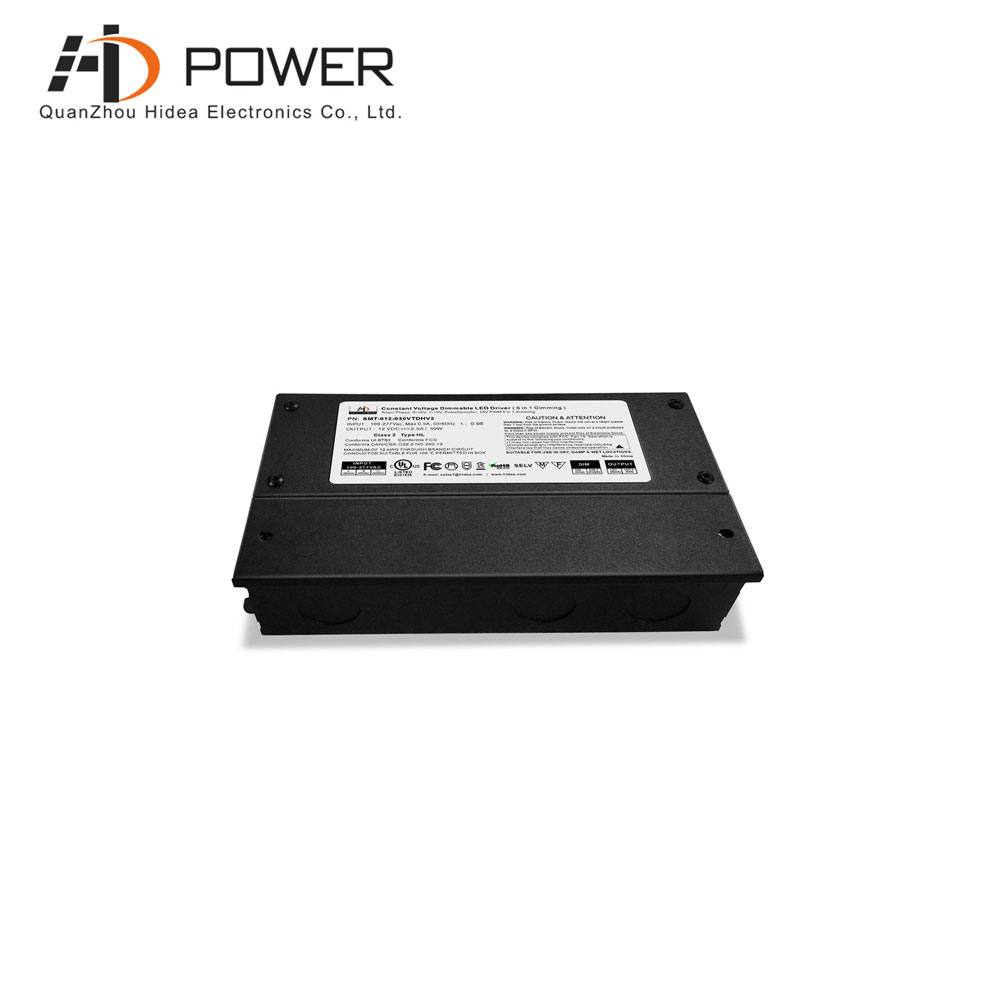

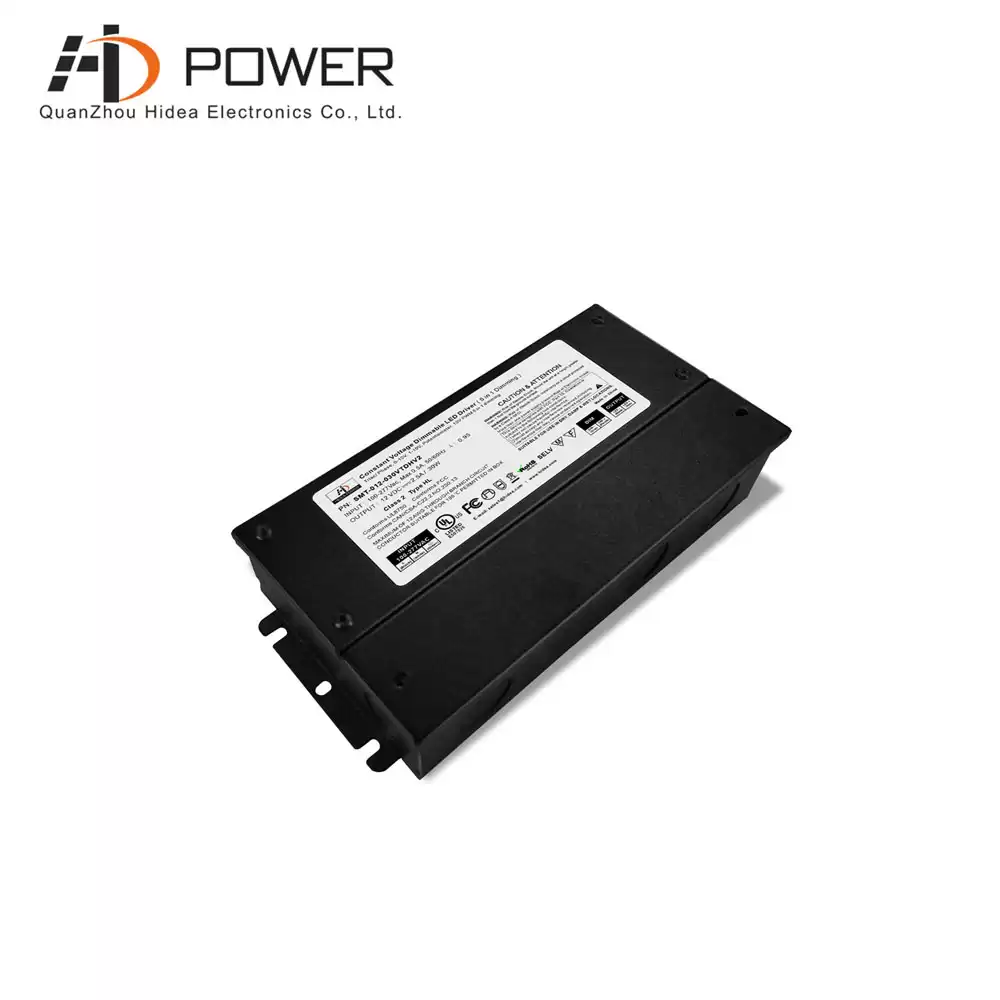

UL listed triac & 0 10v dimmable led driver power supply Junction Box for led strip
Constant voltage 30W dimmable led driver and junction box integrated design, metal shell, free air convection cooling, good heat dissipation, dimming range between 0 and 100%, in line with global safety lighting regulations, 7-year warranty
Specification
|
model
|
SMT-012-030VTDHV2
|
SMT-024-030VTDHV2
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
2.5A
|
1.25A
|
|
Rated Power
|
30W
|
30W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
PowerFactor(Typ.)@fullload
|
0.99@120VAC 0.98@277VAC
|
0.99@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
79% @120Vac 80%@277Vac
|
79% @120Vac 80%@277Vac
|
|
AC Current(Max.)
|
0.5A@100Vac
|
|
Inrush Current (Typ.)
|
7A, 50%, 420us @120Vac 12A, 50%, 480us @277Vac
|
|
Leakage current
|
<0.50mA
|
|
protection
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
Environment
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
Safety&EMC
|
EMC EMISSION
|
FCC Part 15 B
|
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
Others
|
Weight
|
About 0.95Kg
|
|
Size
|
165*94.5*40mm (L*W*H)
|
|
packing
|
10PCS/CTN (L*W*H)
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type

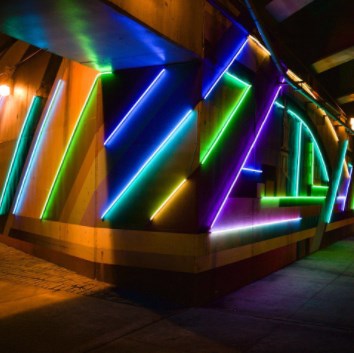

Smarts 12v 24v dimmable led power supply 30W meet Class 2, Class P, type HL. PWM output 20KHZ, no flicker, with short starting time less than 0.5s. Works well with GLLS LED neon.
Related Products
|

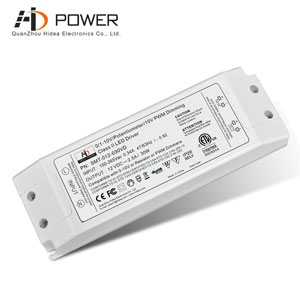

 Plastic shell 30W dimmable led driver, dimmable mode is 0-10v dimmable, waterproof grade ip20, compact body, easy and fast installation, suitable for indoor lighting project installation and use
