UL listed triac dimmable slim led driver 12v 30w

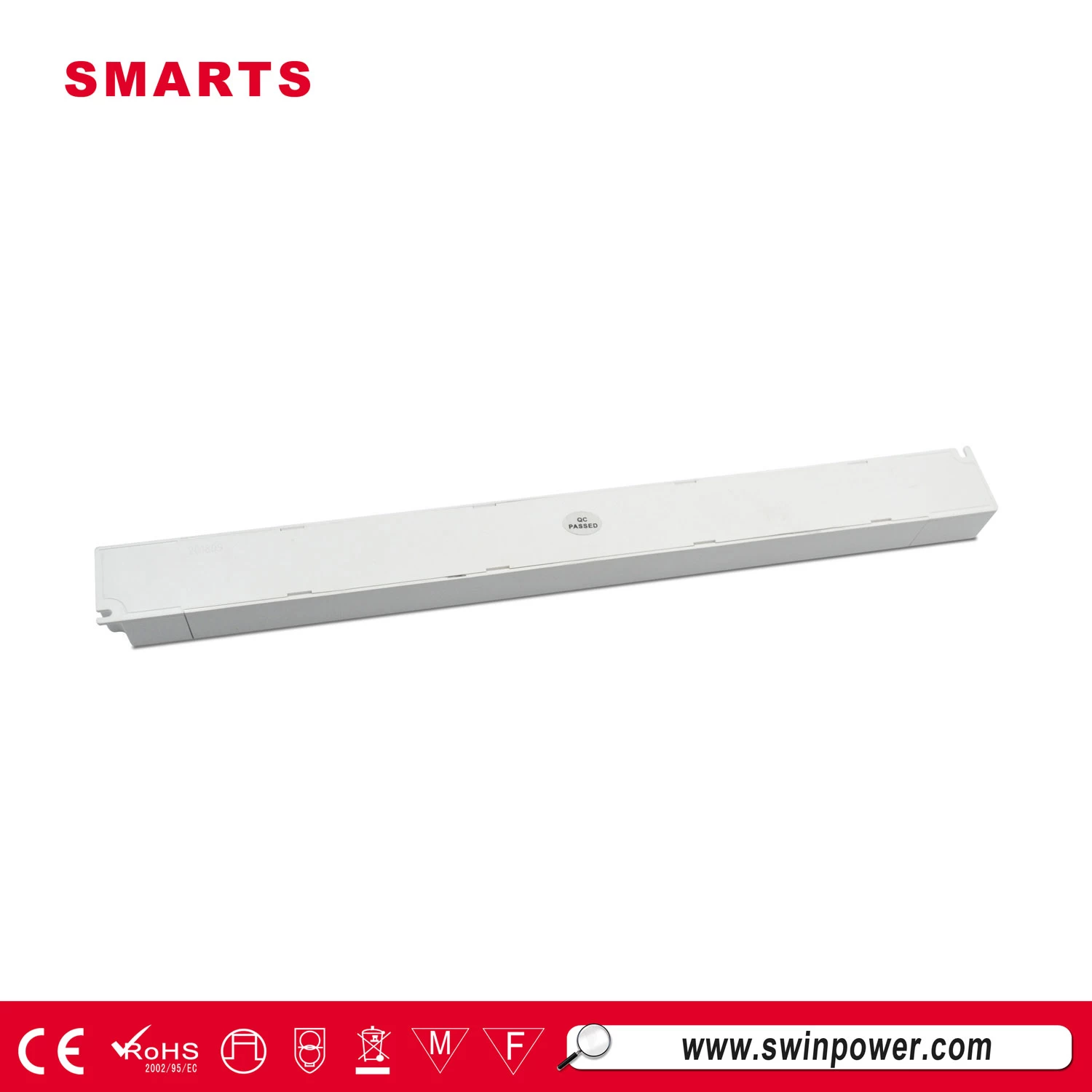

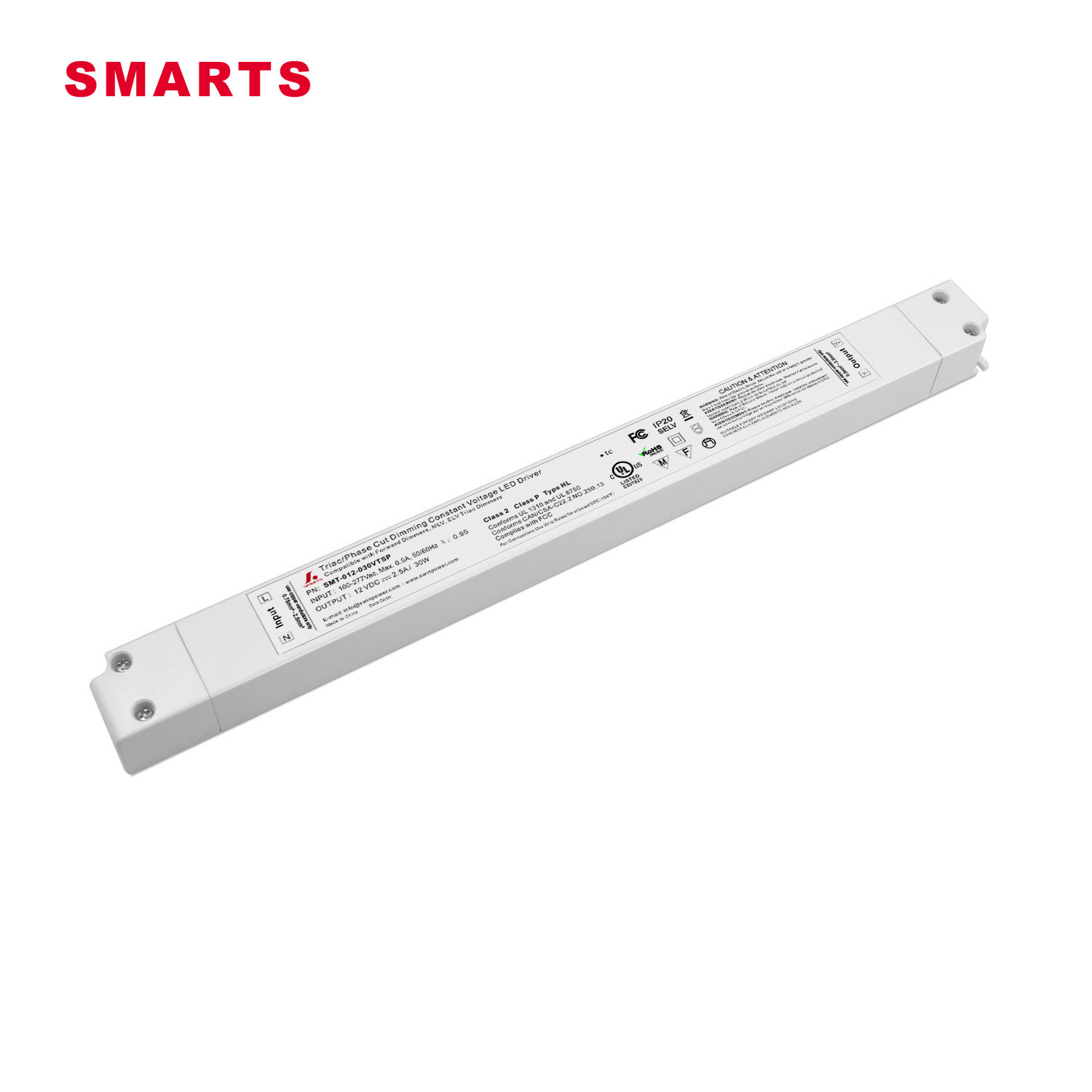

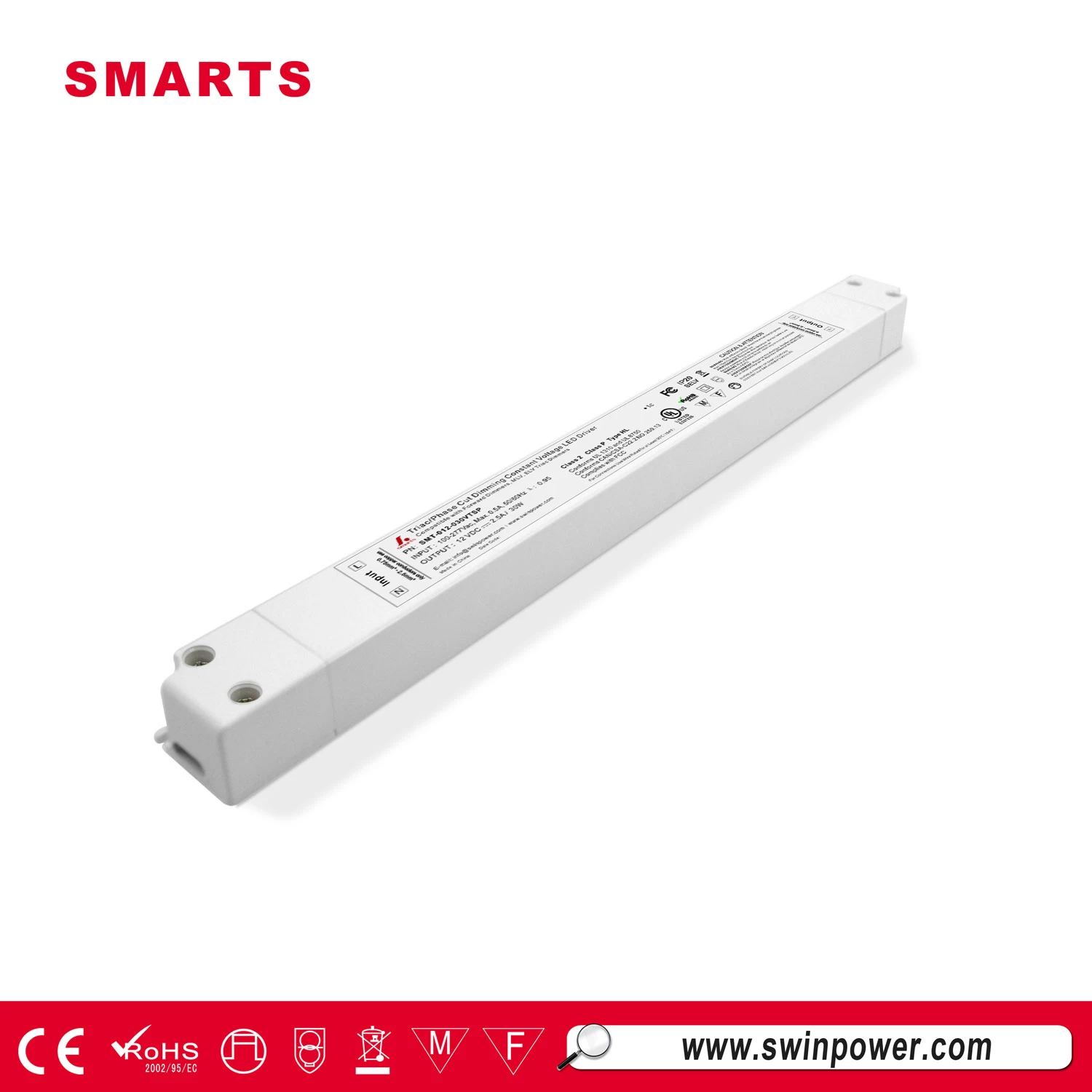

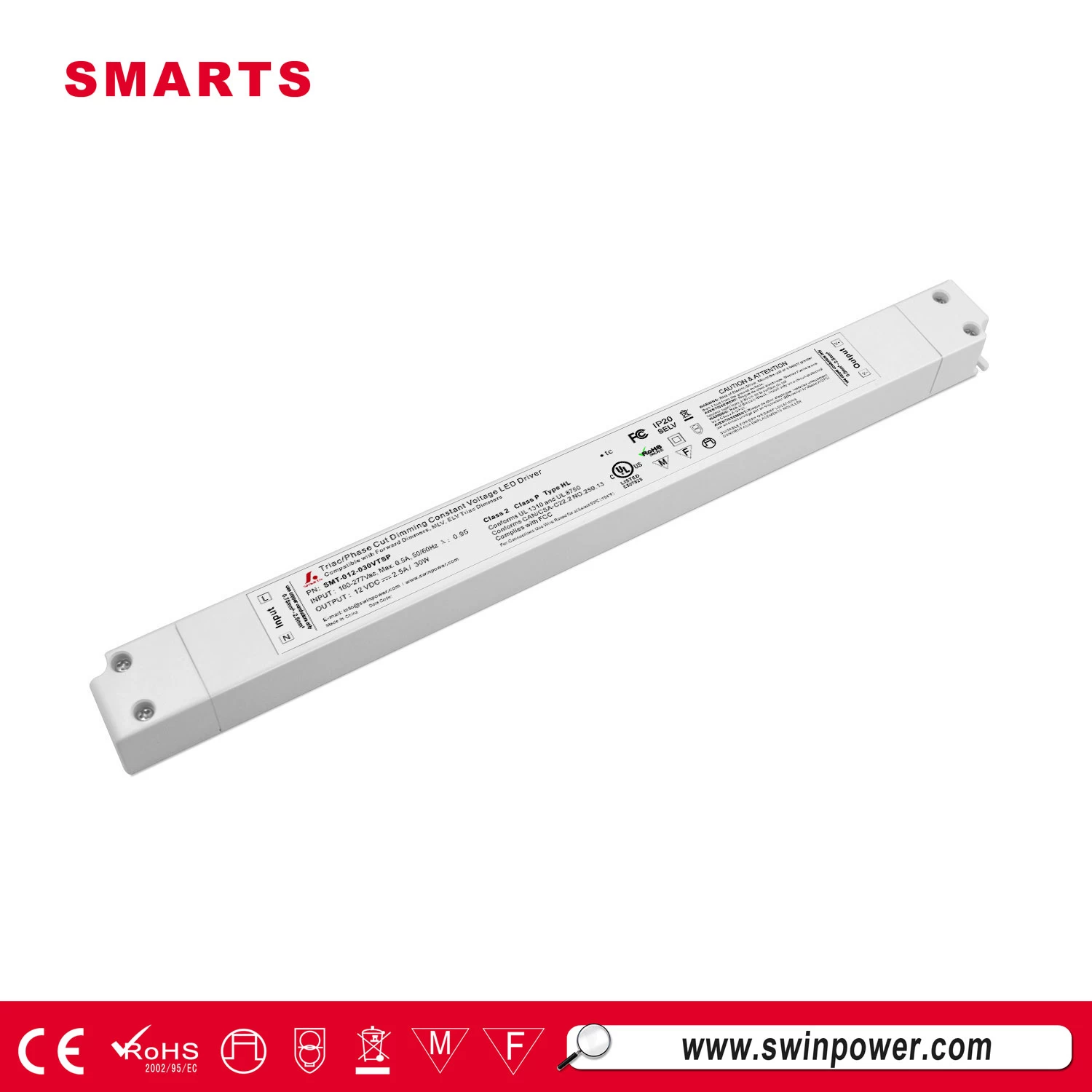

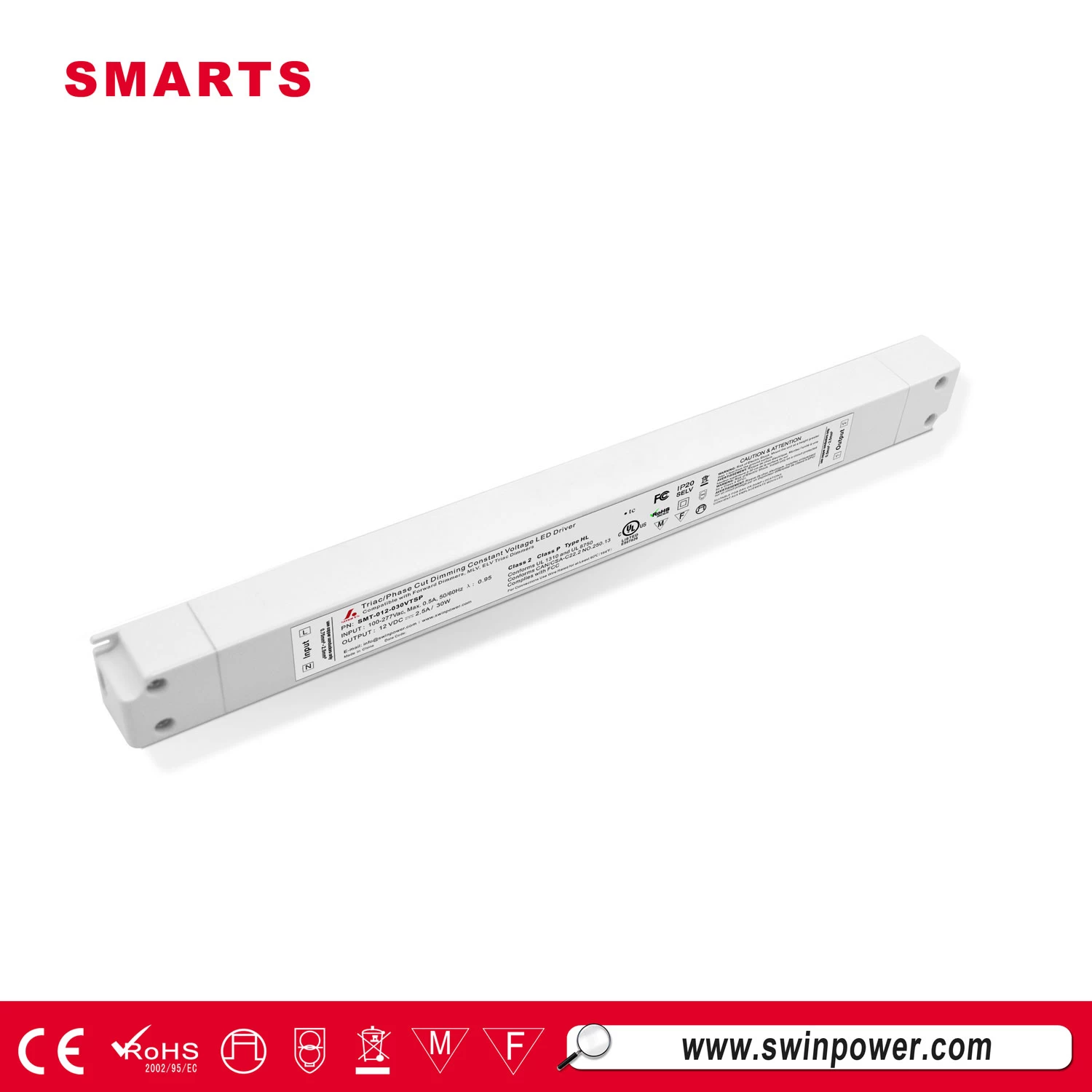

This SMT-012-030VTSP is a kind of ultra slim type led driver. The size is 260*30*18.5mm. and it is plastic case non-waterproof IP20.


  • CertificationUL, CE, ROHS, Class2, ClassP, Type HL
  • Size260*30*18.5mm
  • Dimming modeTriac dimmable
  • Working ModeCV
  • Output Current2.5A
  • Output Voltage12VDC
  • Input Voltage110-277V

UL listed triac dimmable  slim led driver 12v 30w



Smarts electronic VTSP series is the 7 years warranty Triac dimmable led driver with high PF>0.99, high effeciency>87%. This series has 12vdc and 24vdc for selection. It's full electric segment(100-277vac) which can used in North America, Europe and also for USA industrial voltage.


 Specification

model

SMT-012-030VTSP

SMT-024-030VTSP

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

2.5Amp

1.25Amp

Rated power

30W

30W

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF≧0.99/110V ;  PF≧0.98/277V

Full Load Efficiency(Typ.)

>79%

>81%

AC Current(Typ.)

0.5A/100VAC  /  0.13A/277VAC

Inrush Current(Typ.)

7A, 50%, 420us

Leakage current

<0.27mA/110VAC; ﹤0.25mA/277VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:2KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level


30w led driver






triac dimmable led driver
