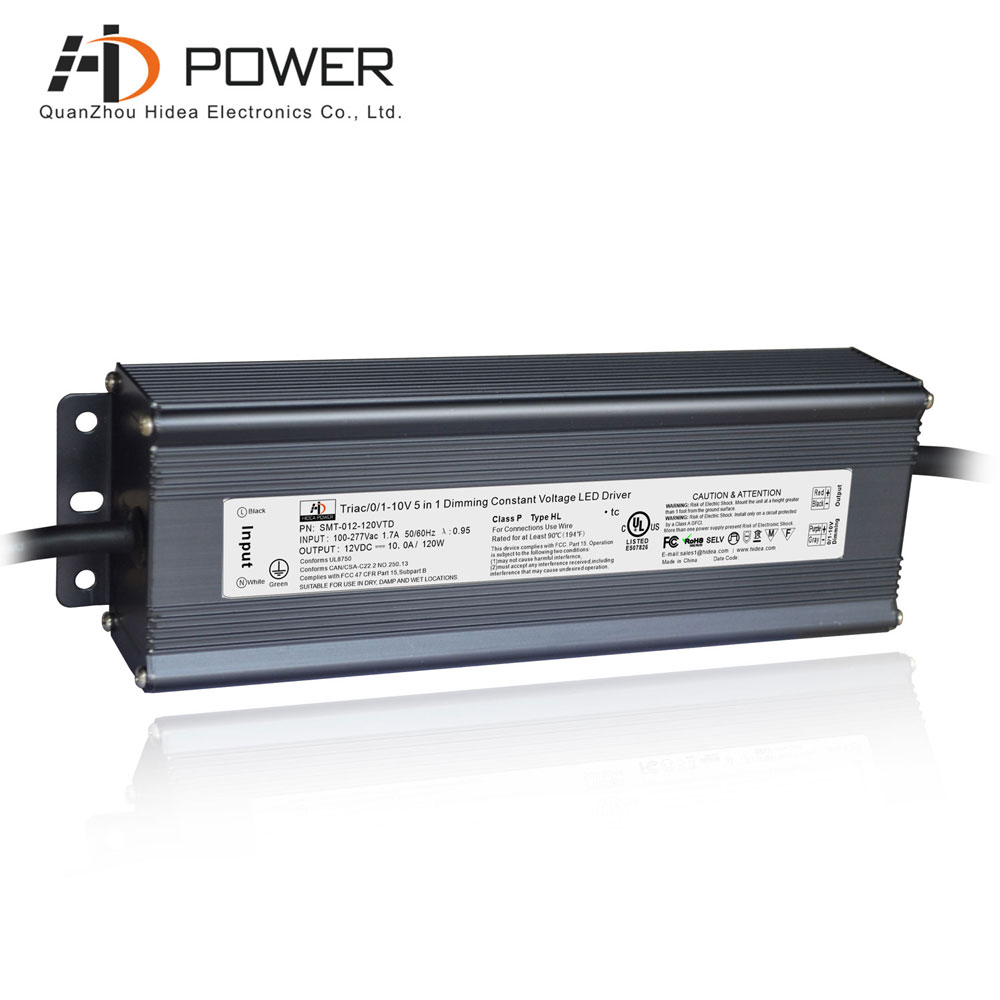

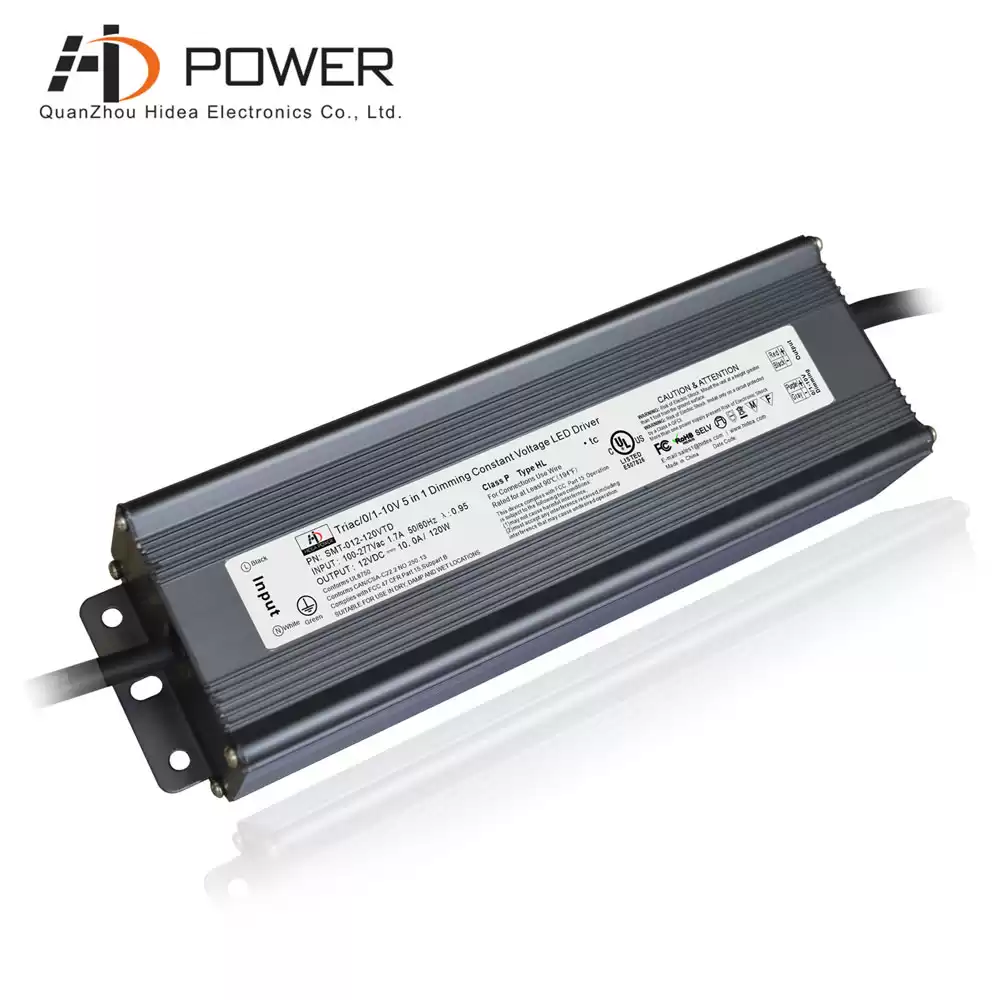

UL listed12V 120Watt IP67 triac+0-10V dimmable led drivera
The 120w led driver is a 5 in 1( triac+0-10V) dimmable driver that operates 12VDC and 24VDC. Cover full range from 30W -384W. Meet Class P, Class 2 standard.Compatible with most Lutron phase forward/reserve phase dimmers.
- Size230*70*43mm
- Shape & SizeStandard Size
- Output Voltage12/24Vdc
- Output Power(Watt)120W
- Input Voltage100-277Vac
- Working ModeConstnat Voltage LED Driver
- Dimming Mode5 in 1 Dimming
- Weight1100g
- CertificationUL/CUL
- Warranty7 Years
The led transformer 120w 24vdc 12vdc enables a smooth and deep dimming range 0-100%. No flicker and causing any buzzing noise. It is conforms to UL safe standard and guaranteed 7 years warranty.
Specification
model | SMT-012-120VTD | SMT-024-120VTD | |
Output | DC Voltage | 12V | 24V |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Rated current | 10.00A | 5.0A | |
Rated power | 120W | 120W | |
Load Regulation | ±2 % | ±1 % | |
Input | Voltage Range | 100~277VAC | |
Frequency Range | 47~63HZ | ||
THD(Typ.) @full load | <20%@120VAC &277VAC | ||
Power Factor ( Typ.) | 0.99@120VAC 0.96@277VAC | 0.98@120VAC 0.95@277VAC | |
Full Load Efficiency(Typ.) | 82%@120VAC 83%@277VAC | 82%@120VAC 84%@277VAC | |
AC Current(Typ.) | 1.7A | ||
Inrush Current (Typ.) | 20A, 50%, 1.6ms @120VAC; 25A, 50% 1.2ms @277VAC | ||
Leakage current | <0.5mA | ||
Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition removed | |
Over Loading | ≤120% constant current limiting, auto-recovery | ||
Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
Environment | Working TEMP. | -40~+60℃ | |
Working Humidity | 20~90%RH,non-condensing | ||
Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes | ||
Safety&EMC | Safety standards | UL8750 , CAN/CSA-C22.2 No.250.13 | |
Withstand voltage | I/P-O/P:1.88KVac | ||
Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
EMC EMISSION | FCC 47 CFR Part 15 ,Subpart B | ||
Others | Net Weight | 1.1Kg | |
Size | 230*70*43mm(L*W*H) | ||
packing | Carton size: 340*275*170mm , 10PCS/ctn | ||
Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. | ||
2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the finalequipment manufactures must be-qualify EMC Directive on the complete installation again. |
Compatible Light Type

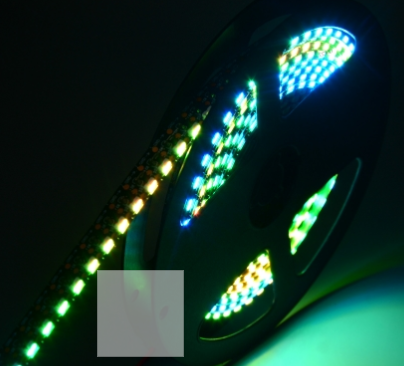

The dimmable 120w led driver combines two types of dimming mode: phase dimming and 0 -10V PWM dimming. A good solution for reduce the inventory problem. We suggest coxotech led strips for perfect dimming effect.
Related Products

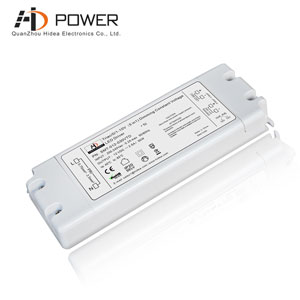

Mode:SMT-012-030VTD
