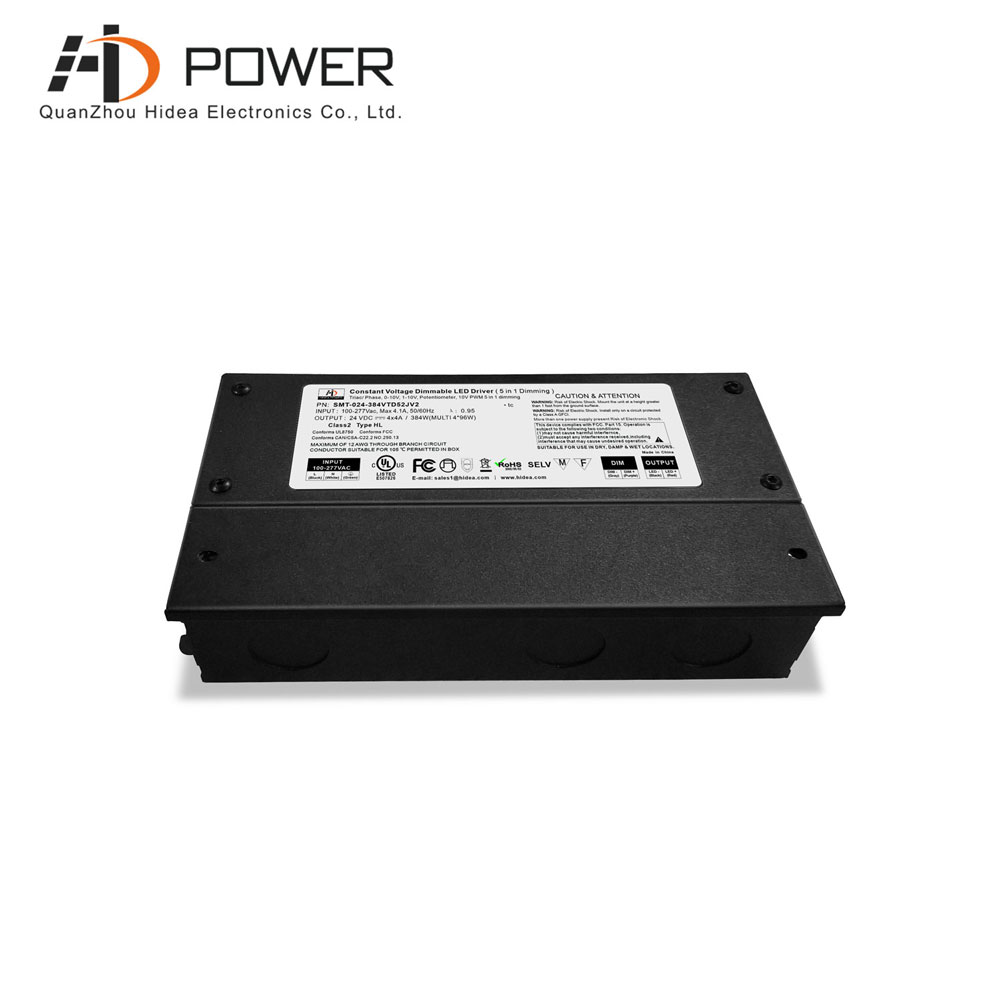

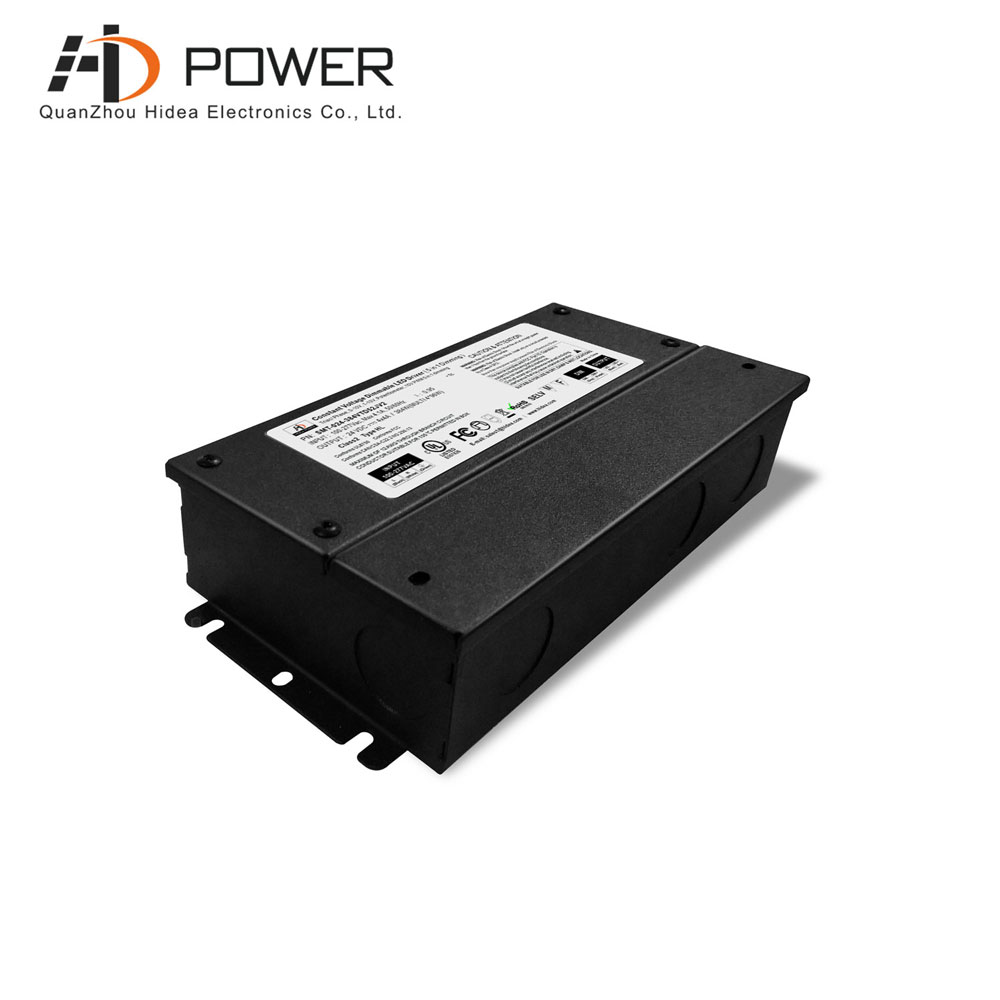

The operation temperature range of this led driver triac dimmable is -40°C to 60°C, which means the LED driver can be applicated in most environments. The driver with junction box enables for outdoor (wet) installations.
Specification
|
Model
|
SMT-024-384VTD52JV2
|
SMT-048-384VTD52JV2
|
|
Output
|
DC Voltage
|
24V
|
48V
|
|
Rated Current
|
4*4A
|
4*2A
|
|
Rated Power
|
384W (4*96W)
|
384W (4*96W)
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.3%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor@ full load
|
0.98@120VAC 0.96@277VAC
|
0.98@120VAC 0.96@277VAC
|
|
THD@ full load
|
<20%
|
|
Efficiency@ full load
|
87%@120V 90%@277VAC
|
88%@120V 91%@277VAC
|
|
AC Current(Max.)
|
4.6A@100VAC
|
4.6A@100VAC
|
|
Inrush Current (Typ.)
|
22.8A ,50%,960us @120VAC ;
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% Hiccup mode ,recovers automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
Others
|
Weight
|
2.6Kg
|
|
Size
|
323*140*47.5mm (L *W*H)
|
|
packaging
|
10pcs /CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|

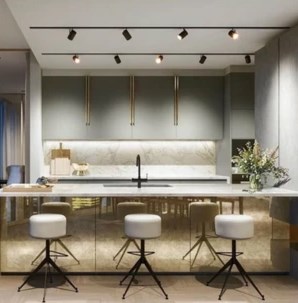

Compatible Light Type
The triac and 0 10v dimmable driver conforms to UL approval and 7 years warranty. The whole series of drivers are highly secure and designed with a long lifetime. The driver is compatible with Bioluz led LED bulbs.
