AT25B-UL Sharp Edge Tester (SET-50)
Application Of UL Sharp Edge Tester (SET-50)
UL Sharp Edge Tester is used to test whether there is a sharp edge that endangers the safety of the user in a reachable location.
Test Method Of UL Sharp Edge Tester (SET-50)
1. Install the test tape cap on the tester
2. Put the stress test head on the edge which to test, immediately use the 0.68kg force to move 2 inches along the edge, then back to start point, moving 4 inches in total.
3. After test, check the tape cap, if the outermost two layers (mimic skin) have been cut off, then the edge is sharp edge.
Key Specification Of UL Sharp Edge Tester (SET-50)
|
Model
|
AT25B-UL Sharp Edge
Tester (SET-50)
|
|
Standard
|
UL1439D
|
|
Dimension
|
184×35×52 mm
|
|
Weight
|
132
g
|

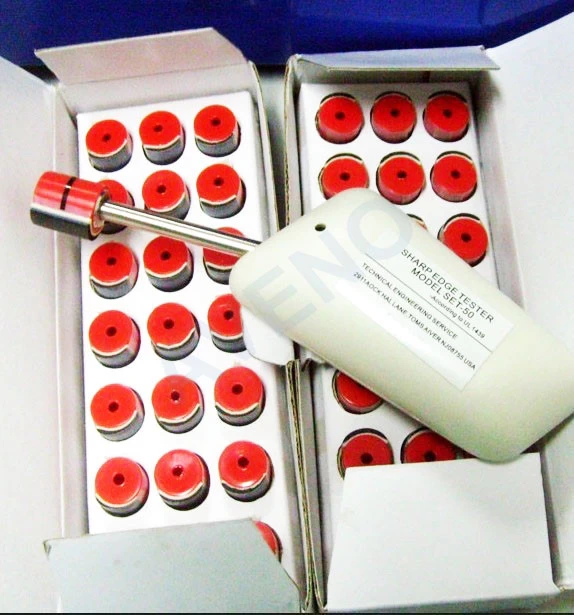

Accessories Of UL Sharp Edge Tester (SET-50)
|
Standard Accessories
|
UL Sharp Edge Tester
|
1set
|
|
TC-3 Test tape cap (21pcs/box)
|
1box
|
