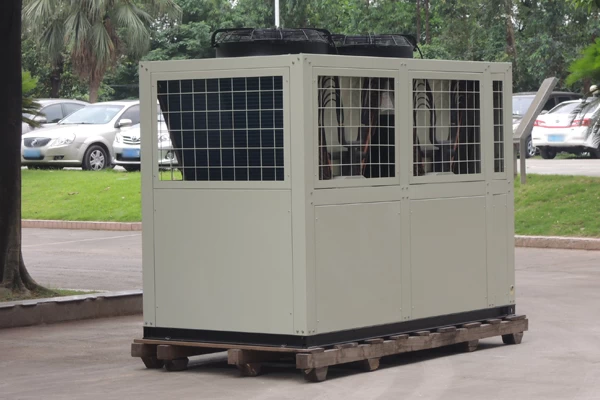

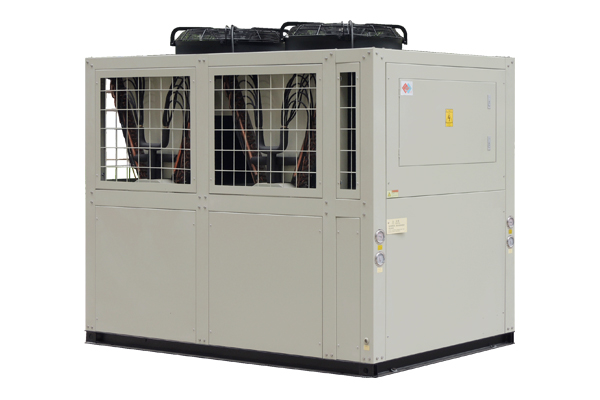

Ultra-Low Temperature Air Source Heat Pump Unit
Heating capacity: 28.98KW
Scope of application:
Preparation of hot water at 55℃, meeting the demand for hot water between 35-55℃, with heating function
H'Stars ultra-low temperature air source heat pump unit operates stably in the environment of -25℃ ~ 43℃, using air as a heat source, no pollutants are discharged, and 55 °C hot water is prepared to meet the demand of hot water between 35-55 °C. Heating function, suitable for direct air supply or floor radiation heating.
The ultra-low temperature air source heat pump is divided into two types: vortex and screw. It adopts the module design concept, and is used by a single machine or up to 8 modules. It is flexible and suitable for places with different loads and cooling and heating requirements.
Technical Parameters:
Cooling capacity range 25KW-30.1KW.
rated heating capacity 28.98KW
Input power 8.9KW.
Integrated IPLV 3.25
Hot water temperature range 35-55℃
Ambient dry and wet bulb temperature -12/-14℃
Refrigerant R22
Power Supply Specifications 3N-380V-50HZ
H'Stars heat pump features:
1. Vertical top-out wind design, small size, no need to set up another machine room, the project installation is simple;
2. The unit adopts Copeland heat pump jet booster compressor, and other major components are all internationally renowned brand components;
3. With intelligent control and defrosting function, 24-hour constant temperature water supply;
4. Freely set the required water temperature within 35-55 °C according to the needs of the place of use to meet the engineering needs;
5. The ambient temperature range: -25℃ - 43℃;
6. Indirect heating, water and electricity isolation, a variety of measures, no safety hazards;
7. With automatic power-off memory function, automatically start the unit after the call, no need to take care of.
