General
|
|
Frequency Range
|
UHF
|
|
Channel Capacity
|
16
|
|
Channel Step
|
25KHz(宽带), 12.5KHz(窄带)
|
|
Frequency Stability
|
±2.5ppm
|
|
Operating Voltage
|
3.7V DC ± 20% (1000mAh)
|
|
Operating Temperature
|
-20℃ ~ +60 ℃
|
|
Antenna Impedance
|
50Ω
|
|

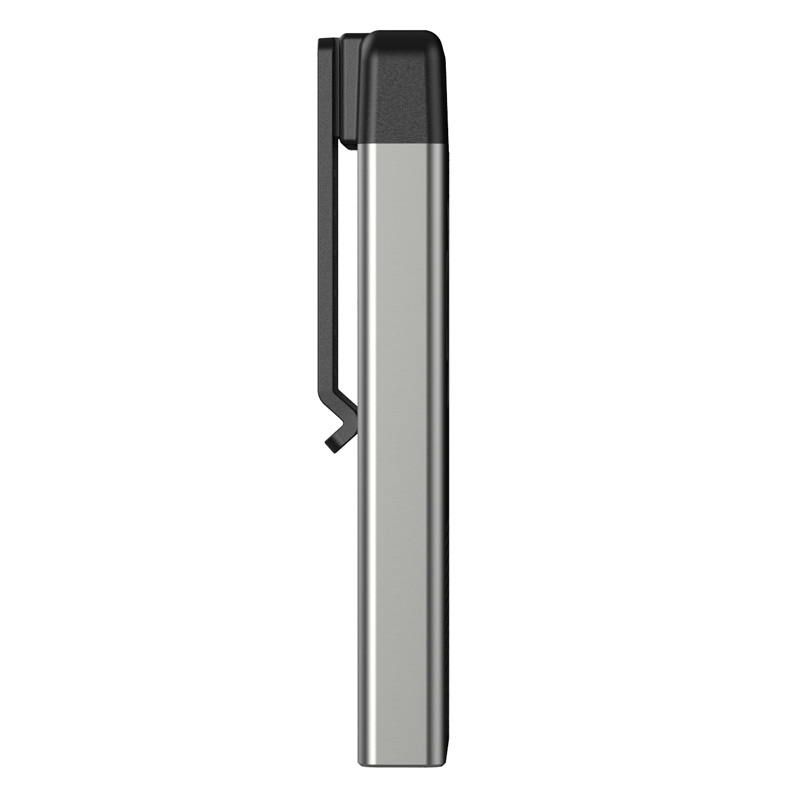

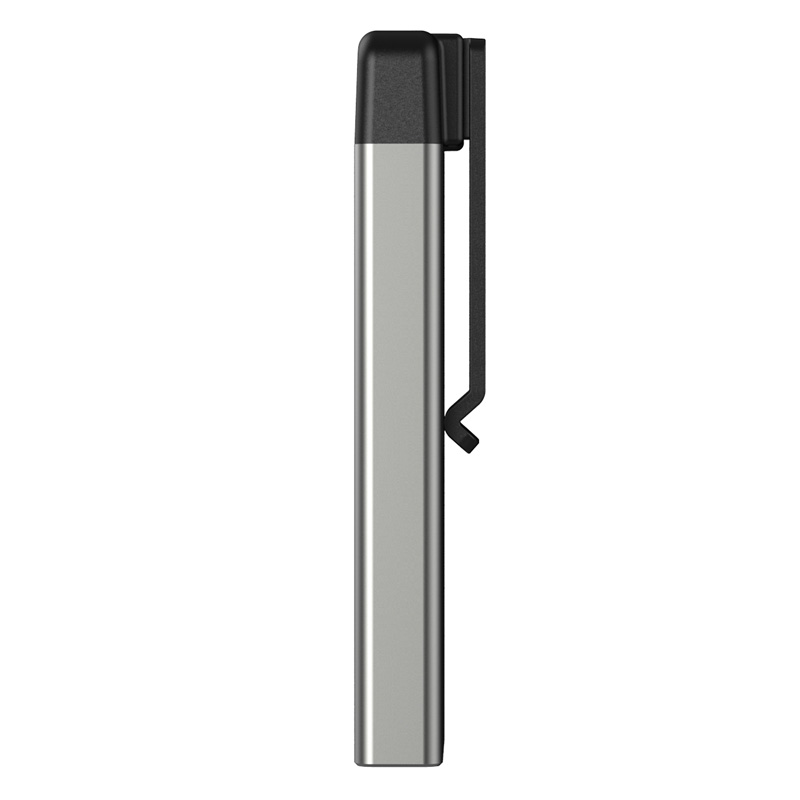

Dimension
|
108*42*13mm
|
|
Weight
|
60g
|
|
Transmitter
|
|
Output Power
|
≤2W
|
|
Modulationg Mode
|
≤5.0KHz, ≤2.5KHz (W/N)
|
|
Adjacent Channel Power
|
≥70dB
|
|
Signal Noise Ratio
|
≥45dB
|
|
Spurious Emission
|
≤-60dB
|
|
Audio Distortion
|
≤5%
|
|
Receiver
|
|
Sensitivity
|
0.2uV(at 12dB SINAD)
|
|
Intermodulation
|
60dB
|
|
Adjacent Channel Selectivity
|
65/50dB
|
|
Adudio Distortion
|
≤5%
|
|

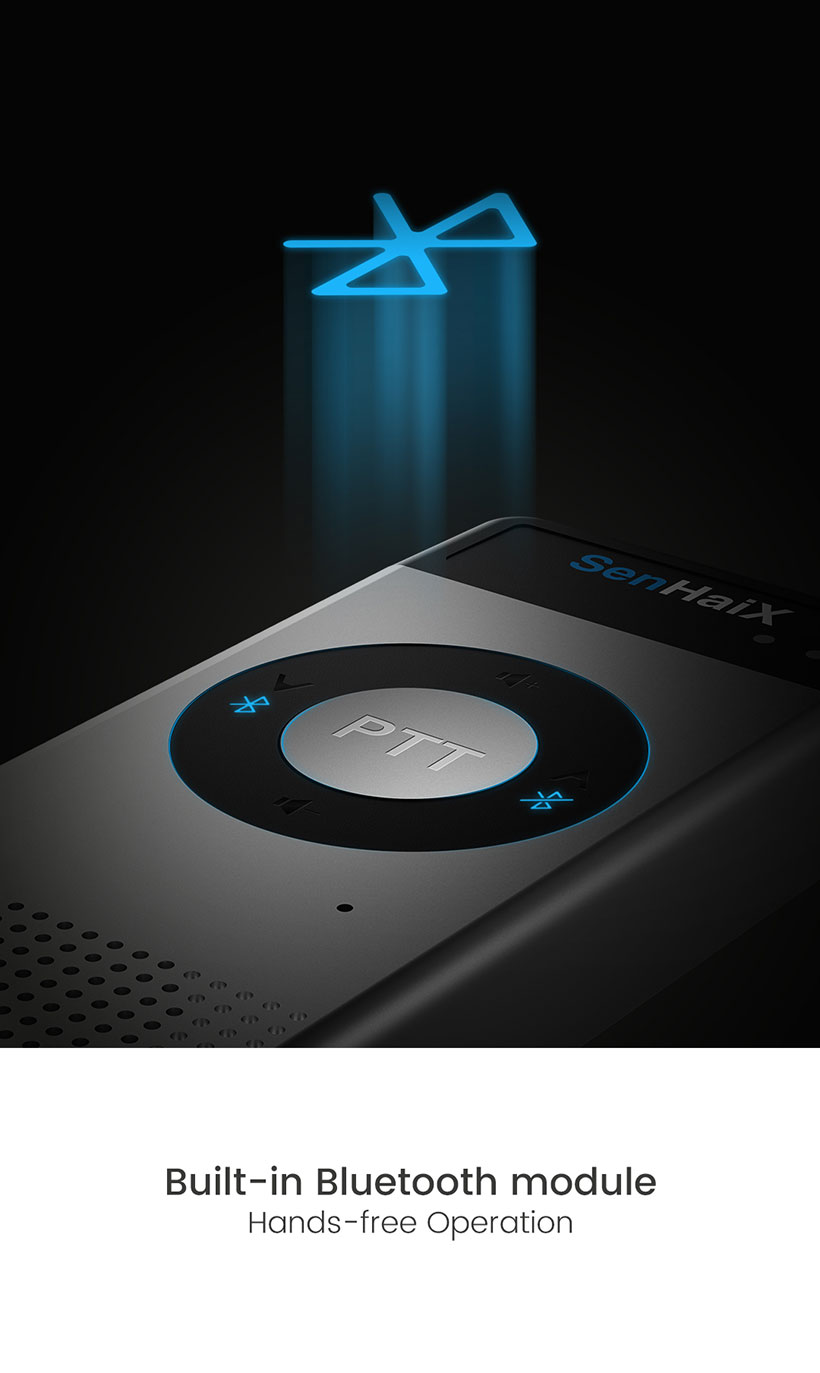

Bluetooth (Option)
|
|
Bluetooth
|
V2.1+EDR, BT4.1/BT4.2（ BLE）
|
|
Bluttooth Output Power Level
|
Class 1.5, Class 2
|
|
Bluetooth RX Sensitivity
|
LE GFSK 30.8%PER 1Mbps -93dBm
|
|
GFSK 0.1%BER 1Mbps -91dBm
|
|
π /4-DQPSK 0.01%BER 2Mbps -88dBm
|
|
8-DPSK 0.01%BER 3Mbps -86dBm
|
