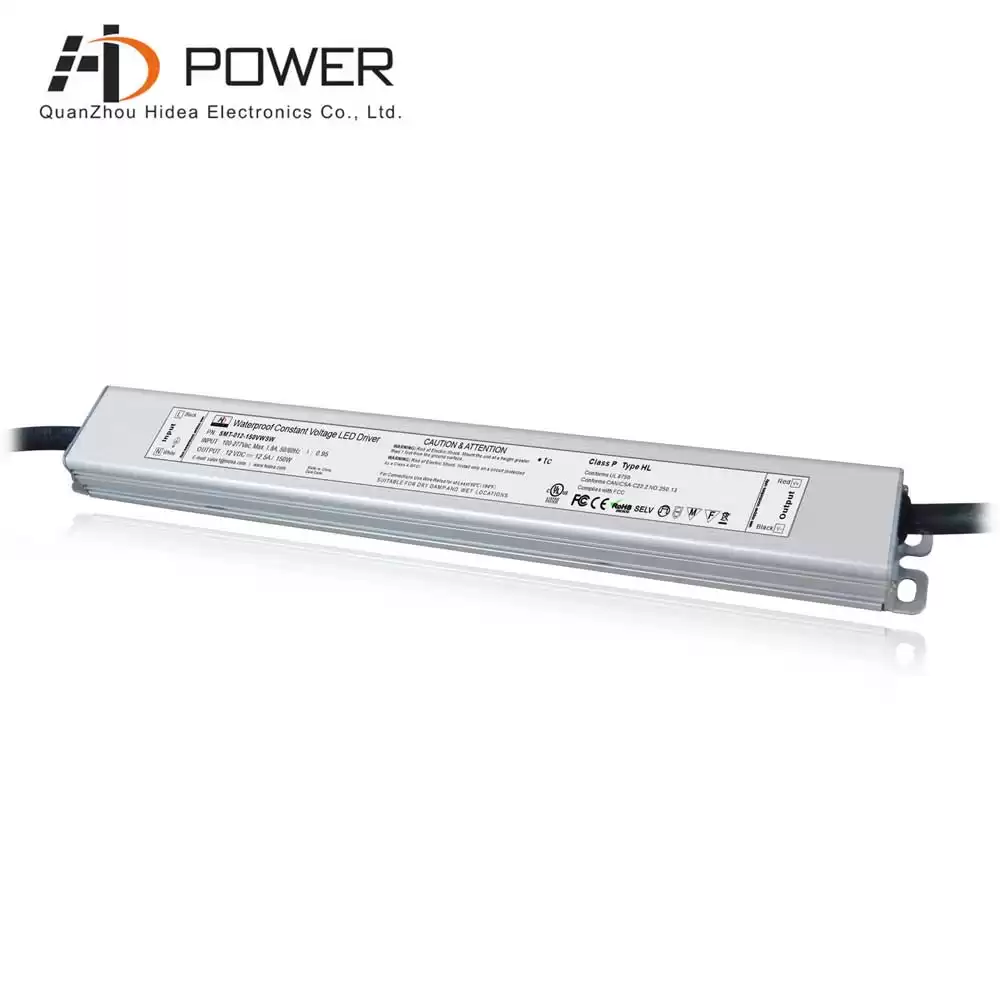

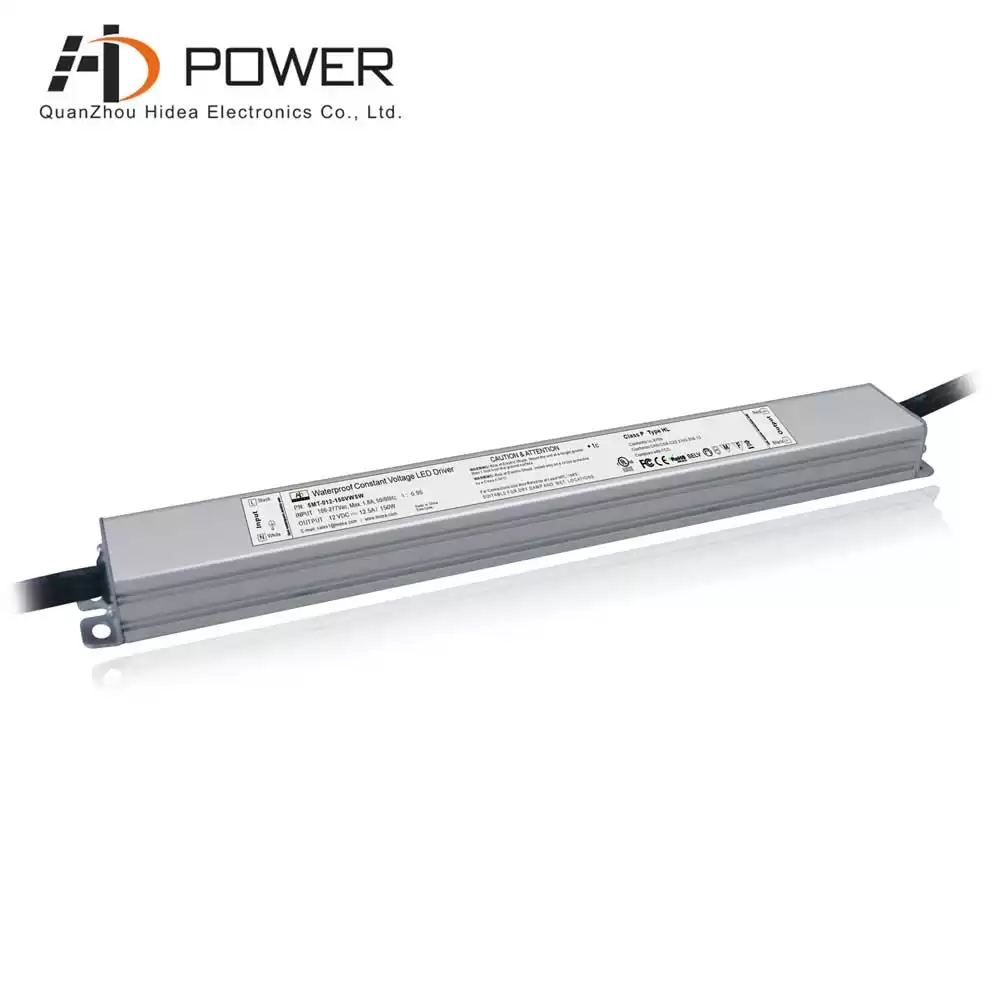

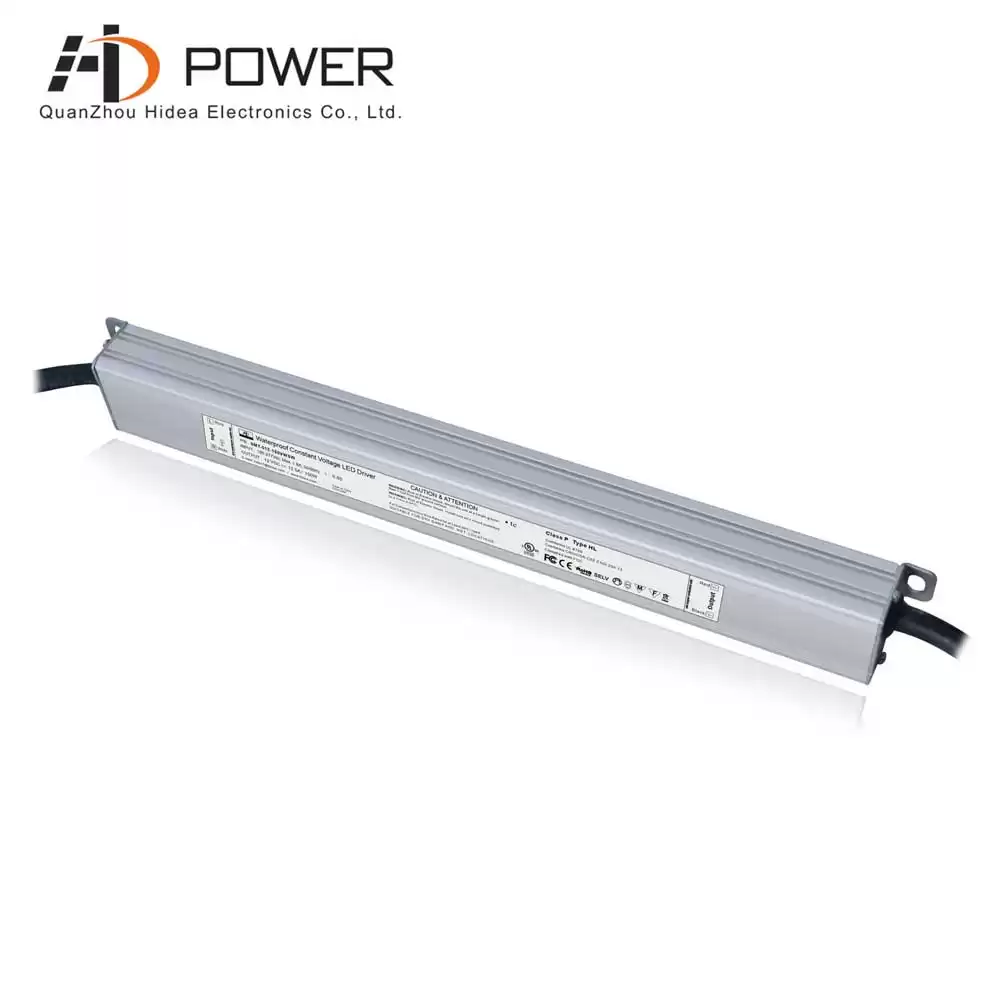

Ultra slim waterproof constant voltage led driver strip light power supply 24v 150w
Aluminum shell design, constant voltage 24v 150w led driver, input voltage range is 100-277vac, working efficiency is up to 84%, UL certified, mainly sold to North America, complies with global safety lighting regulations, has 7-year warranty
Label
Specification
|
Model
|
SMT-012-150VWSW
|
SMT-024-150VWSW
|
SMT-036-150VWSW
|
SMT-048-150VWSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
36VDC
|
48VDC
|
|
Voltage Accuracy
|
±5%
|
|
Rated current
|
12.5Amp
|
6.25Amp
|
4.16A
|
3.125A
|
|
Rated power
|
150W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
0.99@120VAC; 0.98@230VAC; 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<15%@120VAC <20%@230VAC <20%@277VAC
|
|
Full Load Efficiency(Typ.)
|
83%@120VAC; 85%@230VAC; 85%@ 277VAC
|
|
AC Current(Typ.)
|
1.4A/100VAC / 0.82A/230VAC / 0.43A/277VAC
|
|
Inrush Current(Typ.)
|
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC; 12A,50%480us@277VAC
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P: 3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100M Ohms/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≥60%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
|
|
Others
|
Weight
|
0.55Kg
|
|
Size
|
330*32*23mm (L*W*H)
|
|
packing
|
50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 220VAC, 277VAC input ,Rated load and 25℃of ambient temperature.
|
|
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
Each sign and components are tested to the highest standards including CE-EMC, CE-LVD and RoHs 12vdc 24vdc led power supply.
Related Products
|

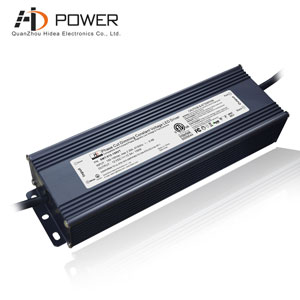

 triac dimmable led driver 150W 24V aluminum shell design, waterproof grade ip67, can effectively prevent water and dust, provide stable and safe protection for lamps and power supplies, UL certified, mainly sold to North America
