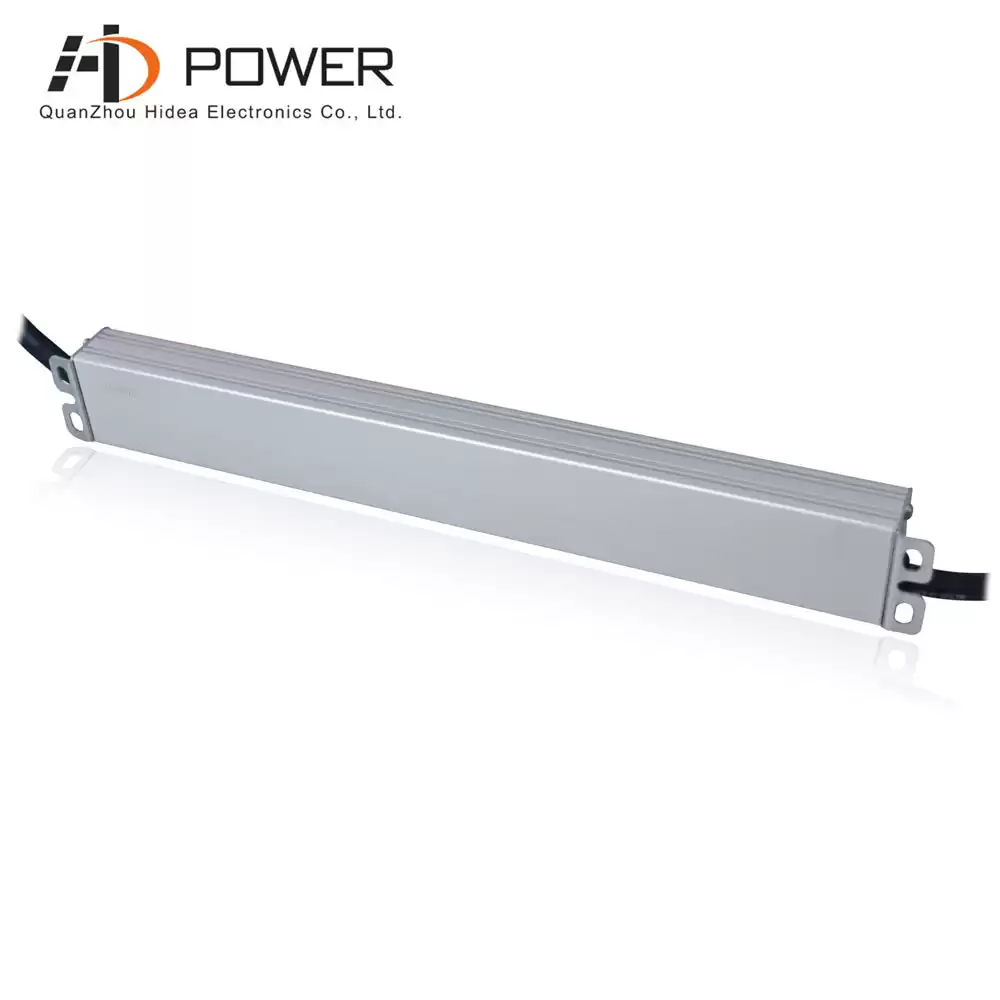

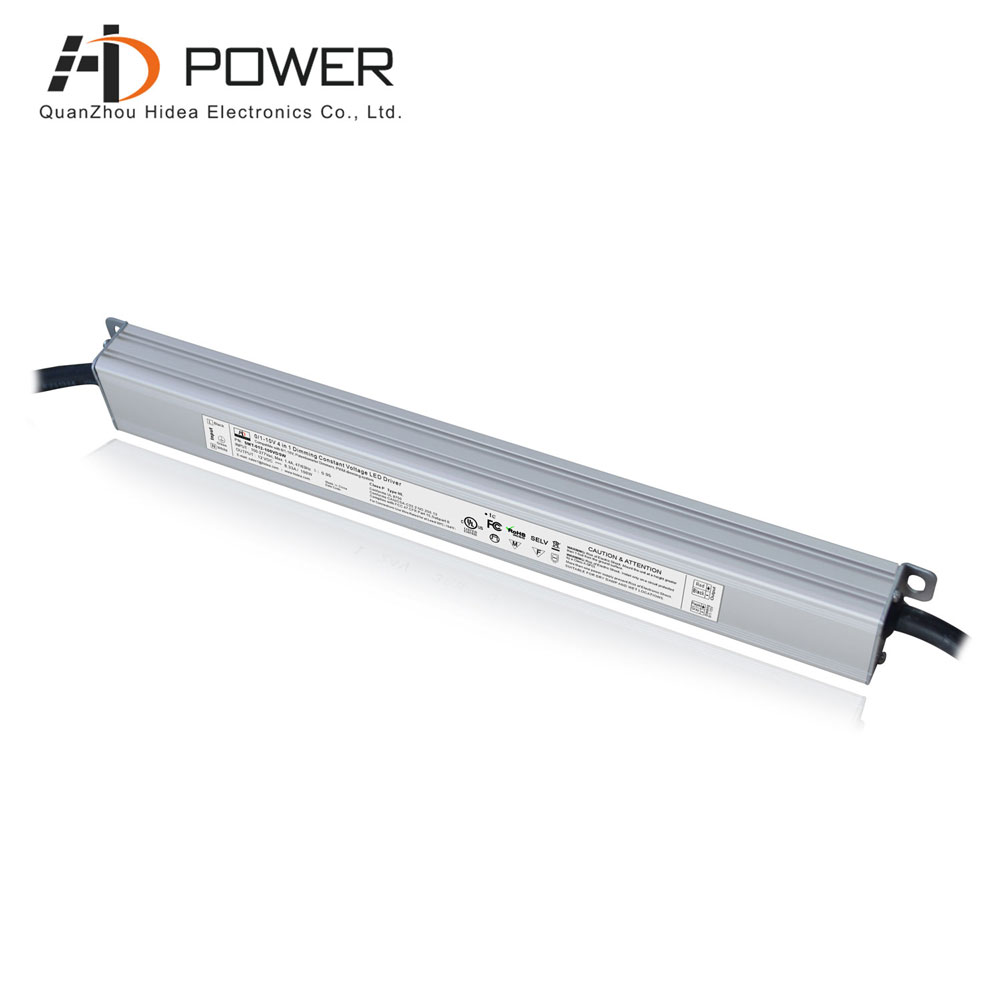

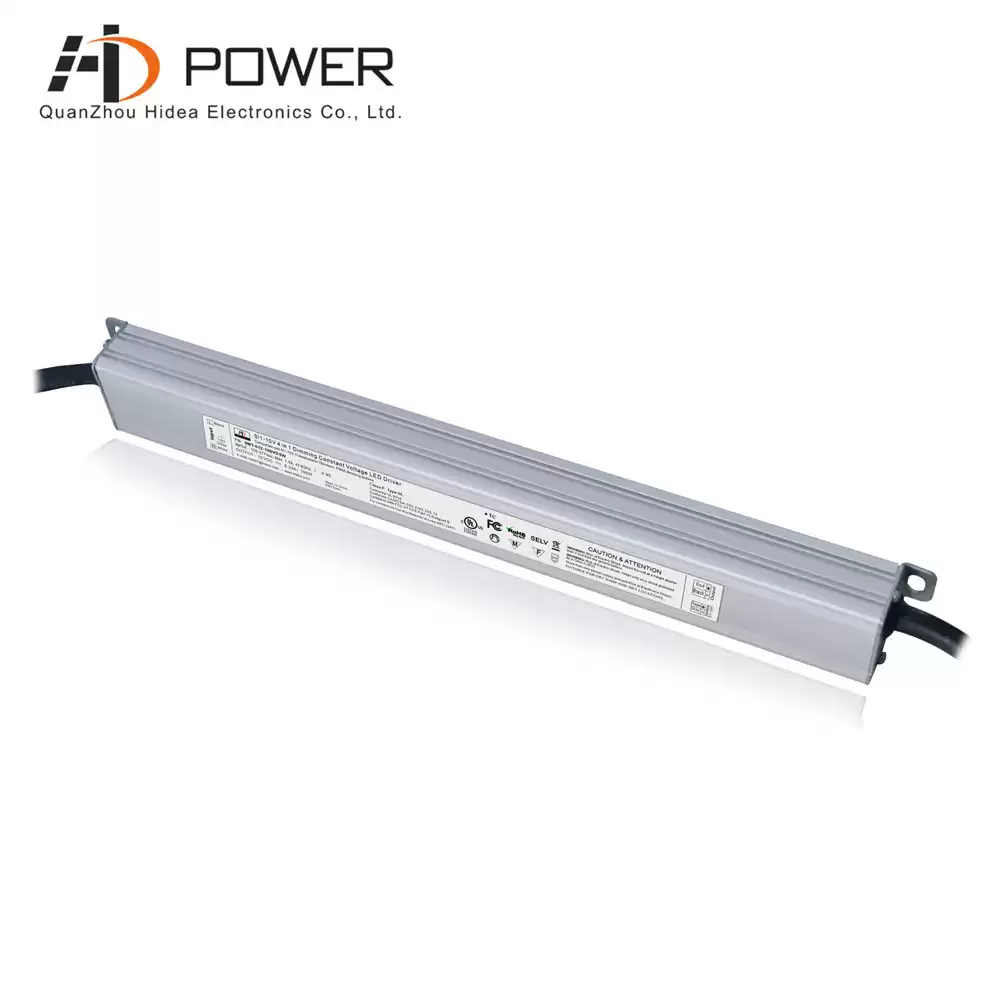

Ultra -thin 0 10v dimmable constant voltage waterproof ip67 led driver 24 volt 96W for led lights
100-277vac Input voltage 24v 96W dimmable led power supply, UL certified Mainly sold to North America, has strong compatibility, can be well compatible with SANSI LED's 96W LED floodlight, achieving smooth flicker-free dimming

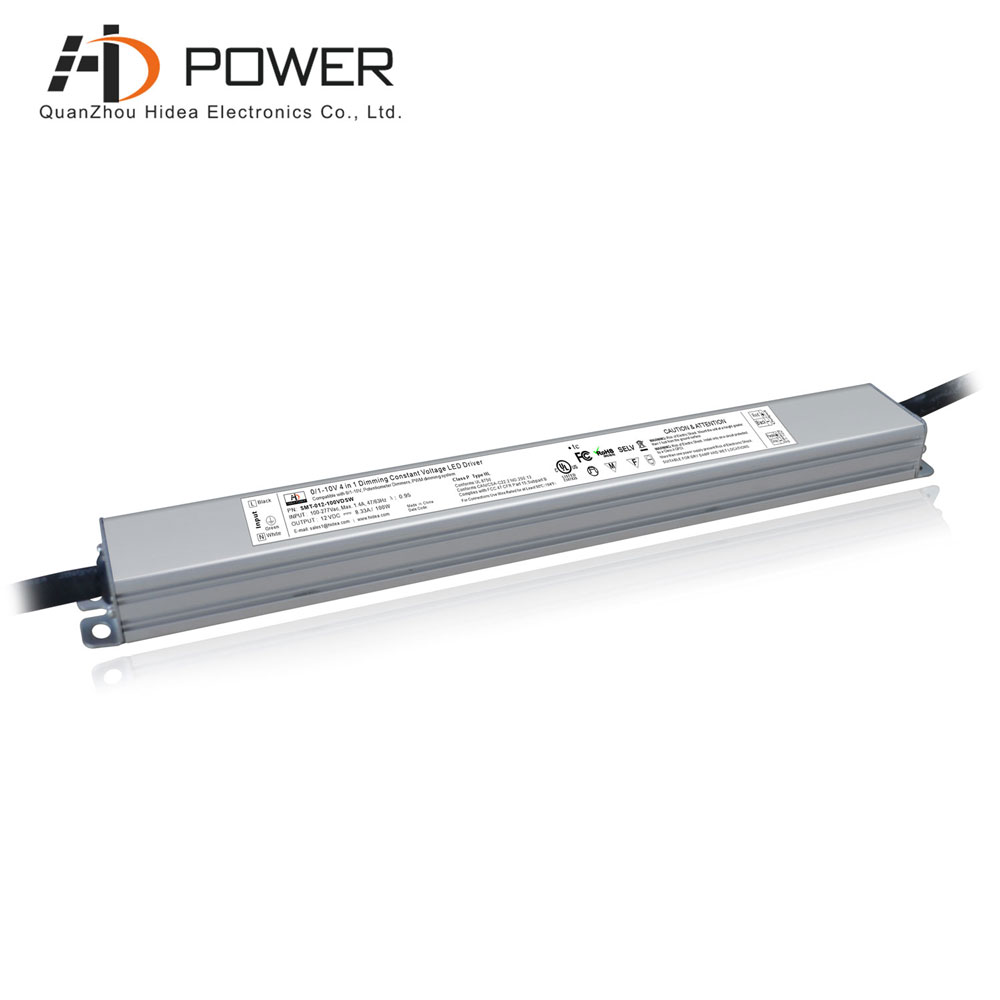

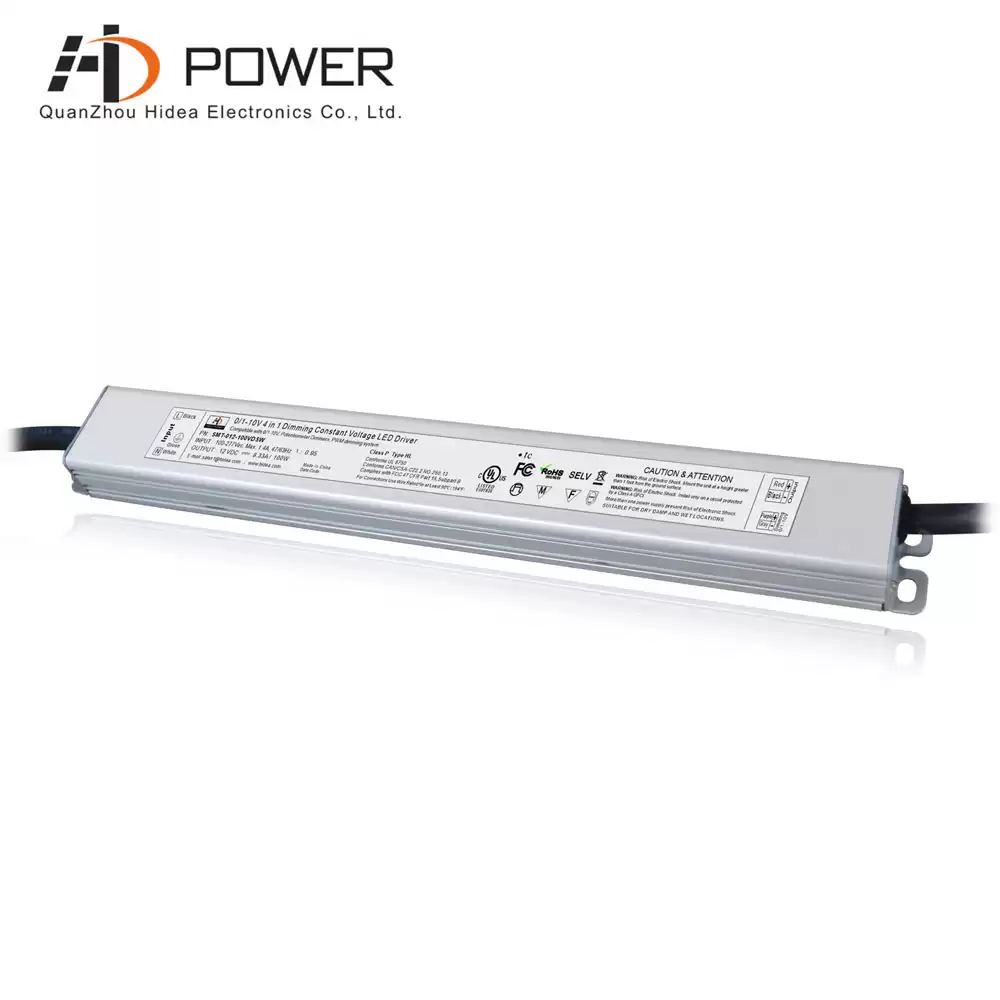

Label
Specification
|
model
|
SMT-012-100VDSW
|
SMT-024-096VDSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
8.33Amp
|
4Amp
|
|
Rated power
|
100W
|
96W (class 2)
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.99/110V ; PF≧0.95/277V
|
|
THD(Typ. ) @ full load
|
<10%@120VAC <15%@277VAC
|
|
Full Load Efficiency(Typ.)
|
84%@120VAC, 86%@277VAC
|
85%@120VAC, 88%@277VAC
|
|
AC Current(Typ.)
|
1.40A
|
|
Inrush Current(Typ.)
|
11A,50%,1.04ms@110V, 27A,50%,960us@277V
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750 ,CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P: 1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, ,Alight industry level
|
|
Others
|
Weight
|
0.55Kg
|
|
Size
|
330*32*23mm (L*W*H)
|
|
packing
|
360*27*17.5mmmm , 50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,
|
|
Rated load and 25℃of ambient temperature.
|
|
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|

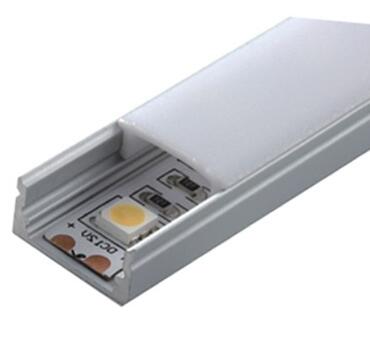

Compatible Light Type
Waterproof electronic led driver in 12vdc or 24vdc type are UL listed, slimline size design use, max. height about 20mm be used in narror area, work with NATECH LIGHTING Linear/aluminium bar 12v.
Related Products
|

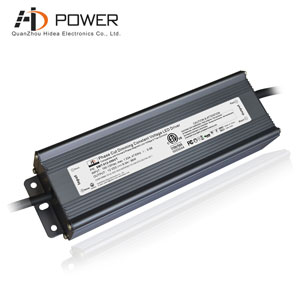

 triac dimmable led driver 96W 170-265vac input voltage aluminum shell design, waterproof grade ip67, built-in PFC function, working efficiency up to 83%, using free air convection cooling, 5-year warranty
Mode：SMT-024-096VT
Dimming Mode : triac Dimming
Output Power : 96W
intput voltage：170~265V AC
Size：230*68*45MM （L*W*H）
|
