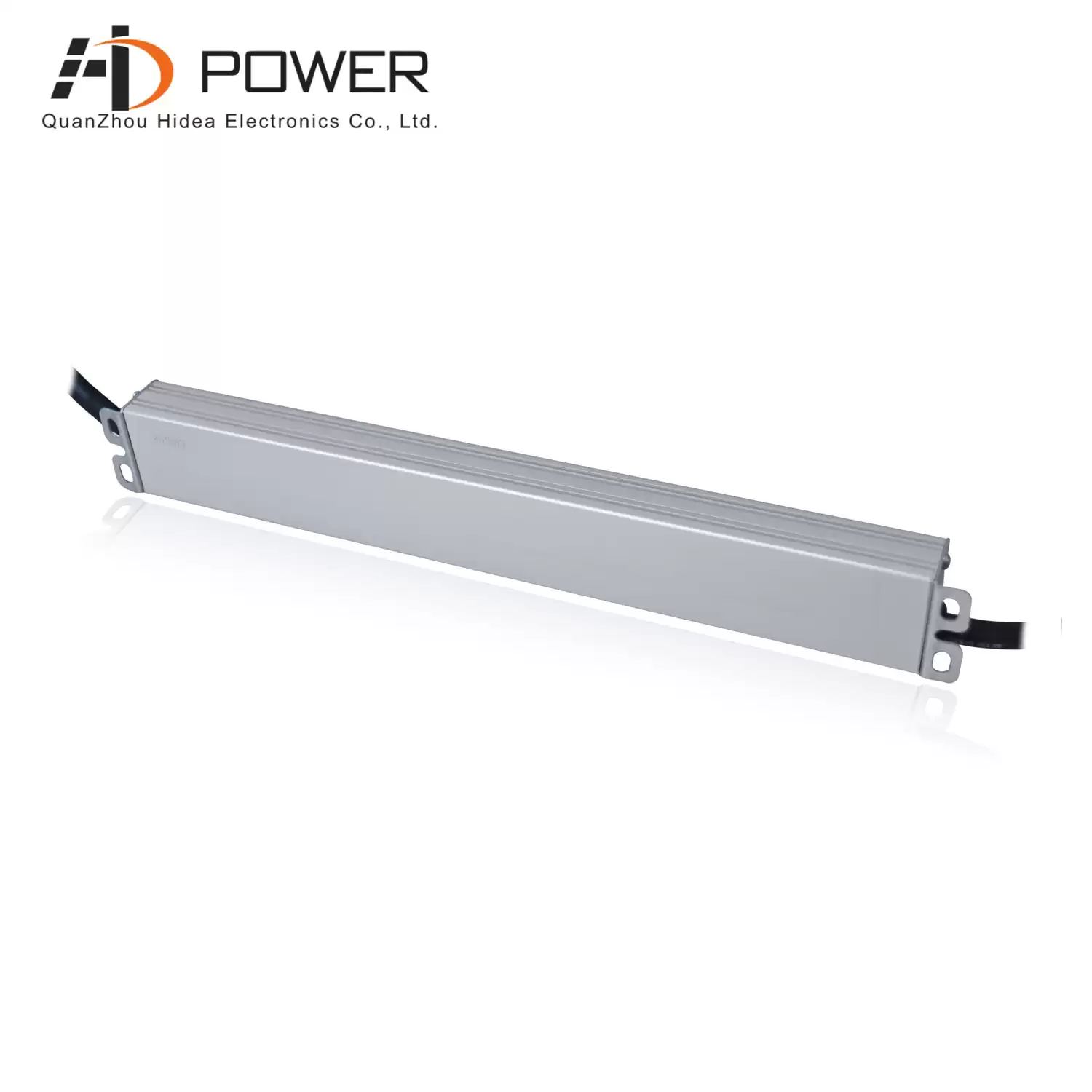

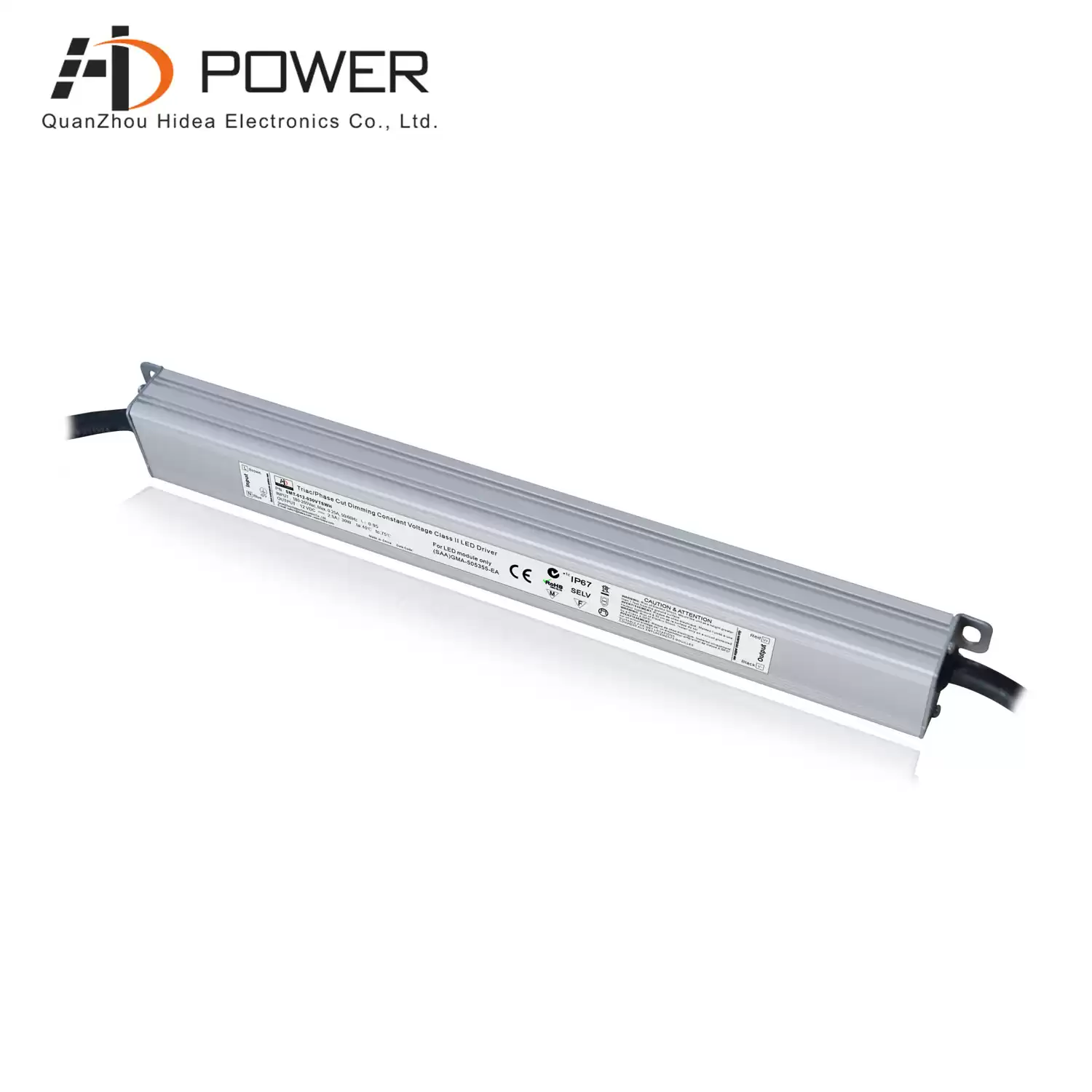

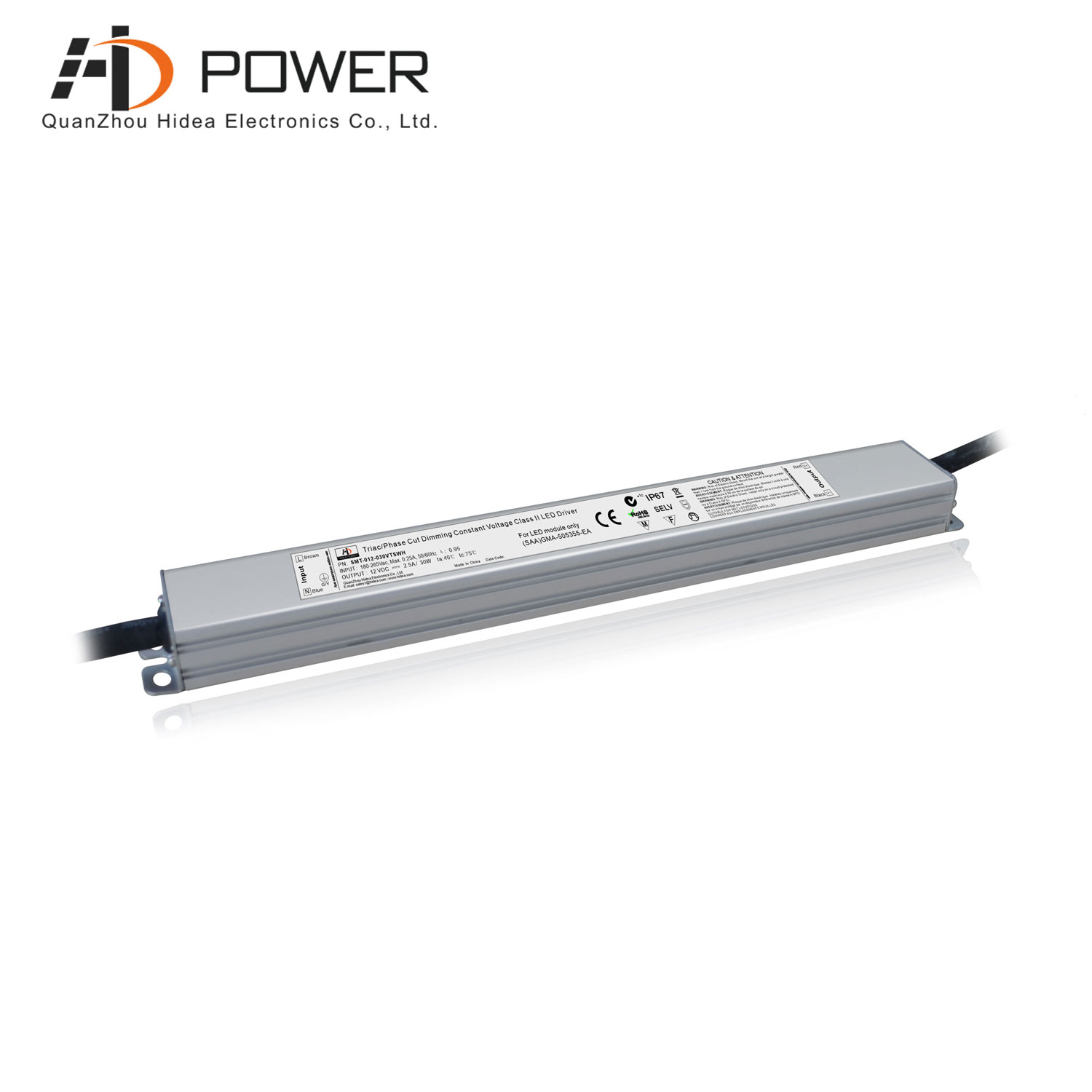

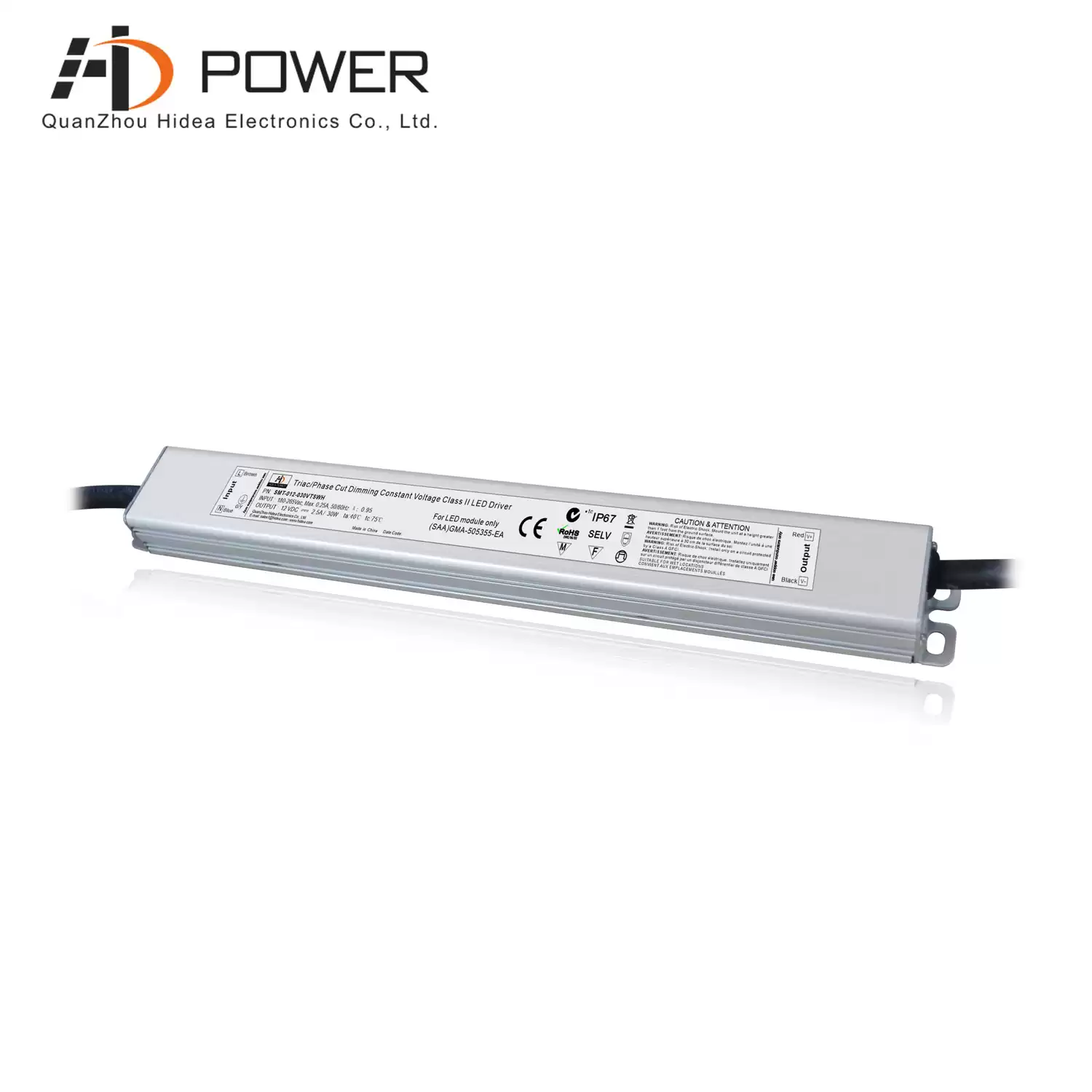

ultra-thin 12v 30W triac dimmable waterproof led strip light power supply ip67
hidea power 30W 5 in 1 dimming led driver ip67 can be used for indoor and outdoor installation waterproof design, free air convection cooling design, can protect the power supply from damp short circuit or overheating short circuit, we provide a 7-year warranty, quality guarantee
Specification
|
model
|
SMT-012-030VTDSWH
|
SMT-024-030VTDSWH
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Tolerance
|
±0.5
|
|
Rated current
|
2.5Amp
|
1.25Amp
|
|
Rated power
|
30W
|
30W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
|
Input
|
Voltage Range
|
200-240VAC
|
|
Frequency Range
|
47 - 63Hz
|
|
Power Factor ( Typ.)
|
PF≥0.96/230VAC
|
|
THD(Typ. ) @ full load
|
< 20%
|
|
Full Load Efficiency(Typ.)
|
79%
|
78%
|
|
AC Current(Typ.)
|
0.25A
|
0.25A
|
|
Inrush Current(Typ.)
|
40.8A,50%,102us
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode,recovers automatically after fault condition is removed
|
|
Over Load
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃
|
|
Protection Class
|
I
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20 - 95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40 - +80℃,10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 - 50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 EN62493 IP66
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
EN55015 EN61000-3-2 EN61000-3-3
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11 EN61547
|
|
Others
|
Weight
|
0.35Kg
|
|
Size
|
260*32*20mm(L*W*H)
|
|
packing
|
290*270*160mm/ 30pcs /CTN G.W.: 11KG/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Related Products
|

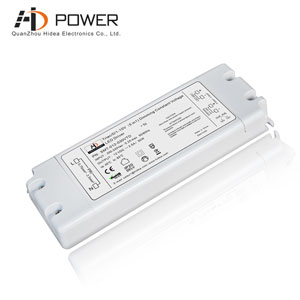

triac 0-10v dimming led driver 12v 30W plastic housing, operating mode is constant voltage output
