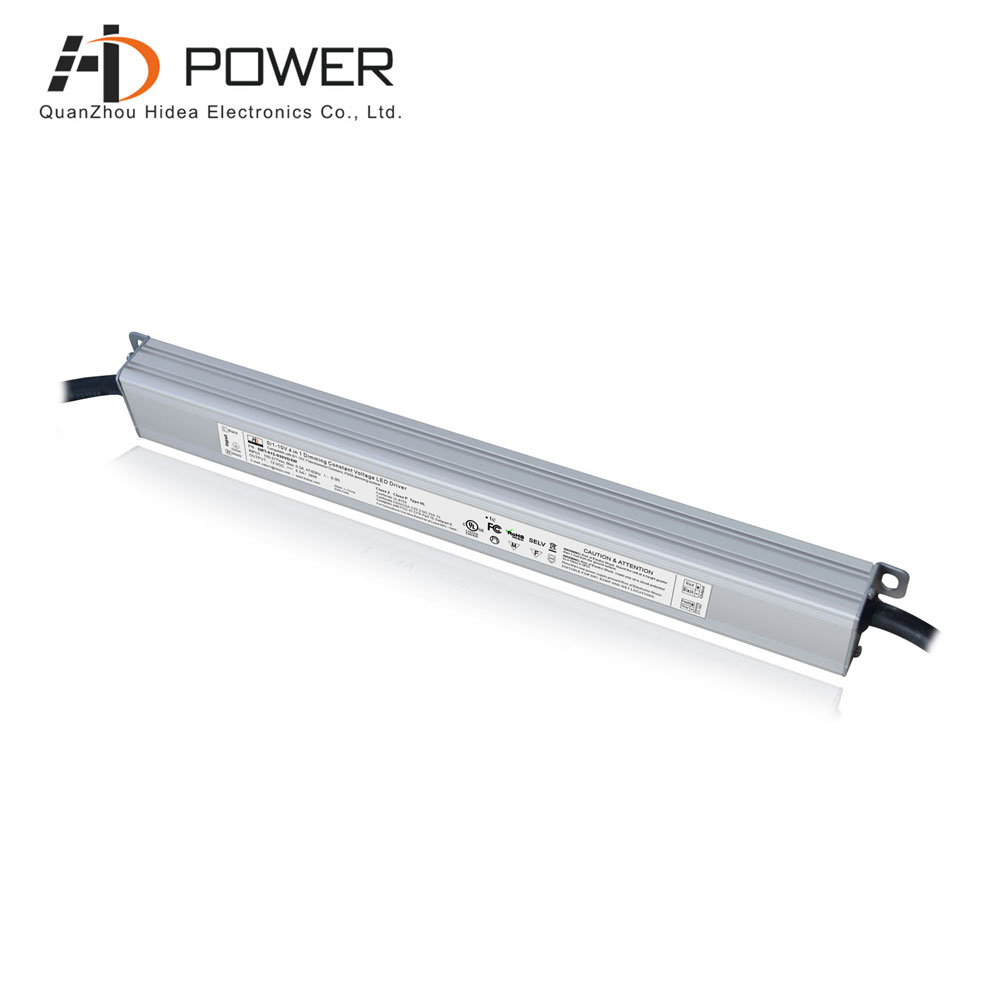

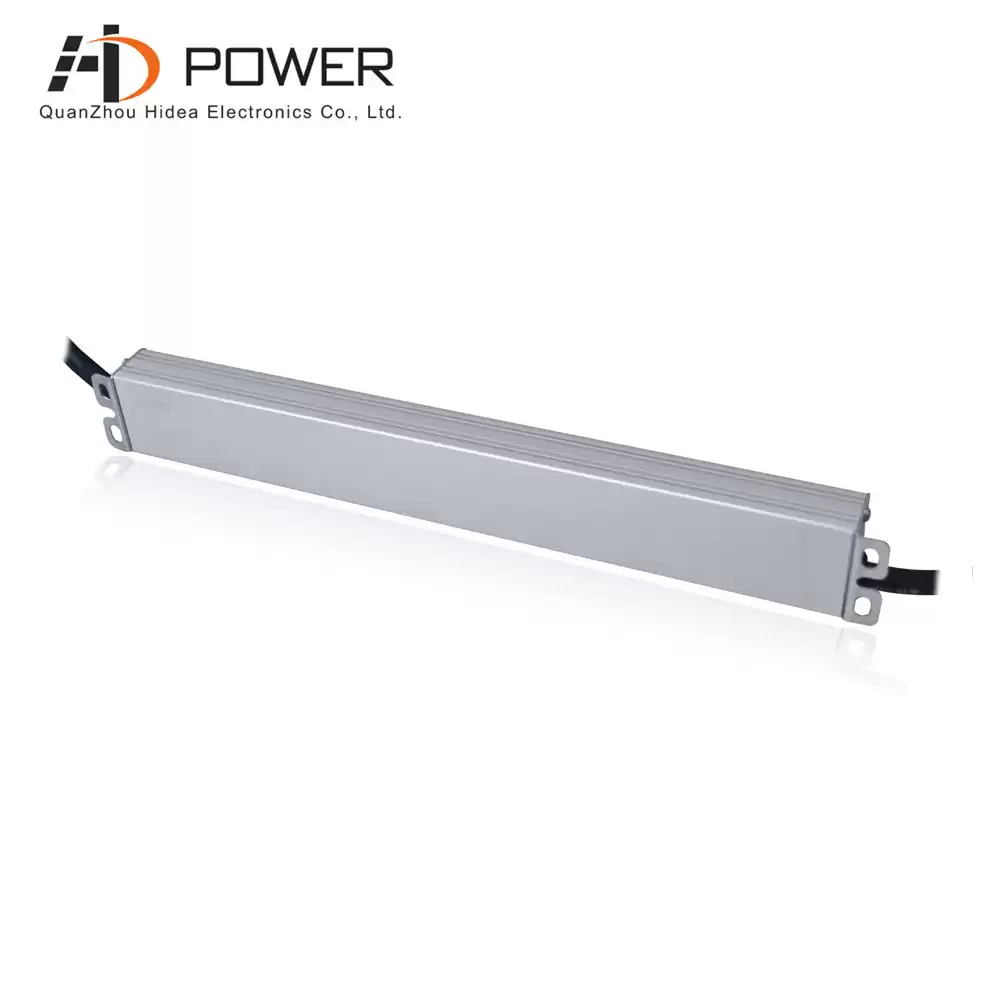

ultra thin 30w led driver waterproof power supply 12v
This 12v 30w slim ultra thin led driver is input range 100-277VAC, UL listed, compatible with LUTRON MLV dimmers.
- Shape & SizeSlim Size
- Output Voltage12/24Vdc
- Output Power(Watt)30W
- Input Voltage100-277Vac
- Working ModeConstnat Voltage LED Driver
- Dimming Mode0-10V Dimming
- Size260*32*20MM
- Weight350g
- CertificationUL/CUL
- Warranty7 Years

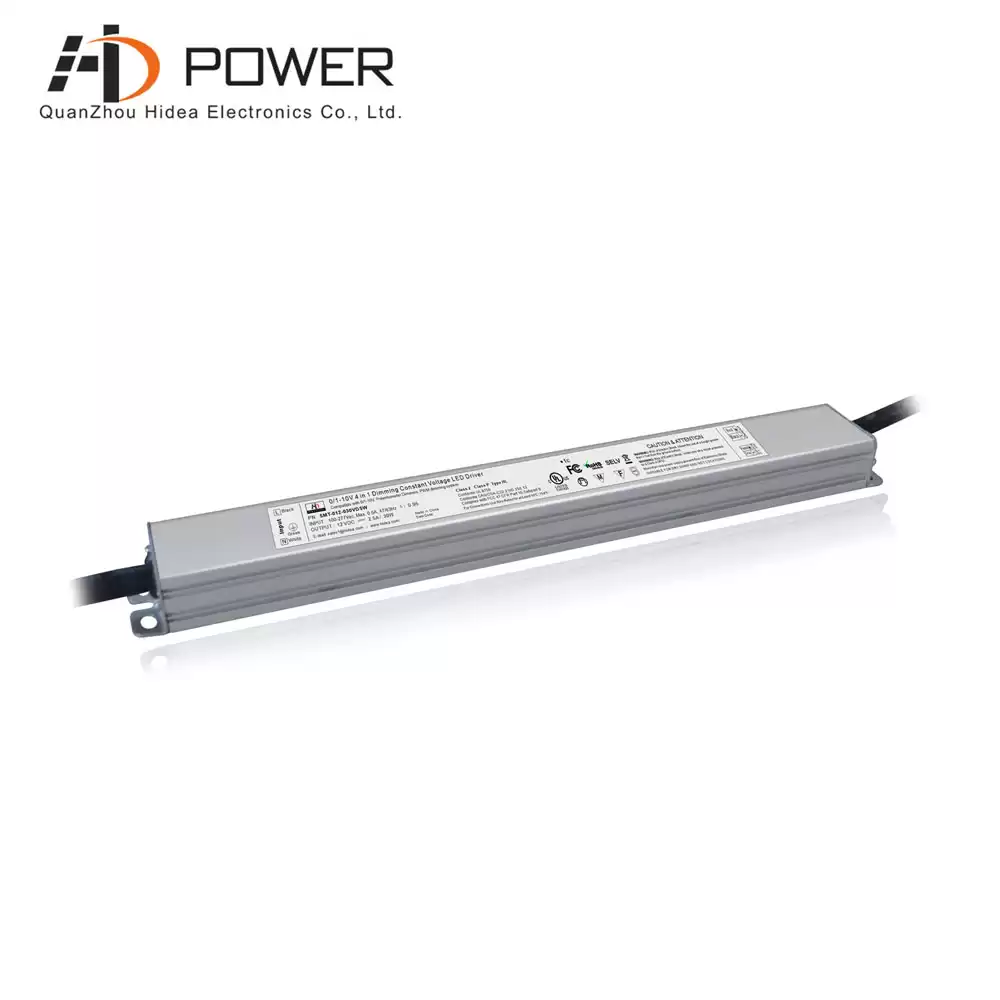

Ultra thin 30w led driver waterproof power supply 12v
UL listed 30w waterproof LED power supply for led strips outdoor use, 12vdc or 24vdc avalible, 7 years warranty and flicker free, DIODELED led strip lights are able to work with.
Label
Specification
| model | SMT-012-030VDSW | SMT-024-030VDSW | |
| Output | DC Voltage | 12VDC | 24VDC |
| Voltage Accuracy | ±5% | ±5% | |
| Rated current | 2.5Amp | 1.25Amp | |
| Rated power | 30W | 30W | |
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input | Voltage Range | 100-277 VAC | |
| Frequency Range | 47~63HZ | ||
| Power Factor ( Typ.) | PF≧0.99/110V ; PF≧0.98/277V | ||
| THD(Typ. ) @ full load | <10%@120VAC <15%@277VAC | ||
| Full Load Efficiency(Typ.) | >84% | >85% | |
| AC Current(Typ.) | 0.5A | ||
| Inrush Current(Typ.) | 5A, 50%, 960us @120VAC; 13A, 50% , 1ms @277VAC | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Loading | ≤120% shut down o/p voltage, re-power on to recover | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Environment | Working TEMP. | -40~+60℃ | |
| Working Humidity | 20~90%RH,non-condensing | ||
| Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | UL8750 +UL 1310, CAN/CSA-C22.2 No.250.13 | |
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | FCC 47 CFR Part 15 ,Subpart B | ||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level | ||
| Others | Weight | 0.35Kg | |
| Size | 260*32*20mm (L*W*H) | ||
| packing | 290*270*160mm , 50PCS/CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,Rated load and 25℃of ambient temperature. | ||
| 2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||
Compatible Light Type
Dimmable led driver 12vdc 24v outdoor rated are suitable for using in dry, damp and wet locations, UL listed class 2, class P, type HL standard, work with Ribbon Star MegaLux, White LED Strip Light ETL.
Related Products
|

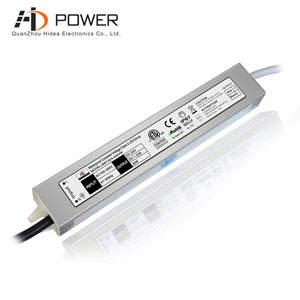

Mode：SMT-012-030VW
